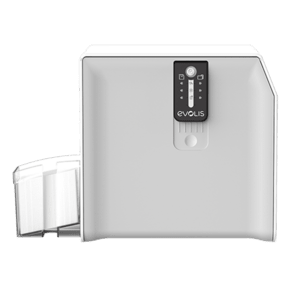

The Evolis Card Lamination Module S10212 (CLM) turns an Evolis Primacy or Primacy 2 into a Primacy Lamination system: right after printing, it heat-seals a clear or holographic patch or varnish onto the card. Lamination protects cards against wear, UV and scratches, extends their life by up to 10 years and makes counterfeiting much harder. The module laminates up to 215 single-sided or 110 dual-sided cards per hour and docks onto the printer via infrared in one easy step.
📦 What's in the box – S10212
- Card Lamination Module (CLM, LED panel) – lamination unit with built-in card flattener, 100-card output hopper and reject tray
- Power supply + power cord – 24 V DC supply for the module
- Infrared connection kit – links the module to the Primacy / Primacy 2 printer – no data cable needed
💡 To get started, you might also consider a lamination film – clear patch or clear varnish – for use with your Evolis Primacy or Primacy 2.
Key Features
- Add-on for Primacy and Primacy 2 – docks onto the printer and communicates by infrared; ready in minutes
- Patches and varnishes – clear or holographic patches (0.5, 0.6 or 1.0 mil, 600 sides/roll) and varnish (1,200 sides/roll)
- Single- and dual-sided lamination – up to 215 cards/hour single-sided, 110 cards/hour dual-sided (YMCKO-K)
- Up to 10 years card life – protection against abrasion, UV, chemicals and tampering
- Security holograms – generic or custom holographic films for visible anti-counterfeiting
- Built-in card flattener – cards leave the module perfectly flat; 100-card output hopper and reject tray
- Stand-alone use possible – laminates cards from other printers with a USB connection (cable A5017 separately)
Ideal Applications
- Long-life employee and government ID cards
- Driving-licence-style and high-security identity documents
- Student and campus cards used every day
- Access-control cards with visible holographic security
- Healthcare and industrial cards exposed to cleaning agents or abrasion
- Membership and loyalty cards with a premium finish
Technical Specifications
| Part Number | S10212 |
|---|---|
| Model | Evolis Card Lamination Module (CLM) for Primacy – LED version |
| Product Type | Add-on card lamination module (Primacy Lamination) |
| Compatibility | Evolis Primacy (S/N 10000295187 or later, built after March 2013) and Primacy 2; stand-alone use with any card printer via USB (cable A5017) |
| Lamination | Heat-roller lamination (infrared quartz tube, approx. 180 °C) with built-in card flattener; single- and dual-sided lamination (flip-over) |
| Lamination Speed | Up to 215 cards/hour single-sided; up to 110 cards/hour dual-sided (YMCKO-K) – depends on the printer |
| Lamination Films | Clear or holographic patch 0.5 / 0.6 / 1.0 mil (600 sides per roll); clear or holographic varnish (1,200 sides per roll); pre-cut and alternate films for chip / magnetic cards |
| Card Types | PVC, composite PVC, PET and polycarbonate cards |
| Card Thickness | 0.76 mm (30 mil) |
| Card Format | ISO CR80 – ISO 7810 (85.6 × 54 mm) |
| Card Feeder / Hopper | Output hopper 100 cards, reject tray 100 cards |
| Interfaces | Infrared link to the printer (kit supplied); USB for stand-alone use |
| Display | LED panel; notifications via Evolis Premium Suite |
| Drivers & Software | Evolis Premium Suite driver: speed, temperature, lamination mode, card type, standby |
| Power Supply | 24 V DC power supply (supplied) |
| Dimensions | System with printer (H × W × D): 269 × 205 × 753 mm; module 269 × 205 × 370 mm |
| Weight | Approx. 6 kg (module); 10 kg as a complete Primacy Lamination system |
| Warranty | 3 years; 1-year extension available (EWPL112SD) |
| In the Box | Evolis Card Lamination Module CLM (LED panel, built-in card flattener, 100-card output hopper + reject tray), power supply + power cord, infrared connection kit |
Pair the module with a Primacy 2 printer from our range. Compare other models in our Plastic Card Printers collection or contact our team for volume pricing.
Accessories
| Product | Price | ||
|---|---|---|---|
| Evolis clear patchLPS028NAA | 130,36 €+VATOut of Stock | View | |
| Evolis Clear PatchLPS032NAA | 111,17 €+VATOut of Stock | View | |
| Evolis generic holo patchLPS029NAA | 181,16 €+VATIn Stock | ||
| Evolis clear varnishLVA038NAA | 140,89 €+VATIn Stock | ||
| Evolis generic holo varnishLVA036NAA | 221,40 €+VATIn Stock | ||
 |
Plastic cardsC4001 | 65,06 €+VATIn Stock | |
 |
Plastic cardsC4002 | 59,64 €+VATIn Stock | |
| Evolis Advanced Cleaning KitACL002 | 37,26 €+VATOut of Stock | View | |
| Evolis warranty extension, 1 yearEWPL112SD | 333,45 €+VATOut of Stock | View |
