Datalogic Magellan 9900i Counter Scanner (99111001000-000100)

The Datalogic Magellan 9900i is a multi-plane (bi-optic) in-counter barcode scanner with a low 6.8 cm / 2.7 in tower for high-throughput assisted and self-checkouts. The low profile frees space at the checkstand for touchscreens, payment terminals and receipt printers and helps meet accessibility (ADA) requirements. Its QuadVision™ platform – a multi-core IMX8 processor with four cameras (two horizontal, two vertical) – captures several high-resolution images of every item and reads 1D, 2D, GS1 DataBar and Digimarc® codes in the largest scan volume in its class; an optional Top Down Reader adds a sixth reading side. This version, 99111001000-000100, is the medium scanner (39.9 cm) with a fixed produce rail with ScaleSentry™ and shelf mount, supplied as the scanner only – interface cable and power supply are ordered separately.

Key Features

• QuadVision™ imaging – a multi-core IMX8 processor and four cameras (two horizontal, two vertical) capture several high-resolution images per scan, so even difficult and damaged 1D/2D barcodes, Digimarc® codes and GS1 Digital Link codes are read first time in the largest scan volume in its class.
• Loss prevention, AI-ready – ScanSentry™ detects items crossing the platter without a barcode read and alerts the POS; the produce rail with ScaleSentry™ flags items lying outside the platter; integrated EAS antenna support for Checkpoint and Nedap plus a Sensormatic deactivation controller; color Top Down Readers enable AI workflows such as produce recognition.
• Low 6.8 cm / 2.7 in tower – the popular low-profile Magellan form factor gives more freedom to place POS or self-checkout screens, payment terminals and printers and suits seated cashiers and ADA-compliant lanes; three chassis lengths, shelf or flange mounting (conversion kits available) and capacitive touch buttons with smooth, easy-to-clean surfaces.

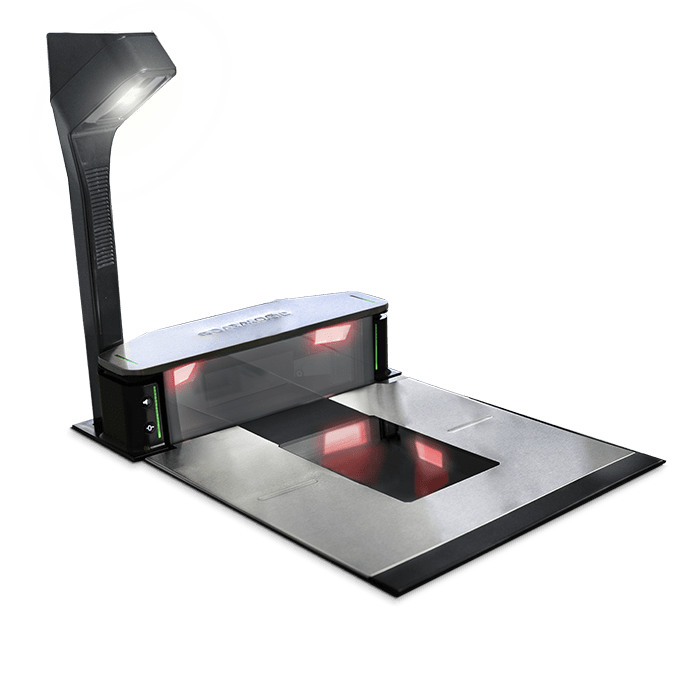

• Optional Top Down Reader – available in 3 heights (17.8, 22.8 and 31.5 cm), it expands the scan volume by 20% for an industry-unique 6-sided view of every item; versions with an integrated customer-facing reader let shoppers scan phones and coupons while the cashier keeps scanning.
• Connected checkout – multi-interface RS-232 and OEM (IBM) USB Plus Power, one Ethernet port as standard, two powered USB Type A host ports, powered RS-232, remote scale display and EAS controller ports; optional customer-facing reader for phones and coupons.
• Open, manageable platform – embedded Linux; works with Windows 10, Linux and Android POS systems; OPOS/JavaPOS utilities, free Aladdin configuration software, Magellan SDKs and remote management (WMI, MBeans, IBM Director, Wavelink Avalanche); 1-year factory warranty.

Ideal Applications

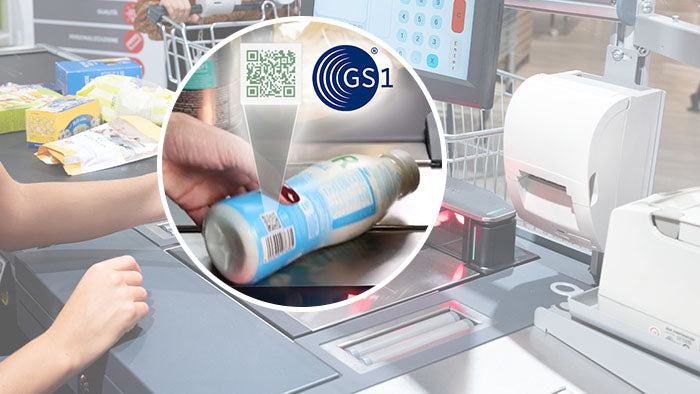

• Supermarket and grocery checkout lanes (installed in the counter)
• Self-checkouts and assisted checkouts
• Checkstands with limited space or accessibility (ADA) requirements, thanks to the low tower
• Hypermarkets and other high-volume retail checkouts
• Loss-prevention projects with ScanSentry and AI-based item recognition
• Reading mobile coupons, loyalty cards and GS1 Digital Link codes

Technical Specifications

The Magellan 9900i shares the QuadVision imaging platform of the Magellan 9600i but has a low 6.8 cm tower – choose the 9600i if you prefer the taller 13.4 cm tower. This version is supplied as the scanner only: add the cable for your POS system (OEM (IBM) USB POT for IBM/Toshiba terminals, USB Type A with external power for a PC, or RS-232) and – except with the OEM USB cable – the power supply and a power cord. Need an integrated weighing scale, a Top Down Reader or another platter length? Ask us about other Magellan 9900i configurations. Compare other models in our In-Counter Barcode Scanners collection or contact our team for volume pricing.
