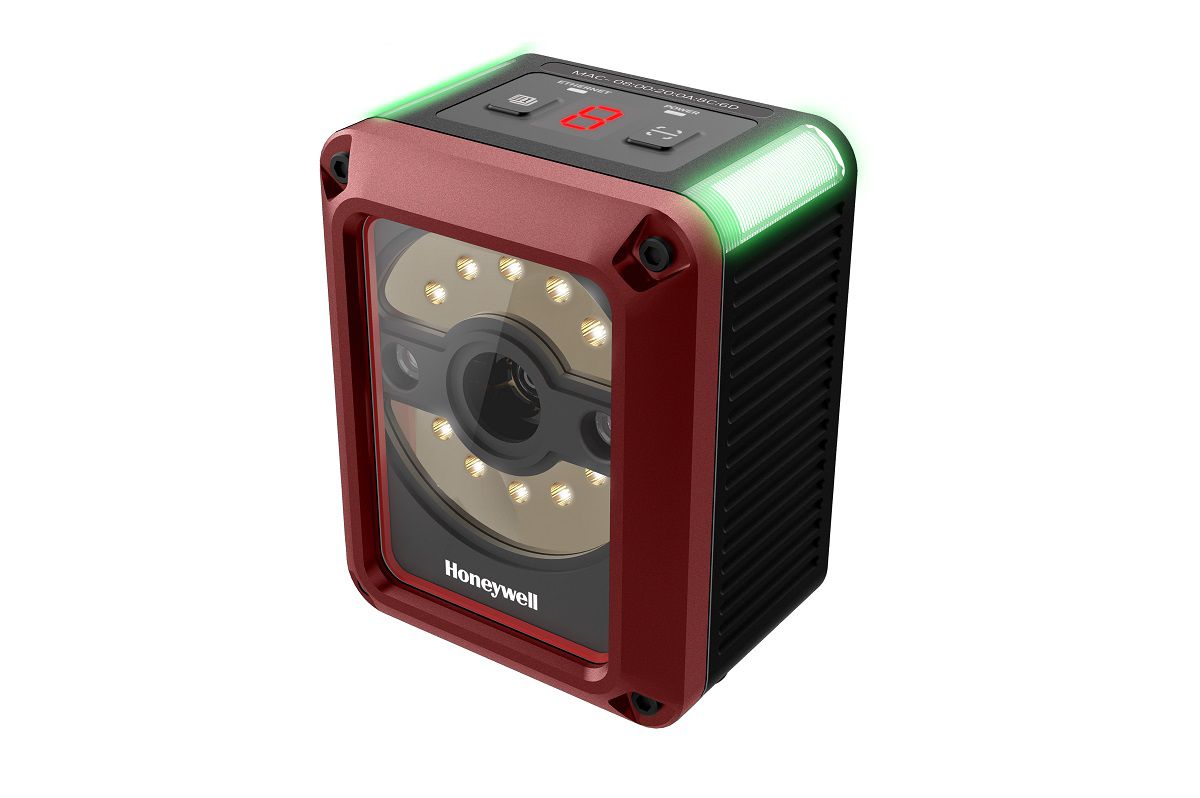

Honeywell HF811 Fixed Mount Industrial Scanner (HF811-11BT00004K-R)

The Honeywell HF810 and HF811 are compact fixed-mount 2D industrial scanners for package sorting, light manufacturing and automated warehouse processes. Honeywell's enhanced decoding technology with a dedicated DPM algorithm reads 1D and 2D barcodes as well as codes marked directly on parts (DPM), the liquid lens adjusts the focus electronically, and the scanners are network-ready with RS232, RS485, Ethernet (TCP/IP) and the PROFINET, EtherNet/IP and Modbus TCP industrial protocols – all in an IP65 housing of just 70 × 55 × 45 mm. This version, HF811-11BT00004K-R, is the HF811 with a 2 MP sensor, a wide field of view (39° × 22°) for larger codes and wider reading areas, and blue illumination. It is supplied as the scanner only – cables and power supply are ordered separately.

Key Features

• Two resolutions – the HF810 with a 0.5 MP sensor for standard 1D and 2D codes, the HF811 with a 2 MP sensor for small, high-density codes and fine DPM marks.
• Dedicated DPM algorithm – Honeywell's enhanced decoding reads codes marked directly on metal, plastic and other parts (DPM) as well as printed 1D, PDF417 and 2D codes (QR Code, Data Matrix, MaxiCode, Aztec).
• Liquid lens – electronically adjustable focus without moving mechanical parts, for reading distances of up to 1 m.
• Narrow or wide field of view – 20° × 11° for small or distant codes, or 39° × 22° to cover a larger reading area.
• Blue, red or white illumination – choose the light colour that gives the best contrast for your codes and surfaces.
• Network-ready – RS232, RS485 and Ethernet (TCP/IP) plus the PROFINET, EtherNet/IP and Modbus TCP fieldbus protocols for direct integration with PLCs and control systems.
• I/O functionality – connect accessories such as external triggers (e.g. photoelectric sensors) and auxiliary lighting.
• Plug and play – quick setup with the Honeywell DataMax Plus configuration tool; the Autotune function optimises the scanning parameters at the press of a button.

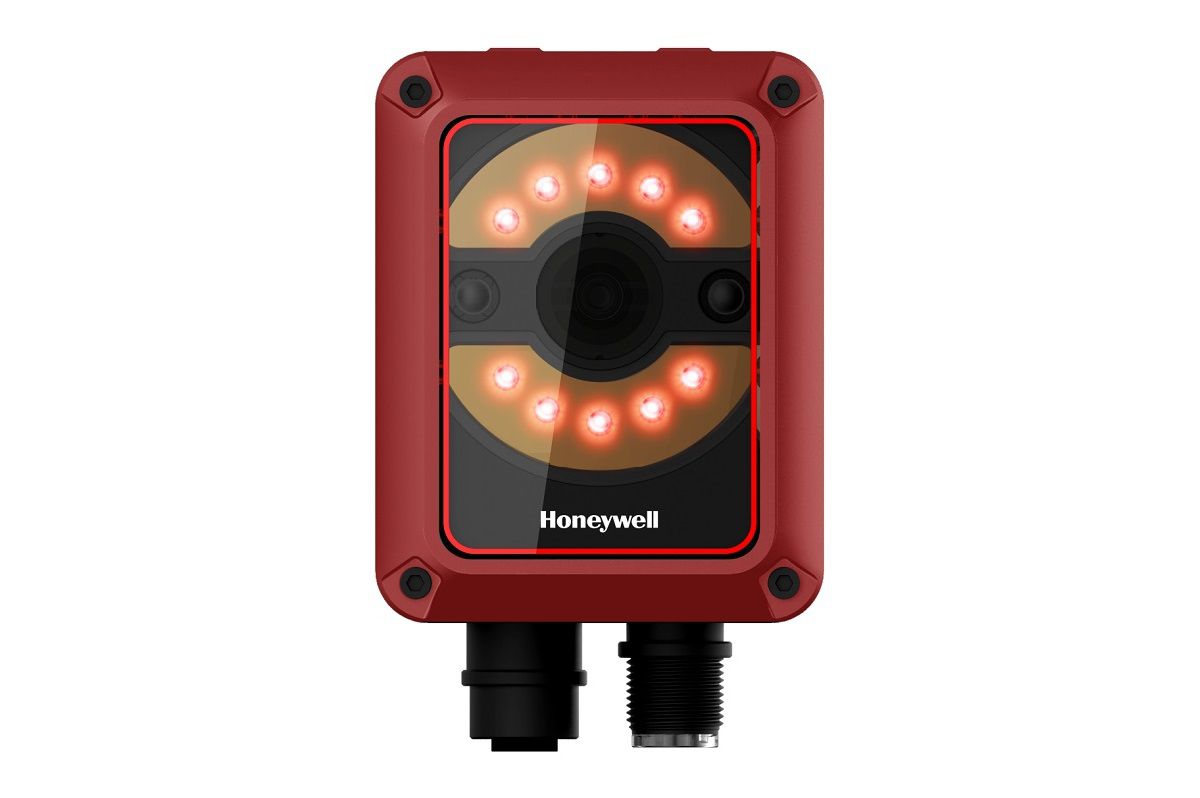

• Compact industrial design – IP65 housing of only 70 × 55 × 45 mm and 180 g with industrial M12 connectors, operating from 0 °C to 50 °C and backed by a 3-year factory warranty.

Ideal Applications

• Package and parcel sorting on conveyors
• Light manufacturing and assembly lines – part tracking and traceability, including DPM-marked components
• Automated warehouses – goods-in, goods-out and order-picking stations
• Work-in-progress tracking and quality control stations
• Machine and system integration via PLC – PROFINET, EtherNet/IP or Modbus TCP

All HF810 / HF811 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the HF810 (0.5 MP) for standard printed 1D and 2D codes, or the HF811 (2 MP) for very small, high-density codes and demanding DPM marks. Part numbers HF81x-01… have the narrow field of view, which concentrates the resolution on smaller codes and longer distances, while HF81x-11… versions have the wide field of view for larger codes and wider reading areas. The letter that follows is the illumination: B = blue, R = red, W = white – red is the classic choice for printed labels, while blue or white light can give better contrast on reflective, metal or coloured surfaces. All versions are supplied without cables and power supply – order the 24 V power supply and the mounting bracket together with the scanner and ask us for the matching HF81X M12 cables. Compare other models in our In-Counter Barcode Scanners collection or contact our team for project pricing and application advice.
