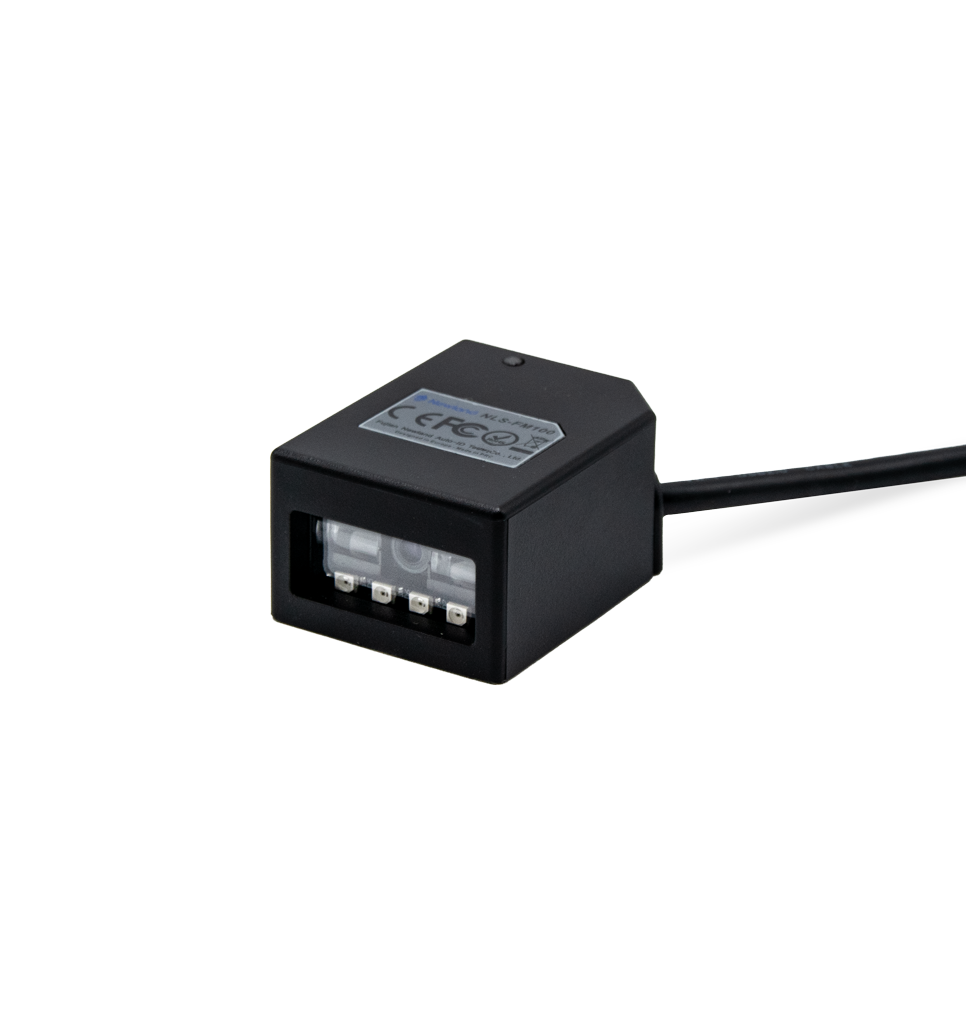

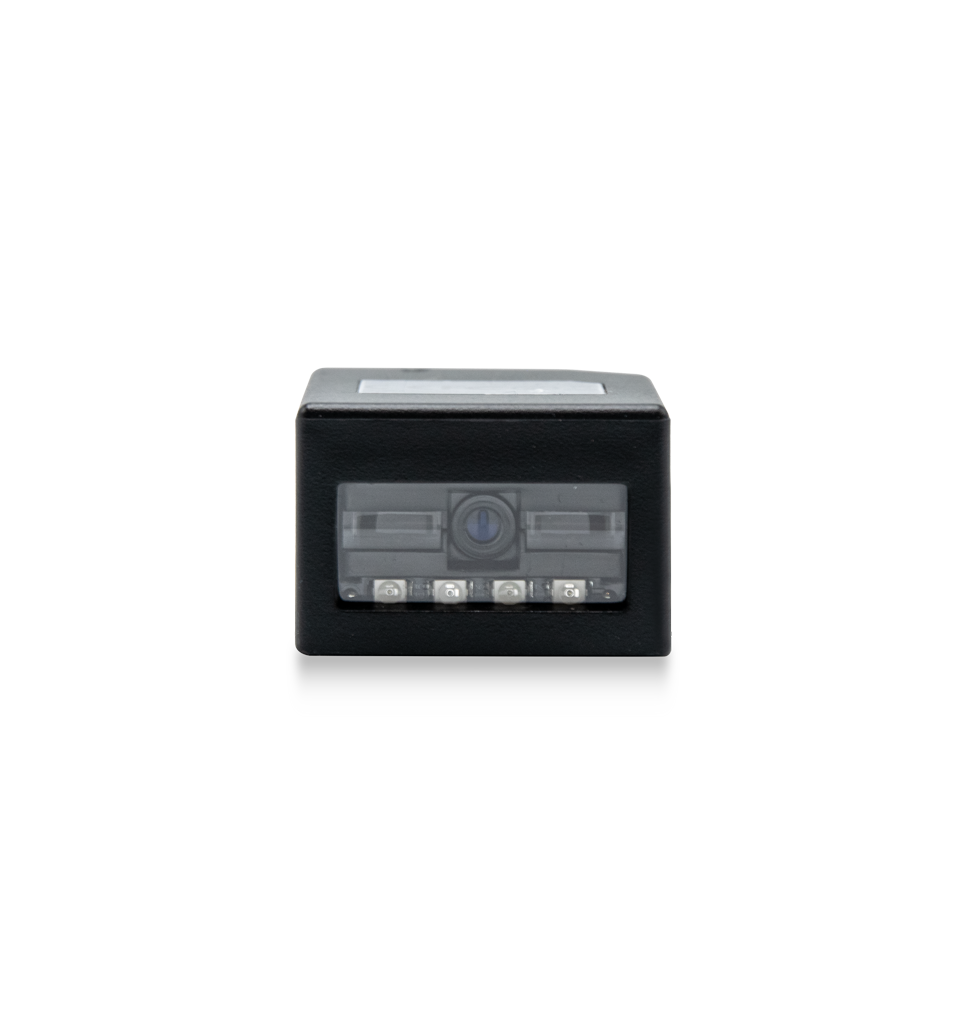

NewLand FM100 Stationary CCD Scanner (NLS-FM100GD-18)

The Newland FM100 is a tiny fixed-mount 1D CCD scanner designed for OEM integration into kiosks, ticketing machines, vending and reverse vending machines, access gates and other self-service equipment. Measuring just 49 × 37 × 26 mm and weighing 70 g, it fits where larger scanners can't, while its 2500-pixel CCD sensor and red LED illumination read all common 1D barcodes at up to 300 scans per second. Sensor, interval, continuous and command-triggered scan modes, IP54 protection against dust and splashing water and a dual USB/RS-232 interface make integration straightforward. Newland covers it with a 5-year (60-month) warranty. This version, NLS-FM100GD-18, is supplied with a 1.8 m direct USB cable – for a host further away, e.g. a PC under the counter; USB-powered, no power supply needed.

Key Features

• Ultra-compact for OEM integration – at just 49 × 37 × 26 mm and 70 g, the FM100 fits into tight spaces in kiosks, ticket machines, vending and reverse vending machines, parcel lockers and access gates.
• Fast 1D scanning – a 2500-pixel CCD sensor with red LED illumination (622–628 nm) performs up to 300 scans per second and reads all common 1D symbologies, including EAN/UPC, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar and GS1 DataBar.
• Flexible scan modes – in sensor mode, reading starts automatically as soon as a barcode is presented; interval, continuous, delayed sensor and command-triggered modes let the host machine control exactly when the scanner reads.
• Wide scan angles – tolerates large reading angles (pitch ±65°, skew ±60°, roll ±30°), and the 40° field of view and 30% minimum print contrast mean tickets and receipts don't have to be presented perfectly.
• IP54 and bright-light proof – protected against dust and splashing water and immune to ambient light up to 100,000 lux, so it also works in semi-open machines and sunny entrances.
• Dual interface, easy setup – USB (HID keyboard emulation, USB COM port emulation) or RS-232; configure it with Newland EasySet or programming barcodes, JPOS/OPOS drivers available; developed and manufactured in-house by Newland and backed by a 5-year warranty.

Ideal Applications

• Ticketing and parking machines – ticket barcodes, parking tickets and vouchers
• Reverse vending machines – reading EAN codes on bottles and cans for deposit returns
• Vending machines and self-service kiosks – coupons, loyalty cards and receipts
• Access control and turnstiles – printed tickets and membership cards with 1D barcodes
• Parcel lockers and pick-up points – shipping labels and pick-up codes
• Lab, industrial and OEM equipment – identifying sample tubes, cartridges and consumables inside the device

All FM100 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? All four versions are the same FM100 scanner – they differ only in the included cable: NLS-FM100GD-00 with a 0.5 m direct USB cable and NLS-FM100GD-18 with a 1.8 m direct USB cable, NLS-FM100GD-U with a 2 m USB extension cable (all three USB-powered), and NLS-FM100GD-RC with a 2 m RS-232 extension cable and a 5 V power adapter for serial connections. Need to read QR codes or barcodes on phone screens? Choose a 2D fixed-mount scanner such as the Newland FM3080 Hind. Compare more built-in scanners in our In-Counter Barcode Scanners collection or contact our team for volume pricing and integration advice.
