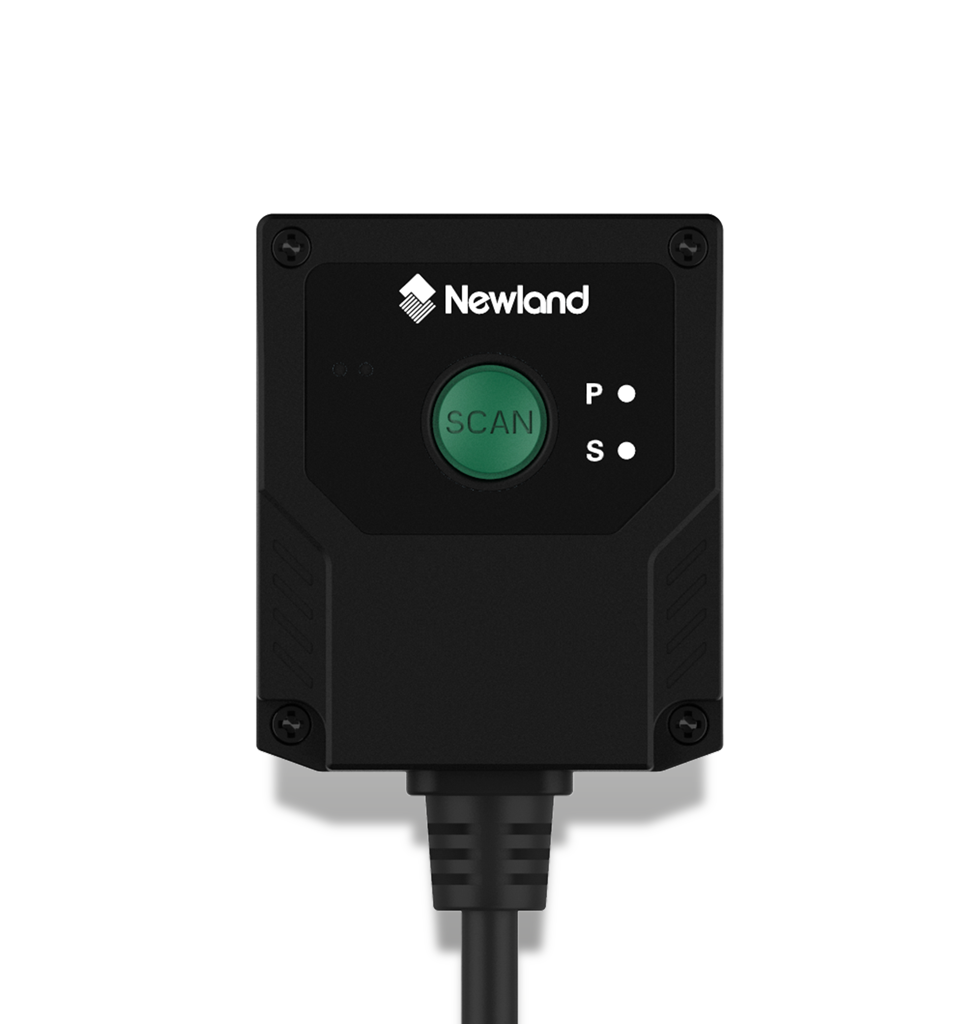

Newland FM431 Barracuda PRO Fixed Mount Scanner (NLS-FM431-SR-RC)

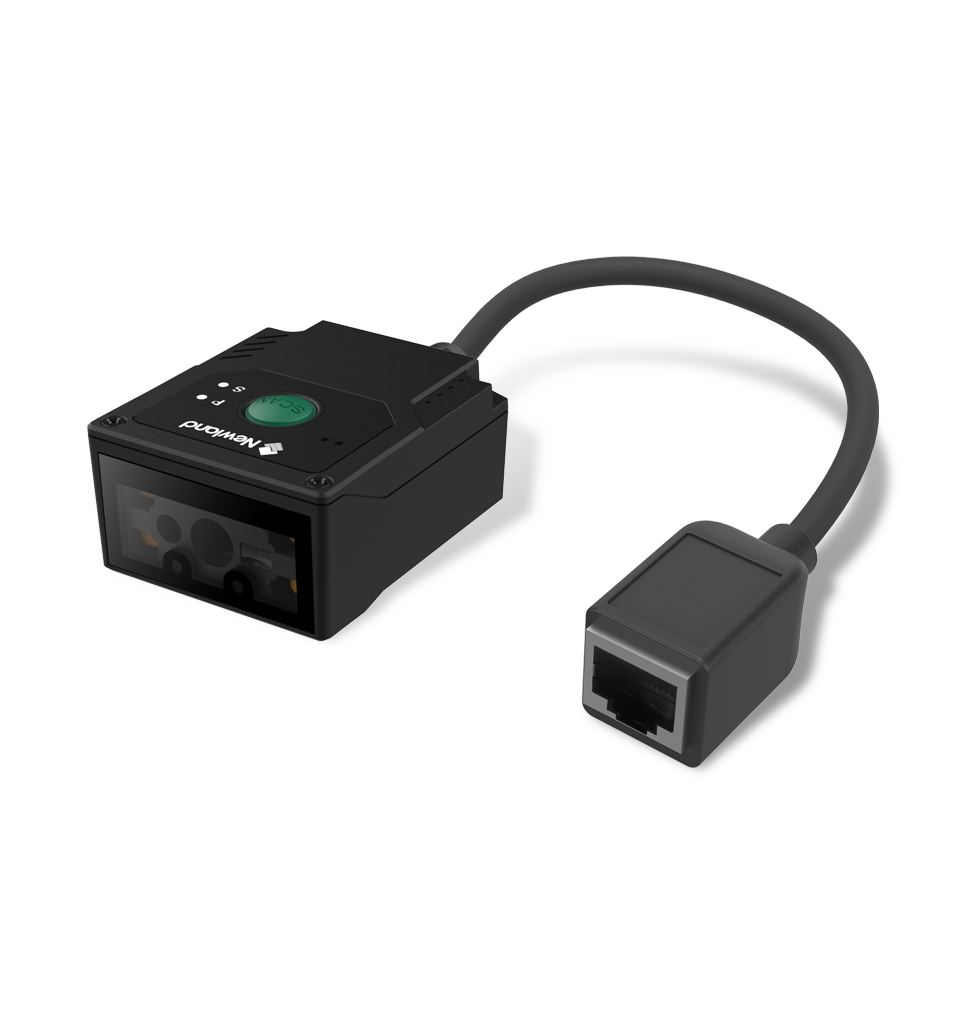

The Newland FM431 Barracuda PRO is the high-performance successor of the FM430 Barracuda: the same compact fixed-mount module (41.5 × 49.5 × 24.3 mm, only 56 g) – so it drops straight into existing FM430 installations – with a faster engine for high-speed scanning. Its megapixel camera (1280 × 800) reads all major 1D and 2D barcodes from labels, paper and smartphone screens with high motion tolerance and at distances of up to 460 mm (EAN-13), making it ideal for conveyors, vending machines, robots and fixed POS installations. Dual aiming combines a precise red laser with a green LED that lights up the code to confirm a good read, and advanced exposure control copes with bright sunlight and reflections. IP54 sealing, a 1.5 m drop rating and a 5-year Newland warranty. This version, NLS-FM431-SR-RC (Standard Range engine – SR), is the RS-232 kit: it is supplied with a 2 m RS-232 cable with power jack and a 5 V power adapter with interchangeable EU/UK/US plugs – everything needed for a serial connection.

Key Features

• High-speed scanning – high motion tolerance captures codes even on fast-moving items – ideal for conveyors, vending machines, robotics and fixed POS installations.
• Longer reading range – EAN-13 up to 460 mm and QR codes up to 310 mm (FM430: 360 mm / 210 mm), with 1D resolution down to 3 mil.
• Dual aiming with visual good-read – the red laser pinpoints the scan position, while the green LED aimer is safe for customer-facing use and lights up the code to confirm a good read – ideal where beeps are unwanted or inaudible.
• All weather conditions – advanced exposure control handles changing light and reflections (0–100,000 lux ambient light); IP54 sealing and an operating temperature of −20 °C to 60 °C for outdoor use.
• Drop-in upgrade – the same 41.5 × 49.5 × 24.3 mm dimensions and base mounting points as the FM430 series, so it directly replaces existing units; only 56 g.
• Fast communication, easy integration – faster data exchange with the host; USB (HID keyboard, USB CDC, HID-POS, IBM SurePOS) or RS-232 via the detachable cable on the RJ50 data port; EasySet, Advanced Scripting and a 5-year Newland warranty.

Ideal Applications

• Self-service kiosks and ticket machines – mobile tickets, e-vouchers and booking codes
• Access control and turnstiles – event, transport and gym tickets or QR access codes
• Vending machines, lockers and parcel terminals – pick-up codes and payment QR codes
• Retail POS and self-checkouts – built into the counter for loyalty cards, coupons and scan-to-pay codes
• Production lines and conveyors – automatic identification of products, parts and cartons
• Postal services, gaming and parking – parcel labels, cash-out tickets and parking tickets

All FM430 / FM431 Barracuda Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? All versions share the same compact housing and mounting points. First choose the model by aimer and performance – FM430 with a green LED aimer (e.g. NLS-FM430-U), FM430L with a red laser aimer (e.g. NLS-FM430L-U) or the faster FM431 Barracuda PRO with dual aiming and a longer reading range (e.g. NLS-FM431-SR-U) – and then the kit: -U with a 2 m USB cable, -00 with a short 0.5 m USB cable, or -RC with an RS-232 cable and power adapter. Compare other built-in scanners in our In-Counter Barcode Scanners collection or contact our team for volume pricing and integration advice.
