The M3 Mobile SM25 W is a rugged full-touch Android mobile computer in a slim smartphone format – built for retail, warehouse, logistics, delivery and field-service staff who scan all day. It combines the Qualcomm Dragonwing QCM4490 (2.4 GHz octa-core), 8 GB RAM / 128 GB flash, a 6" Full HD+ Gorilla Glass 5 display, Wi-Fi 6E with 2×2 MU-MIMO, Bluetooth 5.3, front-side NFC, a hot-swappable battery and IP67 sealing. This version, SM250E-WFCFSS-HF, is the Wi-Fi model. Configuration: the SE5500 Smart Focus imager for codes near and far, 8 GB RAM / 128 GB flash, Android 16 with GMS, standard 4000 mAh battery.
📦 What's in the box – SM250E-WFCFSS-HF
- ✅ M3 Mobile SM25 W – mobile computer, black, 6" Full HD+, SE5500, 8 GB / 128 GB
- ✅ Battery – standard 4000 mAh Li-ion, user-replaceable
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Quick start guide – drivers, tools and user guides are a free download from M3 Mobile
- ❌ Charger / power supply – NOT included – needed to charge the SM25 W – via its USB-C port or a charging cradle (see the options below)
- ❌ Charging cradle – NOT included
- ❌ USB-C charging cable – NOT included
- ❌ Hand strap – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the SM25 W, please order separately: the M3 SMXX-PWSP-CEU fast-charging USB power adapter with USB cable – charges the SM25 W directly via USB-C; or the M3 SM2X-2CRD-C00 2-slot fast-charging cradle (terminal + spare battery) with a fast-charging power adapter such as M3 SMXX-PWSP-CEU.

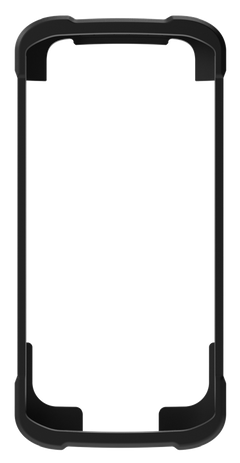

💡 Useful extras: a spare battery for hot-swapping (M3 SX2X-BATT-S40); the M3 SX2X-8CRD-C00 charging station for 4 terminals + 4 spare batteries (with the M3 SX2X-PWSP-8EU power supply); the M3 SX2X-TRIG-S00 trigger handle for scan-intensive work; the M3 SX2X-BOOT-01 protective boot for extra drop protection; a hand strap (M3 SX2X-STRP-S01, M3 SX2X-STRP-S10 or M3 SX2X-STRP-S50); the M3 SX2X-SCPR screen protector.
Key Features
- Rugged yet slim – only 12.9 mm thin and 270 g light, IP67 dust and water protection, 1.5 m drops to concrete (1.8 m with protective boot) and 1000 tumbles at 1 m with boot.
- Wi-Fi model – Wi-Fi 6E and Bluetooth 5.3 for warehouses, stores and sites with full Wi-Fi coverage.
- SE5500 Smart Focus imager – automatic focus from close range to long distance with a bright green aimer, so one device reads codes both near and far.
- 6" Full HD+ display – Corning Gorilla Glass 5 touchscreen, readable outdoors and usable with gloves; 5 programmable side keys.
- 4000 mAh battery with hot swap – change the battery without switching off; an extended 6000 mAh battery is available for longer shifts.
- Performance and long Android support – Qualcomm Dragonwing QCM4490, octa-core 2.4 GHz, 8 GB RAM / 128 GB flash (microSD up to 2 TB), Android 16 with GMS and planned upgrades up to Android 18, 16 MP auto-focus rear camera and 8 MP front camera.
- Front-side NFC, USB-C and POGO – NFC on the display side (ISO 14443 A/B, FeliCa, ISO 15693) for natural tap-and-go workflows; USB-C and POGO contacts for direct charging, cradles and accessories.
- Shared SM24/SM25 accessories – 2-slot fast-charging cradle, 4-terminal charging station, trigger handle, protective boot, hand straps and screen protector fit both models.
Ideal Applications
- Warehouse picking, receiving, put-away and inventory
- Retail stock and price checks, click and collect and mobile POS
- Parcel, courier and last-mile delivery with proof of delivery
- Field service, maintenance and asset tracking
- Transport, logistics and yard management
- Manufacturing and spare-parts stores
All SM25 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | Scan Engine | |
|---|---|---|---|---|
| SM250E-W2CFSS-HF | SM25 W | Wi-Fi only | CM60E | View product |
| SM250E-WFCFSS-HF (this version) | SM25 W | Wi-Fi only | SE5500 | Viewing |
| SM255E-W2CFSS-HF | SM25 X | 5G + GPS | CM60E | View product |
| SM255E-WFCFSS-HF | SM25 X | 5G + GPS | SE5500 | View product |
Technical Specifications
| Part Number | SM250E-WFCFSS-HF |
|---|---|
| Model | M3 Mobile SM25 W – Wi-Fi model of the SM25 rugged full-touch series |
| Operating System | Android 16 with Google Mobile Services (GMS); planned upgrades to Android 17 and 18 (pending feasibility); M3 StartUp for GMS and service control |
| Processor | Qualcomm Dragonwing QCM4490, octa-core 2.4 GHz |
| Memory (RAM / Flash) | 8 GB RAM / 128 GB Flash |
| Expansion | microSD, user-accessible (up to 2 TB) |
| Display | 6" Full HD+ (1080 × 2160), LED backlight, Corning Gorilla Glass 5 |
| Touch Panel | Capacitive – finger and gloved finger |
| Buttons | 5 programmable side scan keys, power button |
| Scan Engine | Zebra SE5500 Smart Focus 1D/2D imager – automatic focus from close range to long distance, green laser aimer |
| Rear Camera | 16 MP auto-focus (PDAF) |
| Front Camera | 8 MP |
| Wi-Fi | Wi-Fi 6E – IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/ax, 2×2 MU-MIMO, DBS; WPA3; fast roaming (802.11r, OKC, CCKM) |
| Bluetooth | Bluetooth 5.3 with BLE and beaconing |
| NFC | Front-side (display-side) NFC – ISO 14443 A/B, FeliCa, ISO 15693, 13.56 MHz |
| Mobile Data (WWAN) | Not available – Wi-Fi only (choose the SM25 X for 5G) |
| GPS/GNSS | Not available |
| Voice & Audio | Speaker, two microphones with noise cancellation, speakerphone, vibration; Bluetooth headset support |
| Ports | USB-C; POGO contacts for cradles and accessories |
| Sensors | Light sensor, proximity sensor, accelerometer, gyroscope, magnetometer (eCompass) |
| Notifications | Audible tone, multi-colour LEDs, vibration |
| Battery | 4000 mAh / 3.85 V Li-ion smart battery (SX2X-BATT-S40); hot-swappable; optional 6000 mAh extended battery |
| Charging | Via USB-C (e.g. SMXX-PWSP-CEU fast-charging adapter with cable) or in the SM2X-2CRD-C00 / SX2X-8CRD-C00 cradles – not included |
| Form Factor | Full-touch rugged mobile computer (smartphone format) |
| Dimensions | 77 × 167 × 12.9 mm (W × H × D) |
| Weight | 270 g |
| Drop Spec | 1.5 m to concrete (1.8 m with boot) across the operating temperature range per MIL-STD-810H |
| Tumble Spec | 1,000 tumbles at 0.5 m (without boot); 1,000 tumbles at 1 m (with boot) |
| Sealing | IP67 |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −30 °C to 70 °C |
| Humidity | 5–95% RH non-condensing |
| Software & Management | M3 SPEEDPACK incl. StartUp (mass configuration via barcodes / PC); MDM support (e.g. SOTI) |
| Colour | Black |
| Warranty | 12 months (M3 Mobile 1-year hardware warranty) |
| In the Box | M3 Mobile SM25 W mobile computer (SM250E-WFCFSS-HF), 4000 mAh Li-ion battery (SX2X-BATT-S40), Google Mobile Services (GMS) licence preinstalled, quick start guide – charger / USB power adapter, USB-C cable, charging cradle and hand strap NOT included (order separately) |
The SM25 comes as the Wi-Fi model SM25 W and the 5G model SM25 X, each with the CM60E 2D imager or the SE5500 Smart Focus scanner. Need mobile data on the road? The M3 Mobile SM25 X (SM255E-WFCFSS-HF) adds 5G and GPS. Prefer a different scan engine? The M3 Mobile SM25 W (SM250E-W2CFSS-HF) comes with the CM60E 2D imager. A cost-optimised 4G version with HD+ display is the M3 Mobile SM24 X; for IP68, 2.7 GHz and on-device AI choose the M3 Mobile SM30. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
