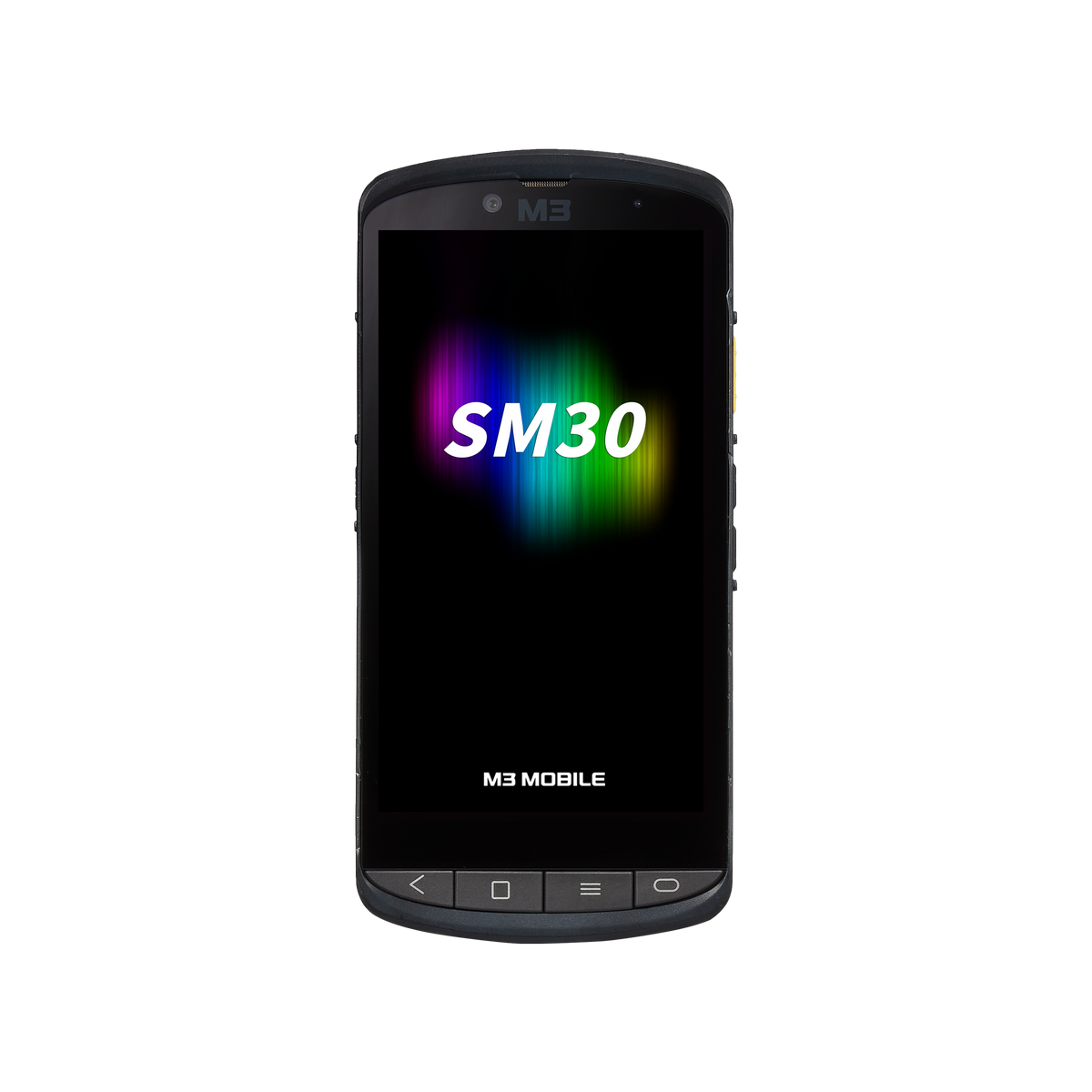

The M3 Mobile SM30 W is a rugged full-touch Android mobile computer in a slim smartphone format – built for retail, warehouse, logistics, delivery and field-service staff who scan all day. It is built around the Qualcomm Dragonwing QCM6490 (2.7 GHz octa-core with on-device AI), 8 GB RAM / 128 GB flash, a 5.7" Full HD Gorilla Glass 5 display, Wi-Fi 6E, Bluetooth 5.3 with BLE beaconing, a hot-swappable 5000 mAh battery and IP68 sealing. This version, SM300E-UFCFSS-HF, is the Wi-Fi model. Configuration: the SE5500 Smart Focus imager for codes near and far, 8 GB RAM / 128 GB flash, Android 14 with GMS, standard 5000 mAh battery.
📦 What's in the box – SM300E-UFCFSS-HF
- ✅ M3 Mobile SM30 W – mobile computer, black, 5.7" Full HD, SE5500, 8 GB / 128 GB
- ✅ Battery – standard 5000 mAh Li-ion, user-replaceable
- ✅ Hand strap
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Protective display film – fitted to the device
- ✅ Quick start guide – drivers, tools and user guides are a free download from M3 Mobile
- ❌ Charger / power supply – NOT included – needed to charge the SM30 W – via its USB-C port or a charging cradle (see the options below)
- ❌ Charging cradle – NOT included
- ❌ USB-C charging cable – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the SM30 W, please order separately: the M3 SMXX-PWSP-CEU fast-charging USB power adapter with USB cable – charges the SM30 W directly via USB-C; the M3 SM30-1CRD-C00 single-slot charging cradle with a USB power adapter (e.g. M3 SM30-PWSP-CEU); or the M3 SM30-2CRD-C00 2-slot fast-charging cradle (terminal + spare battery) with the M3 SM30-PWSP-2EU power supply.
💡 Useful extras: a spare battery for hot-swapping (M3 SM30-BATT-S50); the M3 SM30-4CRD-C00 charging station for 2 terminals + 2 spare batteries (with the M3 SM30-PWSP-4EU power supply); the M3 SM30-8CRD-C00 charging station for 4 terminals + 4 spare batteries; the M3 SM30-TRIG-S00 trigger handle for scan-intensive work; the M3 SM30-BOOT-01 protective boot for extra drop protection; a hand strap (M3 SM30-STRP-S01); the M3 SM30-SCPR screen protector; a service plan with fast repair and battery replacement (M3 SM30-SPST-FB3 or M3 SM30-SPST-FB5).
Key Features
- Rugged yet slim – only 17.5 mm thin and 297 g light, IP68 dust and water protection, 1.5 m drops to concrete (1.8 m with protective boot) and 1000 tumbles at 1 m with boot.
- Wi-Fi model – Wi-Fi 6E and Bluetooth 5.3 for warehouses, stores and sites with full Wi-Fi coverage.
- SE5500 Smart Focus imager – automatic focus from close range to long distance with a bright green aimer, so one device reads codes both near and far.
- 5.7" Full HD display – Corning Gorilla Glass 5 touchscreen, readable outdoors and usable with gloves; 5 programmable side keys and 4 buttons below the display.
- 5000 mAh battery with hot swap – change the battery without switching off; an extended 7000 mAh battery is available for longer shifts.
- Performance and long Android support – Qualcomm Dragonwing QCM6490, octa-core 2.7 GHz, 8 GB RAM / 128 GB flash (microSD up to 2 TB), Android 14 with GMS and planned upgrades up to Android 18, 16 MP auto-focus rear camera and 8 MP front camera.
- On-device AI and BLE beaconing – the Hexagon NPU speeds up reading of damaged or blurry codes and image recognition without a cloud connection; BLE beaconing and the pre-installed Device Locator app help find misplaced devices, even when switched off.
- Accessory system – 1-slot and 2-slot fast-charging cradles, multi-slot charging stations, trigger handle, protective boot, hand strap and screen protector.
Ideal Applications
- Warehouse picking, receiving, put-away and inventory
- Retail stock and price checks, click and collect and mobile POS
- Parcel, courier and last-mile delivery with proof of delivery
- Field service, maintenance and asset tracking
- Transport, logistics and yard management
- Manufacturing and spare-parts stores
All SM30 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | Scan Engine | |
|---|---|---|---|---|
| SM300E-U2CFSS-HF | SM30 W | Wi-Fi only | SE4770 | View product |
| SM300E-UFCFSS-HF (this version) | SM30 W | Wi-Fi only | SE5500 | Viewing |
| SM305E-U2CFSS-HF | SM30 X | 5G + GPS | SE4770 | View product |
| SM305E-UFCFSS-HF | SM30 X | 5G + GPS | SE5500 | View product |
Technical Specifications
| Part Number | SM300E-UFCFSS-HF |
|---|---|
| Model | M3 Mobile SM30 W – Wi-Fi model of the SM30 rugged full-touch series |
| Operating System | Android 14 with Google Mobile Services (GMS); planned upgrades up to Android 18 (pending feasibility); M3 StartUp for GMS and service control |
| Processor | Qualcomm Dragonwing QCM6490, octa-core 2.7 GHz, Hexagon NPU (on-device AI) |
| Memory (RAM / Flash) | 8 GB RAM / 128 GB UFS Flash |
| Expansion | microSD, user-accessible (up to 2 TB) |
| Display | 5.7" Full HD (1080 × 1920), LED backlight, Corning Gorilla Glass 5 with air gap |
| Touch Panel | Capacitive – finger, gloved finger and stylus |
| Buttons | 5 programmable side scan keys, power button, 4 physical buttons below the display |
| Scan Engine | Zebra SE5500 Smart Focus 1D/2D imager – automatic focus from close range to long distance, green laser aimer |
| Rear Camera | 16 MP auto-focus (PDAF) |
| Front Camera | 8 MP |
| Wi-Fi | Wi-Fi 6E – IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2×2 MU-MIMO, dual band simultaneous; WPA3; fast roaming (802.11r, OKC, CCKM) |
| Bluetooth | Bluetooth 5.3 with BLE, Class 2; BLE beaconing (Device Locator app preinstalled) |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; host card emulation |
| Mobile Data (WWAN) | Not available – Wi-Fi only (choose the SM30 X for 5G) |
| GPS/GNSS | Not available |
| Voice & Audio | Speaker, two microphones with noise cancellation, speakerphone, vibration; Bluetooth headset support |
| Ports | USB-C (USB 3.1 OTG host/client); charging contacts for cradles |
| Sensors | Light sensor, proximity sensor, accelerometer, gyroscope, magnetometer (eCompass) |
| Notifications | Audible tone, multi-colour LEDs, vibration |
| Battery | 5000 mAh / 3.8 V Li-ion smart battery (SM30-BATT-S50); hot-swappable; optional 7000 mAh extended battery |
| Battery Life | 12 to 24 hours of continuous use (M3 Mobile, depending on battery and usage) |
| Charging | Via USB-C (e.g. SMXX-PWSP-CEU fast-charging adapter with cable) or in a charging cradle (SM30-1CRD-C00, SM30-2CRD-C00 with SM30-PWSP-2EU) – not included |
| Form Factor | Full-touch rugged mobile computer (smartphone format) |
| Dimensions | 78.5 × 161.64 × 17.5 mm (W × H × D) |
| Weight | 297 g |
| Drop Spec | 1.5 m to concrete (1.8 m with boot) across the operating temperature range per MIL-STD-810H |
| Tumble Spec | 2,000 tumbles at 0.5 m (without boot); 1,000 tumbles at 1 m (with boot) |
| Sealing | IP68 |
| Operating Temperature | −20 °C to 55 °C |
| Storage Temperature | −40 °C to 80 °C |
| Humidity | 5–95% RH non-condensing |
| Software & Management | M3 SPEEDPACK incl. StartUp (mass configuration via barcodes / PC); Device Locator; MDM support (e.g. SOTI) |
| Colour | Black |
| Warranty | 12 months (M3 Mobile 1-year hardware warranty); 3- and 5-year M3 service packages available |
| In the Box | M3 Mobile SM30 W mobile computer (SM300E-UFCFSS-HF), 5000 mAh Li-ion battery (SM30-BATT-S50), hand strap, protective display film, Google Mobile Services (GMS) licence preinstalled, quick start guide – charger / USB power adapter, USB-C cable and charging cradle NOT included (order separately) |
The SM30 comes as the Wi-Fi model SM30 W and the 5G model SM30 X, each with the SE4770 2D imager or the SE5500 Smart Focus scanner. Need mobile data on the road? The M3 Mobile SM30 X (SM305E-UFCFSS-HF) adds 5G and GPS. Prefer a different scan engine? The M3 Mobile SM30 W (SM300E-U2CFSS-HF) comes with the SE4770 2D imager. Looking for a 6" display at a lower price? See the M3 Mobile SM25 or the M3 Mobile SM24. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
SM300E-U2CFSS-HF
Scanner Type
SE4770 standard range
portable data collection device, 2D, imager (SE4770), 14 cm (5.5''), Touchscreen, resolution: 1080x1920 Pixel, speaker, Camera (16 MP), front camera (8 MP), vibration, connection: USB-C, Bluetooth (BLE), Wi-Fi 6E, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android (14), incl.: Google Mobile Services, battery, 5000 mAh, hand-strap, protective foil, IP68
SM300E-UFCFSS-HF
Selected
Scanner Type
SE5500 advanced range
portable data collection device, 2D, imager (SE5500), 14 cm (5.5''), Touchscreen, resolution: 1080x1920 Pixel, speaker, Camera (16 MP), front camera (8 MP), vibration, connection: USB-C, Bluetooth (BLE), Wi-Fi 6E, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android (14), incl.: Google Mobile Services, battery, 5000 mAh, hand-strap, protective foil, IP68
1.261,30 €In Stock
SM305E-U2CFSS-HF
Scanner Type
SE4770 standard range
portable data collection device, 2D, imager (SE4770), 14 cm (5.5''), Touchscreen, resolution: 1080x1920 Pixel, GPS, speaker, Camera (16 MP), front camera (8 MP), vibration, connection: USB-C, Bluetooth (BLE), Wi-Fi 6E, SIM, eSIM, 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android (14), incl.: Google Mobile Services, battery, 5000 mAh, hand-strap, protective foil, IP68
SM305E-UFCFSS-HF
Scanner Type
SE5500 advanced range
portable data collection device, 2D, imager (SE5500), 14 cm (5.5''), Touchscreen, resolution: 1080x1920 Pixel, GPS, speaker, Camera (16 MP), front camera (8 MP), vibration, connection: USB-C, Bluetooth (BLE), Wi-Fi 6E, SIM, eSIM, 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android (14), incl.: Google Mobile Services, battery, 5000 mAh, hand-strap, protective foil, IP68
