| Part Number |
XD5-40DOEK |
| Model |

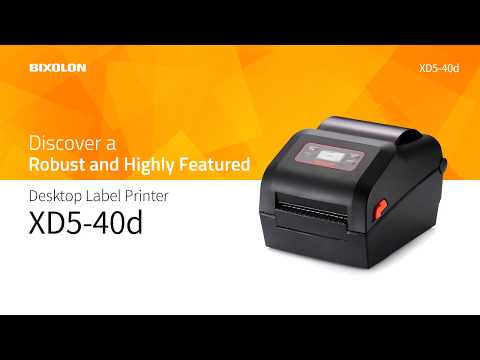

BIXOLON XD5-40d (XD5-40 Series) |
| Printer Type |
4-inch desktop direct thermal label printer |
| Print Method |
Direct thermal |
| Resolution |
203 dpi (8 dots/mm) |
| Print Speed |
Up to 178 mm/s (7 ips) |
| Max Print Width |
108 mm (4.25") |
| Max Print Length |
1,000 mm (39.4") |
| Media Width |
15–118 mm (0.59"–4.65"), incl. liner |
| Media Thickness |
0.06–0.20 mm |
| Roll Diameter |
Up to 127 mm (5") OD |
| Core Size |
25.4–38.1 mm (1"–1.5") |
| Media Types |
Gap (die-cut), black mark, notch, continuous, fanfold |
| Sensors |
Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor |
| Interfaces |
USB (Type B), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Wireless |
None (Bluetooth or Wi-Fi versions available) |
| Memory |
64 MB SDRAM, 128 MB Flash |
| Real-Time Clock |
Optional |
| Printer Languages |
SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (optional) |
| Fonts / Character Sets |
Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts, 23 code pages, Unicode (UTF-8, UTF-16LE/BE) |
| Barcodes |
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Display |
FSTN LCD, 200 × 100 pixels, with menu buttons |
| Media Options |
Tear-off (standard); field-installable peeler and auto cutter (optional) |
| Options |
Peeler, auto cutter, external paper supply, serial cable |
| Drivers & Software |
Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM, OPOS/JPOS, Label Artist™-II, BarTender® UltraLite for BIXOLON, SAP device driver, XPM™/XCM™ management, Android/iOS/Windows/Linux SDKs |
| Power Supply |
External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified |
| Dimensions (W × D × H) |
194 × 248 × 169 mm |
| Weight |
1.89 kg |
| Color |
Black |
| Operating Temperature |
0–40 °C |
| Storage Temperature |
−20–60 °C |
| Humidity |
Operating 10–80% RH, storage 10–90% RH (non-condensing) |
| Warranty |
36 months |
| In the Box |
BIXOLON XD5-40d printer (203 dpi, USB, USB host, RS-232, Ethernet 10/100, LCD), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download – labels NOT included |
