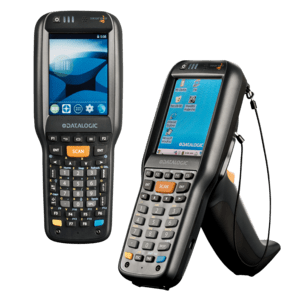

The Datalogic Skorpio X4 is a rugged keypad mobile computer for retail in-store and back-end applications, receiving and warehouse picking. This version, 942600023, is the pistol-grip model with a backlit 38-key functional numeric keypad, a 2D standard-range imager with Datalogic Green Spot and the high-capacity 5200 mAh battery, running Android 4.4 on a TI OMAP4 1 GHz processor with 1 GB RAM / 8 GB Flash. It has a 3.2" colour touchscreen, Wi-Fi 802.11a/b/g/n, Bluetooth 4.0 with BLE, IP64 sealing and 1.8 m drop resistance.
📦 What's in the box – 942600023
- ✅ Datalogic Skorpio X4 – pistol grip, 38 keys, 2D
- ✅ Battery – extended 5200 mAh Li-ion for multi-shift use, user-replaceable
- ✅ Wrist lanyard – included with pistol-grip models
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ Charging cradle – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the Skorpio X4, please order separately: the Datalogic 94A150062 single-slot charging and communication dock – power supply and USB cable included; or the Datalogic 94ACC1380 micro-USB power supply – charges the device directly.
💡 Useful extras: a spare battery for hot-swapping (Datalogic 94ACC0046); the Datalogic 94ACC0050 holster; spare wrist lanyards (Datalogic 94ACC0081); the Datalogic 95ACC0002 headset for voice picking.
Key Features
- Pistol grip with 38-key keypad – durable, comfortable handle for scan-intensive work and a backlit functional numeric keypad for fast data entry.
- 2D imager with Green Spot – megapixel 2D standard-range imager with white illumination reads 1D/2D codes from 4.5 to 74 cm; the green spot confirms every good read.
- 3.2" colour touchscreen – the largest display in its class (240 × 320) with LED backlight.
- High-capacity battery – 5200 mAh Li-ion battery, fast charging via micro-USB or the single-slot dock.
- Rugged – IP64, 1.8 m drops to concrete, −10 °C to 50 °C.
- Connectivity – Wi-Fi 802.11a/b/g/n with MIMO antennas and CCX v4, Bluetooth 4.0 with BLE, USB 2.0 and RS-232 on the main connector.
Ideal Applications
- Retail in-store and back-end: inventory, shelf replenishment, price management and order entry
- Shipping and receiving, warehouse picking
- Assisted sales and line busting
Technical Specifications
| Part Number | 942600023 |
|---|---|
| Model | Datalogic Skorpio X4 – pistol grip, 38-key functional numeric keypad, 2D imager |
| Operating System | Android 4.4 (KitKat) |
| Processor | TI OMAP4, 1 GHz |
| Memory (RAM / Flash) | 1 GB RAM / 8 GB Flash |
| Expansion | microSD (SDHC) slot, up to 32 GB |
| Display | 3.2" TFT / transflective colour LCD, 240 × 320, LED backlight, integrated touchscreen |
| Keypad | 38-key functional numeric, backlit |
| Scan Engine | 2D imager, standard range – megapixel sensor, white LED illumination; DOF 4.5–74 cm (13 mil EAN); Green Spot good-read feedback |
| Wi-Fi | TI Wi-Link 8, IEEE 802.11 a/b/g/n, 2.4 + 5 GHz, MIMO, CCX v4 |
| Bluetooth | Bluetooth 4.0 with BLE |
| Voice & Audio | Wideband speech (HD audio) |
| Ports | Main connector: USB 2.0 high-speed host/client and RS-232 (up to 115.2 kbps); micro-USB for power and data; Ethernet via dock |
| Battery | Extended 5200 mAh (19.2 Wh) Li-ion, removable |
| Charging | Micro-USB fast charging or single-slot dock 94A150062 |
| Form Factor | Pistol grip keypad computer |
| Dimensions | 193 × 76 × 156 mm |
| Weight | 516 g with high-capacity battery |
| Drop Spec | 1.8 m to concrete |
| Sealing | IP64 |
| Operating Temperature | −10 °C to 50 °C |
| Storage Temperature | −20 °C to 70 °C |
| Software & Management | 42Gears SureLock (pre-licensed), SureLock locked browser, Datalogic Android SDK, Xamarin SDK, SOTI MobiControl, StayLinked SmartTE |
| Colour | Black / grey |
| Warranty | 12 months (Datalogic 1-year factory warranty) |
| In the Box | Datalogic Skorpio X4 mobile computer (942600023, pistol grip, 38-key functional numeric keypad), extended 5200 mAh battery, wrist lanyard – charger, cable and dock NOT included (order separately) |
For new projects we recommend the successor, the Datalogic Skorpio X5. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Accessories
| Product | Price | ||
|---|---|---|---|
| Datalogic charging station, single slot94A150062 | 176,42 €+VATIn Stock | ||
| Datalogic Power Supply, USB94ACC1380 | 25,84 €+VATIn Stock | ||
 |
Datalogic Accessories94ACC1381 | 35,24 €+VATIn Stock | |
| Datalogic spare battery94ACC0046 | 104,14 €+VATIn Stock | ||
| Datalogic Belt holster94ACC0050 | 43,07 €+VATOut of Stock | View | |
| Datalogic Lanyard, Kit (5 pcs.)94ACC0081 | 19,58 €+VATOut of Stock | View | |
| Datalogic headset VR1295ACC0002 | 297,54 €+VATOut of Stock | View |
