Diebold Nixdorf D1156 15.6" Customer Display, Non-touch, Black (CRBAS-D1156-B)

The Diebold Nixdorf D1156 is a 15.6" POS display from the D1000 family with a slim, frameless aluminium housing and a durable glass surface, designed for checkouts as an operator or customer display. Its 1920 × 1080 LED-backlit panel (16:9, 400 cd/m², contrast 1000:1) with an anti-glare surface presents prices, receipts and promotions clearly. A single USB-C cable carries power, video and data – ideal with DN Series BEETLE systems – and a DVI-D/PanelLink 2 port is available for existing installations. This version, CRBAS-D1156-B, is the 15.6" Full HD D1156 in black without touch – a large, sharp customer display for prices, receipts and promotions. It is supplied as the display unit only – the connection cable, power supply, power cord and stand or mount are ordered separately.

Key Features

• USB-C single-cable connection – one USB-C cable carries power, DisplayPort video and data – the successor to PoweredUSB and PanelLink 2
• 1920 × 1080 LED-backlit panel – 16:9 format, 400 cd/m² brightness and 1000:1 contrast for crisp text and graphics
• Non-touch customer display – the classic setup for showing prices, totals and promotions to shoppers
• Robust aluminium housing – slim, frameless design with a durable, non-reflective glass surface that is easy to clean
• Additional ports – DVI-D / PanelLink 2 for existing POS systems plus a USB-A 2.0 port
• Click & Connect design, VESA 100 – uses many of the same components as the DN Series BEETLE, such as the stand and side attachments; VESA 100 compatible
• Integrated 2 W audio – built-in mono speaker, so no separate speakers are needed at the checkout
• Low power, two colours – 9.0 W typical; available in black or silver to match DN Series POS systems

Ideal Applications

• Retail and grocery checkouts – as an operator or customer display
• Restaurants, cafés and hospitality – a robust screen for busy service counters
• Promotions at the point of payment – advertising, loyalty and cross-selling messages at the checkout
• DN Series BEETLE installations – single USB-C cable to the POS system and a unified DN Series design

Technical Specifications

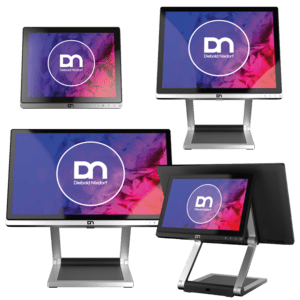

Choose the D1104 (10.4", 4:3) for compact or second-display installations, the D1150 (15", 4:3) to keep the familiar POS format, or the D1156 (15.6", Full HD) with or without touch for the sharpest picture – each in black or silver. Compare all models in our Customer Screens collection, and contact us for volume pricing and project quotes.
