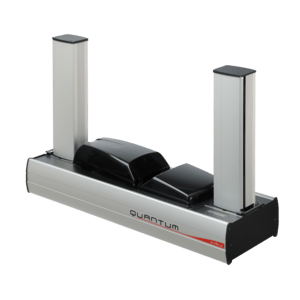

Evolis Quantum Card Printer (QTM306GRH-BS)

The Evolis Quantum QTM306GRH-BS (Quantum 2 generation) is a high-volume card printer for centralised production of employee, student, membership and loyalty cards. It prints both sides in colour or monochrome at 300 dpi – up to 150 colour or 1,000 monochrome cards per hour – from a 500-card feeder into a 500-card stacker. This Standard version encodes magnetic stripes and contact chip cards in the same pass and has a mounting area for a contactless encoder; it connects via USB and Ethernet.

Key Features

• High-volume production – up to 150 colour (YMCKO) or 1,000 monochrome cards per hour single-sided
• Dual-sided printing – 115 cards/hour in colour (YMCKO-K), 320 cards/hour in monochrome
• 500-card feeder and 500-card stacker – interchangeable, detachable hoppers; 20-card reject hopper
• Reversible encoding unit – HiCo/LoCo magnetic stripe (ISO 7811) and smart contact station (ISO 7816-2), independent of the print module
• Contactless-ready – connecting panel and mounting area to integrate MIFARE, DESFire or HID iCLASS encoders
• Large ribbon capacity – up to 500 colour or 3,000 monochrome prints per roll; ribbon saver for monochrome
• Robust aluminium chassis – the feel of a desktop printer with industrial throughput; 2-line LCD and status LEDs

Ideal Applications

• Central card production in companies, universities and public authorities
• Membership and loyalty cards in large batches
• Magnetic stripe cards for access, time recording and payment systems
• Contact chip cards for secure login and e-purse applications
• Season tickets, transport and event cards
• Card service bureaus replacing outsourced card printing

Technical Specifications

For smaller volumes on the desk, see the Evolis Primacy 2. Compare other models in our Plastic Card Printers collection or contact our team for volume pricing.
