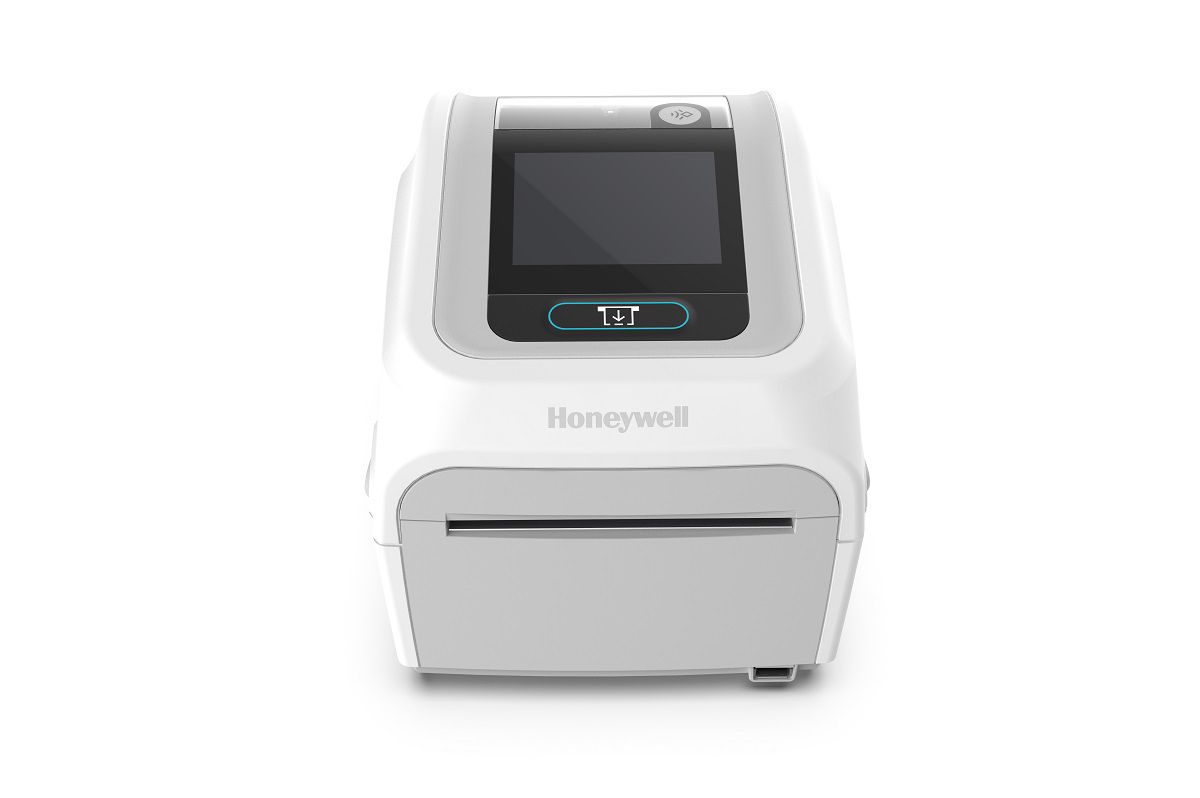

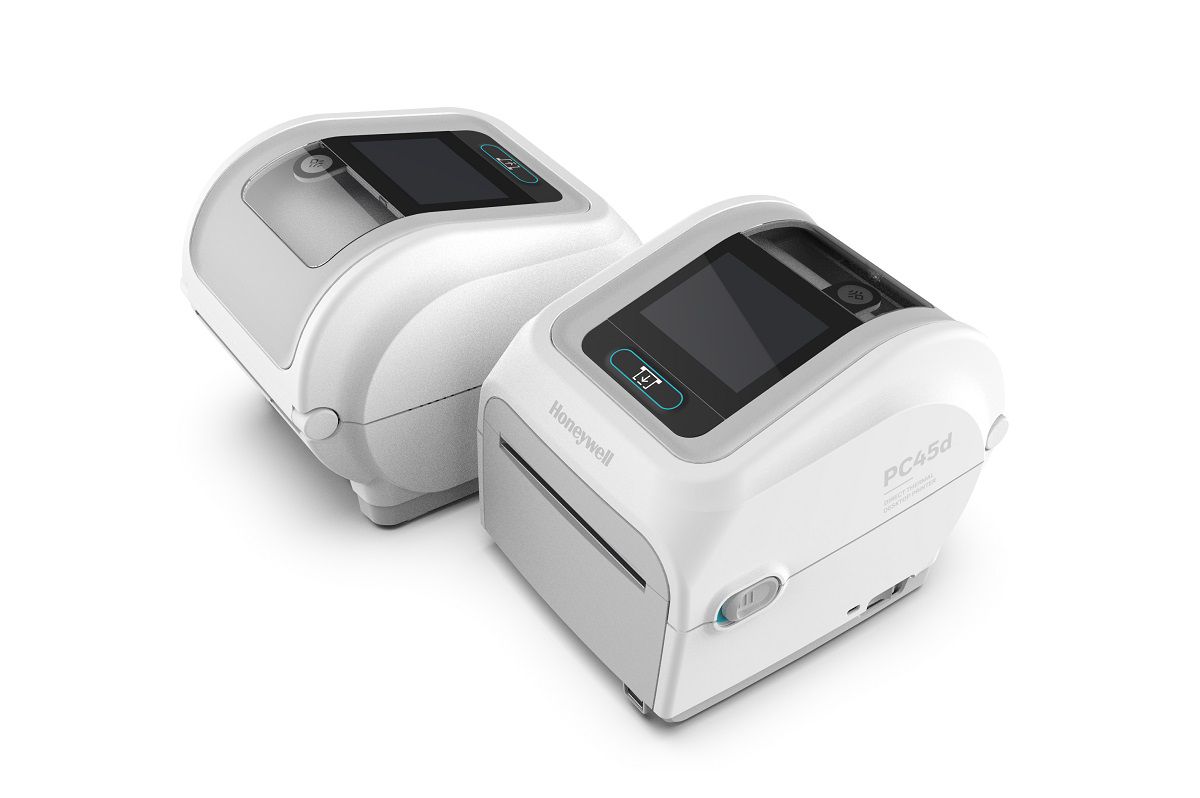

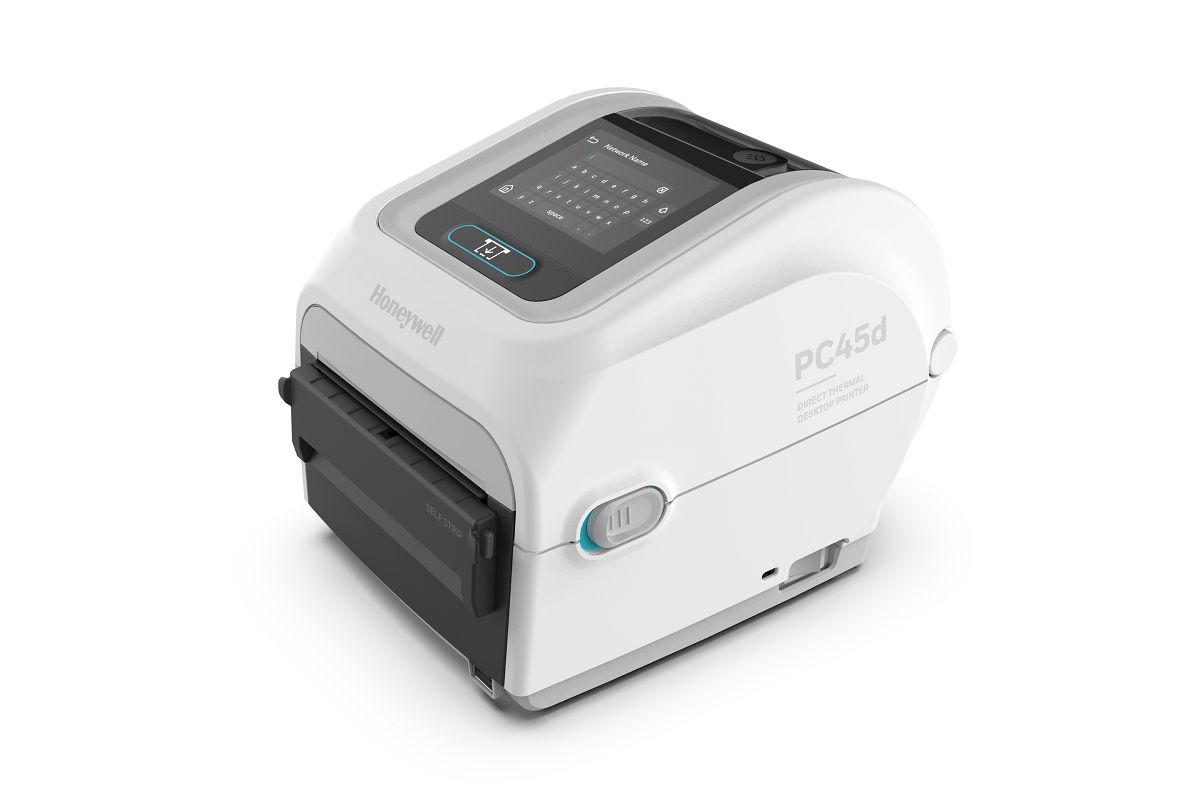

The Honeywell PC45d Healthcare (PC45-HC) is a 4-inch direct thermal desktop printer built for hospitals, laboratories and pharmacies. Its white, disinfectant-ready housing and connectors withstand frequent cleaning, and it prints patient wristbands, specimen and pharmacy labels at up to 8 ips (203 mm/s) with a 3.5-inch colour touchscreen, Ethernet and USB. Honeywell Printer Edge adds encryption and remote management to protect patient data. This version, PC45D100000200, has a 203 dpi print head with USB and Ethernet; it ships with a power supply and a USB cable – the power cord (C13) is ordered separately.
📦 What's in the box – PC45D100000200
- ✅ Honeywell PC45-HC printer – white disinfectant-ready housing, 203 dpi, USB + Ethernet
- ✅ Power supply – external, 100–240 V AC → 24 V DC / 3.15 A
- ❌ Power cord – NOT included – the power supply needs a C13 mains cable (EU or UK plug)
- ✅ USB cable – USB A to B
- ❌ Labels – not included – only a test print label is in the box; please order labels separately
- ✅ Documentation – quick start guide and compliance insert; drivers, utilities and manuals are a free download from Honeywell
⚠️ Please note: no power cord is included. The printer comes with its power supply and USB cable, but the mains cable (IEC C13) must be ordered separately – for example the Honeywell 1-974027-025FRE with an EU (Schuko) plug or the Honeywell 77900507E with a UK plug.
💡 Useful extras: the Honeywell 203-182-100 USB-to-serial adapter for RS-232 connections; Honeywell 1-110501-00 cleaning cards for print-head maintenance.
Key Features
- Disinfectant-ready housing – white housing and connectors designed to withstand frequent cleaning with healthcare disinfectants.
- Direct thermal – no ribbon – wristbands, specimen labels, pharmacy labels, tags and receipts.
- Up to 8 ips – up to 203 mm/s at 203 dpi; max. print width 108 mm and media up to 118 mm wide.
- Patient data protection – Honeywell Printer Edge encrypts print data and secures configuration channels.
- 3.5-inch colour touchscreen – intuitive set-up, clear status messages and on-screen guidance.
- Connectivity – USB device, USB host and 10/100 Ethernet as standard; optional Wi-Fi 6 + Bluetooth 5.2; RS-232 via USB-to-serial adapter.
- Drop-in compatible – Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL II), DPL, XML for SAP AII and Oracle WMS, PDF printing and C# for Printers.
- Healthcare accessories – dedicated self-strip module and cutter for the healthcare housing (available on request).
Ideal Applications
- Patient identification – wristbands at admission and on the ward
- Laboratories – specimen and sample labels
- Pharmacy – prescription and medication labels
- Blood bank and transfusion – bag and tube labels
- Hospital administration – asset, file and receipt labels
Technical Specifications
| Part Number | PC45D100000200 |
|---|---|
| Model | Honeywell PC45d Healthcare (PC45-HC) |
| Printer Type | 4-inch healthcare desktop label printer (direct thermal) |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 2–8 ips (up to 203 mm/s) |
| Max Print Width | 108 mm (4.25 in) |
| Media Width | Up to 118 mm (4.65 in) |
| Roll Diameter | Max. 127 mm (5 in) outer diameter |
| Core Size | 12.7 mm (0.5 in), 25.4 mm (1 in) or 38.1 mm (1.5 in) |
| Media Thickness | 0.05–0.16 mm |
| Label Length | Min. 6.35 mm |
| Media Types | Linered and linerless labels (gap or black mark), tags, receipt paper and wristbands; direct thermal media |
| Sensors | Gap, notch, black mark, continuous; media-low warning |
| Ribbon | Not required – direct thermal only |
| Interfaces | USB 2.0 device (Type B), USB 2.0 host, Ethernet 10/100; RS-232 via optional USB-to-serial adapter (203-182-100) |
| Wireless | Optional Wi-Fi 6 + Bluetooth 5.2 kit with NFC tag (205-190-012, field-installable) |
| Memory | 256 MB RAM, 512 MB Flash |
| Printer Languages | Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL II), DPL, XML for SAP AII and Oracle WMS, PDF, C# for Printers |
| Display | 3.5-inch (88.9 mm) 320 × 240 colour touch LCD, print/feed button, ready LED |
| Media Options | Tear-off (standard); optional healthcare self-strip module 205-189-001 and healthcare cutter 205-189-006 (on request) |
| Barcodes | All major 1D and 2D symbologies, incl. Code 128, EAN/UPC, GS1-128, GS1 DataBar, QR Code, Data Matrix, PDF417, Aztec, MaxiCode |
| Drivers & Software | InterDriver Windows driver, CUPS driver (Linux), Honeywell Device Types for SAP, Honeywell label design and print package; PrintSet 5, web interface, Honeywell Printer Edge, Honeywell Operational Intelligence, Smart Parse |
| Power Supply | External power supply (included): input 100–240 V AC, output 24 V DC, 3.15 A – power cord (C13) not included |
| Dimensions (W × D × H) | 181.3 × 168 × 215.6 mm |
| Weight | 1.8 kg |
| Housing | White, disinfectant-ready housing and connectors |
| Color | White |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | −20 °C to 70 °C |
| Humidity | 10–90% RH, non-condensing |
| Certifications | RoHS, CE (EN 55032 Class B), FCC Class B, ENERGY STAR 3.2 |
| Warranty | 24 months |
| In the Box | Honeywell PC45d Healthcare printer (white disinfectant-ready housing, 203 dpi, USB + Ethernet), external power supply 24 V DC / 3.15 A, USB A-B cable, test print label, quick start guide and compliance insert – power cord (C13) NOT included; labels not included (order separately) |
The PC45-HC is the healthcare version of the PC45d: same print engine and touchscreen, but with a white, disinfectant-ready housing. For general-purpose use, see the standard PC45d and PC45t. A C13 power cord must be ordered separately. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
