RAM Mounts Flat Surface Mount for Zebra RW 420 Printer Docks (RAM-101U-ZE1)

64,13 € +VAT
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-101U-ZE1
RAM Mounts flat surface mount with C-size round bases and double socket arm for Zebra RW 420 printer docks – product photo
RAM MOUNT
RAM Mounts Flat Surface Mount for Zebra RW 420 Printer Docks (RAM-101U-ZE1)
64,13 € +VAT

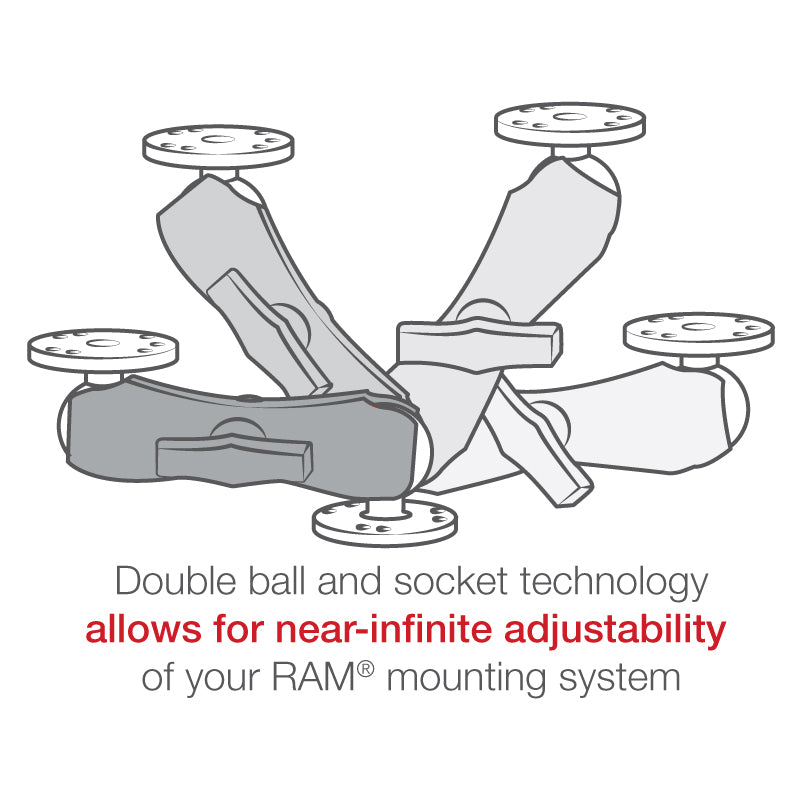

RAM Mounts Flat Surface Mount (RAM-101U-ZE1) is a drill-down mount that attaches the Zebra RW 420 printer vehicle dock to a dashboard, console or other flat surface. It combines two C-size (1.5") round ball bases with a medium double socket arm made of powder-coated marine-grade aluminium, so the printer can be angled exactly where it is needed. The patented rubber ball-and-socket system dampens shock and vibration on the road.

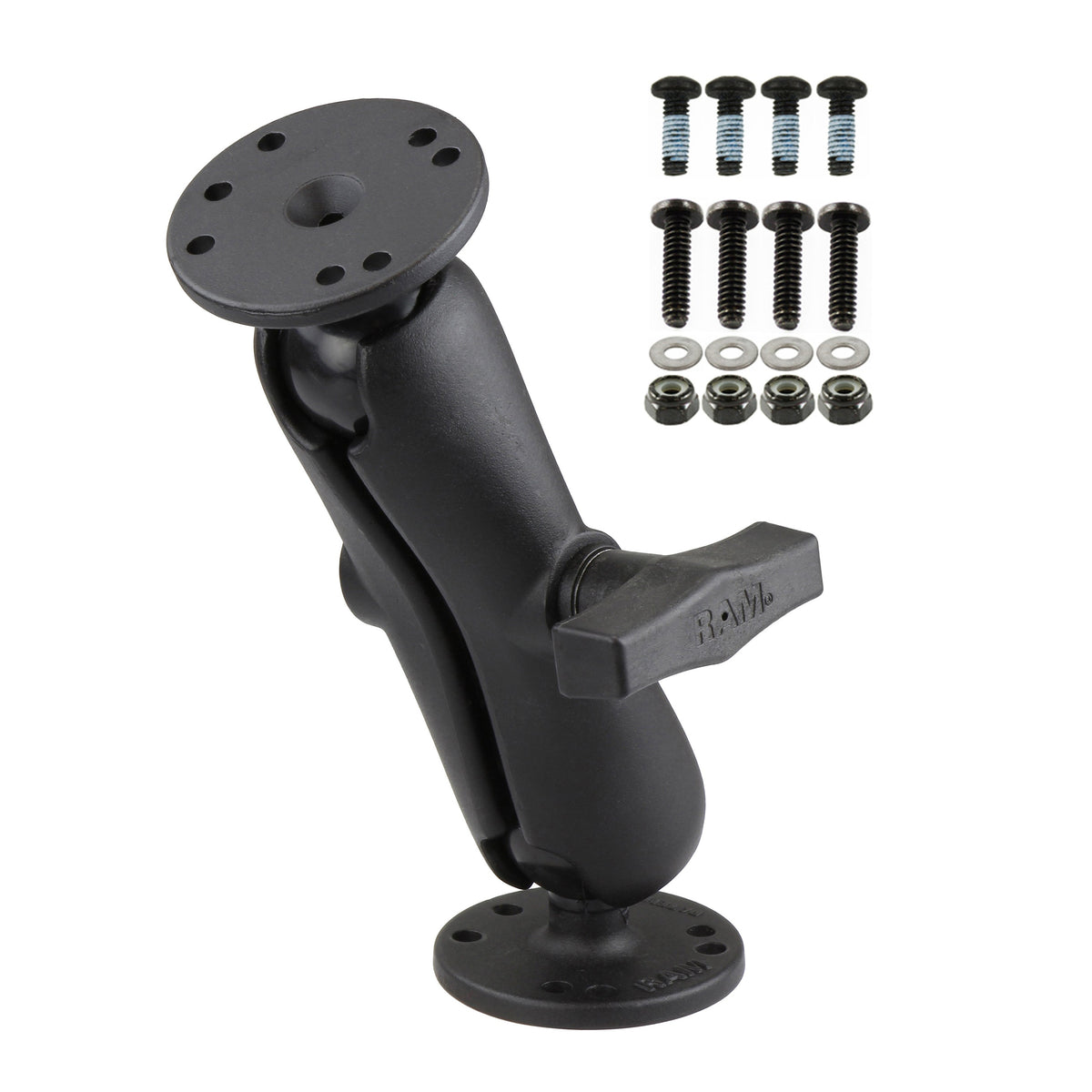

📦 What's in the box – RAM-101U-ZE1

  • 2 round ball bases (RAM-202U) – C-size (1.5") ball, 63.5 mm diameter, 4-hole AMPS and 3-hole 120° patterns
  • Double socket arm (RAM-201U) – C-size, medium, 118 mm socket to socket
  • Mounting hardware – machine screws (4× #10-24 x 3/4", 4× #8-32 x 1/2"), stainless steel flat washers (4× #10) and nyloc nuts (4× #10-24)

💡 You might also consider a short C-size socket arm or a long C-size socket arm if you need a different reach, or a C-size diamond base for devices with a 2-hole mounting pattern.

View accessories →

Key Features

  • Complete C-size kit – two round ball bases and a medium double socket arm
  • Universal hole patterns – 4-hole AMPS (30 × 38 mm) and 3-hole 120° (46 mm) on each base
  • Shock and vibration damping – patented rubber ball-and-socket system
  • Marine-grade aluminium – powder-coated, backed by RAM's lifetime warranty

Compatibility

  • Zebra RW 420 printer vehicle docks (OEM)
  • All RAM C-size (1.5") ball components
  • Flat surfaces with 4-hole AMPS or 3-hole 120° drilling

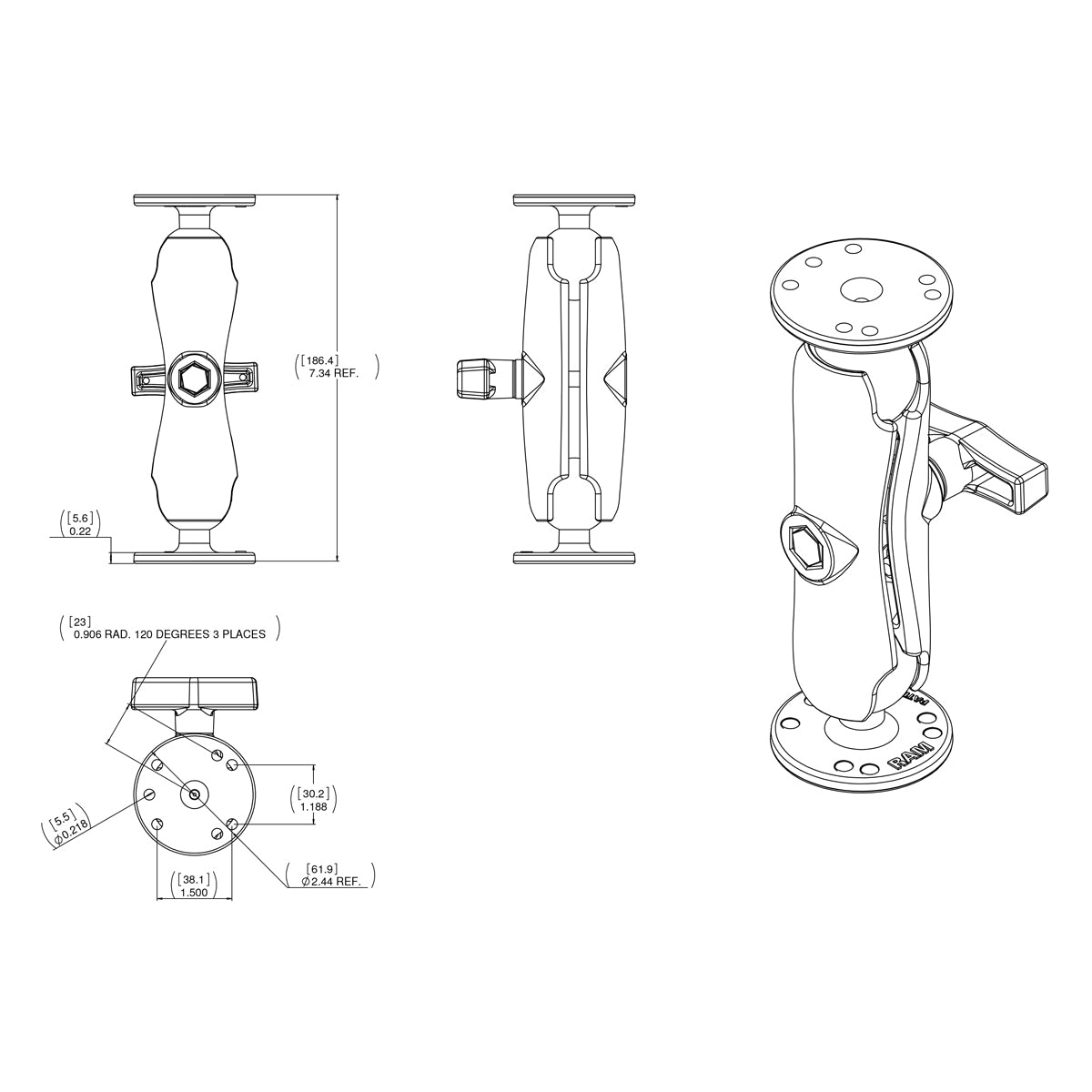

Technical Specifications

Part Number RAM-101U-ZE1
Product Type Drill-down flat surface mount kit
Compatible Devices Zebra RW 420 (OEM vehicle dock)
Connection 2 round bases (63.5 mm) with 4-hole AMPS (30 × 38 mm) and 3-hole 120° (46 mm) patterns
Ball size C (1.5")
Material Powder-coated marine-grade aluminium
Overall height 187 mm (7.35")
Weight 0.55 kg (1.21 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box 2 round ball bases (RAM-202U), double socket arm (RAM-201U), mounting hardware

More RAM mounting parts and device holders can be found in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Accessories

ProductPrice
RAM Mounts Double Socket Arm, C-Size, Short, 90 mm (RAM-201U-B) RAM Mounts Double Socket Arm, C-Size, Short, 90 mmRAM-201U-B26,91 €+VATOut of Stock View
RAM Mounts Double Socket Arm, C-Size, Long, 232 mm (RAM-201U-D) RAM Mounts Double Socket Arm, C-Size, Long, 232 mmRAM-201U-D54,73 €+VATIn Stock
RAM Mounts Diamond Ball Base with 2-Hole AMPS Pattern, C-Size (RAM-238U) RAM Mounts Diamond Ball Base with 2-Hole AMPS Pattern, C-SizeRAM-238U15,15 €+VATIn Stock
RAM Mounts Round Plate with Ball, C-Size, AMPS Pattern (RAM-202U) RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U16,47 €+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mm (RAM-201U) RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U29,32 €+VATIn Stock
RAM Mounts Double Ball Mount with Two Round AMPS Plates, C-Size, Medium (RAM-101U) RAM Mounts Double Ball Mount with Two Round AMPS Plates, C-Size, MediumRAM-101U58,66 €+VATIn Stock
