RAM Mounts Motorcycle Handlebar Clamp Base with M8 Bolts, B-Size (RAM-B-367U)

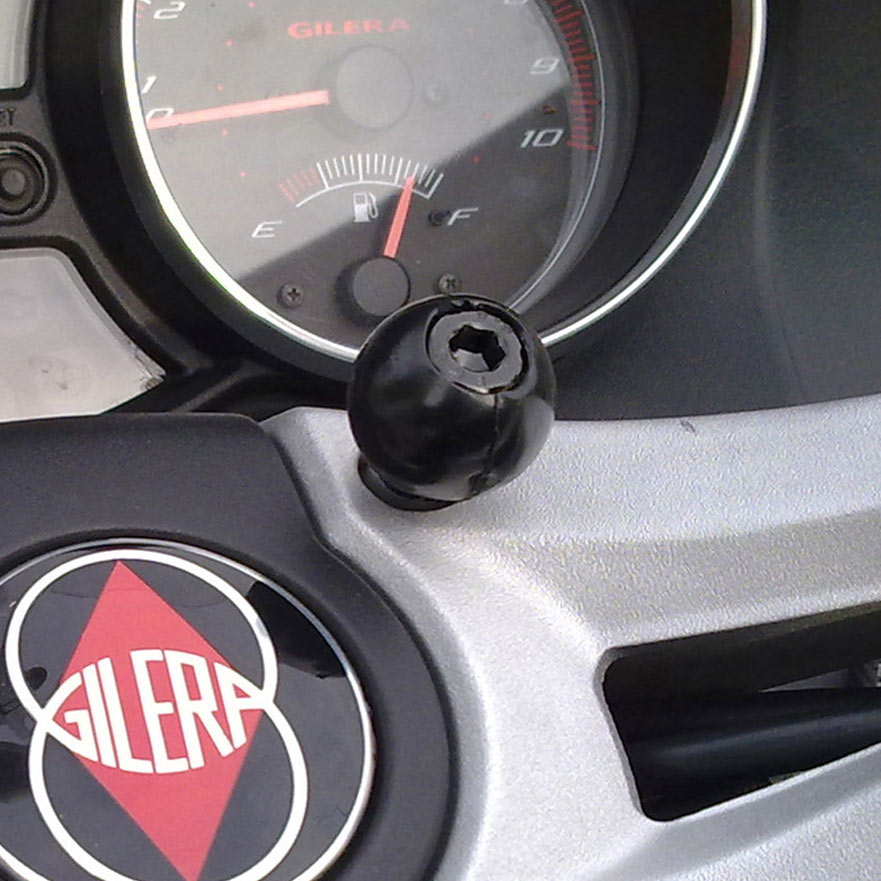

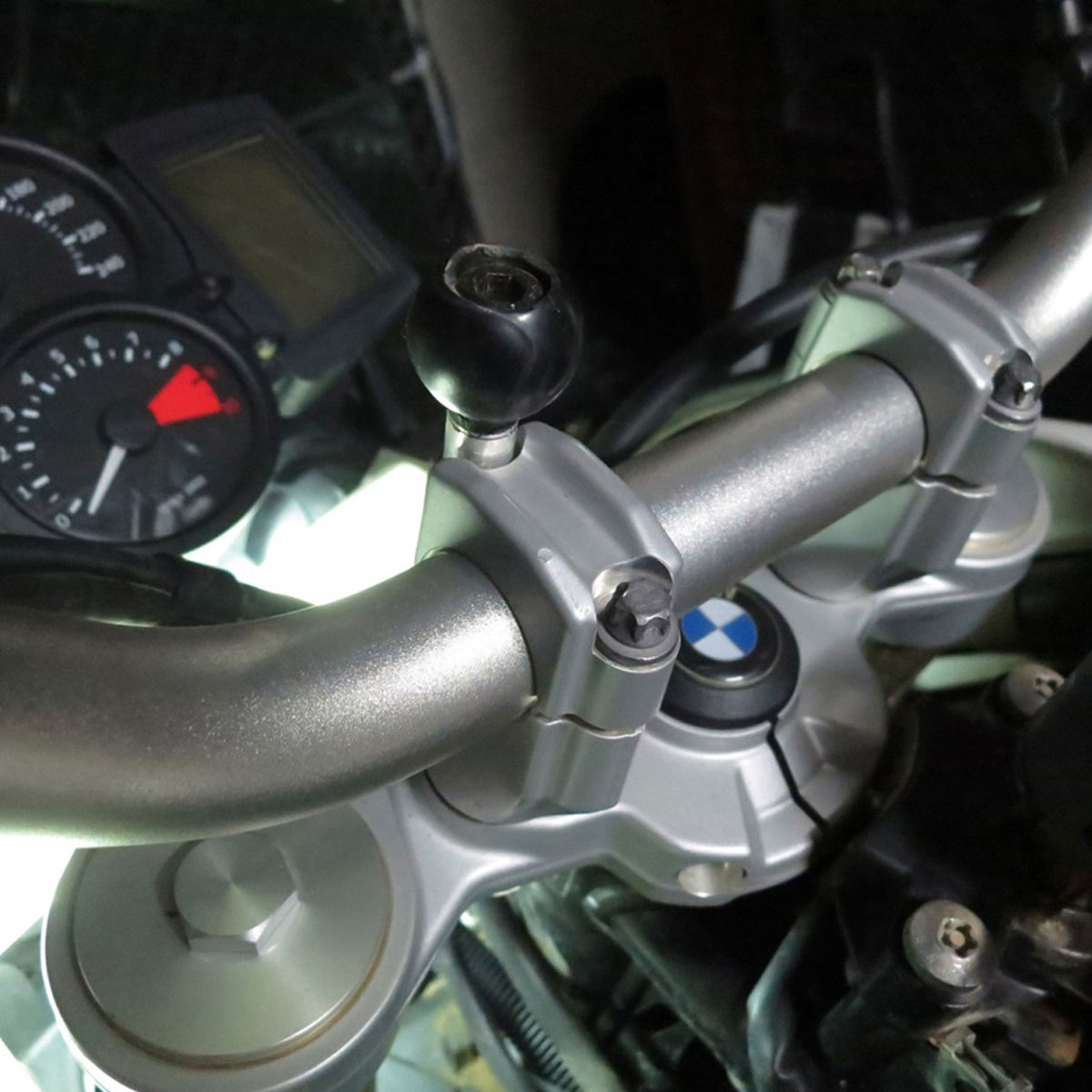

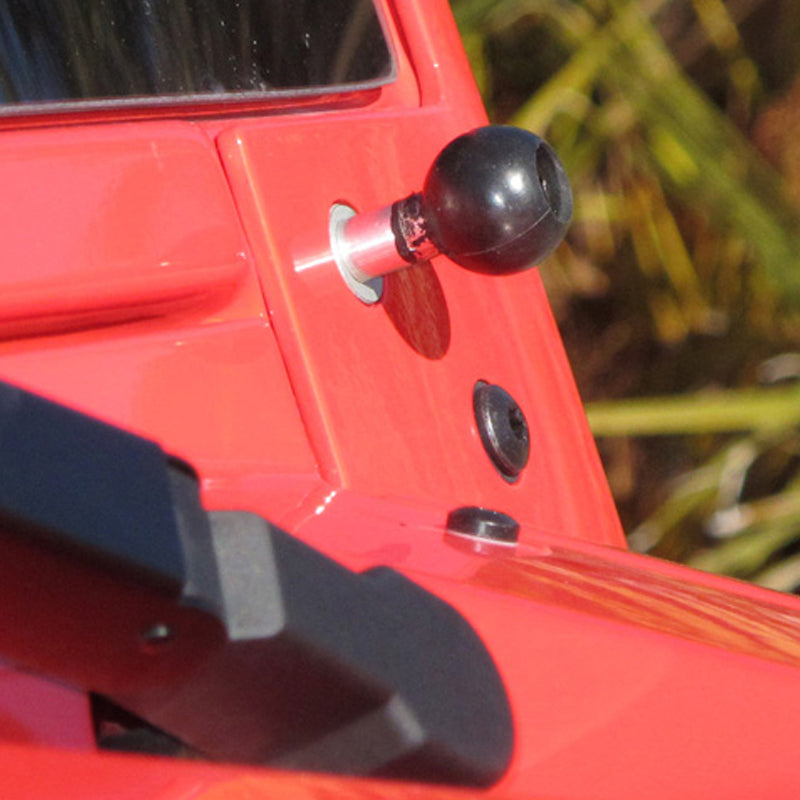

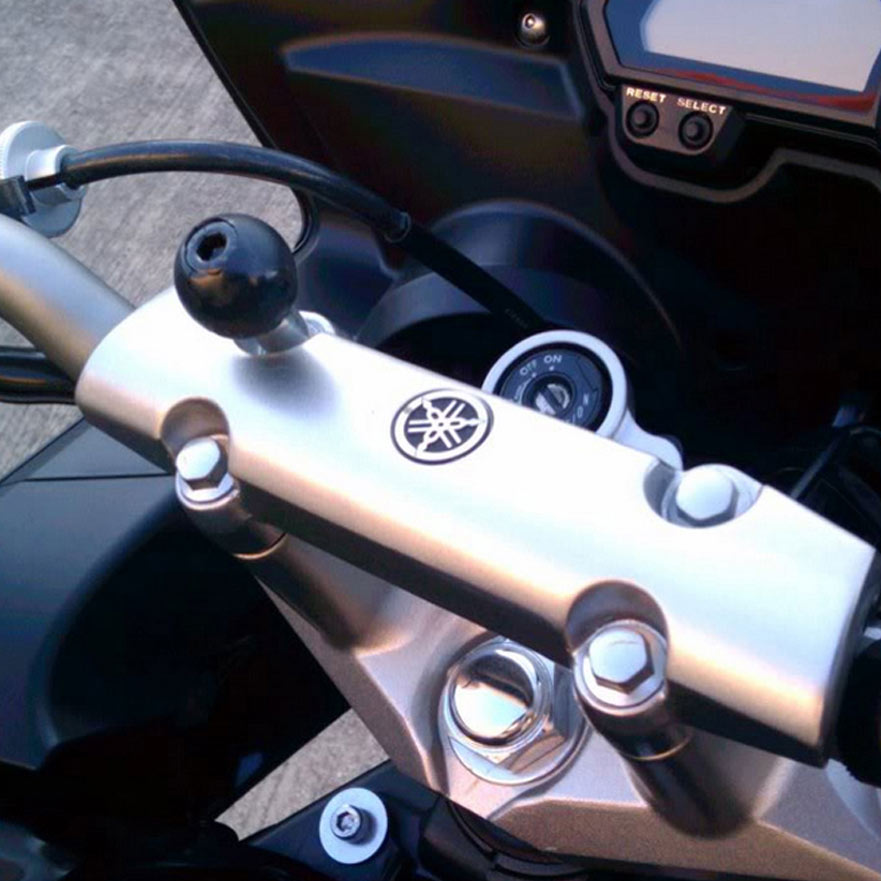

RAM Mounts Motorcycle Handlebar Clamp Base with M8 Bolts (RAM-B-367U) replaces one of the existing M8 bolts of a motorcycle handlebar clamp and gives you a clean, factory-looking 1" B-size ball mount. Three M8-1.25 socket head cap screws (55, 60 and 65 mm) are included: measure your original bolt and add 30 mm to choose the right length. The rubber ball dampens vibration and accepts any B-size double socket arm and holder.

Key Features

• Uses the existing bolt position – replaces an M8 handlebar clamp bolt; fits motorcycles with an 8 mm bolt or smaller

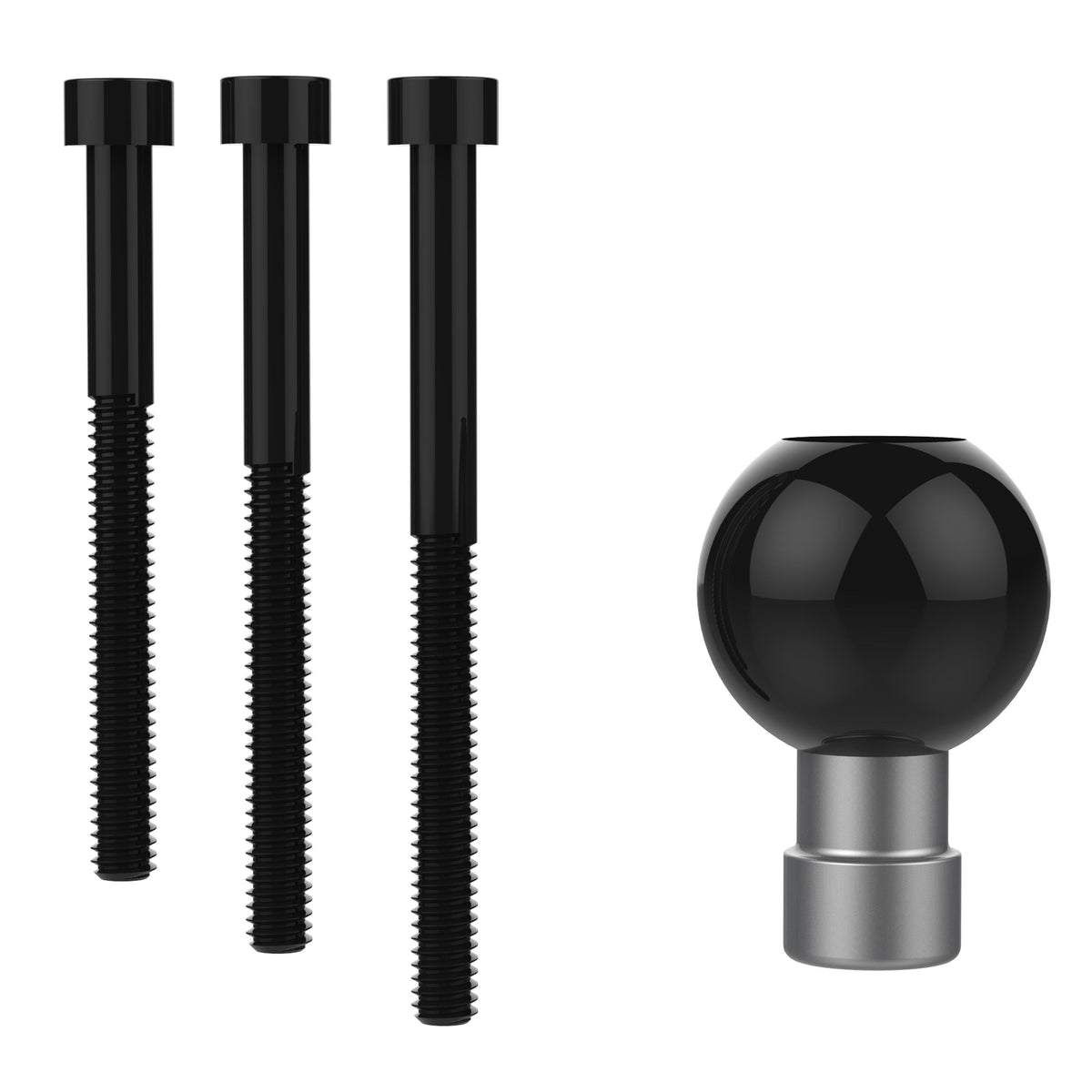

• Three bolt lengths – M8-1.25 × 55/60/65 mm included; original bolt length + 30 mm
• Shock and vibration damping – the patented rubber ball-and-socket system cushions the mounted device
• B-size 1" ball – connects to any RAM B-size double socket arm for near-infinite adjustment
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Motorcycle handlebar clamps with M8 (or smaller) bolts
• All RAM B-size (1") double socket arms and ball components

Technical Specifications

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
