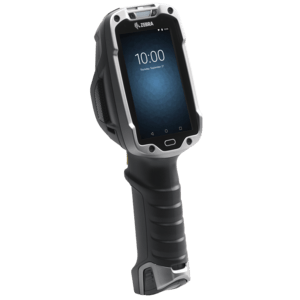

Zebra TC8300 Terminal (TC83B0-3005A61CRW)

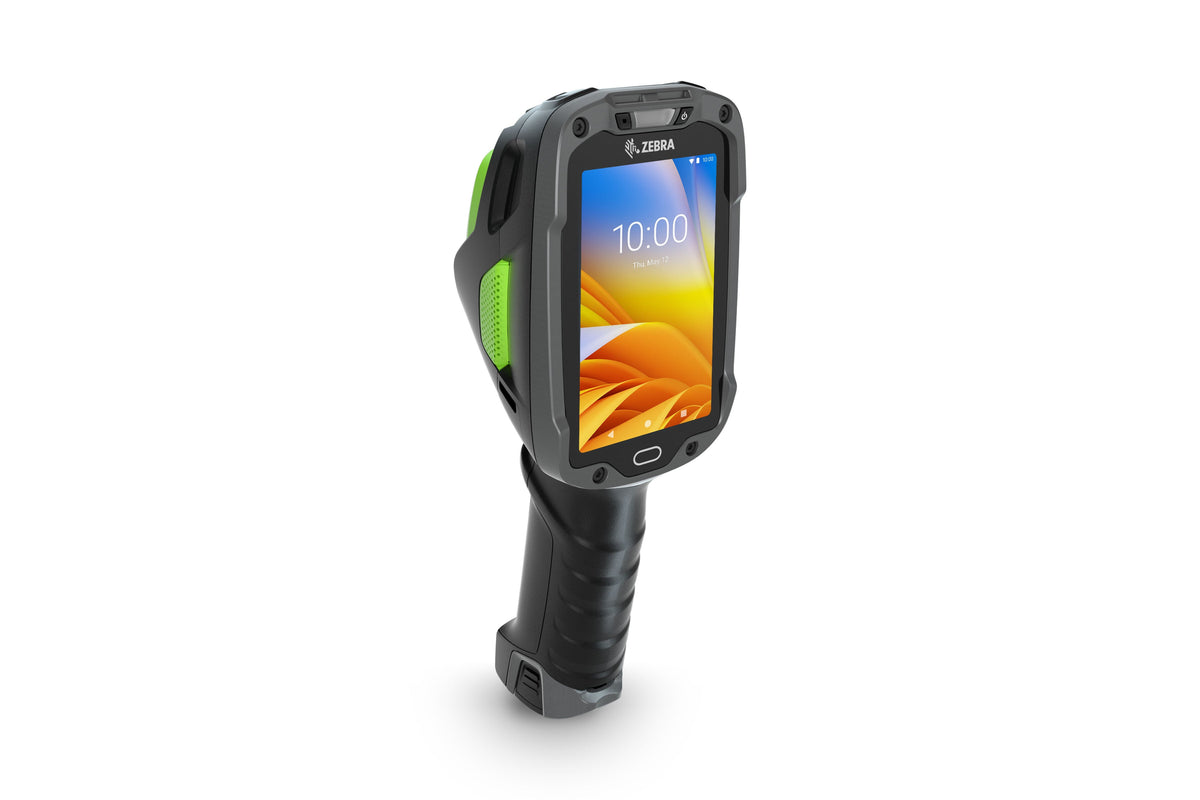

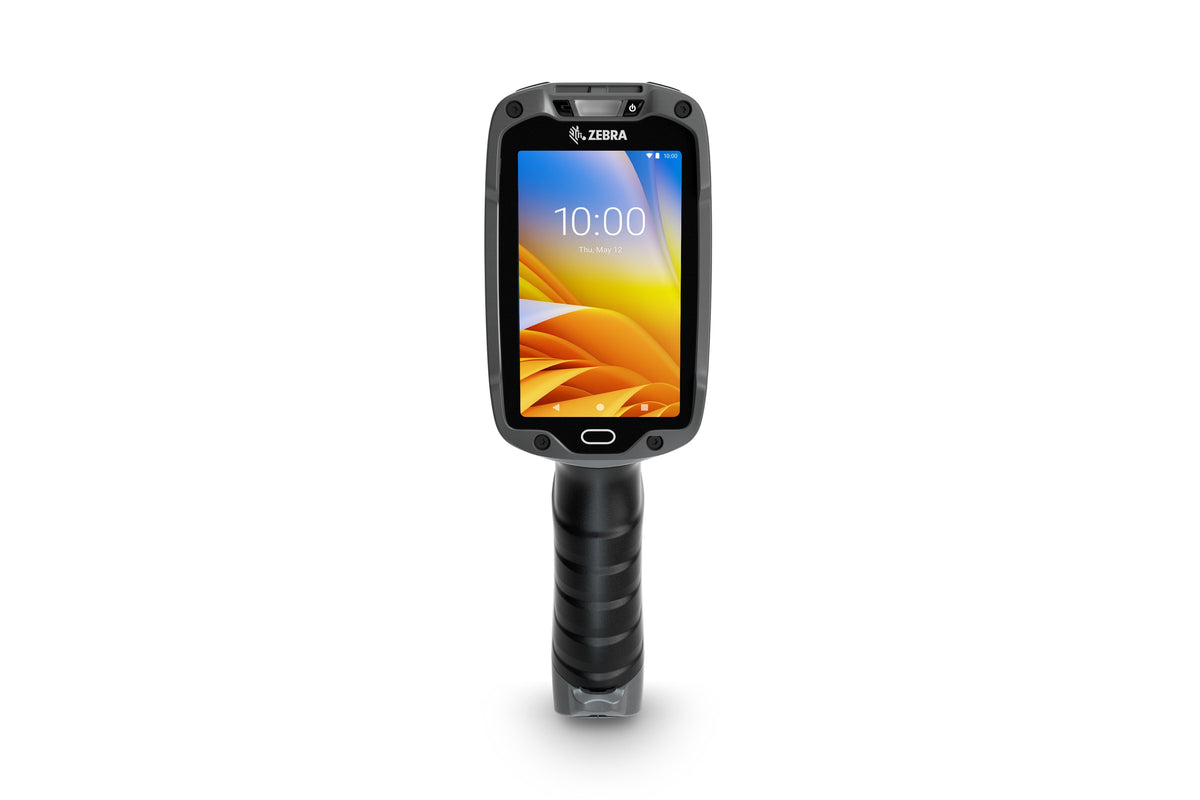

The Zebra TC8300 is a rugged Android touch computer designed for intensive warehouse work – receiving, put-away, picking, cross-docking and cold-chain operations. Its unique angled design keeps the scanner and the 4" touchscreen in line with the worker's natural wrist position, cutting wrist motion by 55% and raising productivity by 14%. A Snapdragon 660 octa-core processor, Wi-Fi 802.11ac with 2x2 MU-MIMO, Bluetooth 5.0 and a 7000 mAh hot-swap battery for up to three shifts complete the package. Configuration of TC83B0-3005A61CRW: SE4850 extended-range imager (7.6 cm to 21.4 m), condensation-resistant model for moving between cold storage, freezers and warmer areas.

Key Features

• Ergonomic angled design – the scan angle eliminates constant wrist tilting: 55% less wrist motion, 15% less muscle effort and 14% higher productivity than traditional designs.

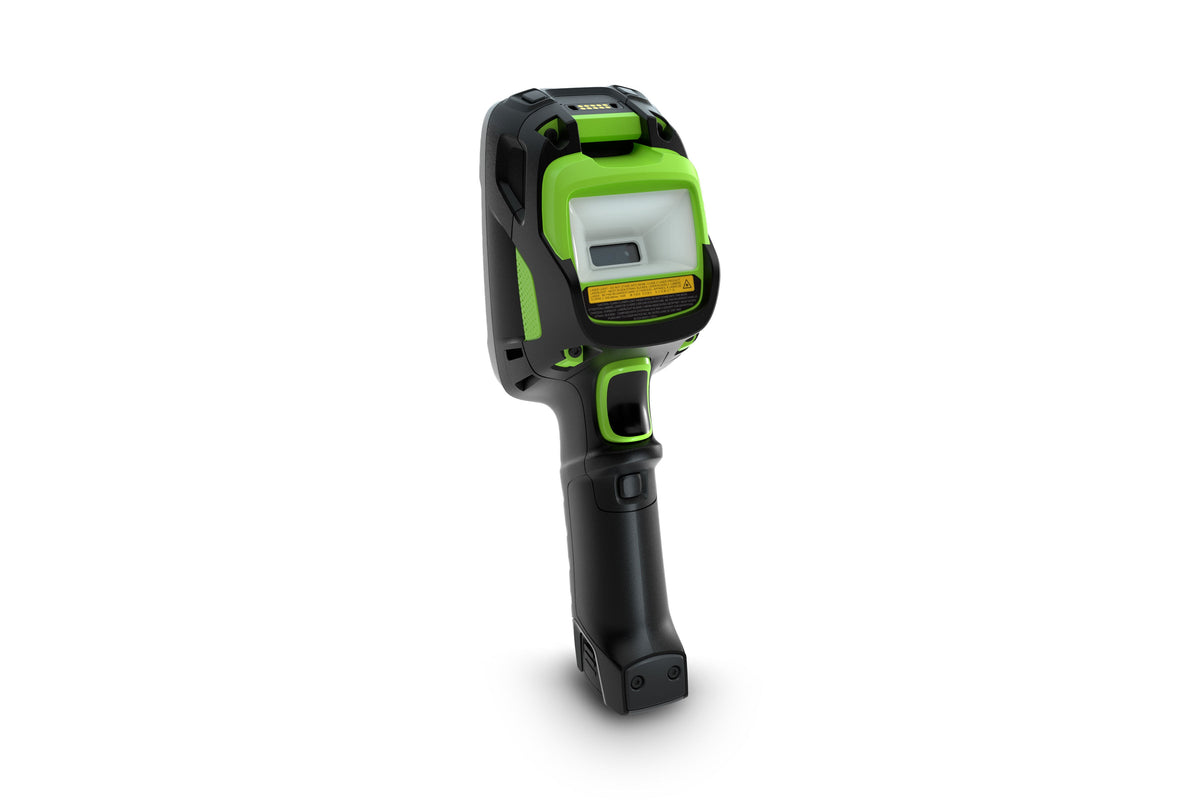

• Enterprise scanning – SE4850 extended-range imager reads 1D/2D barcodes from 7.6 cm to 21.4 m – from items in hand to the top of the racking; SimulScan captures multiple barcodes and text fields on a label with a single scan.
• Hands-free proximity scanning – the proximity sensor triggers scanning automatically when the device is worn on the hip or shoulder strap, or placed in a cart or on a desk.
• Triple-shift battery – 7000 mAh PowerPrecision+ battery with hot-swap backup and detailed battery health metrics.
• Powerful Android platform – Qualcomm Snapdragon 660 octa-core 2.2 GHz, 4 GB RAM / 32 GB pSLC Flash, microSD slot; launched with Android 8.1 Oreo (GMS), upgradeable to Android 14 with LifeGuard security updates.
• Fast, reliable wireless – Wi-Fi 802.11ac with 2x2 MU-MIMO and 802.11r/k fast roaming, Bluetooth 5.0 with BLE.
• Built for the warehouse – IP65, repeated 2.4 m drops to concrete, 2,000 tumbles at 1 m, −20 °C to +50 °C operation and thermal shock resistance; Corning Gorilla Glass touch panel and scanner window.
• Condensation resistant – designed for moving in and out of refrigerated and freezer areas without internal condensation.
• TE migration out of the box – run existing terminal emulation (TE) apps unchanged and turn them into All-touch TE screens without coding.

Ideal Applications

• Warehouse: receiving, put-away, picking, replenishment and cross-docking
• Cold chain: receiving and picking in refrigerated storage
• Manufacturing: inventory management, supply-line replenishment and parts tracking
• Retail back of store: inventory, price audits and order fulfilment
• Transport and logistics: returns processing and EDI transactions

All TC8300 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The TC8300 succeeds Zebra's TC8000 and shares its accessory ecosystem (TC8X cradles, batteries and holsters). Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
