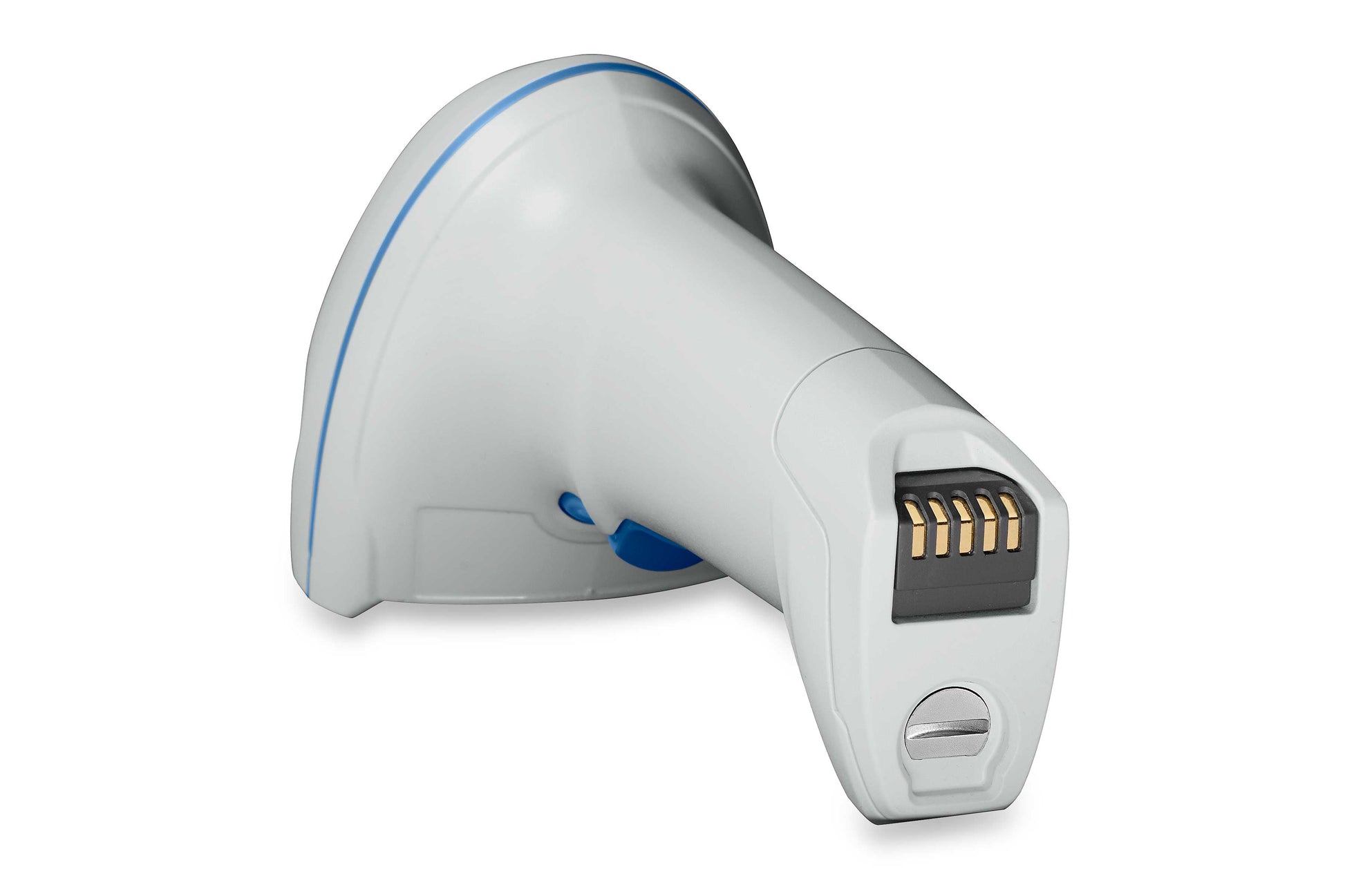

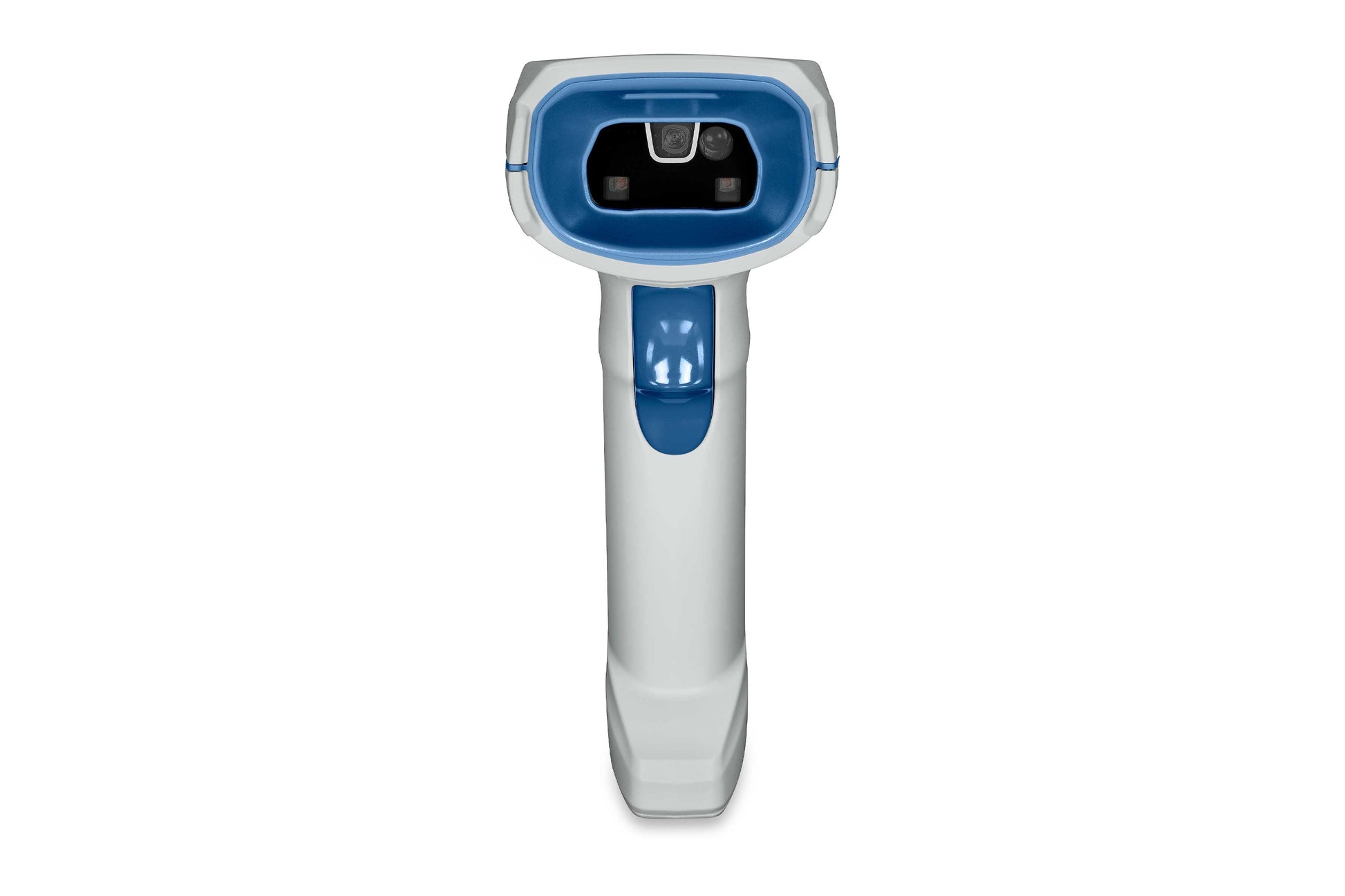

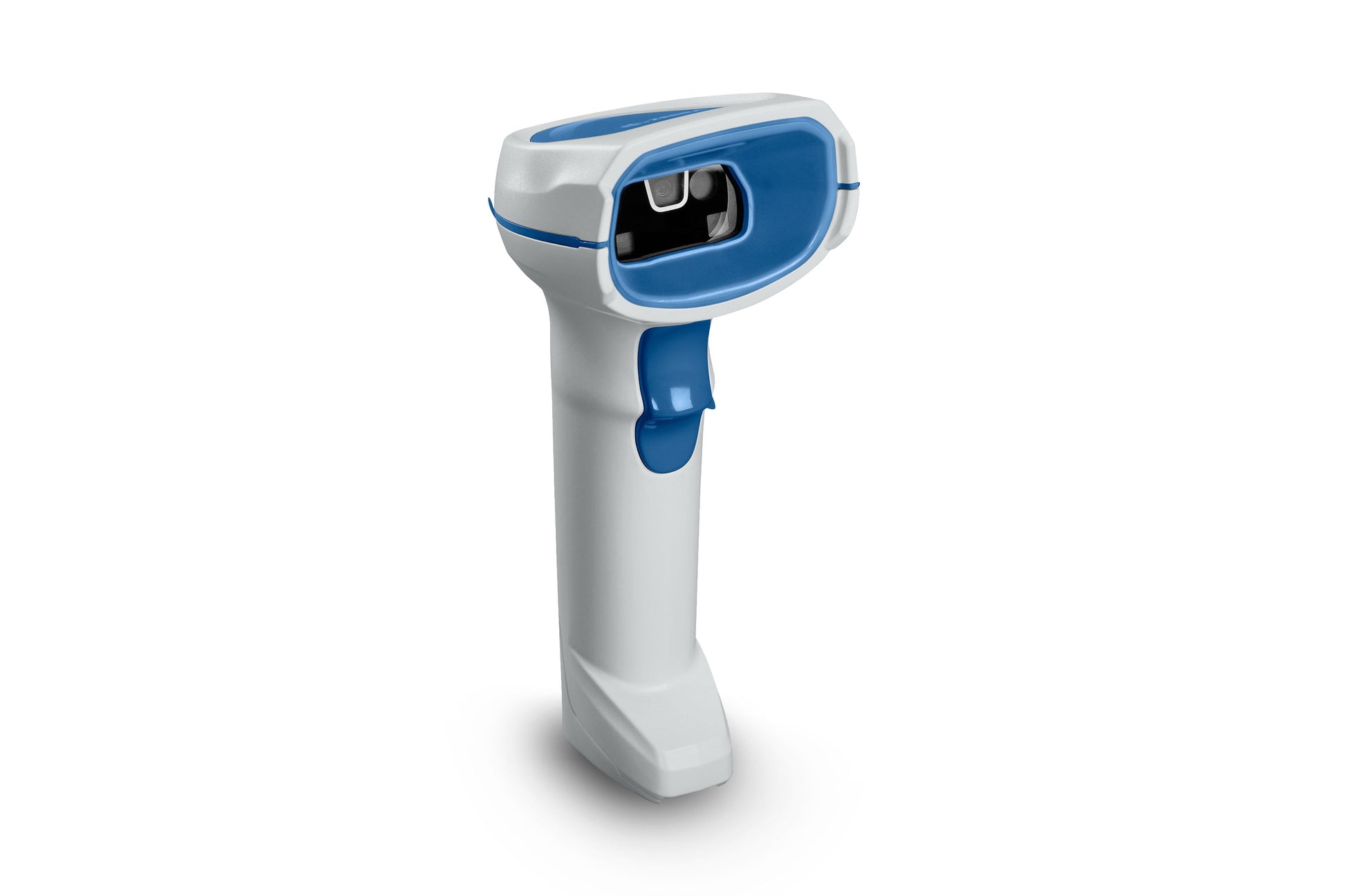

Zebra DS8178-HC Wireless Barcode Scanner (DS8178-HCBU210SP5W)

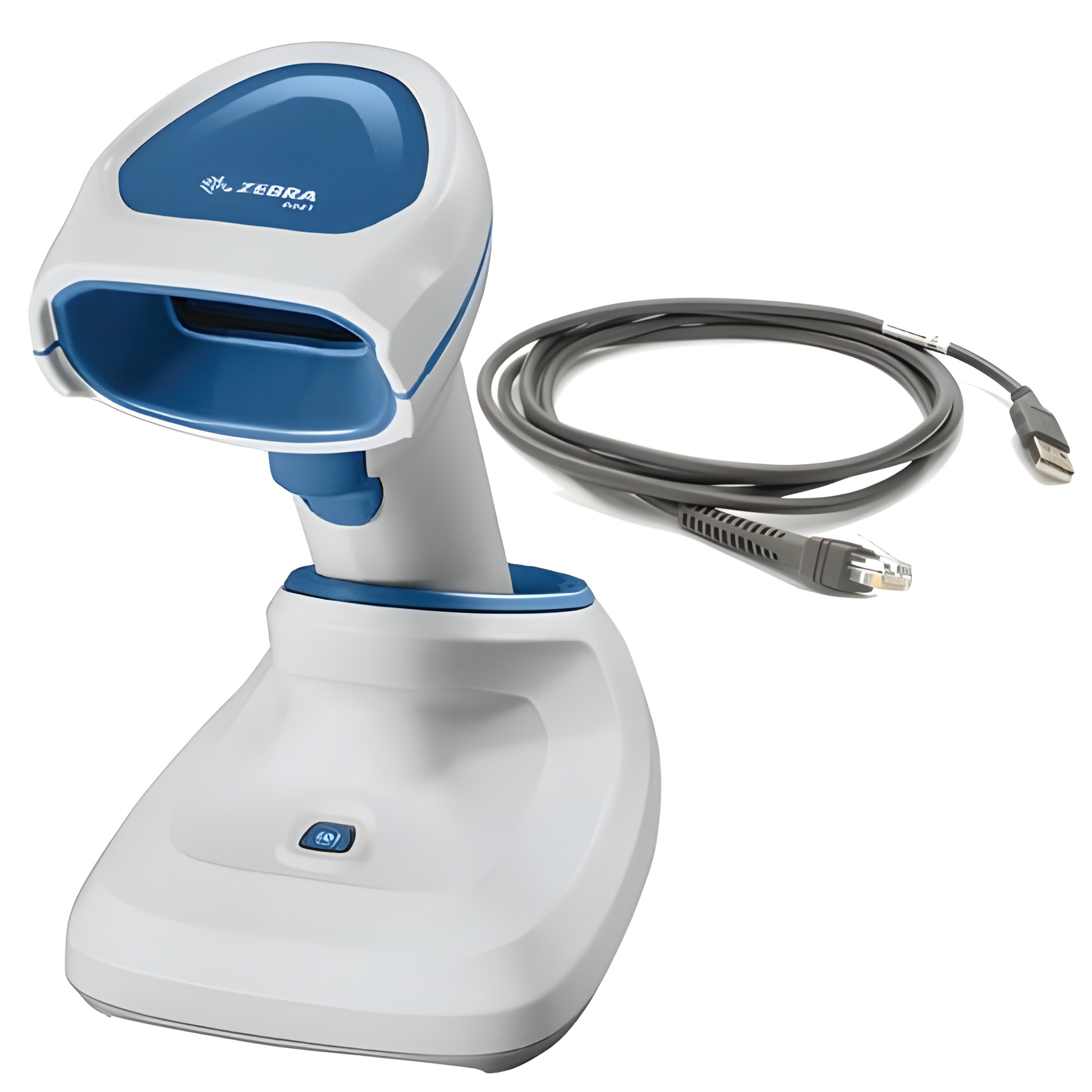

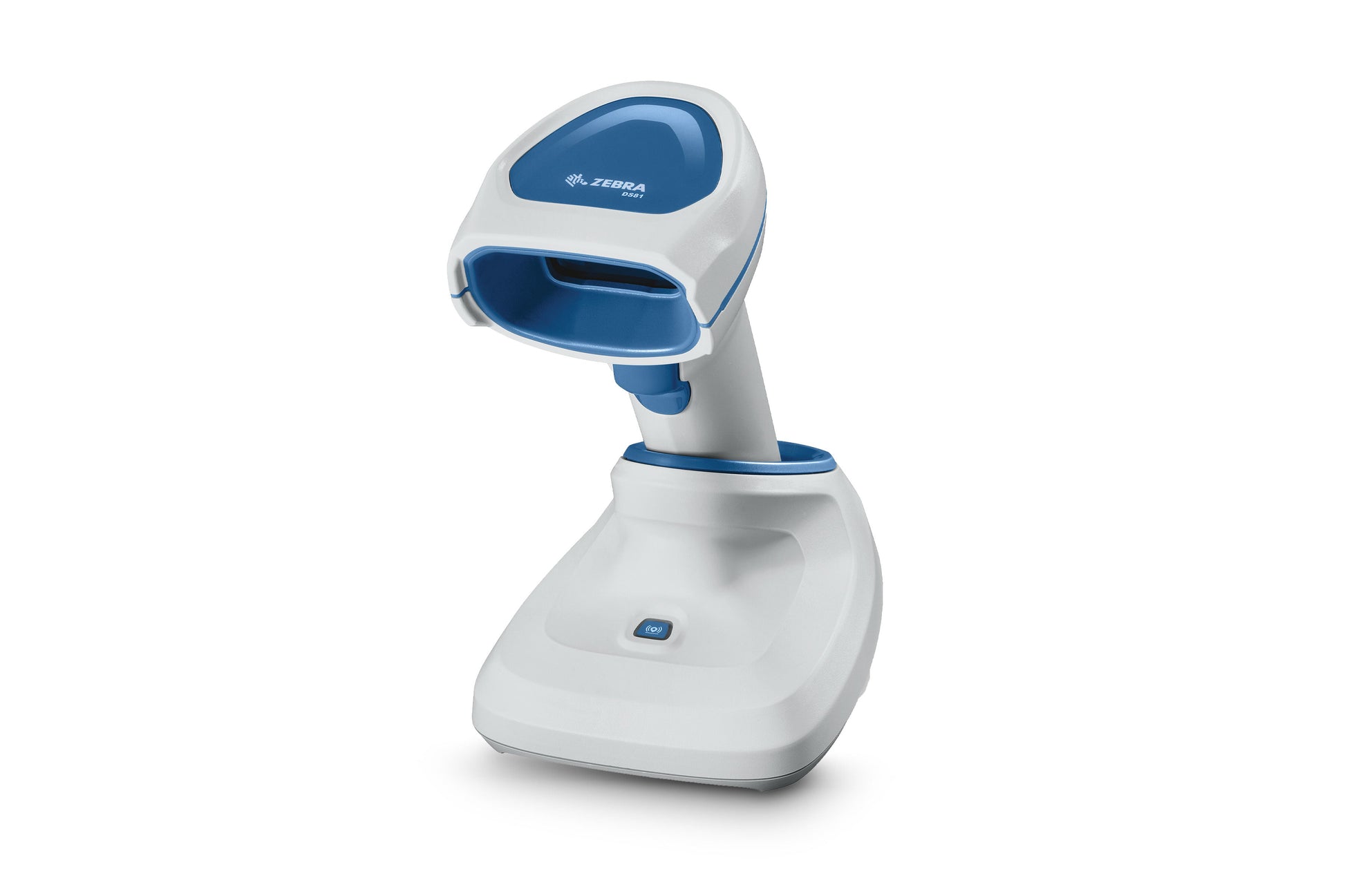

The Zebra DS8178-HC is the cordless Bluetooth® model of Zebra's premium DS8100 Series for Healthcare. Its industry-first disinfectant-ready Healthcare White housing withstands wipe-downs with the harshest hospital disinfectants and has concealed screw holes and seams where bacteria could hide, its megapixel sensor with PRZM Intelligent Imaging instantly captures dense, tiny, curved, damaged and on-screen barcodes, and its NICU-safe green LED aimer, Night Mode with Vibrate and built-in lamp help keep patients undisturbed. Class 1 Bluetooth gives caregivers up to 100 m of freedom from the cradle, the scanner is MFi-certified for iPhone and iPad, the power source can be swapped between a PowerPrecision+ battery and a PowerCap capacitor, and the scanner is backed by a 3-year (36-month) Zebra warranty. This version, DS8178-HCBU210SP5W, is powered by the PowerCap capacitor instead of a battery and is the presentation cradle USB kit: it is supplied with the CR8178-PC presentation cradle in Healthcare White (Bluetooth charging and communication base for hands-free scanning) and a USB cable – everything you need to start scanning cordlessly at your PC or workstation-on-wheels.

Key Features

• Disinfectant-ready housing – special plastics allow safe wipe-downs with the widest selection of the harshest disinfectants used in today's hospitals, and concealed screw holes and seams eliminate areas where bacteria could hide (see Zebra's Product Reference Guide for the list of approved cleaners).
• Reads virtually every barcode in any condition – 1D and 2D codes on patient wristbands, medication, IV bags, syringes and specimens, including dense, tiny, curved, shiny, crinkled, faded, dirty or damaged barcodes and electronic barcodes on dimly lit phone and tablet screens.
• Megapixel sensor with PRZM Intelligent Imaging – an 800 MHz processor, a 1280 × 960 sensor and Zebra's exclusive PRZM algorithms deliver instant decoding, a wide 48° × 37° field of view and a resolution down to 3 mil (Code 39 and Code 128).
• NICU-safe green LED aimer – a highly visible, eye-friendly green LED aiming dot instead of a laser, so the scanner can be used throughout the hospital, including the neonatal intensive care unit.
• Night Mode with Vibrate – choose haptic/vibration feedback, the good-decode LED, an adjustable beep or the Direct Decode Indicator that projects the illumination onto the barcode; in Night Mode a quick press of the trigger toggles between beep and vibration, so patients are disturbed as little as possible.
• Built-in lamp and paging button – the DS8178-HC doubles as a workstation lamp, so nurses can light up their workspace without switching on the room lights and waking patients, and the cradle's paging button finds a misplaced scanner in seconds.
• Cordless Bluetooth® freedom – Bluetooth 4.0 with BLE and Class 1 range of up to 100 m from the cradle; Scan-to-Connect pairs the scanner directly with Bluetooth PCs, tablets and smartphones, MFi certification allows use with iPhone and iPad, and Zebra's Wi-Fi friendly mode keeps the scanner off the channels used by your hospital WLAN.
• Swappable power – battery or PowerCap – choose the 2,500 mAh PowerPrecision+ battery (up to 65,000 scans per charge – more than three days of around-the-clock scanning) or the PowerCap capacitor (2,000 scans per charge, 100 scans after just 35 seconds in the cradle). Both can be swapped on site at any time, both report their model and serial number, and a dedicated Power Charge Gauge shows the charge level at a glance.
• Compact USB-powered cradles – the minimal footprint of the presentation cradle fits the most crowded workstations-on-wheels and lets nurses switch between hands-free and handheld scanning, while the desk/wall cradle can be mounted on a wall, mechanical arm or mobile workstation – ideal when there is a computer in every room. Both use Zebra's Connect+ contact technology for reliable, corrosion-free charging over the life of the scanner.
• UDI Scan+ – scan the barcode on medical device packaging and the Unique Device Identification (UDI) data is automatically parsed, formatted and sent in the right order to the right fields of your EHR or other application – no manual data entry.
• Preferred Symbol and Multi-Code Data Formatting – on items with several barcodes, output only the barcode you need, or capture several barcodes with one trigger pull and send them in the order your application expects.
• Easy to deploy – the cradles use the same auto-host-detect Zebra cables as the DS8108, DS4608, DS2208 and LS2208 (USB, RS232, keyboard wedge, IBM 46XX). Supports more than 90 international keyboards and is FIPS 140-2 certified.
• Built to last – withstands multiple 1.8 m drops to concrete and 2,000 tumbles, IP52 sealing protects against dust and spills, and the scanner and cradle carry a 36-month Zebra warranty. The PowerPrecision+ battery reports its charge cycles and state of health, so aging batteries can be replaced before they fail.
• Free management tools – configure with 123Scan, update firmware and settings remotely with Scanner Management Service (SMS), monitor decode performance with ScanSpeed Analytics and integrate with EHR/EMR applications using the Zebra Scanner SDK (Zebra DataCapture DNA).

Ideal Applications

• Positive patient identification and verification – at admission, in the ER and triage and at the bedside (including the NICU)
• Bedside scanning from workstations-on-wheels (WOWs) and in patient rooms – cordless up to 100 m from the cradle
• Medication administration and verification at the point of care
• Hospital pharmacy – medication intake and inventory, chain of custody of controlled substances
• Laboratory specimen track and trace
• Operating room – tracking of surgical supplies, instruments and implants (UDI)
• Caregiver accountability and audit trails, dietary management
• Electronic health record (EHR/EMR) access in hospitals, outpatient clinics and care facilities

All DS8178-HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a new workstation, choose a USB kit – DS8178-HCBU210MS5W (desk/wall-mount cradle) or DS8178-HCBU210MP5W (presentation cradle) with the PowerPrecision+ battery, DS8178-HCBU210SS5W or DS8178-HCBU210SP5W with the PowerCap capacitor, or DS8178-HCBU210FP5W with the presentation cradle and adhesive mounting strips. The scanner-only versions DS8178-HCMF00BVMWW (battery) and DS8178-HCSF00BVMWW (PowerCap) are intended as additional or replacement scanners for an existing CR8178 cradle. Need a corded healthcare scanner? See the Zebra DS8108-HC. For retail and general-purpose use, see the standard Zebra DS8178. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
