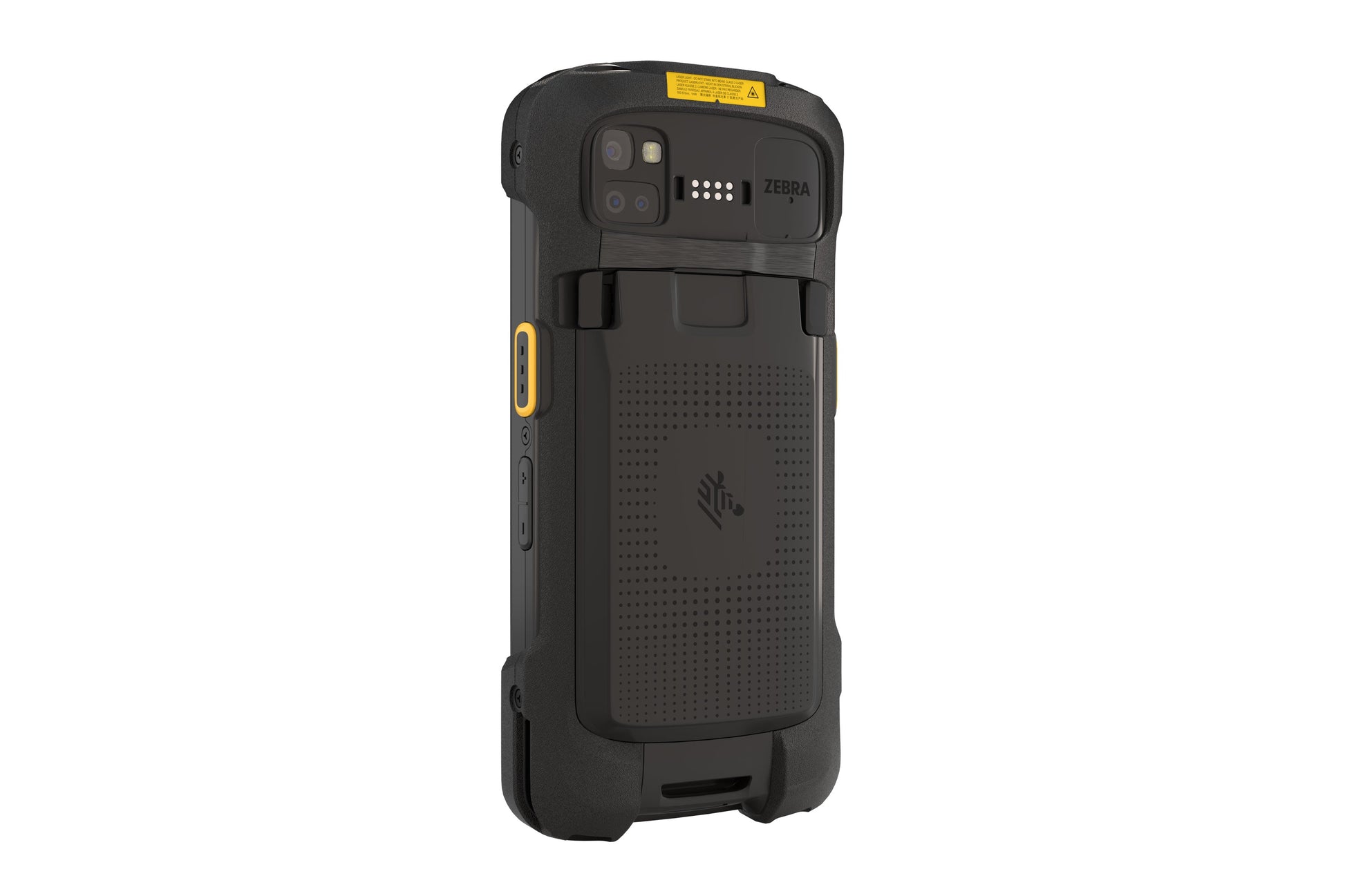

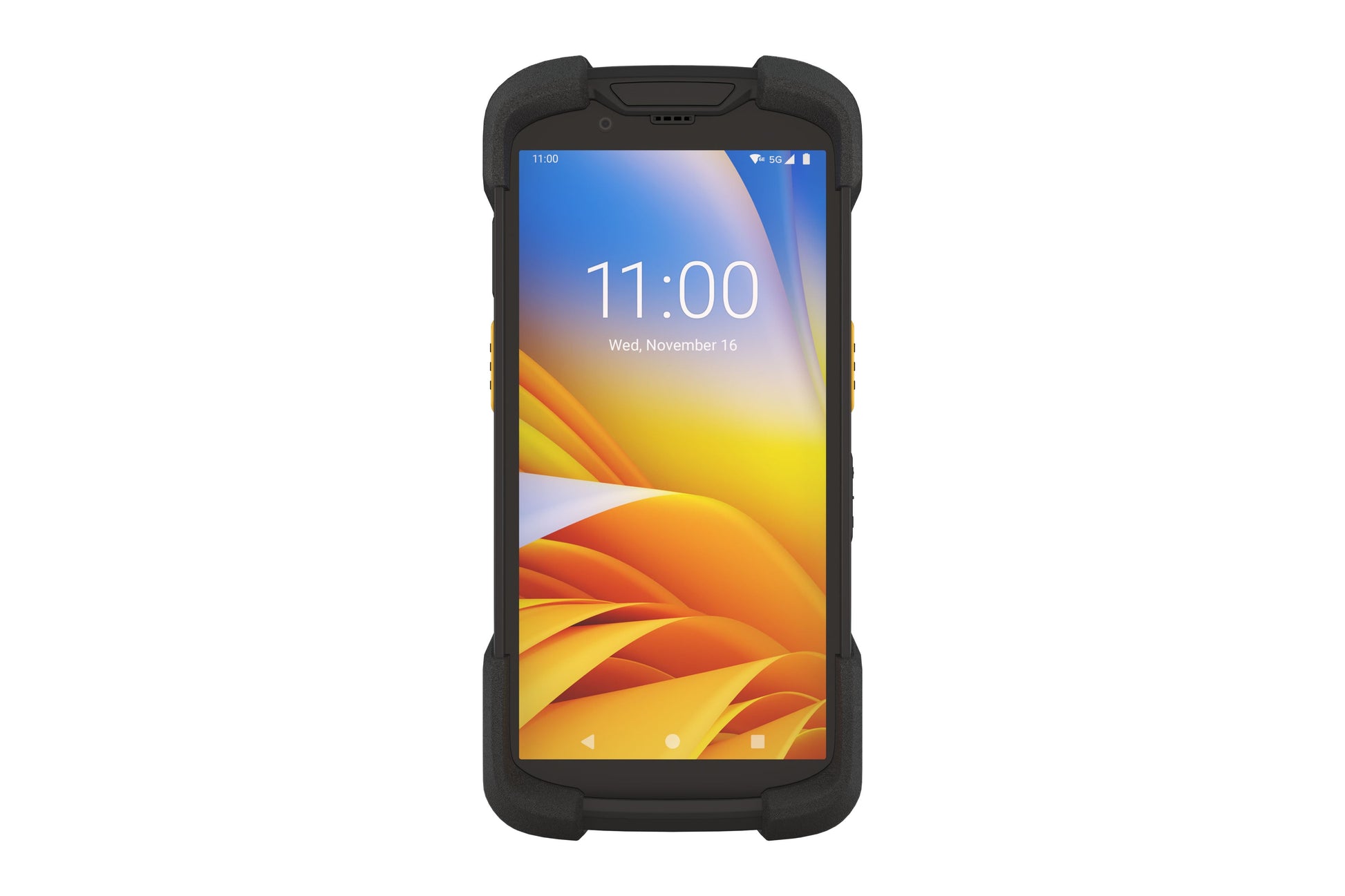

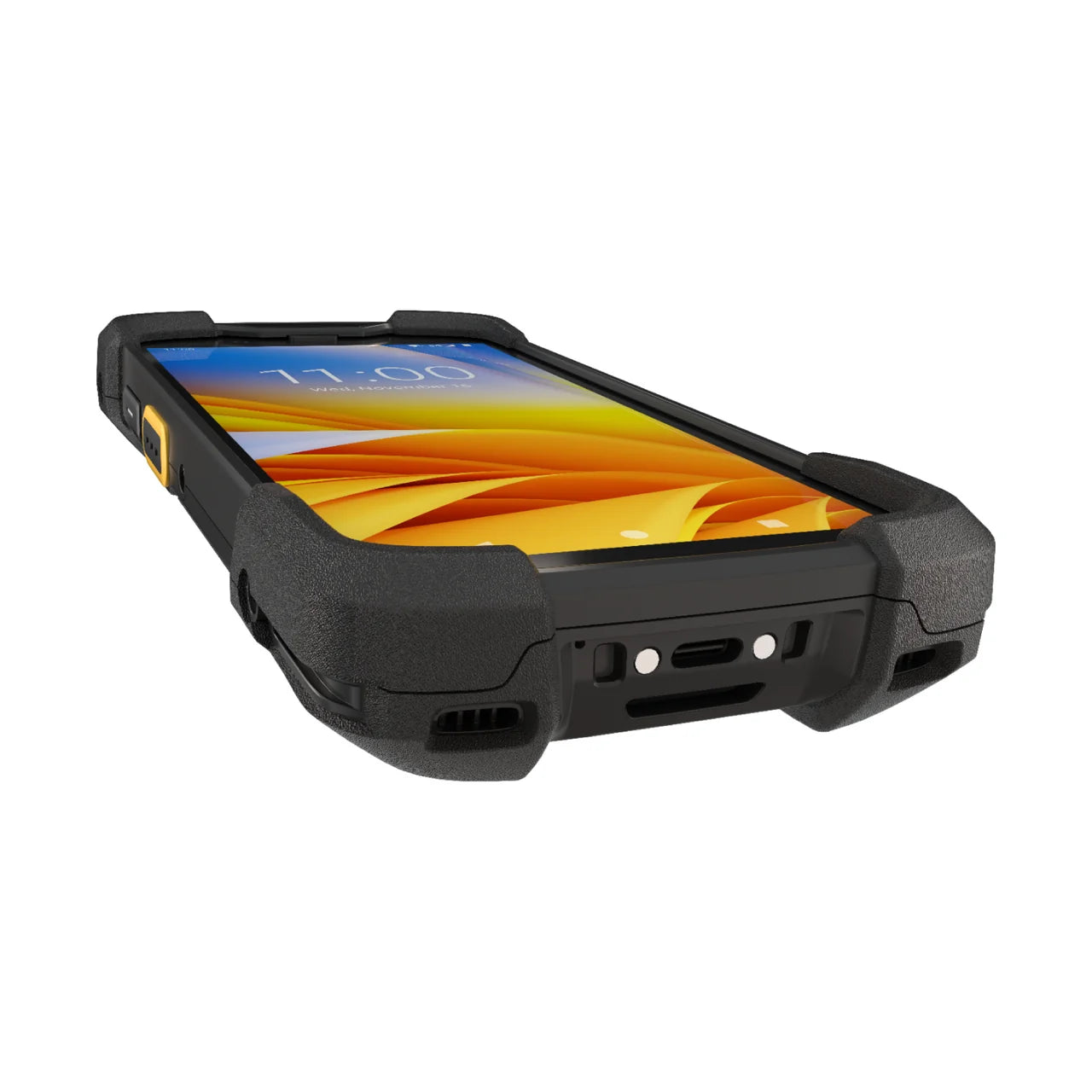

The Zebra TC73 is an ultra-rugged Android mobile computer for warehouses, manufacturing, transport and logistics, parcel delivery and field service – thinner, lighter and tougher than its TC72/TC77 predecessors. It combines a 6" Full HD+ edge-to-edge touchscreen, Qualcomm 6490 octa-core performance, Wi-Fi 6E, Bluetooth 5.2 and NFC with 3 m drop protection and IP65/IP68 sealing. This version, TC7301-0T1J4B1000-A6, is the Wi-Fi-only TC73 model. Configuration: the SE4770 standard-range imager (up to approx. 60 cm), 4 GB RAM / 64 GB Flash, Standard edition (warm-swap battery), standard 4680 mAh battery.
📦 What's in the box – TC7301-0T1J4B1000-A6
- ✅ Zebra TC73 – mobile computer, black, Wi-Fi 6E, Bluetooth 5.2, NFC, SE4770, 4 GB / 64 GB
- ✅ Battery – standard 4680 mAh Li-ion, user-replaceable (BTRY-NGTC5TC7-44MA-01)
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Regulatory guide – printed safety and regulatory information; user guides are a free download from Zebra
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ USB-C charging cable – NOT included – USB-C to USB-A, for charging and data – see the options below
- ❌ Charging cradle – NOT included
- ❌ Hand strap – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the TC73, please order separately: the Zebra CBL-TC5X-USBC2A-01 USB-C cable plus the Zebra PWR-WUA5V12W0EU USB power adapter – charges the device directly; or the Zebra CRD-NGTC7-2SC1B single-slot charging cradle kit (power supply and DC cable included) plus the Zebra 50-16000-220R mains cord.
💡 Useful extras: a spare battery for hot-swapping (Zebra BTRY-NGTC5TC7-44MA-01); the Zebra BTRY-NGTC5TC7-66MA-01 extended battery for multi-shift use; multi-slot charging cradles for teams (Zebra CRD-NGTC7-5SC5D, Zebra CRD-NGTC7-5SE5D or Zebra CRD-NGTC7-5SC4B); the Zebra SAC-NGTC5TC7-4SCHG-01 4-slot spare battery charger; the Zebra TRG-NGTC7-ELEC-01 electronic trigger handle for scan-intensive work; the Zebra SG-NGTC5TC7-HDSTP-01 hand strap; the Zebra SG-NGTC5TC7-HLSTR-01 holster; the Zebra SG-NGTC7-SCRNP-03 tempered-glass screen protector; the Zebra CRD-NTC7X-1SNWS-01 Workstation Connect cradle to turn the device into a desktop workstation or POS station; a service plan with fast repair and battery replacement (Zebra OneCare Essential 3 years (Z1AE-TC73XX-3C00) or Zebra OneCare Essential 5 years (Z1AE-TC73XX-5C00)).
Interactive 3D Model
Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗
Key Features
- Ultra-rugged, yet thinner and lighter – survives multiple 3.05 m drops to concrete and 2,000 tumbles, IP65 and IP68 sealed; the grip area is nearly 20% thinner than on previous TC7x models.
- 6" Full HD+ edge-to-edge display – 1080 × 2160 pixels, 28% larger than on earlier TC7x devices, Corning Gorilla Glass; works when wet and with gloves or a stylus.
- High-performance scanning – Zebra's SE4770 imager with a wide field of view and maximum motion tolerance; the scan buttons are rated for one million actuations and SimulScan captures several barcodes with one press.
- Wi-Fi-only TC73 – the cost-effective choice for warehouses, plants and distribution centres with Wi-Fi coverage; choose the TC78 for 5G.
- Latest wireless – Wi-Fi 6E with 2x2 MU-MIMO and the 6 GHz band, Bluetooth 5.2 and NFC with contactless payment support.
- Blazing speed – Qualcomm 6490 octa-core 2.7 GHz processor, up to 8 GB RAM / 128 GB Flash and microSD up to 2 TB; upgradeable to Android 16.

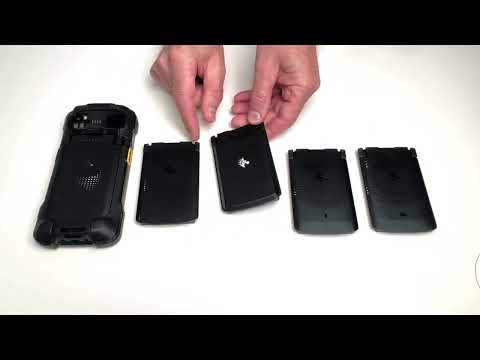

- Flexible battery options – standard 4680 mAh, extended 7000 mAh, wireless-charging and BLE batteries with PowerPrecision+ health metrics; fast charging, even with any standard USB-C cable.
- 16 MP rear camera with flash and HDR for proof of delivery and condition (optical image stabilisation and Time-of-Flight sensor on Premium versions), plus an 8 MP front camera for video calls.
- Crystal-clear voice – three microphones with noise cancellation, dual speakers, HD Voice and a dedicated push-to-talk button; use it as a PBX handset or two-way radio.
- Zebra Mobility DNA – DataWedge, StageNow, Device Tracker, Workstation Connect and more for easy deployment and management; trigger handle and RFID sled support.
Ideal Applications
- Warehouses and distribution centres: picking, put-away, receiving and inventory
- Manufacturing: line-side replenishment, work-in-progress tracking and quality control
- Parcel delivery, direct store delivery (DSD) and route accounting
- Field service, utilities and asset maintenance
- Airlines and airports: under-wing operations and baggage handling
- Retail distribution centres and back-of-store operations
All TC73/TC78 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | Scan Engine | Memory | Edition | Battery | |
|---|---|---|---|---|---|---|---|
| TC7301-0T1J4B1000-A6 (this version) | Zebra TC73 | Wi-Fi only | SE4770 | 4 GB / 64 GB | Standard | 4680 mAh | Viewing |
| TC7301-0T1K4B1000-A6 | Zebra TC73 | Wi-Fi only | SE55 | 4 GB / 64 GB | Standard | 4680 mAh | View product |
| TC7301-0T1K6E200A-A6 | Zebra TC73 | Wi-Fi only | SE55 | 8 GB / 128 GB | Premium | 4680 mAh | View product |
| TC78B1-3T1J4B1A80-A6 | Zebra TC78 | 5G + Wi-Fi | SE4770 | 4 GB / 64 GB | Standard | 4680 mAh | View product |
| TC78B1-3T1J6B1A80-A6 | Zebra TC78 | 5G + Wi-Fi | SE4770 | 8 GB / 128 GB | Standard | 4680 mAh | View product |
| TC78B1-3T1J6B1W80-A6 | Zebra TC78 | 5G + Wi-Fi | SE4770 | 8 GB / 128 GB | Standard | 4680 mAh (Standard + wireless charging) | View product |
| TC78B1-3T1K4B1A80-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 4 GB / 64 GB | Standard | 4680 mAh | View product |
| TC78B1-3T1K6B1A80-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Standard | 4680 mAh | View product |
| TC78B1-3T1K6B1W80-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Standard | 4680 mAh (Standard + wireless charging) | View product |
| TC78B1-3T1K6B1B80-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Standard | 4680 mAh (Standard + BLE beacon) | View product |
| TC78B1-3T1K6E2A8A-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Premium | 4680 mAh | View product |
| TC78B1-3T1K6E2A8C-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Premium + certified dimensioning (EU/EFTA) | 4680 mAh | View product |
| TC78B1-3T1K6E2A8F-A6 | Zebra TC78 | 5G + Wi-Fi | SE55 | 8 GB / 128 GB | Premium + certified dimensioning (UK/RoW) | 4680 mAh | View product |
Technical Specifications
| Part Number | TC7301-0T1J4B1000-A6 |
|---|---|
| Model | Zebra TC73 (Wi-Fi model of the TC73/TC78 series) – Standard edition |
| Operating System | Android with Google Mobile Services (GMS); upgradeable to Android 16 |
| Processor | Qualcomm 6490 octa-core, 2.7 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 64 GB UFS Flash |
| Expansion | User-accessible microSD slot, up to 2 TB |
| Display | 6.0" Full HD+ (1080 × 2160), LED backlight, optically bonded to the touch panel, edge-to-edge |
| Touch Panel | Multi-mode capacitive touch – bare or gloved finger or conductive stylus (sold separately); Corning Gorilla Glass; water droplet rejection; anti-smudge coating |
| Keypad | On-screen keypad and Zebra Enterprise Keyboard |
| Buttons | Dual dedicated scan buttons, dedicated push-to-talk button, volume up/down; trigger button of the trigger handle via back I/O |
| Scan Engine | SE4770 1D/2D imager – standard range up to approx. 60 cm, wide field of view; Corning Gorilla Glass exit window |
| Rear Camera | 16 MP autofocus, flash LED, torch mode, HDR |
| Front Camera | 8 MP |
| Wi-Fi | Wi-Fi 6E (IEEE 802.11a/b/g/n/ac/ax), 2x2 MU-MIMO, 2.4/5/6 GHz, dual-band simultaneous; WPA3; fast roaming 802.11r / OKC / CCKM |
| Bluetooth | Bluetooth 5.2, Class 2 |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; host card emulation; contactless payment support; Apple VAS certified, Google Smart Tap ready |
| Mobile Data (WWAN) | Not available – Wi-Fi only (choose the TC78 for 5G) |
| GPS/GNSS | Not available (TC78 only) |
| Voice & Audio | 3 microphones with noise cancellation, dual speakers, speakerphone, HD Voice (SWB/WB/FB); Bluetooth and USB-C PTT headsets |
| Ports | USB-C 3.0 (bottom, host and client); USB 2.0 back I/O (host only) |
| Sensors | Light, proximity and pressure sensors, 3-axis accelerometer, gyroscope, magnetometer |
| Battery | 4680 mAh / 18.01 Wh PowerPrecision+ Li-ion, user-replaceable (BTRY-NGTC5TC7-44MA-01); warm-swap battery mode; optional 7000 mAh extended battery |
| Charging | Via USB-C (any standard USB-C cable + USB power adapter) or a charging cradle – not included; fast charging |
| Form Factor | Ultra-rugged all-touch handheld with 6" display |
| Dimensions | 176.8 × 85.8 × 28.4 mm (L × W × H); grip area 80.75 × 20.3 mm |
| Weight | 349 g with standard battery |
| Drop Spec | Multiple 3.05 m drops to concrete at room temperature; multiple 2.4 m drops to concrete across −20 °C to 50 °C (MIL-STD-810H) |
| Tumble Spec | 2,000 tumbles at 1.0 m (IEC) |
| Sealing | IP65 and IP68 (with battery) |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% non-condensing |
| Software & Management | Zebra Mobility DNA: DataWedge, StageNow, Zero-Touch, Device Tracker, Enterprise Browser, LifeGuard for Android, Workstation Connect; RFD90 UHF RFID sled support |
| Colour | Black |
| Warranty | 12 months (Zebra 1-year hardware warranty); Zebra OneCare service plans available |
| In the Box | Zebra TC73 mobile computer (TC7301-0T1J4B1000-A6), standard 4680 mAh PowerPrecision+ Li-ion battery (BTRY-NGTC5TC7-44MA-01), Google Mobile Services (GMS) licence preinstalled, regulatory guide – charger/power supply, USB-C cable, charging cradle and hand strap NOT included (order separately) |
The TC73 belongs to Zebra's TC73/TC78 series, the successor to the TC72/TC77, with five years of product availability and up to ten years of service and support. Need mobile data on the road? The Zebra TC78 (TC78B1-3T1J4B1A80-A6) adds 5G and GPS. It replaces the Zebra TC77. Prefer a slimmer, lighter device? See the Zebra TC53e/TC58e. Looking for the newest generation? See the Zebra TC701. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
TC7301-0T1J4B1000-A6
Selected
Scanner Type
SE4770 standard range
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE4770), Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), NFC, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 4 GB, Flash: 64 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
2.322,64 €Out of Stock
TC7301-0T1K4B1000-A6
Scanner Type
SE55 advanced range
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE5500), Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), NFC, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 4 GB, Flash: 64 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC7301-0T1K6E200A-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), Camera (16MP, auto-focus), front camera (8MP), hot swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), NFC, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 8 GB, Flash: 128 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1J4B1A80-A6
Scanner Type
SE4770 standard range
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE4770), GPS, Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 4 GB, Flash: 64 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1J6B1A80-A6
Scanner Type
SE4770 standard range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE4770), GPS, Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 8 GB, Flash: 128 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1J6B1W80-A6
Scanner Type
SE4770 standard range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE4770), screen size: 15.2 cm (6''), 2160x1080 pixels, GPS, Camera (16 MP, auto-focus), front camera (8 MP), warm swappable, USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android, incl.: Google Mobile Services, battery, wireless charging, IP65, IP68
TC78B1-3T1K4B1A80-A6
Scanner Type
SE55 advanced range
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE5500), GPS, Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 4 GB, Flash: 64 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1K6B1A80-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), GPS, Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 8 GB, Flash: 128 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1K6B1B80-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), GPS, Camera (16MP, auto-focus), front camera (8MP), warm swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 8 GB, Flash: 128 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery, Bluetooth Beacon
TC78B1-3T1K6B1W80-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), screen size: 15.2 cm (6''), 2160x1080 pixels, GPS, Camera (16 MP, auto-focus), front camera (8 MP), warm swappable, USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android, incl.: Google Mobile Services, battery, wireless charging, IP65, IP68
TC78B1-3T1K6E2A8A-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), GPS, Camera (16MP), front camera (8MP), hot swappable, 15,2cm (6''), USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, 2160x1080 pixels, Qualcomm Octa Core, 2,7GHz, RAM: 8 GB, Flash: 128 GB, Android, IP65, IP68, incl.: Google Mobile Services, battery
TC78B1-3T1K6E2A8C-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), screen size: 15.2 cm (6''), 2160x1080 pixels, GPS, Camera (16 MP), front camera (8 MP), hot swappable, USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android, incl.: Google Mobile Services, Certified mobile parcel dimensioning software, battery, IP65, IP68
TC78B1-3T1K6E2A8F-A6
Scanner Type
SE55 advanced range
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE5500), screen size: 15.2 cm (6''), 2160x1080 pixels, GPS, Camera (16 MP), front camera (8 MP), hot swappable, USB, Bluetooth, Wi-Fi (Wi-Fi 6E), 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.7 GHz, RAM: 8 GB, Flash: 128 GB, Android, incl.: Google Mobile Services, Certified mobile parcel dimensioning software, battery, IP65, IP68
