RAM Mounts Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78 (RAM-HOL-ZE17L-1U)

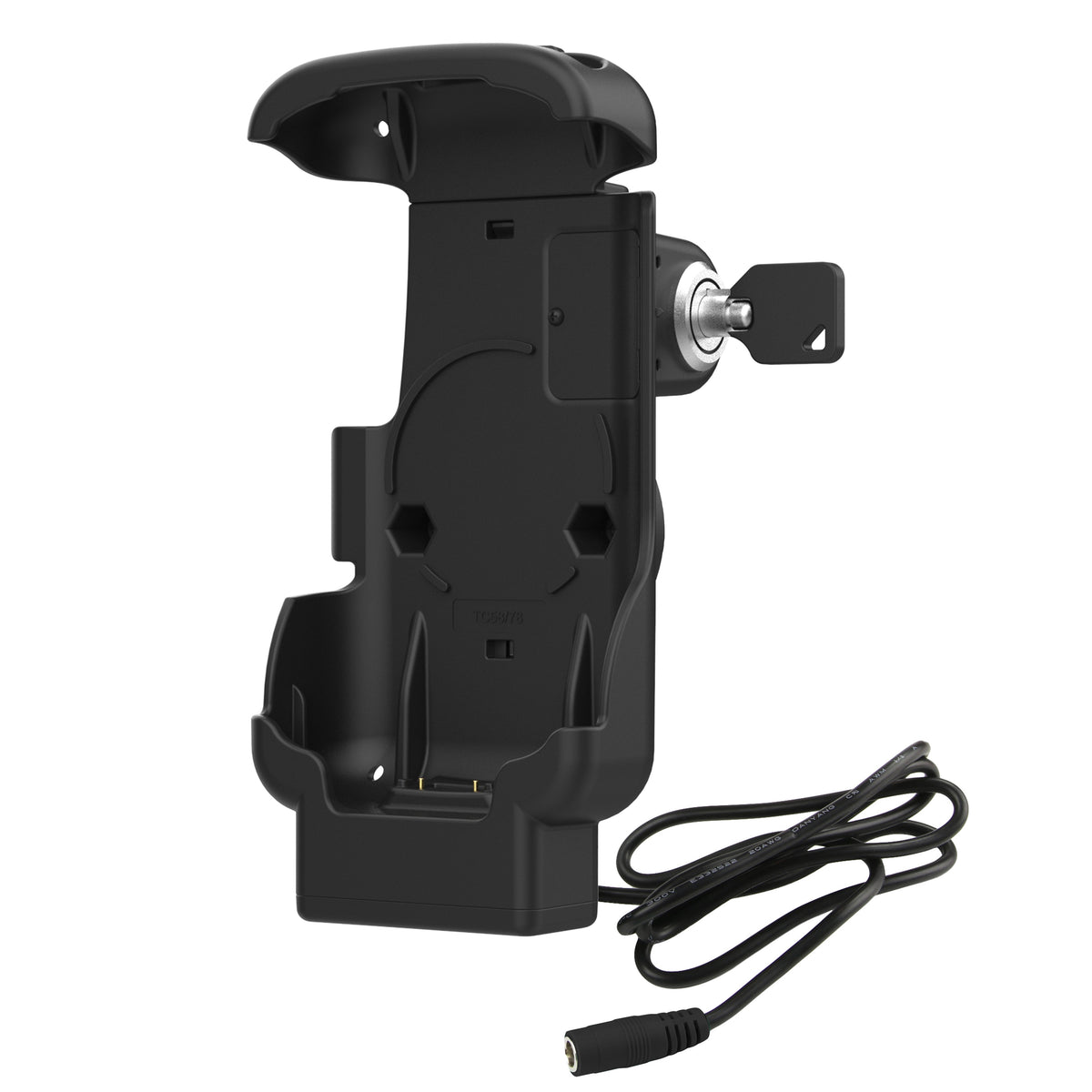

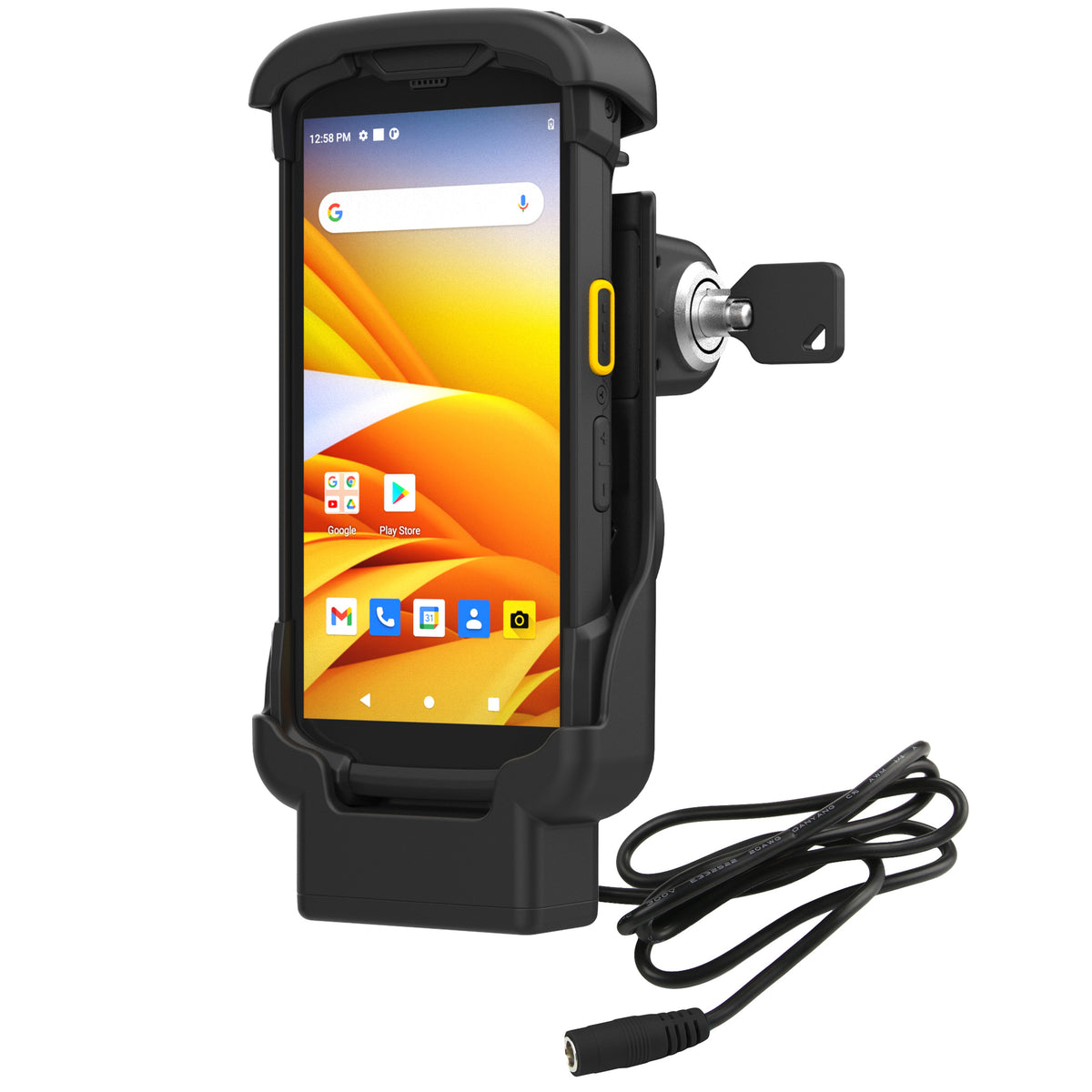

RAM Mounts Key-Locking Form-Fit Powered Dock (RAM-HOL-ZE17L-1U) is made for the Zebra TC73 and TC78 rugged mobile computers and suits forklifts, delivery vehicles, warehouse carts and other mobile workplaces. The spring-loaded cradle holds the device firmly and charges it through pogo-pin contacts; power is supplied via a 1.25 m cable with a female 5.5 mm DC barrel connector. An integrated stylus holder keeps the stylus within reach and the Zebra hand strap can stay on. A key lock secures the device against theft.

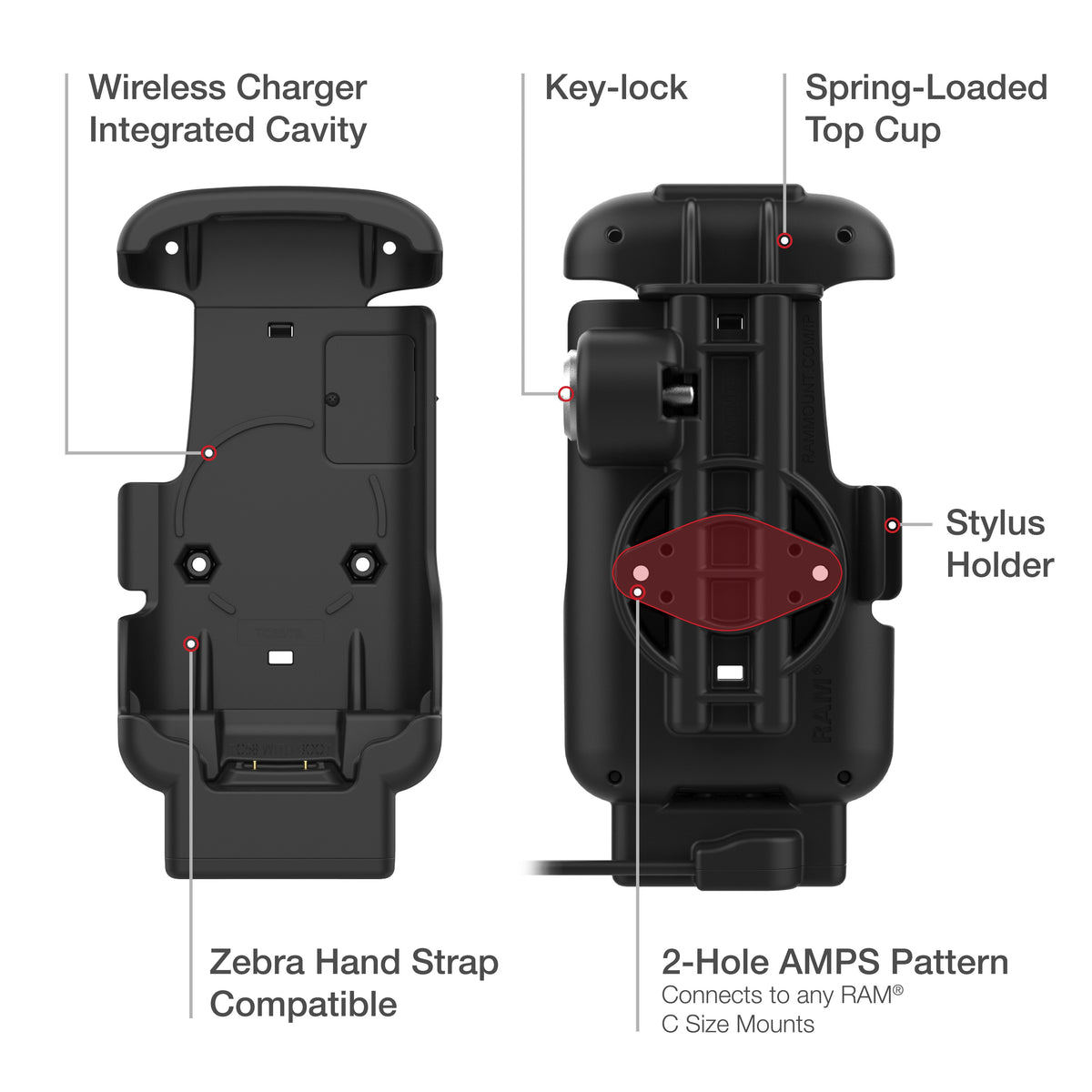

Key Features

• Spring-loaded Form-Fit cradle – shaped for the Zebra TC73 and TC78
• Key lock – deters theft; 2 keys included

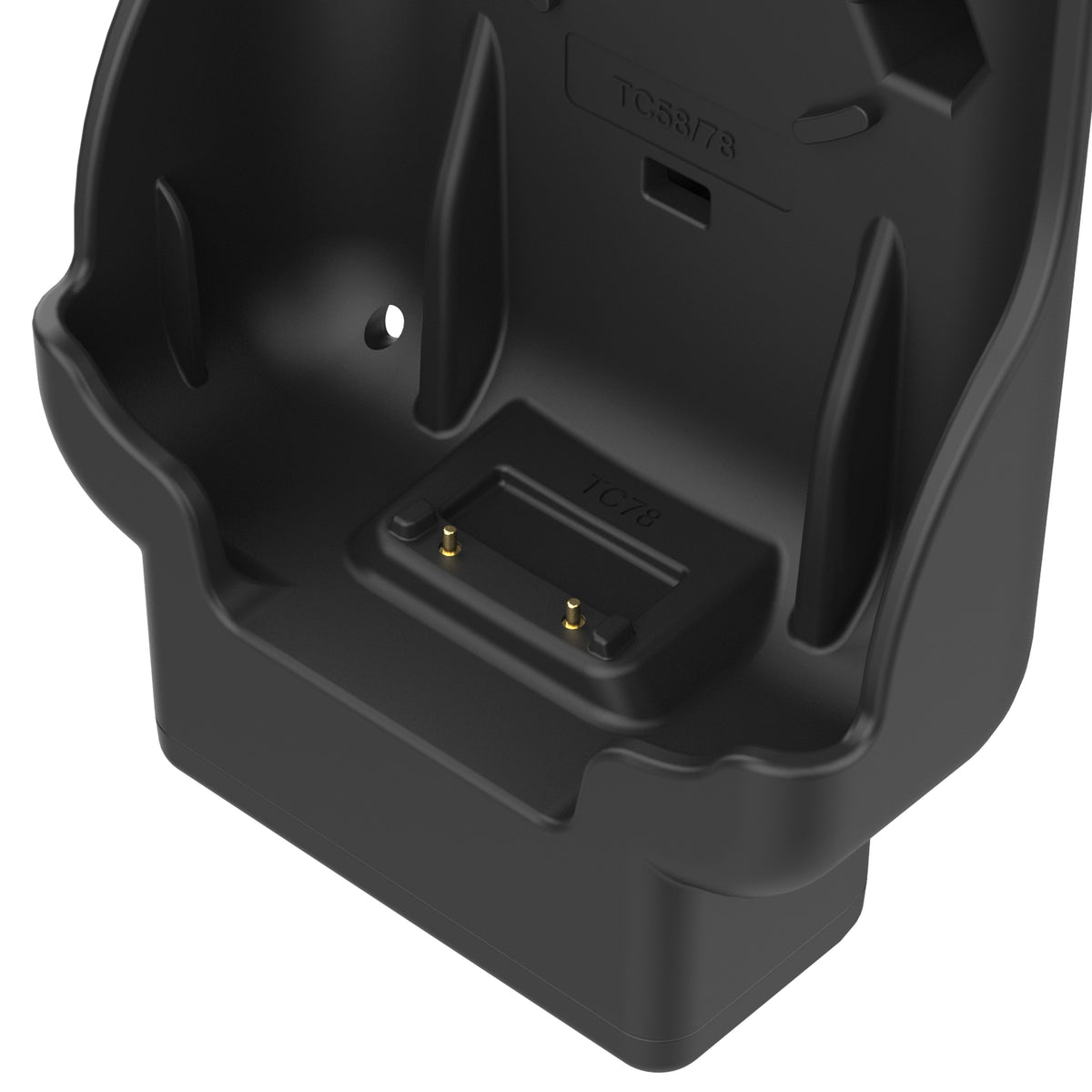

• Charging via pogo pins – 1.25 m power cable with female 5.5 mm DC barrel connector; charger sold separately

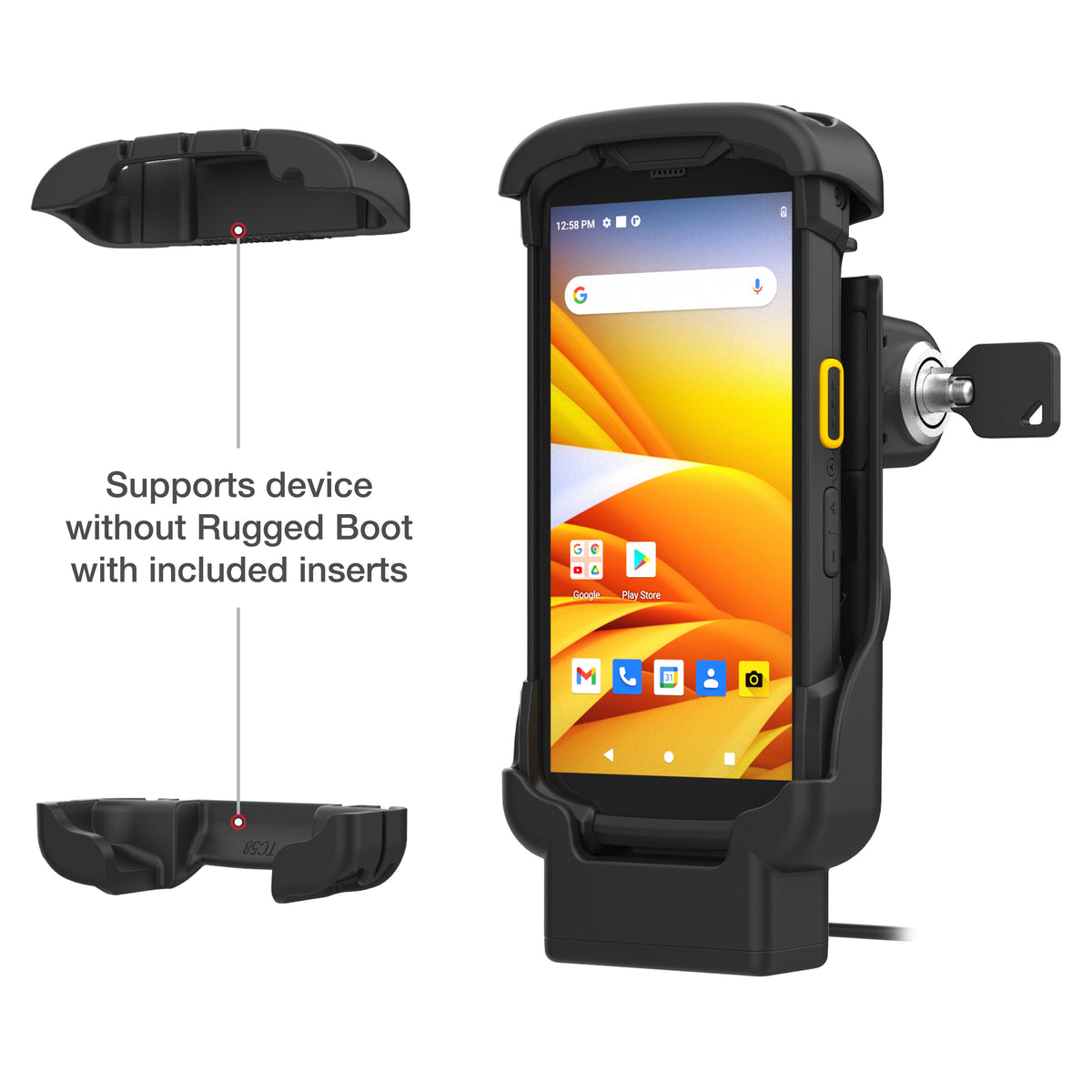

• Stylus holder & hand strap – integrated stylus holder; accommodates the Zebra hand strap
• 2-hole AMPS pattern – 48.6 mm (1.912") diamond pattern for RAM B- or C-size diamond ball bases and fully adjustable ball-and-socket arms
• Built to last – high-strength composite, backed by a 3-year RAM warranty

Compatibility

• Zebra TC73
• Zebra TC78
• RAM B- or C-size diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications

You will find the device and more matching accessories in our Zebra TC73 collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
