Brother TD-4650TNWB Desktop Label Printer (TD4650TNWBZ1)

Regular price 436,03 € +VAT
Resolution (dpi)
203300
Wireless
NoneWi-Fi, Bluetooth
Memory
RAM: 128 MB, Flash: 128 MBRAM: 64 MB, Flash: 128 MB
Display
2.3-inch colour LCDLED indicator

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

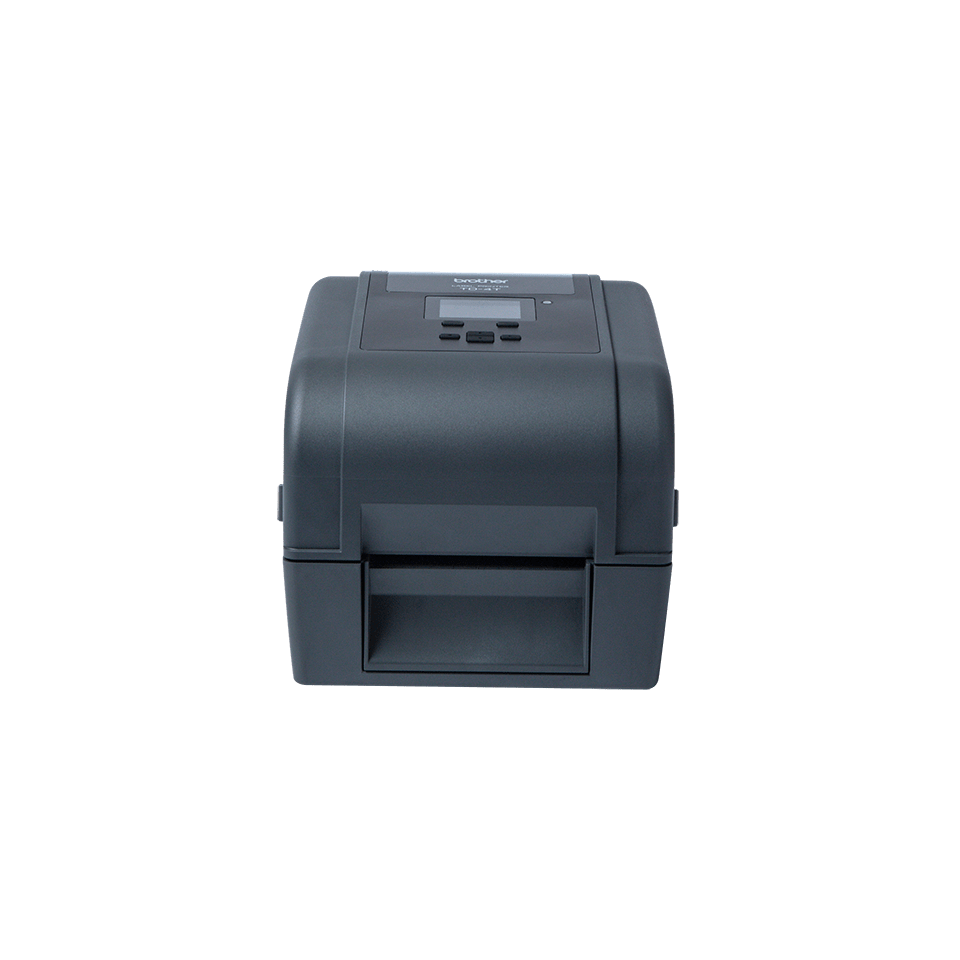

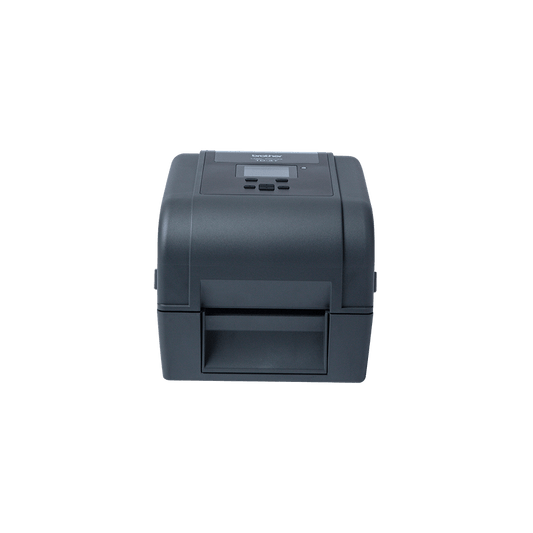

Brother TD-4650TNWB thermal transfer desktop label printer – front view
Brother TD-4650TNWB Desktop Label Printer (TD4650TNWBZ1)
Regular price 436,03 € +VAT

The Brother TD-4650TNWB is a 4-inch thermal transfer desktop label printer for manufacturing, warehousing, logistics, laboratories and retail – wherever labels have to stay legible for a long time. With a ribbon it prints durable, smudge-resistant labels on paper and synthetic materials, and without a ribbon it also prints on direct thermal labels. It prints 203 dpi labels up to 108 mm wide at up to 203 mm/s (8 ips), takes 300 m ribbons and label rolls up to 127 mm in diameter and connects via USB, USB host, RS-232C serial, Ethernet, Wi-Fi and Bluetooth as standard, while FBPL-EZD (ZPL2, EPL2 and DPL compatible) makes it easy to replace existing printers. This version, TD4650TNWBZ1, is the 203 dpi model with a 2.3-inch colour LCD and built-in Wi-Fi and Bluetooth – and the fastest model in the series at up to 203 mm/s (8 ips).

📦 What's in the box – TD4650TNWBZ1

  • Brother TD-4650TNWB printer
  • AC adapter – external universal switching power supply, 100–240 V
  • AC power cord
  • USB cable – connect the printer to your computer straight away
  • Empty 1-inch ribbon paper core and two ribbon spindles – for loading 300 m ribbons
  • Quick Setup Guide – drivers, software and manuals are a free download from Brother

💡 To get started, you might also consider compatible labels such as our 100 × 60 mm thermal transfer labels and a 110 mm × 300 m wax/resin ribbon – for network use, a standard Ethernet cable is all you need.

View accessories →

Key Features

  • Thermal transfer with 300 m ribbons – wax, wax/resin or resin ribbons 40–110 mm wide on a 1-inch core (ink side out) for durable labels on paper and synthetic materials, with fewer ribbon changes; direct thermal labels work too.
  • 203 dpi at up to 203 mm/s (8 ips) – the fastest TD-4T model, with a 108 mm print width and labels up to 25.4 m long.
  • Flexible media handling – media 20–112 mm wide and 0.06–0.19 mm thick: continuous, die-cut, black-mark, notched, punched-hole and fan-fold, on rolls up to 127 mm on 25.4 or 38.1 mm cores, with a gap sensor and a movable black-mark sensor.
  • 2.3-inch colour LCD – status, settings and menus on a colour display with button navigation and a tri-colour status LED.
  • Wireless as standard – Wi-Fi (IEEE 802.11a/b/g/n with enterprise security such as EAP-TLS, EAP-TTLS and PEAP) and Bluetooth 5.0 (Classic and Low Energy), alongside USB 2.0, RS-232C serial, 10/100 Ethernet and a USB host port for a keyboard, scanner or USB flash drive.
  • Drop-in replacement – FBPL-EZD emulates ZPL2, EPL2 and DPL and FBPL-EZS supports SBPL, so existing label formats keep working; 8 bitmap fonts and a TrueType font engine are built in.
  • Ready to grow – dealer-installed label cutter for full and partial cuts (PA-CU-003) and label peeler (PA-LP-004), plus a user-installable external roll holder (PA-RH-001) for rolls up to 203.2 mm on 76.2 mm cores.

Ideal Applications

  • Manufacturing – product identification, serial number, work-in-progress and packaging labels
  • Warehousing and logistics – shipping, receiving and pallet labels
  • Laboratories and healthcare – sample, specimen and asset labels
  • Retail – price, shelf and product labels
  • Food and beverage – product, batch and traceability labels

Technical Specifications

Part Number TD4650TNWBZ1
Model Brother TD-4650TNWB
Printer Type 4-inch thermal transfer desktop label printer (Brother TD-4T series)
Print Method Thermal transfer and direct thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Up to 203.2 mm/s (8 ips); up to 76.2 mm/s (3 ips) in peeler mode
Max. Print Width 108 mm
Max. Print Length 25,400 mm
Media Width 20 mm to 112 mm (peeler 25.4–110 mm, cutter 25.4–112 mm)
Roll Diameter Max. 127 mm (203.2 mm with the optional PA-RH-001 external roll holder)
Core Size 25.4 mm (1 in) or 38.1 mm (1.5 in); 76.2 mm (3 in) with the external roll holder
Media Thickness 0.06 mm to 0.19 mm
Media Type Continuous, die-cut, black-mark, notched, punched-hole and fan-fold media; outside wound
Sensors Gap sensor (transmissive, fixed) and black-mark sensor (reflective, movable)
Ribbon 300 m on a 25.4 mm (1 in) core, max. OD 67 mm, or 110 m on a 12.7 mm (0.5 in) core, max. OD 40 mm; 40–110 mm wide; ink side out; wax, wax/resin or resin
Media Handling Tear-off; options: label cutter PA-CU-003 (full and partial cut) and label peeler PA-LP-004 (dealer-installed), external roll holder PA-RH-001 (user-installable)
Interfaces USB 2.0 High Speed (Type B), USB host (keyboard, barcode scanner, USB flash drive for cloning and setup), RS-232C serial, Ethernet 10/100 Mbps
Wireless Wi-Fi IEEE 802.11a/b/g/n (infrastructure mode; WEP, WPA/WPA2-PSK, EAP-FAST, PEAPv0, EAP-TLS, EAP-TTLS); Bluetooth 5.0 dual mode (SPP, GATT/BLE)
Memory 128 MB RAM, 128 MB flash
Printer Languages FBPL-EZD (EPL, ZPL, ZPL II and DPL compatible), FBPL-EZS (EPL, ZPL, ZPL II and SBPL compatible)
Fonts / Character Sets 8 alphanumeric bitmap fonts; Monotype Imaging TrueType font engine with 1 scalable font (CG Triumvirate Bold Condensed); downloadable TrueType fonts
Barcodes 1D: Code 11, Code 39, Code 93, Code 128 (A/B/C), GS1-128, EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC add-ons, Interleaved 2 of 5, Standard, Industrial and Datalogic 2 of 5, ITF-14, EAN-14, Codabar, MSI, Plessey, POSTNET, Planet, Telepen, LOGMARS, Deutsche Post Identcode/Leitcode; 2D: QR Code, GS1 DataMatrix, PDF417, MicroPDF417, MaxiCode, Aztec, Codablock F, Code 49, GS1 DataBar, TLC39
Display 2.3-inch colour LCD; tri-colour status LED; menu, feed/pause and navigation buttons
Options Label cutter PA-CU-003, label peeler PA-LP-004, external roll holder PA-RH-001
Drivers & Software Drivers for Windows, macOS and Linux; SDK available
Power Supply External universal switching power supply: input 100–240 V AC, 2.0 A, 50/60 Hz; output 24 V DC, 3.75 A (90 W)
Dimensions (W × D × H) 219 × 284 × 191 mm
Weight 3 kg
Operating Temperature 5 °C to 40 °C
Storage Temperature −40 °C to 60 °C
Humidity Operating 25–85%, storage 10–90% (non-condensing)
Warranty 3 years
In the Box Brother TD-4650TNWB printer, AC adapter, AC power cord, USB cable, empty 1-inch ribbon paper core, two 1-inch ribbon spindles, Quick Setup Guide

Which TD-4T model should you choose? The TD-4420TN (203 dpi) and TD-4520TN (300 dpi) connect via USB, serial and Ethernet and have a status LED. The TD-4650TNWB (203 dpi, up to 203 mm/s) and TD-4750TNWB (300 dpi) add a 2.3-inch colour LCD, Wi-Fi and Bluetooth, and the TD-4650TNWBR and TD-4750TNWBR also encode UHF RFID labels. For ribbon-free shipping labels, the direct thermal TD-4D series is a cost-effective alternative. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
