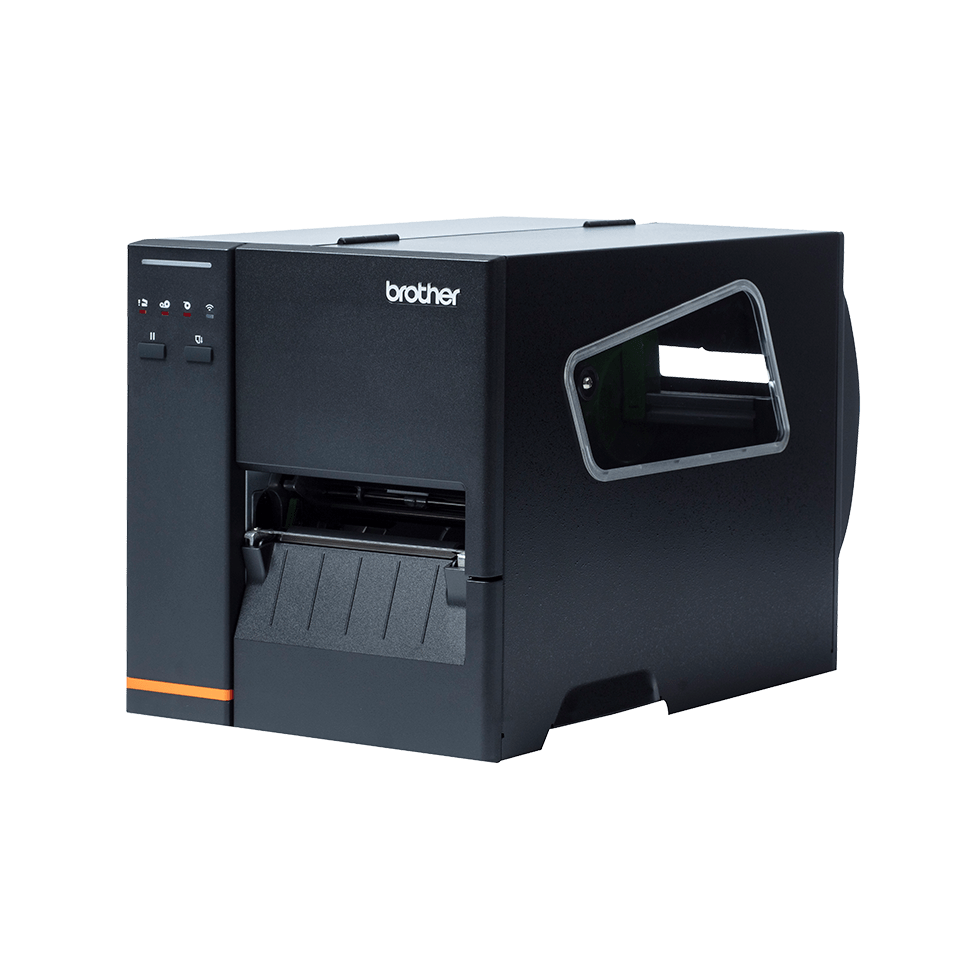

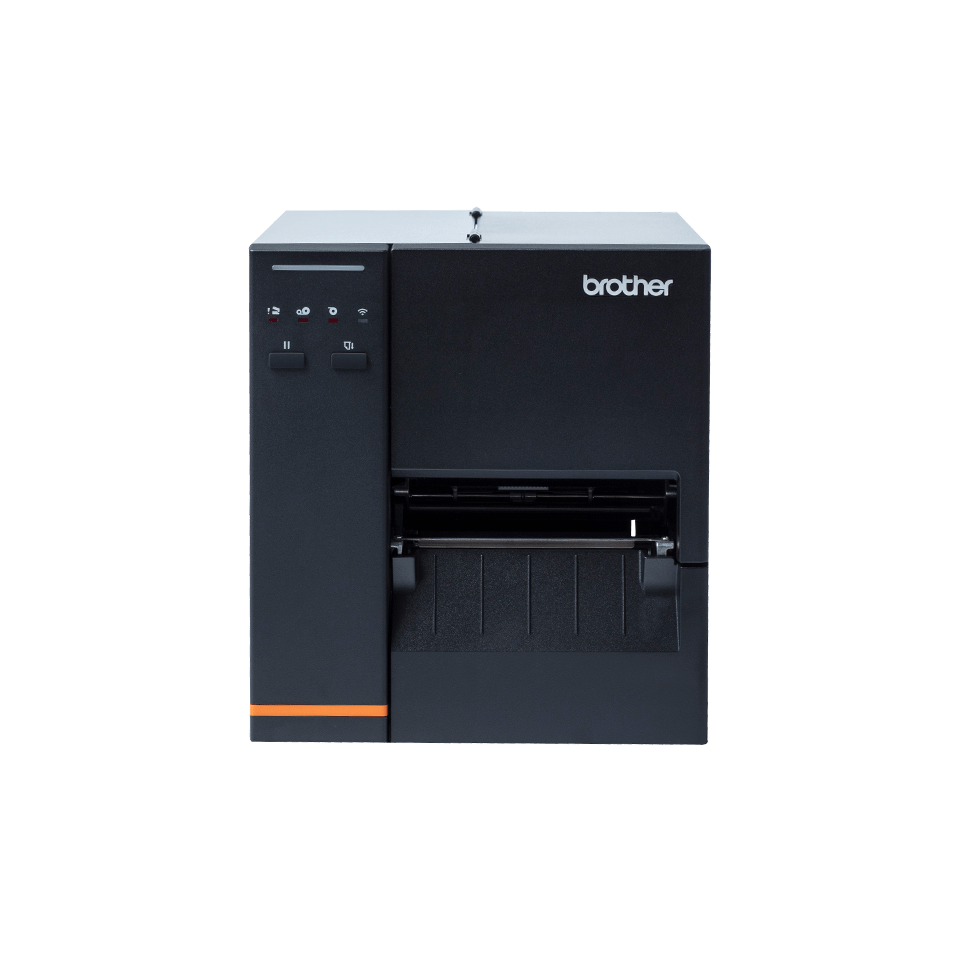

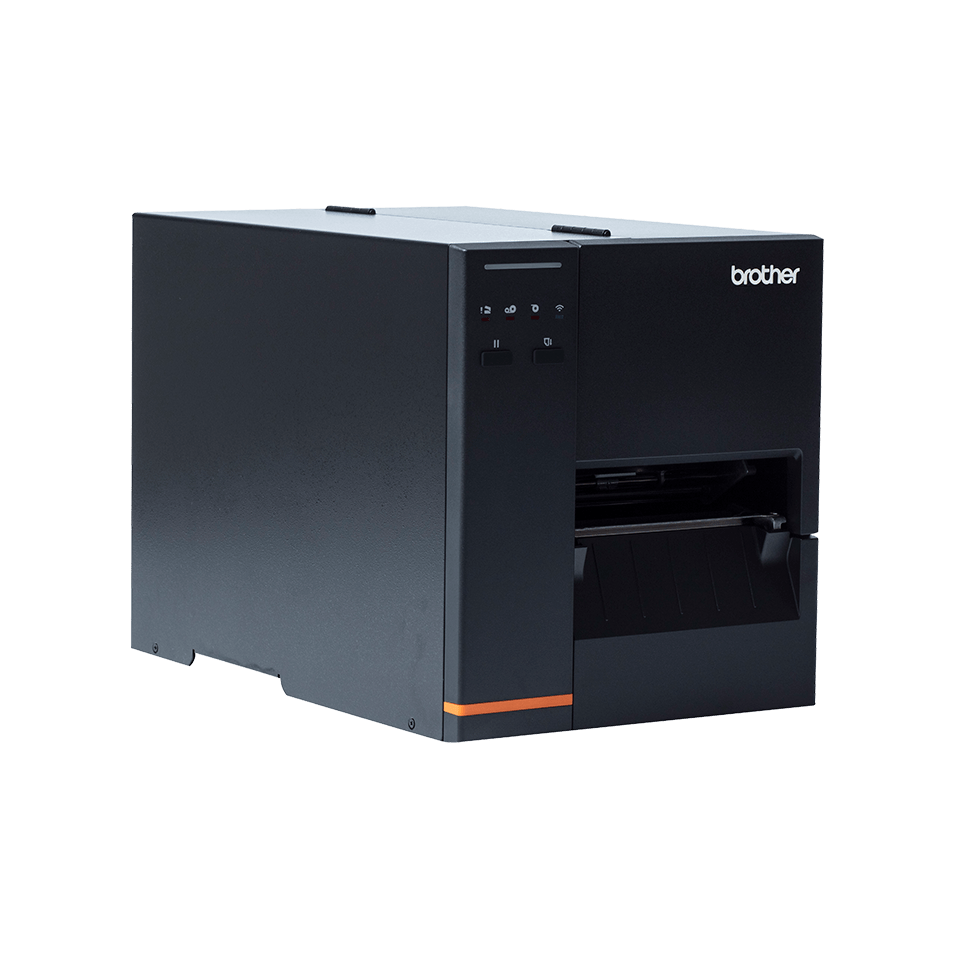

The Brother TJ-4005DN is a 4-inch direct thermal industrial label printer for warehouses, distribution centres, e-commerce and retail operations that print large numbers of shipping and stock labels. Because it prints directly onto heat-sensitive labels, it needs no ribbon – there are no ribbons to buy, store or change. It prints 203 dpi labels up to 107 mm wide at up to 152 mm/s, takes label rolls up to 203 mm in diameter on cores from 25.4 to 76.2 mm and connects via USB, USB Host, RS-232 serial and Ethernet as standard, while ZPL2, EPL2 and DPL emulation makes it easy to integrate into existing systems. This version, TJ4005DNZ1, is the direct thermal-only model of the TJ series – a cost-effective choice for shipping, picking and stock labels that do not need to last for years.
📦 What's in the box – TJ4005DNZ1
- Brother TJ-4005DN printer – built-in power supply 100–240 V
- AC power cord
- USB cable – connect the printer to your computer straight away
- Quick setup guide – drivers, BarTender Ultra Lite and manuals are a free download from Brother
💡 To get started, you might also consider compatible direct thermal labels such as our 100 × 150 mm direct thermal shipping labels – for network use, a standard Ethernet cable is all you need.
Key Features
- No ribbon needed – direct thermal printing keeps running costs and handling to a minimum: just load a label roll and print.
- Built for industrial workloads – a compact printer only 248 mm wide that holds 203 mm label rolls on cores up to 76.2 mm, backed by Brother's 5-year warranty.
- 203 dpi at up to 152 mm/s – clear barcodes and text across a 107 mm print width, with labels up to 25.4 m long.
- Flexible media handling – direct thermal media 20–120 mm wide and 0.06–0.28 mm thick: continuous, die-cut, black-mark, notched and fan-fold, with gap and black-mark sensors.
- Simple to operate – four icon status LEDs and a power LED show the printer status at a glance, with just two buttons (power and feed).
- Connected as standard – USB 2.0, RS-232 serial and 10/100 Ethernet, plus USB Host for a keyboard, scanner or flash drive in stand-alone mode; the optional user-installable Wi-Fi module (PA-WI-002) adds wireless networking.
- Drop-in replacement – FBPL-EZD emulates ZPL2, EPL2 and DPL (FBPL-EZS also SBPL), so existing label formats keep working; BarTender Ultra Lite, Brother Printer Management Tool and Windows, Android and iOS SDKs are available.
- Ready to grow – dealer-installable label peeler with liner rewinder (PA-LP-005) and cutter (PA-CU-004), plus a replaceable printhead and platen roller.
Ideal Applications
- Warehousing and logistics – shipping, receiving, picking and pallet labels
- E-commerce and parcel shipping – carrier and address labels
- Retail – price, stock and click-and-collect labels
- Manufacturing – short-term work-in-progress and internal routing labels
Technical Specifications
| Part Number | TJ4005DNZ1 |
|---|---|
| Model | Brother TJ-4005DN |
| Printer Type | 4-inch industrial label printer (Brother TJ series) |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 152 mm/s (6 ips); up to 76 mm/s (3 ips) in peeler mode |
| Max. Print Width | 107 mm |
| Max. Print Length | 25,400 mm |
| Min. Label Length | Continuous 5 mm; tear-off 50 mm; peeler and cutter 25.4 mm |
| Media Width | 20 mm to 120 mm (max. 114 mm with cutter) |
| Roll Diameter | Max. 203.2 mm (8 in) OD |
| Core Size | 25.4 mm (1 in) to 76.2 mm (3 in) |
| Media Thickness | 0.06 mm to 0.28 mm |
| Media Type | Direct thermal continuous, die-cut, black-mark, notched and fan-fold media; outside wound |
| Sensors | Gap (transmissive) and black-mark (reflective) sensors |
| Media Handling | Tear-off; dealer-installable options: label peeler with liner rewinder (PA-LP-005), cutter (PA-CU-004) |
| Interfaces | USB 2.0 (Type B), USB Host (keyboard, scanner, flash drive), RS-232C serial (DB9), Ethernet 10/100BASE-TX |
| Wireless | Optional user-installable Wi-Fi module PA-WI-002 (IEEE 802.11a/b/g/n, WPA2-Enterprise) |
| Memory | 128 MB RAM, 128 MB flash |
| Printer Languages | FBPL-EZD (EPL2, ZPL2, DPL compatible), FBPL-EZS (SBPL compatible) |
| Fonts / Character Sets | 8 alphanumeric bitmap fonts; Monotype Imaging TrueType font engine with 1 scalable font (CG Triumvirate Bold Condensed) |
| Barcodes | 1D: Code 11, Code 39, Code 93, Code 128 (A/B/C), GS1-128 (EAN-128), EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC 2- and 5-digit add-on, Interleaved 2 of 5, Standard and Industrial 2 of 5, ITF-14, EAN-14, Codabar, MSI, Plessey, Postnet, Planet, Telepen, LOGMARS, Deutsche Post Identcode/Leitcode; 2D: QR Code, GS1 DataMatrix, PDF417, MicroPDF417, MaxiCode, Aztec, Codablock F, Code 49, GS1 DataBar, TLC39 |
| Display | LED: 4 icon status indicators + power LED; 2 buttons (power, feed) |
| Options | Label peeler with liner rewinder PA-LP-005 (dealer), cutter PA-CU-004 (dealer), Wi-Fi module PA-WI-002 (user); spare printhead BPA-HA2L-004 (203 dpi), platen roller BPA-PRL-004 |
| Drivers & Software | Windows printer driver, BarTender Ultra Lite Edition (download), Brother Printer Management Tool, Windows SDK, mobile SDK for Android and iOS |
| Power Supply | Internal universal switching power supply, 100–240 V AC, 50/60 Hz; output 24 V DC, 3.75 A (90 W) |
| Dimensions (W × D × H) | 248 × 436 × 274 mm |
| Weight | 9.2 kg |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | −40 °C to 60 °C |
| Humidity | 25–85% non-condensing (storage 10–90%) |
| Warranty | 5 years (return-to-base) |
| In the Box | Brother TJ-4005DN printer (built-in power supply), AC power cord, USB cable, quick setup guide |
Which TJ model should you choose? The TJ-4005DN prints on direct thermal labels only – ideal for shipping and warehouse labels that do not need to last for years. If you need durable labels on synthetic materials, choose a thermal transfer model: the TJ-4020TN/TJ-4021TN at 203 dpi or the TJ-4120TN/TJ-4121TN at 300 dpi, the second model of each pair with a colour touchscreen. Compare other models in our Midrange Label Printers collection or contact our team for volume pricing.
