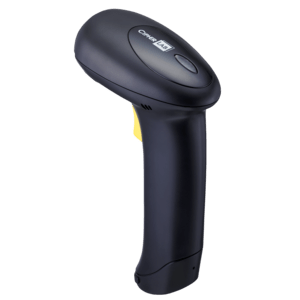

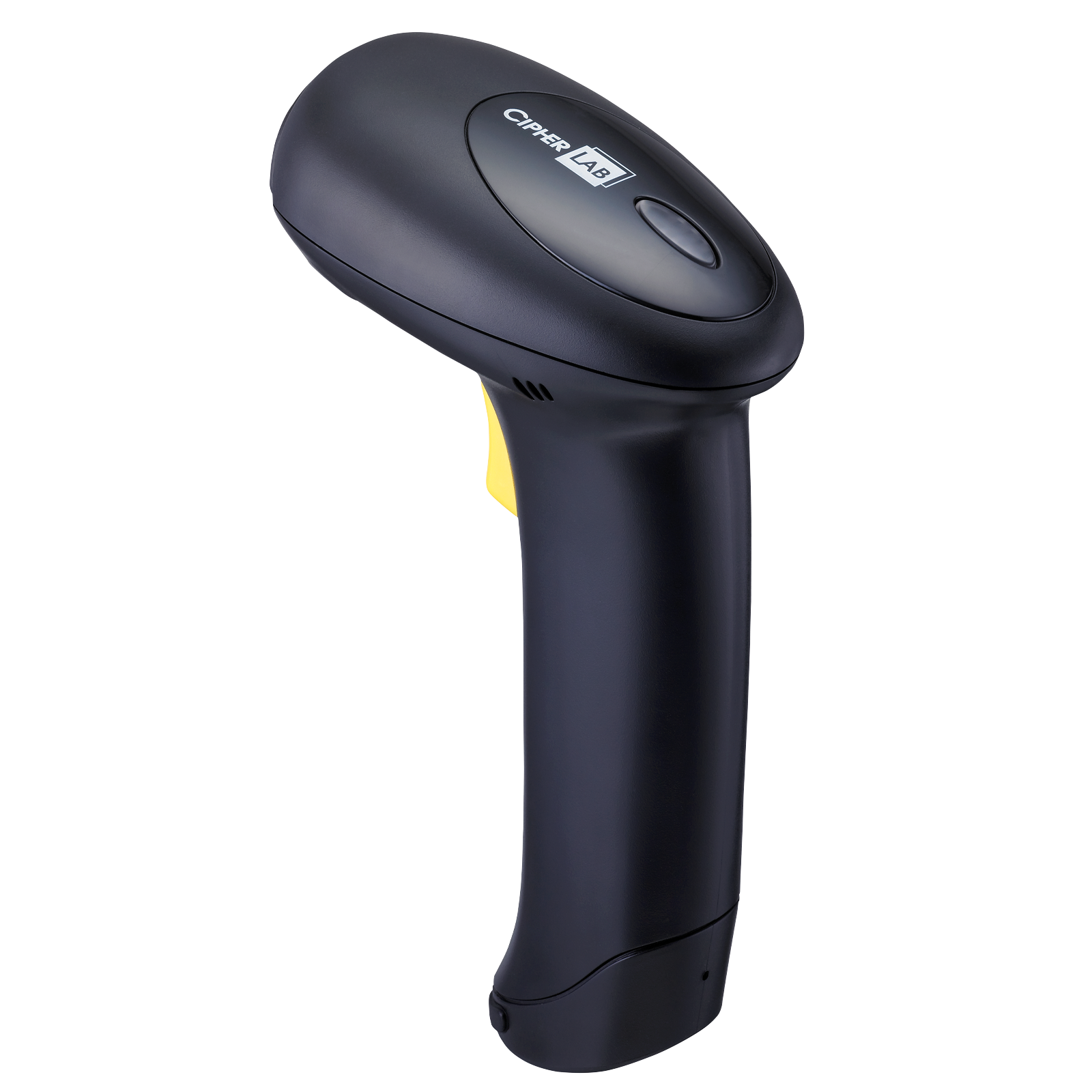

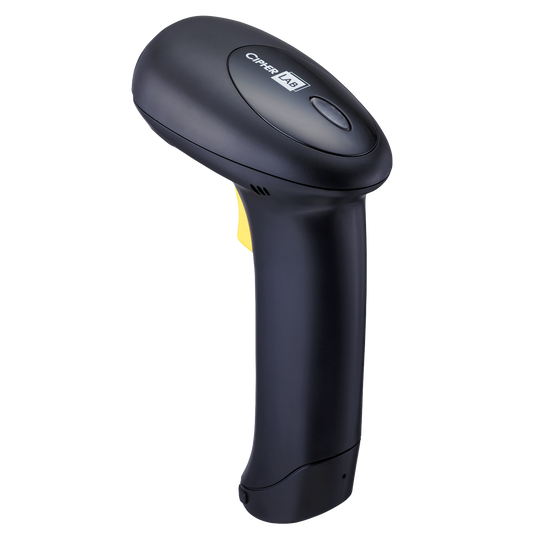

CipherLab 1564 Barcode Scanner (A1564ARBKUE01)

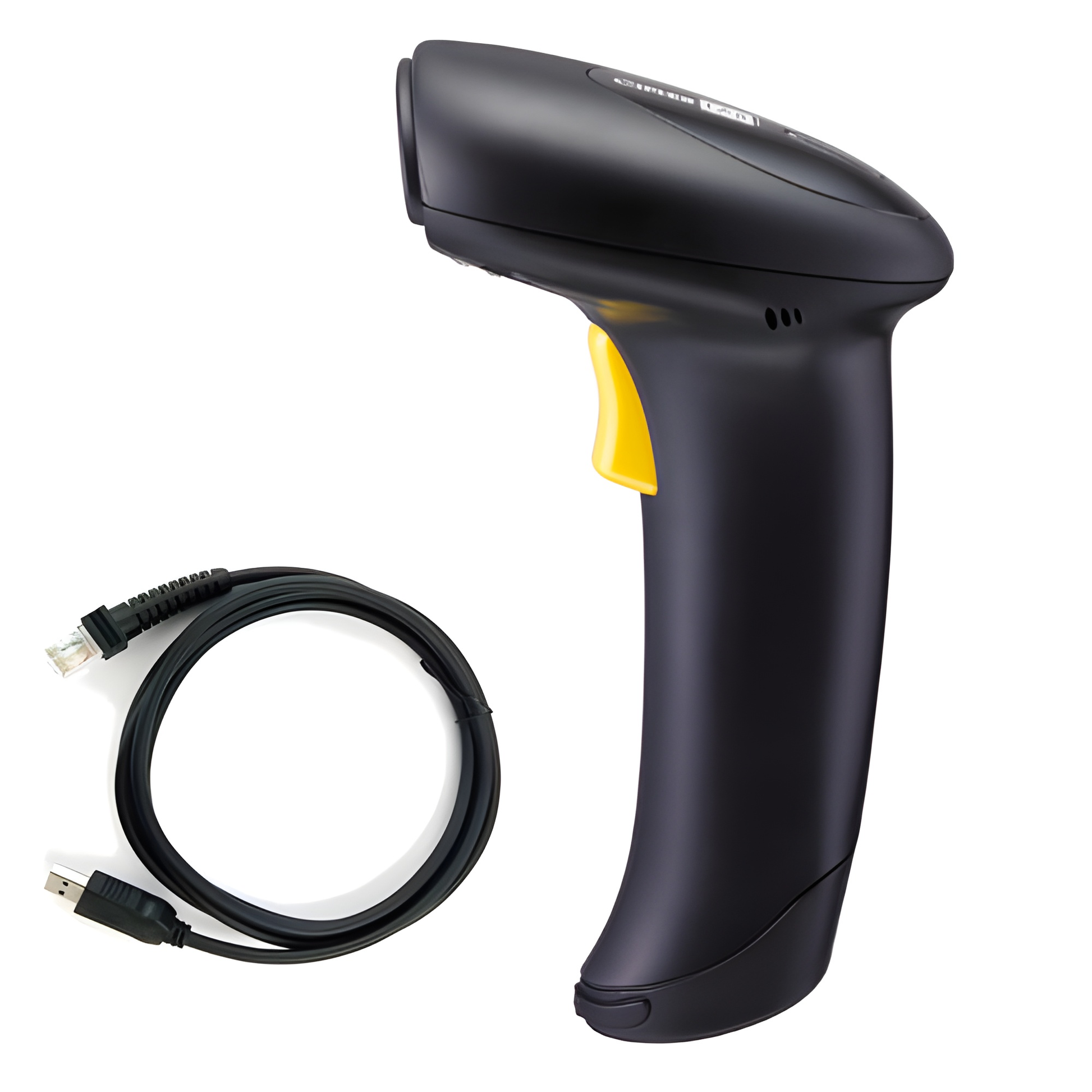

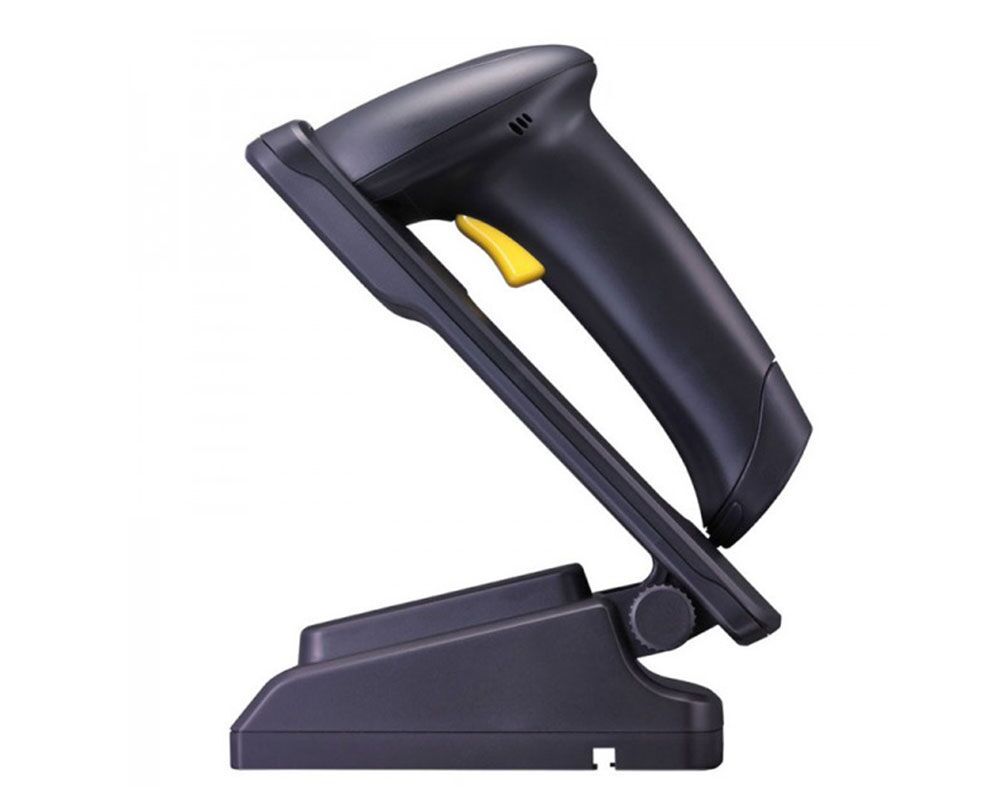

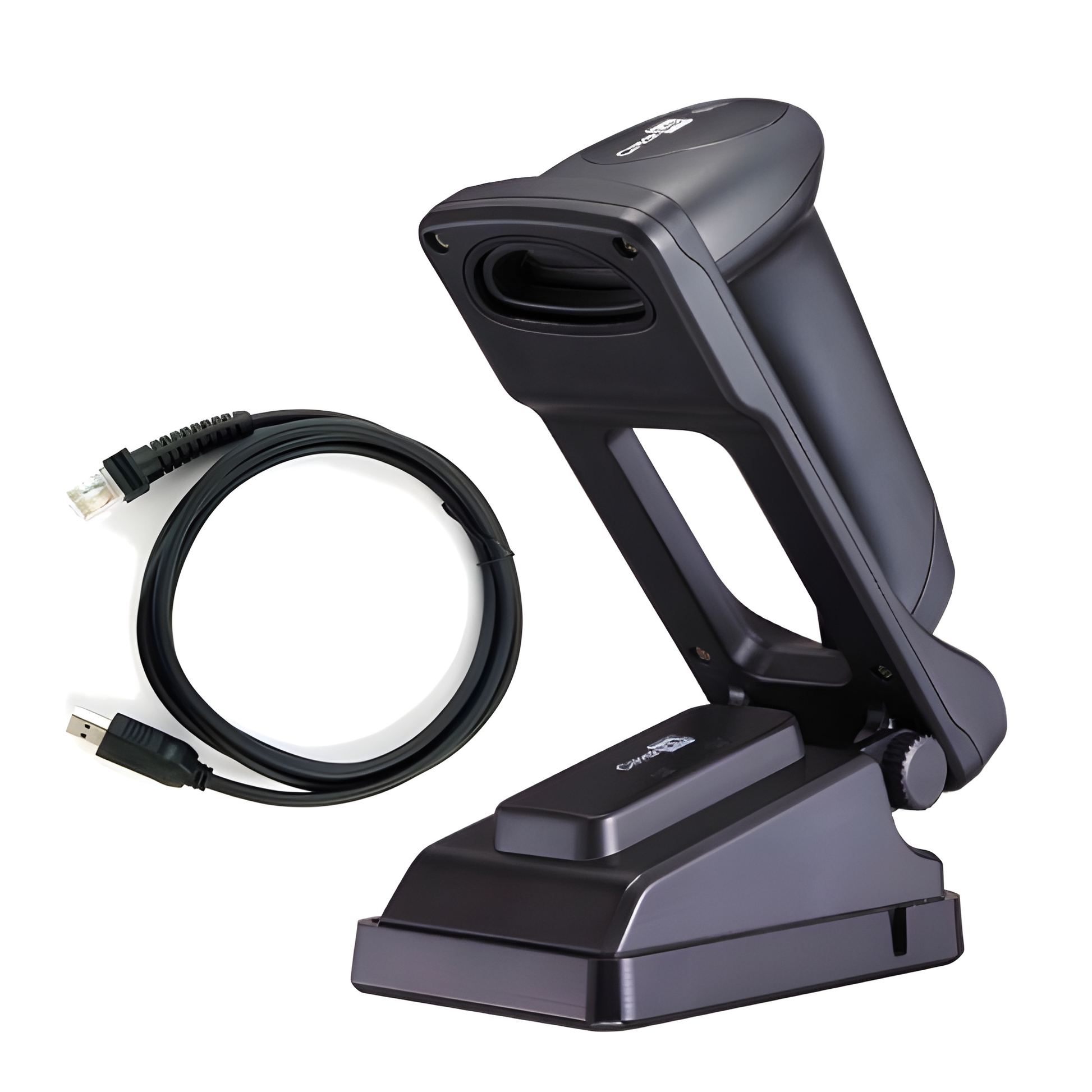

The CipherLab 1564A is a cordless Bluetooth® handheld 2D scanner with the SE4107 imager – it reads all common 1D and 2D barcodes, including QR codes, Data Matrix and postal codes, up to 90 m away from its base. As part of CipherLab's 1500 series of general-purpose handheld scanners, it combines an ergonomic design with durability (multiple 1.2 m drops onto concrete) – a dependable everyday tool for retail checkouts, healthcare, post offices, goods receiving and inventory. This version, A1564ARBKUE01, is the Bluetooth kit with USB connection: it is supplied with the battery, the Bluetooth base (communication stand), a USB cable and a power supply (EU plug) – everything you need to start scanning cordlessly.

Key Features

• Reads 1D and 2D barcodes – the SE4107 2D imager (1280 × 960 CMOS) reads all common 1D codes plus PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, Aztec, MaxiCode, Han Xin and postal codes, with a resolution down to 3 mil (1D) and 5 mil (2D).
• Bluetooth® Class 2 – up to 90 m line-of-sight range with the Bluetooth base (up to 7 scanners per base) or direct pairing with PCs, tablets and smartphones (SPP, HID); scans are buffered while you are out of range (batch-mode memory: 4 MB).
• All-day battery – the 800 mAh Li-ion battery lasts up to 26 hours (1 scan every 5 seconds); an optional single-slot charger is available for charging a spare battery.
• Hands-free modes – in auto-sense mode the scanner reads barcodes automatically when it rests in a stand.
• Durable everyday design – ergonomic housing that withstands multiple 1.2 m drops onto concrete, with ESD protection of ±8 kV contact / ±15 kV air.
• Easy setup – configure symbologies, data editing and the interface with configuration barcodes or the Windows-based CipherLab ScanMaster software; keyboard layouts for 11 languages, including US/UK English, German, French and Spanish.
• Works in any light – reads reliably in ambient light up to 100,000 lux.

Ideal Applications

• Retail and POS – checkouts, price checks and goods receiving
• Healthcare and pharmacies – medicine packaging and patient records
• Post offices and logistics – parcel tracking, receiving and shipping
• Banks, utilities and offices – bills, documents and files
• Warehousing and light industry – inventory, picking and part labels

All CipherLab 1500 Series Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a corded workstation, choose the 1504A (SE4107 imager, wide depth of field) or the 1504P (fast 1280 × 800 imager, 60 scans per second); for cordless scanning up to 90 m from the base, choose the Bluetooth kits 1560P (1D) or 1564A (2D). Pick a USB version for PCs and POS systems with a USB port, or an RS232 version for a serial connection (RS232 versions include a 5 V power supply). EU or UK plug? Choose the version that matches your sockets. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
