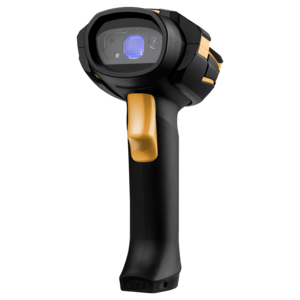

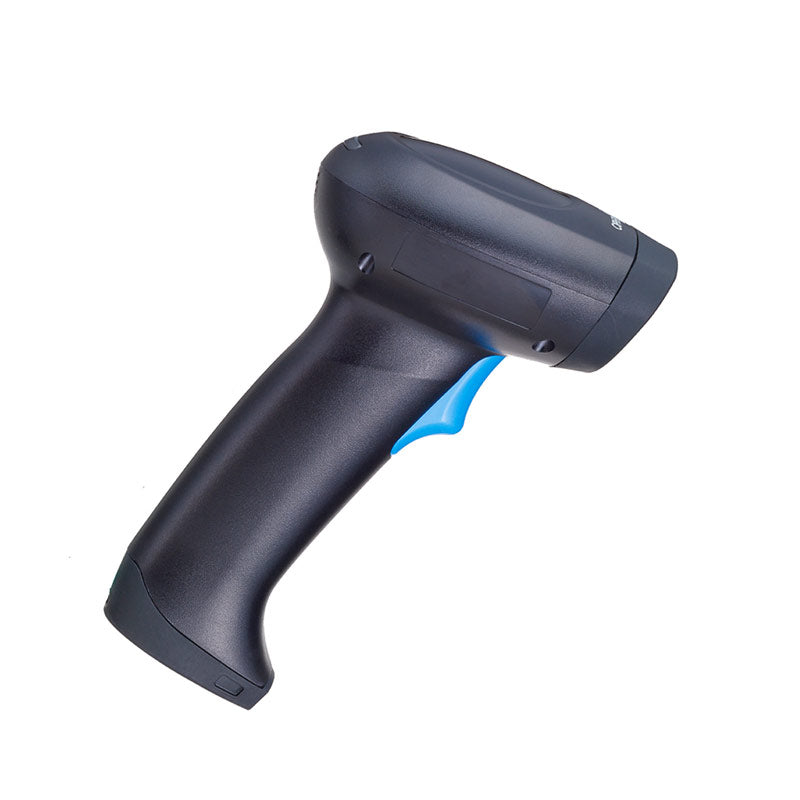

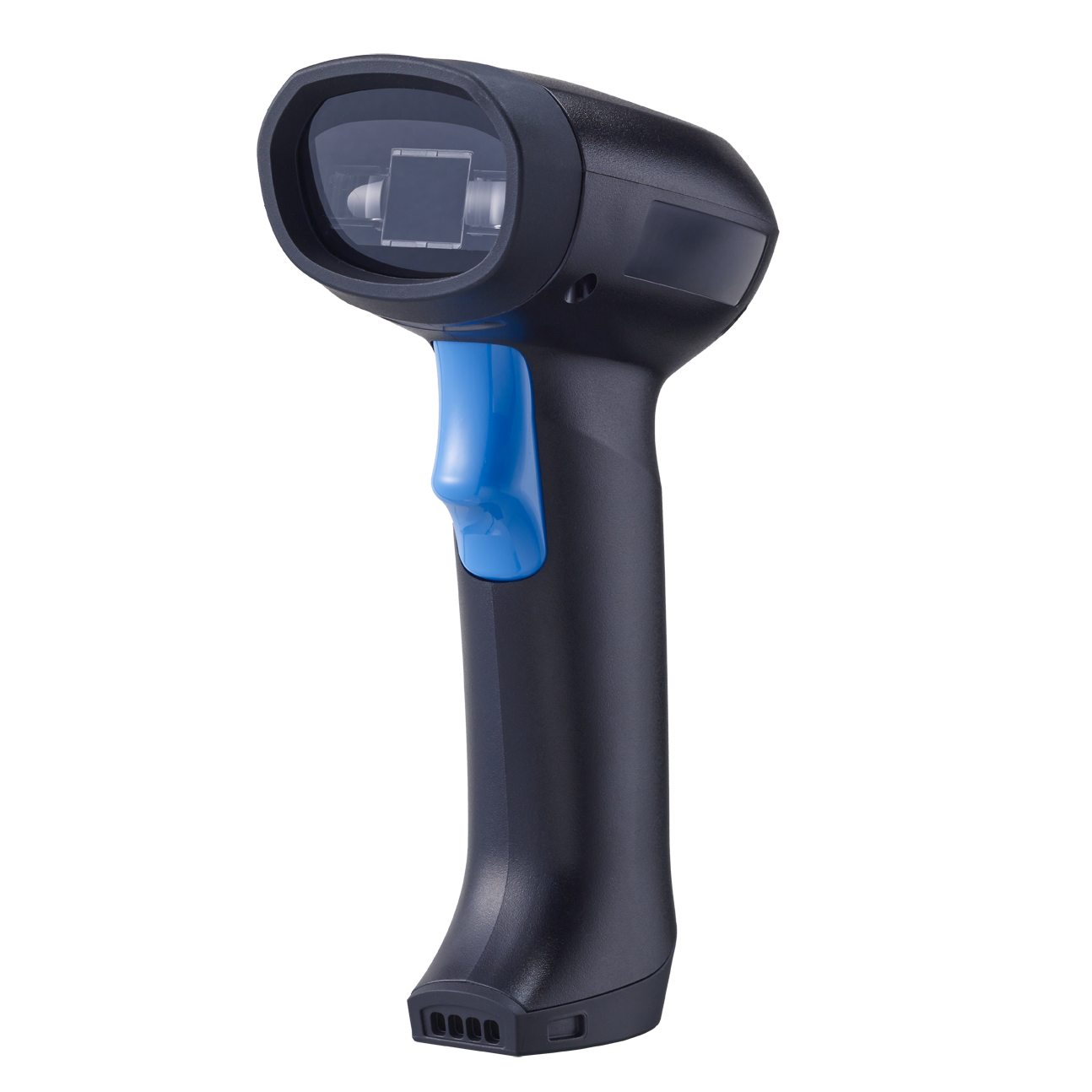

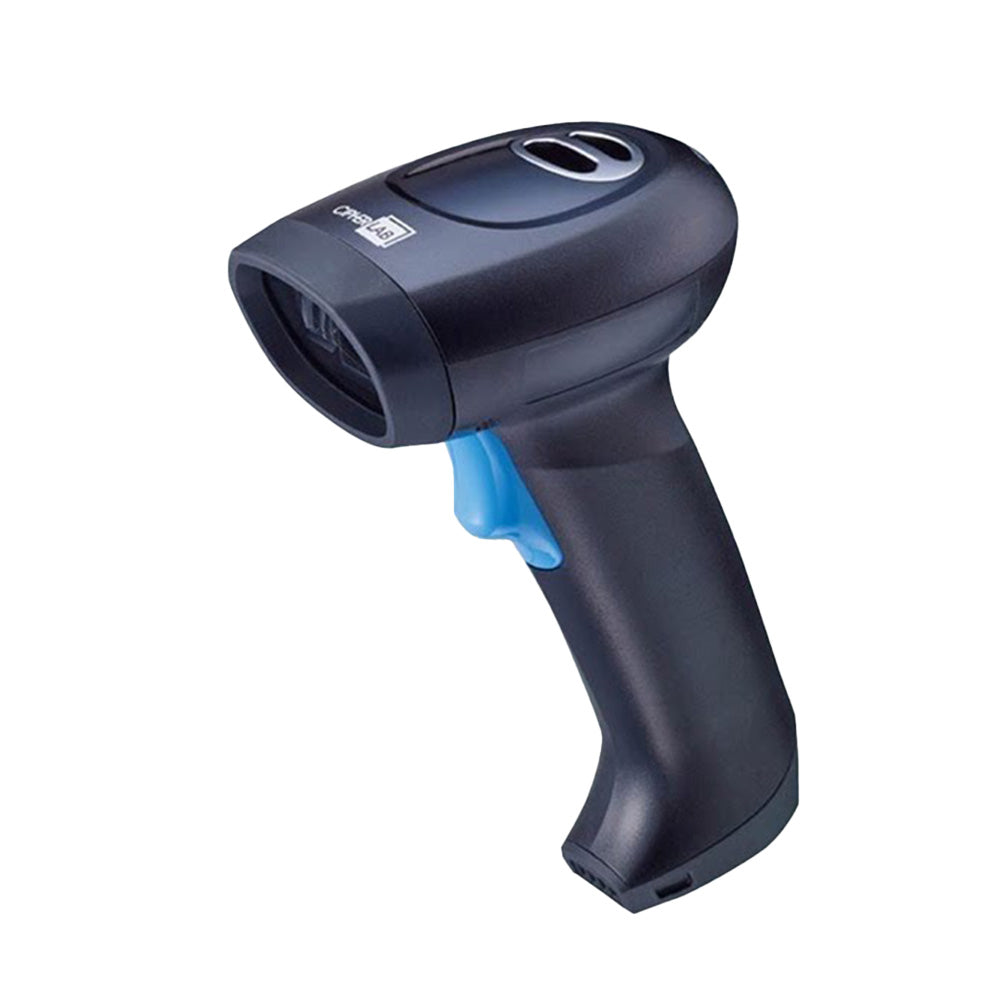

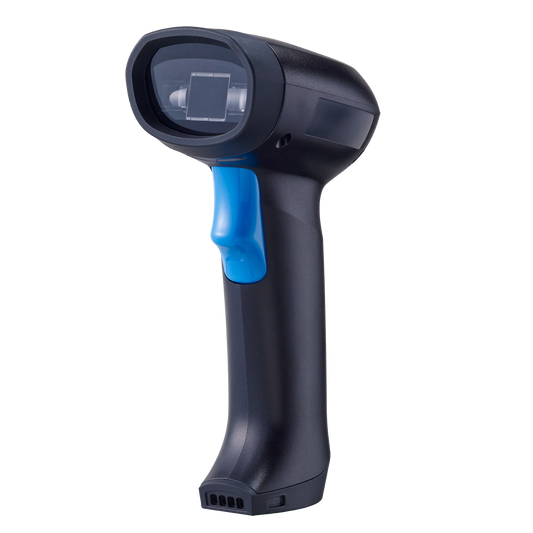

CipherLab 2504 Barcode Scanner (A2504S2BSU001)

The CipherLab 2504 is a corded, business-rugged handheld 2D imager scanner – it reads all common 1D and 2D barcodes, including QR codes, from paper labels as well as phone screens. Part of CipherLab's business-rugged 2500 series, it is IP65 sealed against dust and water jets and withstands multiple 1.8 m drops onto concrete – a reliable choice for retail checkouts, receiving and shipping, inventory checks and work-in-process tracking. This version, A2504S2BSU001, is the USB kit: it is supplied with a USB cable – plug it into your PC or POS system and start scanning; it is powered via USB, so no power supply is needed.

Key Features

• Reads 1D and 2D barcodes – the 1280 × 800 CMOS imager with warm white LEDs reads all common 1D codes plus QR Code, Data Matrix, PDF417, Aztec, MaxiCode and Han Xin Code – on labels, documents and phone screens – with a resolution down to 3 mil (1D) and 5 mil (2D).
• Plug and play – interchangeable USB, RS232 and keyboard wedge (KBW) cables with automatic cable detection; via USB the scanner is powered by the host.
• Business-rugged – IP65 sealed against dust and water jets, withstands multiple 1.8 m drops onto concrete and 1,000 tumbles, with enhanced ESD protection (±10 kV contact, ±20 kV air).
• Hands-free scanning – in auto-sense mode, the scanner reads barcodes automatically when placed in the optional adjustable stand.
• Easy setup – configure symbologies, data editing and interfaces with configuration barcodes or the Windows-based CipherLab ScanMaster software; OPOS supported and 15 keyboard languages.
• Works in any light – reads reliably in ambient light up to 100,000 lux, even outdoors.

Ideal Applications

• Retail and POS – checkouts, price checks and mobile coupons
• Warehousing and logistics – receiving, shipping and inventory checks
• Light industry – work-in-process tracking and part labels
• Wholesale and back office – order picking, returns and stocktaking
• Libraries, offices and service desks – documents, files and asset tags

All CipherLab 2500 Series Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a corded workstation, choose the 2500 (1D) or 2504 (2D); for cordless scanning up to 100 m from the base, choose the Bluetooth kits 2560 (1D) or 2564 (2D). Pick the USB kit for PCs and POS systems with a USB port, or the RS232 kit for a serial connection (corded RS232 versions need a 5 V power adapter, sold separately). Need to read QR codes or other 2D codes? Choose a 2D model. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
