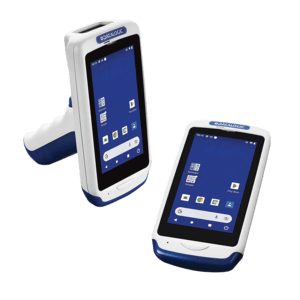

Datalogic Joya Touch 22 Self-Shopping Terminal (911400027)

The Datalogic Joya Touch 22 is a self-shopping and retail mobile computer: shoppers scan and pack items as they go, cutting checkout queues, and store staff use the same device for stock lookups, replenishment and click & collect. It runs Android 11 with Google Mobile Services on a Qualcomm SDA660 platform and combines a bright 4.3" Gorilla Glass touchscreen, a megapixel 1D/2D imager with Datalogic Green Spot, Wi-Fi 5, Bluetooth 5.1 and contact-free wireless charging. This version, 911400027, is the handheld model in light grey with blue battery cover – the current Joya Touch 22 F with high-definition Green Spot.

Key Features

• Made for self-shopping – shoppers scan and bag as they shop; works with Datalogic Shopevolution and self-shopping apps from leading software vendors; locking cradles release devices to customers.
• Wireless charging – no contacts on the device or cradle, so no downtime from damaged pins; Boost Recharge (fast or standard charging) reduces the number of devices needed per store.
• Megapixel imager – reads all common 1D and 2D codes on labels and phone screens (4.5–42 cm on EAN-13); ToF-based presentation mode scans automatically without holding the device; SoftSpot on-screen trigger and motion trigger.
• Handheld form factor – smartphone-like and light (285 g) with a programmable home/scan key; can be converted to a pistol grip.
• High-definition Green Spot – a sharper green spot on the code and programmable lights at the bottom of the battery cover confirm every good read.
• 4.3" FWVGA touchscreen – 854 × 480 pixels, 16M colours, capacitive multi-touch with Gorilla Glass 3, optimised for in-store lighting.
• Qualcomm power, Android with GMS – SDA660 at 2.2 GHz, 4 GB RAM / 32 GB Flash, Android 11 upgradeable to Android 13.
• Wi-Fi 5 and Bluetooth 5.1 – dual-band 2x2 MU-MIMO Wi-Fi with WPA3 and fast roaming, Bluetooth Low Energy, precise indoor positioning with the Quuppa locating system.
• Your colours – light grey, dark grey or black housings with coloured battery covers (blue, red, green, orange, yellow, grey, black) or custom colours to match your brand.
• Easy to deploy and manage – Scan2Deploy Studio, Android Zero-Touch, OEMConfig, Datalogic Launcher and Enterprise Browser lockdown; SOTI, Workspace ONE, Ivanti, 42Gears and Intune; backward compatible with Joya Touch and Memor 1 accessories.

Ideal Applications

• Self-shopping (scan & go) in supermarkets, hypermarkets, DIY and cash & carry stores
• Queue busting and assisted sales
• Store inventory, stock lookups, shelf replenishment and markdowns
• Click & collect order picking
• Access control and loyalty applications
• Light logistics: inventory, picking, shipping and receiving, track & trace

All Joya Touch 22 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Looking for the next generation with a 5" display, Wi-Fi 6E, NFC payments and AI-based loss prevention? See the Datalogic Joya Smart. Prefer the pistol-grip version? See the Joya Touch 22 F 911400026. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
