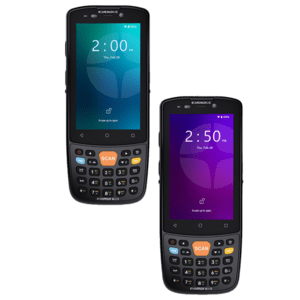

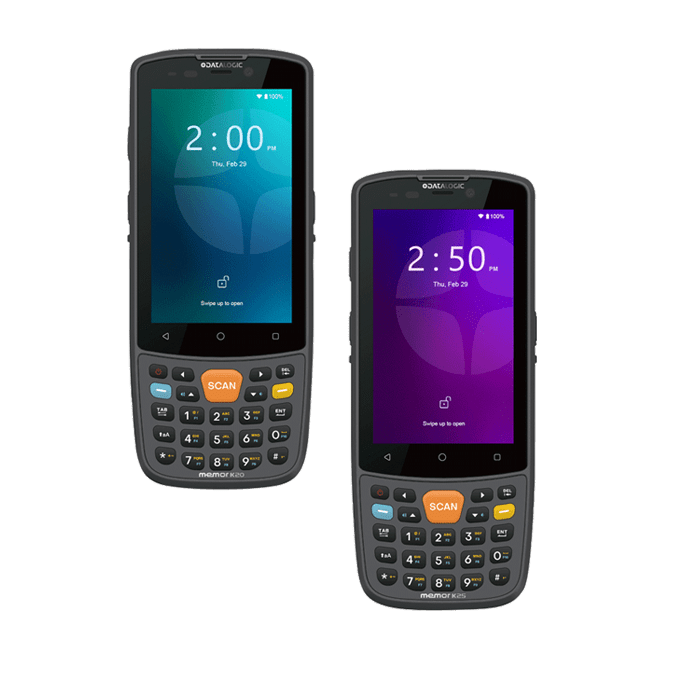

The Datalogic Memor K20-25 is a pocketable Android mobile computer with a physical keypad for retail stores, light warehousing, manufacturing and pharmacies. It pairs a 4" WVGA touchscreen with a backlit 24-key keypad, the megapixel Halogen DE2102-HP 2D imager, a 2 GHz octa-core processor with 4 GB RAM / 64 GB Flash, Android 13 with Google Mobile Services (upgradeable to Android 15), Wi-Fi 5, Bluetooth 5 with BLE, NFC and a 4850 mAh battery for up to 10 hours of use. This version, 946200001, is the Memor K20 – the Wi-Fi-only model.
📦 What's in the box – 946200001
- ✅ Datalogic Memor K20 – Wi-Fi-only
- ✅ Battery – standard 4850 mAh Li-ion, user-replaceable
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Quick start guide
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ USB-C charging cable – NOT included – USB-C to USB-A, for charging and data – see the options below
- ❌ Charging cradle – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the Memor K20, please order separately: the Datalogic 94A050044 USB-C cable plus the Datalogic 94ACC0383 USB power adapter – charges the device directly; or the Datalogic 94A150137 single-slot charging cradle for desk charging (uses the same cable and power adapter).
💡 Useful extras: a spare battery for hot-swapping (Datalogic 94ACC0420); the Datalogic 94ACC0419 4-slot spare battery charger; the Datalogic 94ACC0418 protective boot for extra drop protection; the Datalogic 94ACC0312 holster; spare hand straps (Datalogic 94ACC0417); screen protectors (Datalogic 94ACC0421).
Key Features
- Keypad plus touchscreen – backlit 24-key keypad with two side scan keys and a programmable key, combined with a 4" WVGA (800 × 480) multi-touch display with Panda hardened glass.

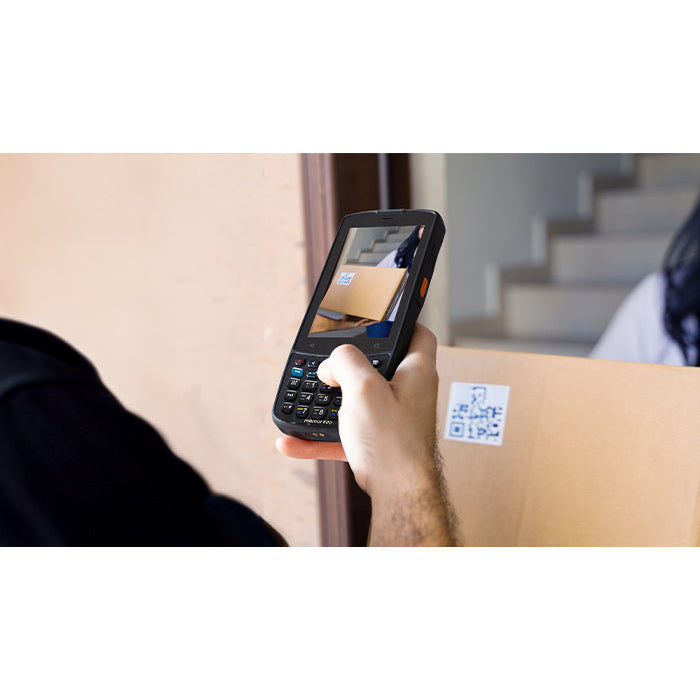

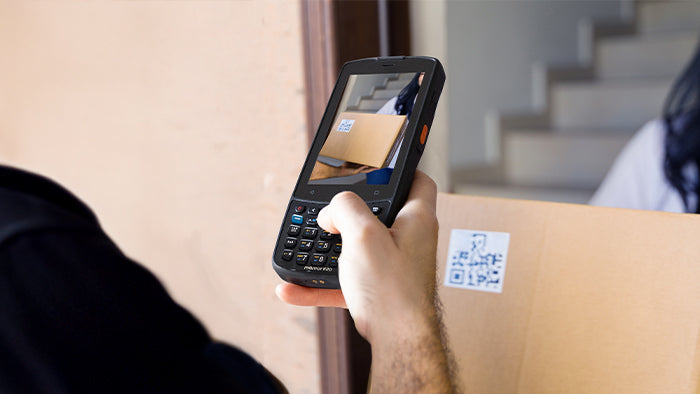

- Megapixel 2D scanning – Halogen DE2102-HP "Firefly" imager reads 1D/2D codes from 4 to 90 cm, including Digimarc barcodes; SoftSpot on-screen trigger and a 13 MP autofocus camera.
- Wi-Fi connectivity – dual-band Wi-Fi 5 (802.11ac), Bluetooth 5 with BLE and NFC; the Memor K20 is the Wi-Fi-only model.
- Full-shift battery – replaceable 4850 mAh Li-polymer battery for up to 10 hours of daily use.
- Rugged yet light – IP64 sealing, 1.5 m drops to concrete (1.8 m with rubber boot) per MIL-STD-810H, only 265 g, −20 °C to 50 °C.
- Up-to-date Android – Android 13 with GMS, upgradeable to Android 15, with the Datalogic Mobility Suite (Scan2Deploy Studio, OEMConfig, Launcher, Enterprise Browser, keyboard remap) and Ivanti / StayLinked terminal emulation.
Ideal Applications
- Retail: inventory, price checking, assisted sales and online order fulfilment

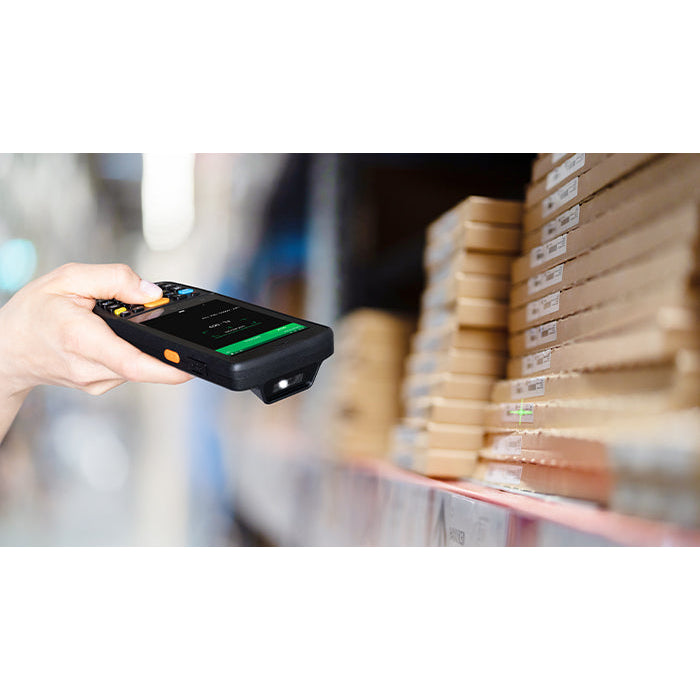

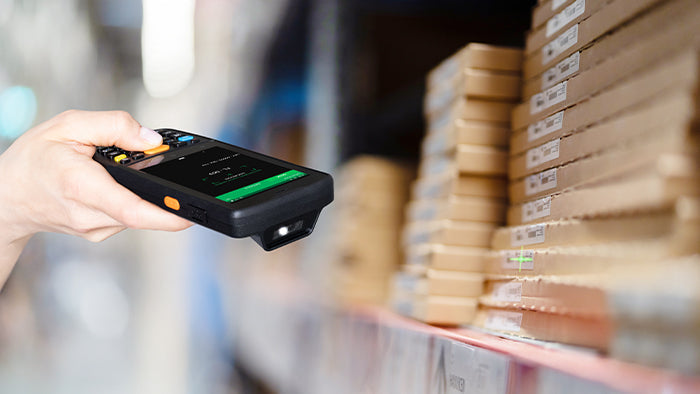

- Light warehousing and transport: manual picking, inventory, shipping and receiving
- Manufacturing: production and quality control, inventory and picking
- Pharmacy and healthcare logistics: in-store operations, inventory, lab specimen traceability and home care
All Memor K20-25 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | |
|---|---|---|---|
| 946200001 (this version) | Memor K20 | Wi-Fi only | Viewing |
| 946250001 | Memor K25 | 4G LTE + GPS | View product |
Technical Specifications
| Part Number | 946200001 |
|---|---|
| Model | Datalogic Memor K20 – Wi-Fi model |
| Operating System | Android 13 with Google Mobile Services (GMS); upgradeable to Android 15 |
| Processor | Octa-core, 2.0 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 64 GB eMMC Flash |
| Expansion | microSD (SDHC) slot, up to 512 GB |
| Display | 4" IPS, WVGA 800 × 480, LED backlight |
| Touch Panel | 5-point multi-touch capacitive, Panda hardened glass |
| Keypad | Backlit 24-key keypad, plus 2 side scan keys and 1 programmable side key |
| Scan Engine | Halogen DE2102-HP "Firefly" megapixel 2D imager (1280 × 800), 650 nm laser aimer; DOF 4–90 cm; Digimarc; SoftSpot |
| Rear Camera | 13 MP autofocus with LED flash |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 802.11 d/e/i/k/r/v/w; 2.4 + 5 GHz |
| Bluetooth | Bluetooth 5 (Classic + BLE) |
| NFC | ISO 14443-4 A/B, ISO 15693, MIFARE, FeliCa |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| SIM | None |
| GPS/GNSS | Not available |
| Ports | USB-C, USB 2.0 OTG |
| Sensors | Accelerometer, gyroscope, magnetometer, ambient light, proximity |
| Battery | Removable 4850 mAh Li-polymer battery |
| Battery Life | Up to 10 hours of daily use |
| Dimensions | 166 × 69 × 17 mm |
| Weight | 265 g with battery |
| Drop Spec | 1.5 m to concrete (MIL-STD-810H); 1.8 m with rubber boot |
| Tumble Spec | 600 × 0.5 m; 1,000 × 0.5 m with rubber boot (IEC 60068-2-32) |
| Sealing | IP64 |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −30 °C to 70 °C |
| Software & Management | Datalogic Mobility Suite: Launcher, Enterprise Browser, Integrity Kit, Scan2Deploy Studio, OEMConfig, SDKs, Visual Formatter, Wedge, SoftSpot, Snap OCR, keyboard remap; MDM: SOTI, Workspace ONE, Intune, 42Gears, Ivanti; TE: Ivanti Velocity, StayLinked |
| Colour | Black |
| Warranty | 12 months (Datalogic 1-year factory warranty); EASEOFCARE service plans available |
| In the Box | Datalogic Memor K20 mobile computer (946200001), 4850 mAh battery, quick start guide, Google Mobile Services (GMS) licence – charger, USB-C cable and charging dock NOT included (order separately) |
Need mobile data on the road? The Memor K25 946250001 adds 4G LTE and GPS. Related Datalogic models: Memor 11 and Memor 12. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
| Part Number | Mobile Broadband | Price | ||
|---|---|---|---|---|
 |
946200001Viewing | Wi-Fi only | 496,48 €+VATIn Stock | |
 |
946250001 | 4G LTE + GPS | 542,92 €+VATIn Stock |
