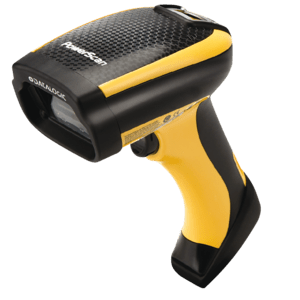

Datalogic PowerScan PD9531-DPM Barcode Scanner (PD9531-DPMK1)

The Datalogic PowerScan PD9531-DPM is a rugged corded 2D area imager from Datalogic's PowerScan 9500 series, designed specifically for reading direct part marking (DPM) codes – laser-etched, chemically etched, inkjet-printed and dot-peened marks on metal and plastic parts – as well as small printed labels. Its high-density optics resolve codes down to 2.5 mil (1D) and 4 mil (2D), the housing is sealed to IP65 and withstands 50 drops from 2.0 m onto concrete, and the multi-interface electronics connect via USB, RS232 or keyboard wedge, depending on the cable. The scanner is backed by a 3-year (36-month) Datalogic warranty. This version, PD9531-DPMK1, is supplied with a coiled USB cable (K1 kit), ready to plug in and scan.

Key Features

• Made for direct part marking – reads laser-etched, chemically etched and inkjet-printed codes as well as dot-peened Data Matrix codes directly on metal, plastic and other shiny or matte surfaces.
• High-density optics – an 864 × 544 sensor resolves 1D codes down to 2.5 mil and 2D codes down to 4 mil; DPM codes are read from contact to about 4–5 cm and printed codes up to about 15 cm.
• Omnidirectional reading – reads 1D, stacked, 2D and postal codes in any orientation and can also capture images (BMP, JPEG, TIFF).
• Clear good-read feedback – Datalogic 3GL™ (Three Green Lights), the Green Spot projected onto the code, dual good-read LEDs and a loud, adjustable beeper confirm every read.
• Motionix™ motion sensing – the scanner detects the operator's movements and automatically switches to the right scanning mode.
• Soft white illumination – the soft-pulsed white light produces fewer flashes and is gentle on the eyes during scan-intensive work.
• Built for the shop floor – IP65 sealing against dust and water jets, 50 drops from 2.0 m onto concrete and an operating range of −20 °C to 50 °C.
• Multi-interface electronics – USB, RS232 and keyboard wedge on board: simply choose the matching PowerScan 9500-series cable – USB straight or coiled, RS232 or PS/2 keyboard wedge.
• Free configuration tools – set up the scanner with the Datalogic Aladdin utility and integrate it using the OPOS / JavaPOS utilities.

Ideal Applications

• Direct part marking – laser-etched, dot-peened and inkjet-printed codes on metal and plastic parts in automotive, electronics and metalworking
• Manufacturing shop floor – work-in-process and sub-assembly tracking
• Component tracking and parts traceability
• Quality control and line inventory control
• Time and cost analysis, machine replenishment and configuration

All PD9531-DPM Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? PD9531-DPMK1 includes a coiled USB cable – the plug-and-play choice for PCs; PD9531-DPMK2 includes a coiled RS232 cable for machines, PLCs and serial terminals; PD9531-DPM comes without a cable – ideal if you already have a compatible PowerScan 9500-series cable or need a different length or a keyboard wedge cable. Looking for a longer reach, IP67 sealing and the newer DPX optics? Take a look at the PowerScan PD9630-DPX. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
