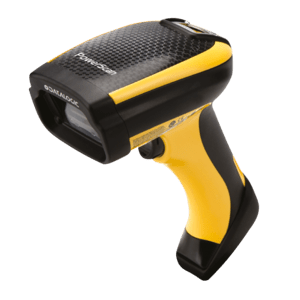

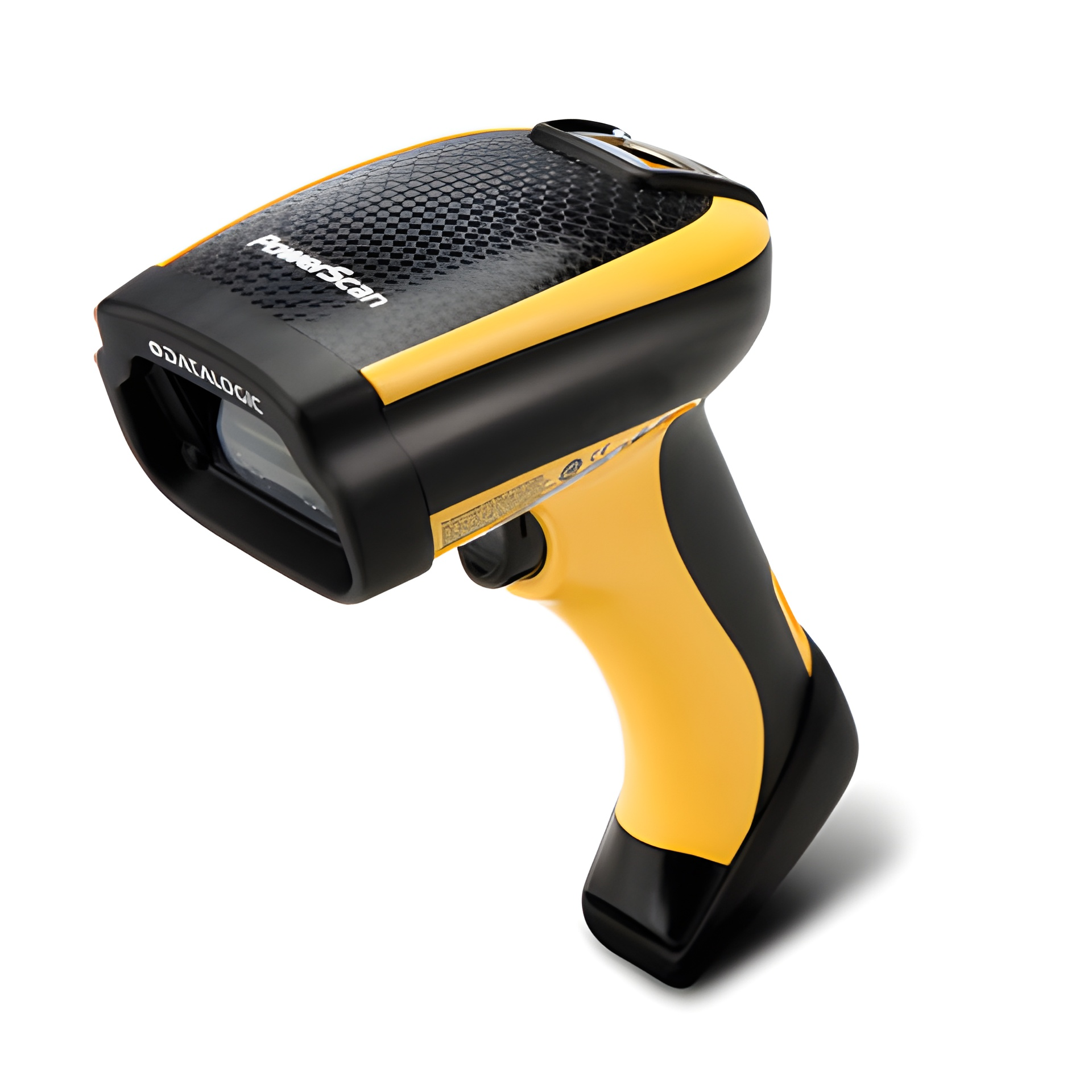

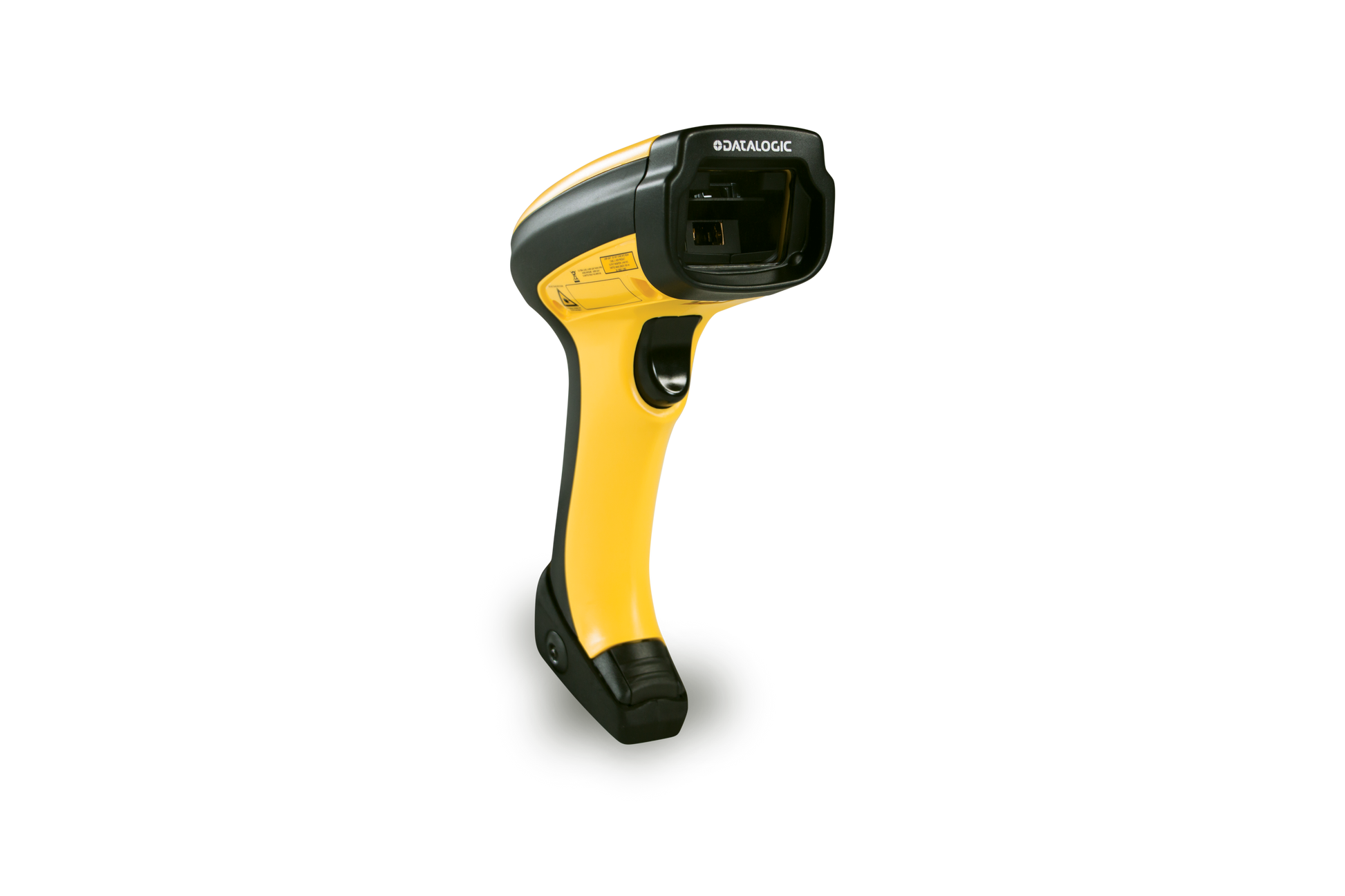

Datalogic PowerScan PM9100 Barcode Scanner (PM9100-433RBK10)

The Datalogic PowerScan PM9100 is a rugged cordless 1D barcode scanner from Datalogic's PowerScan 9100 series, built for manufacturing, warehouses and logistics. Its linear imager projects a bright, laser-like green scanning line and reads all common 1D barcodes down to 2.5 mil – standard EAN-13 codes from 2 to 61 cm and large 40 mil labels from up to 2.3 m. The scanner talks to its base station over the Datalogic STAR Cordless System™ – a two-way 433 MHz narrow-band radio with a range of up to 100 m in open air that does not interfere with Wi-Fi or Bluetooth networks. A removable Li-ion battery lasts for 50,000+ reads per charge, the housing is sealed to IP65 and survives 50 drops from 2.0 m onto concrete, and the scanner comes with a 3-year Datalogic warranty. Please note: the PM9100 reads 1D (linear) barcodes only – not QR codes, Data Matrix or other 2D codes.

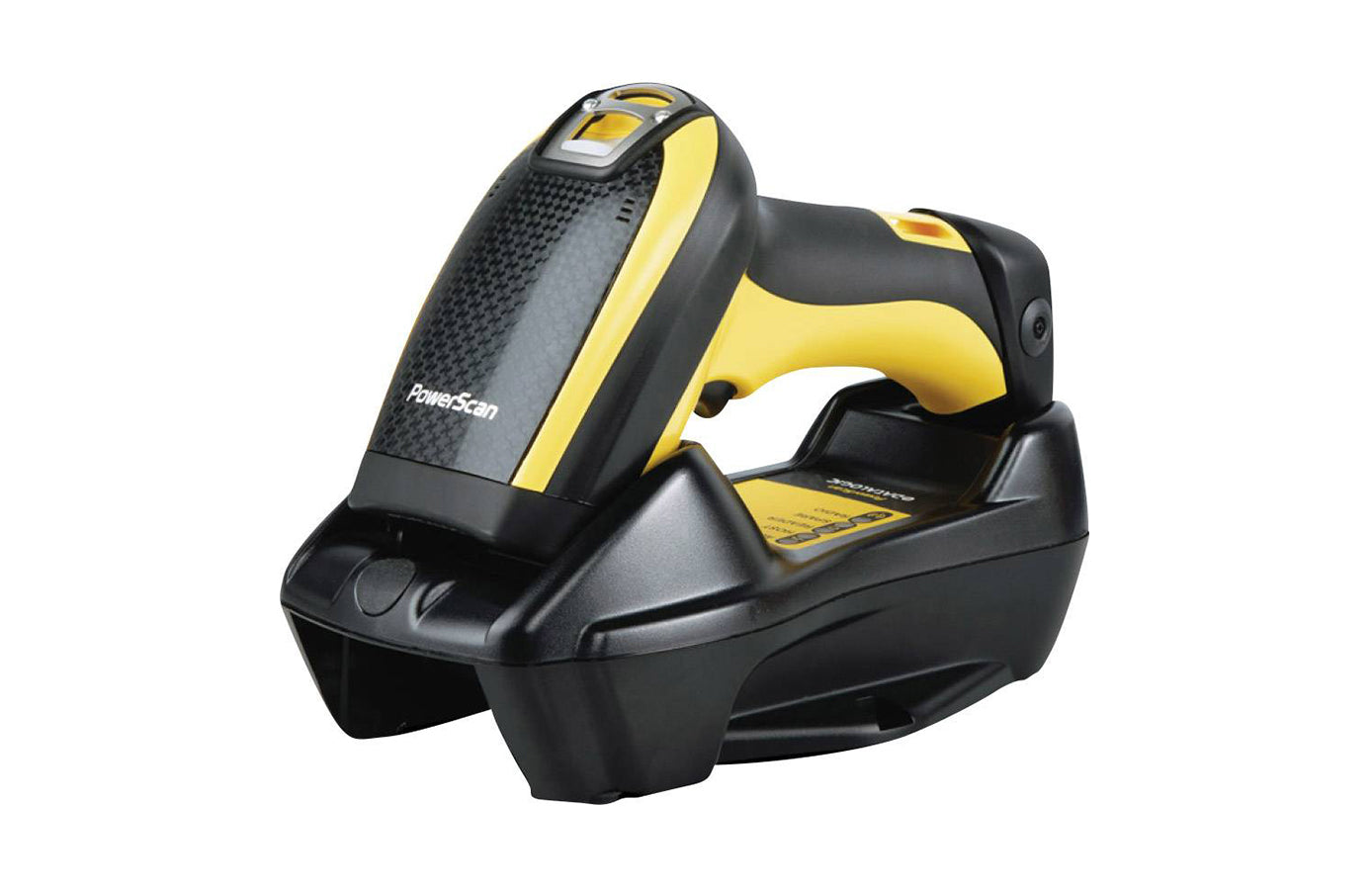

The PM9100-433RBK10 is the basic model without a display – a straightforward trigger-only scanner. It uses the 433 MHz STAR radio – the version for Europe and most countries outside North America. It is supplied as a complete USB kit with the BC9030 base station/charger, a 2 m USB cable and a power supply – ready to connect and scan.

Key Features

• Datalogic STAR Cordless System™ – two-way 433 MHz narrow-band radio with a range of up to 50 m at 500 kb/s or 100 m at 19.2 kb/s in open air; point-to-point or multi-point with up to 16 scanners per base, seamless roaming between bases and no interference with Wi-Fi or Bluetooth networks.
• Laser-like green scanning line – Datalogic's linear imaging technology projects a bright green line that is as easy to aim as a laser, with the durability of a linear imager that has no moving parts.
• Simple trigger-only operation – the basic version without display or keypad for pure scanning tasks; models with a display and 4 or 16 keys are also available.
• Reads all common 1D barcodes – EAN/UPC (incl. add-ons and coupons), ISBN, Code 128 / GS1-128, Code 39, Interleaved 2 of 5, GS1 DataBar, Codabar, Code 93 and more, plus the stacked Codablock F – down to 2.5 mil and from 15% print contrast.
• Wide working range – standard EAN-13 codes from 2 to 61 cm, 10 mil Code 39 up to 66 cm and large 40 mil labels up to 2.3 m, with generous reading angles (pitch ±75°, roll ±45°, skew ±70°).
• 1D only – please check your barcodes – the PM9100 does not read QR codes, Data Matrix, PDF417 or other 2D codes. If you need them, choose the PowerScan PM9600 cordless 2D imager.
• User-replaceable battery – the removable Li-ion battery lasts for 50,000+ reads per charge (continuous reading) and recharges in the base in about 4 hours with the external power supply; spare batteries and a 4-slot charger keep multi-shift operations running.
• Clear good-read feedback – Datalogic 3GL™ (Three Green Lights), the Green Spot projected onto the code, dual good-read LEDs and a loud beeper confirm every read, even in noisy halls.
• Built for industry – IP65 sealing against dust and water jets, 50 drops from 2.0 m onto concrete, 20 kV ESD protection and an operating range of −20 °C to 50 °C.
• Flexible base stations – the kits include the BC9030 base/charger; the BC9130 adds a spare-battery charging slot, the BC9160 adds RS-485 and the BC9180 connects to standard or industrial Ethernet (EtherNet/IP, Modbus); the SD9030 USB dongle is an alternative radio receiver. Free Datalogic Aladdin configuration tool and OPOS/JavaPOS utilities.

Ideal Applications

• Manufacturing shop floor – work-in-progress and sub-assembly tracking
• Component traceability, quality control and in-line inventory control
• Warehouses and logistics centres – shipping and receiving, picking and put-away
• Parcel preparation, automatic sorting back-up and end-of-line sorting
• Time and cost analysis and machine set-up control
• Forklifts, large warehouses and yards – cordless scanning far from the PC, with the long-range STAR radio and host messages on the display models

All PowerScan PM9100 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

How to read the part numbers: -D models have a display with 4 keys and -DK models a display with a 16-key keypad; 433 is the radio frequency (433 MHz for Europe – 910 MHz versions for North America are available on request); RB means the removable battery is included. Versions ending in K10 are USB kits and versions ending in K20 RS-232 kits, both with the BC9030 base station, a power supply and an EU power cord; versions without a K suffix are the scanner only. If you need 2D codes as well, choose the PowerScan PM9600 cordless 2D imager. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
