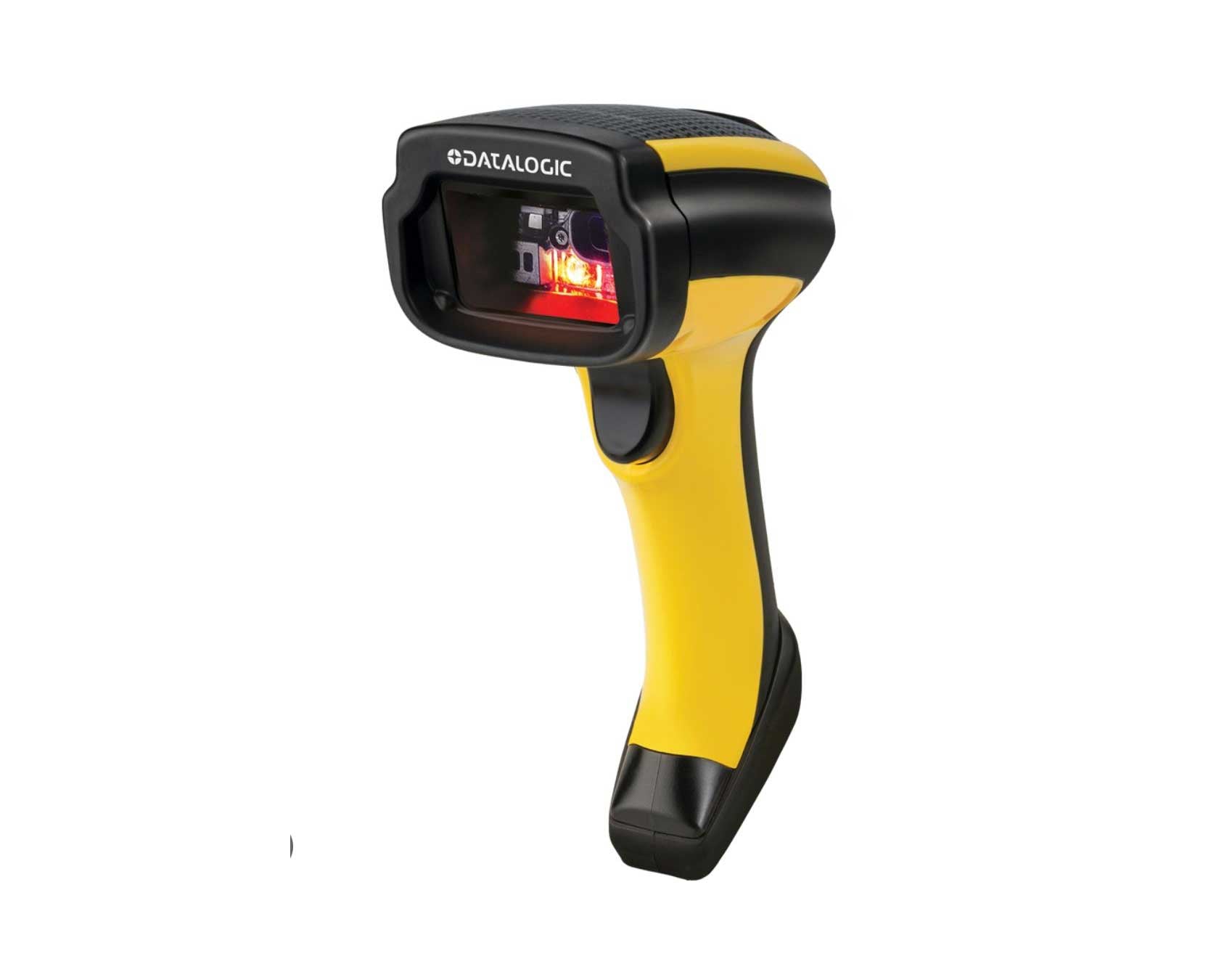

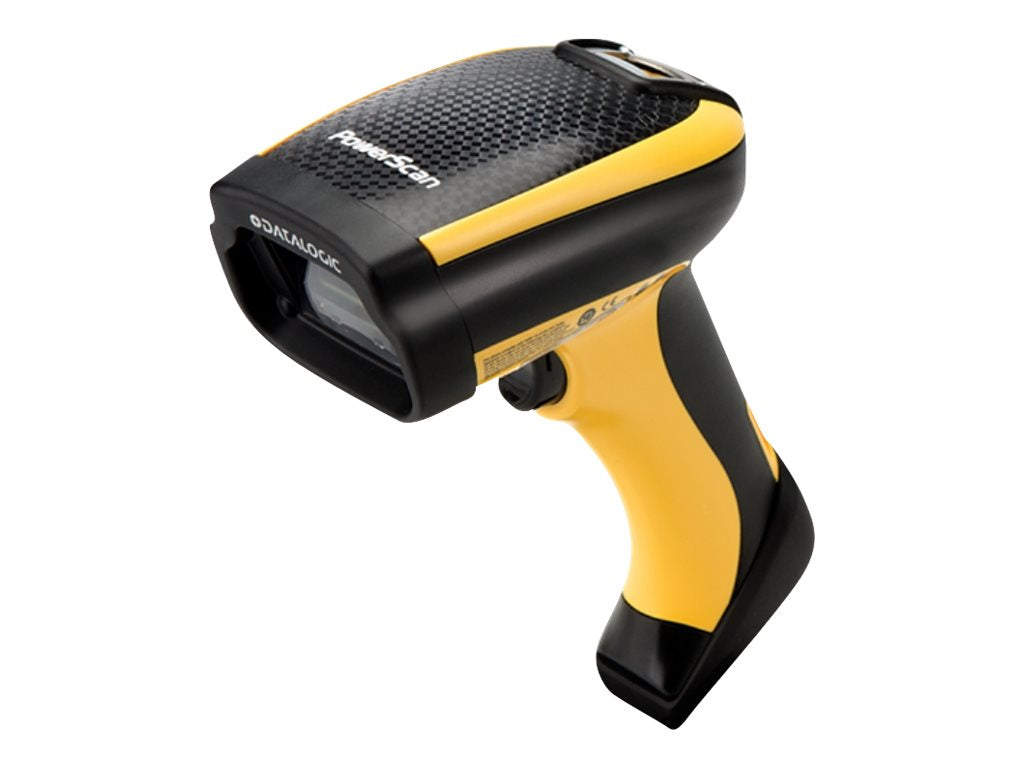

Datalogic PowerScan PM9501 DPM Barcode Scanner (PM9501-DPM433RB)

The Datalogic PowerScan PM9501 DPM is a rugged cordless 2D area imager from Datalogic's PowerScan 9500 series, made for reading direct part marking (DPM) codes. Its high-density optics with special illumination read laser-etched, dot-peened, chemically etched and inkjet-printed codes directly on metal and plastic parts, as well as small printed 1D and 2D labels. The scanner talks to its base station over the Datalogic STAR Cordless System™ 2.0 – a two-way 433 MHz narrow-band radio with a range of up to 50 m at high speed or 120 m at low speed in open air that does not interfere with Wi-Fi or Bluetooth networks. A removable 3350 mAh Li-ion battery lasts for 60,000+ reads per charge and can be swapped in about 3 seconds, the housing is sealed to IP65 and withstands 50 drops from 2.0 m onto concrete, and the scanner comes with a 3-year Datalogic warranty.

The PM9501-DPM433RB is the basic model without a display – a straightforward trigger-only scanner. It uses the 433 MHz STAR radio – the version for Europe and most countries outside North America. It is supplied as the scanner with battery only – the base station, interface cable and power supply are not included.

Key Features

• Datalogic STAR Cordless System™ 2.0 – two-way 433 MHz narrow-band radio with a range of up to 50 m at high speed or 120 m at low speed in open air; point-to-point or multi-point with up to 16 scanners per base, seamless roaming between bases and no interference with Wi-Fi or Bluetooth networks.
• Made for direct part marking – reads laser-etched, chemically etched and inkjet-printed codes as well as dot-peened Data Matrix codes directly on metal, plastic and other shiny or matte surfaces.
• High-density optics – an 864 × 544 sensor resolves 1D codes down to 2.5 mil and 2D codes down to 4 mil; DPM codes are read from contact to about 4–5 cm and printed codes up to about 15 cm.
• Omnidirectional reading – reads 1D, stacked, 2D and postal codes in any orientation and can also capture images (BMP, JPEG, TIFF).
• Simple trigger-only operation – the basic version without display or keys for pure scanning tasks; a version with a backlit display and 4 configurable keys (PM9501-DDPM433RB) is also available.
• Hot-swappable battery for multi-shift work – the removable 3350 mAh Li-ion battery lasts for 60,000+ reads per charge and is replaced in about 3 seconds; it charges in the base in about 4.5 hours with the external power supply, and spare batteries plus a 4-slot charger keep 24-hour operations running.
• Built for the shop floor – IP65 sealing against dust and water jets, 50 drops from 2.0 m onto concrete and an operating range of −20 °C to 50 °C.
• Clear good-read feedback – Datalogic 3GL™ (Three Green Lights), the Green Spot projected onto the code, dual good-read LEDs and a loud, adjustable beeper confirm every read.
• Motionix™ motion sensing – the scanner detects the operator's movements and automatically switches to the right scanning mode.
• Soft white illumination – the soft-pulsed white light produces fewer flashes and is gentle on the eyes during scan-intensive work.
• Flexible 433 MHz base stations – the USB and RS-232 kits include the BC9030-433 base/charger and the Ethernet kit the BC9180-433 (standard Ethernet or industrial EtherNet/IP, Modbus); the BC9130-433 adds a spare-battery charging slot and the BC9160-433 adds RS-485, while the SD9030-433-A USB dongle is an alternative radio receiver. Free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and EASEOFCARE service plans.

Ideal Applications

• Direct part marking – laser-etched, dot-peened and inkjet-printed codes on metal and plastic parts in automotive, electronics and metalworking
• Manufacturing shop floor – work-in-process and sub-assembly tracking
• Component tracking and parts traceability
• Quality control and line inventory control
• Time and cost analysis, machine replenishment and configuration

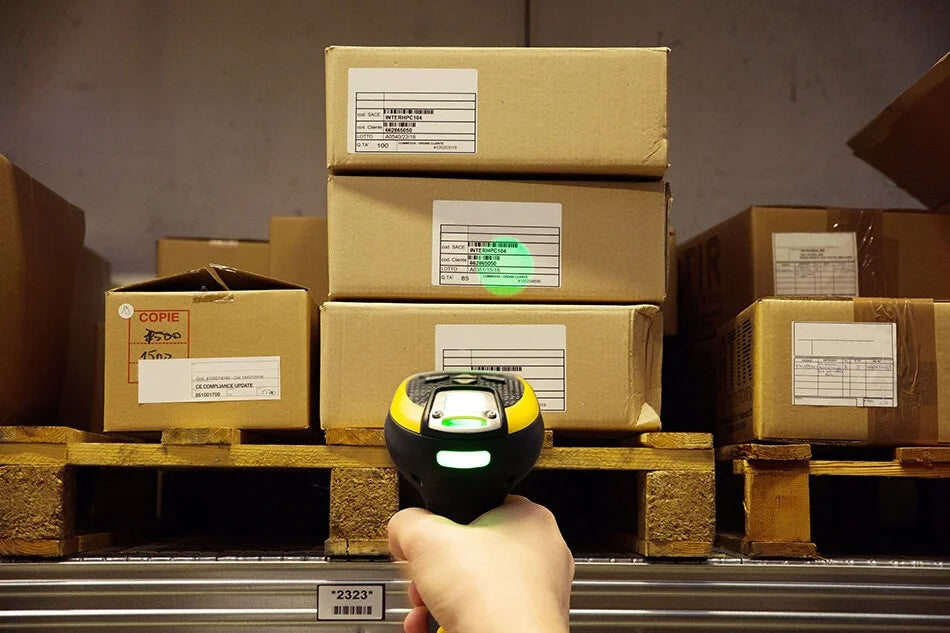

• Forklifts, large warehouses and yards – cordless scanning far from the PC, with the long-range STAR radio and host messages on the display models

All PowerScan PM9501 DPM Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

How to read the part numbers: DPM marks the Direct Part Marking version, and the extra D in PM9501-DDPM a backlit display with 4 keys; 433 is the radio frequency (433 MHz for Europe – 910 MHz versions for North America are available on request); RB means the removable battery is included. Versions ending in K10 are USB kits and versions ending in K20 RS-232 kits with the BC9030-433 base, K30 is the Ethernet kit with the BC9180-433 base – all with a power supply and EU power cord; versions without a K suffix are the scanner only. Prefer Bluetooth? See the PowerScan PBT9501 DPM. Need a corded DPM scanner? See the PowerScan PD9531-DPM. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
