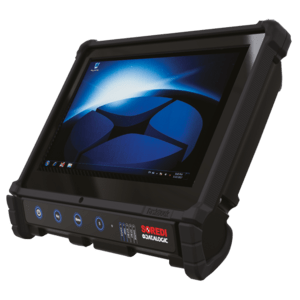

The Datalogic Taskbook is a rugged 7-inch Windows tablet for warehouse operations, forklifts and the shop floor. It runs Windows 10 IoT Enterprise on an Intel Atom 1.46 GHz processor with 4 GB RAM / 32 GB storage and has a 7" WSVGA (1024 × 600) multi-touch display protected by 1.6 mm Gorilla Glass, Wi-Fi 5 (802.11ac), Bluetooth 4.0, USB-C, IP65 sealing and 1.2 m drop resistance. With the optional handgrip it becomes a one-handed 2D scanner with hot-swappable battery for 24/7 use. This version, 943400002, is the 7-inch model without camera.
📦 What's in the box – 943400002
- Datalogic Taskbook – 7", No camera
- Battery – internal 2500 mAh Li-ion battery
- Windows 10 IoT Enterprise – 64-bit licence, preinstalled
💡 To get started, you might also consider a Datalogic power supply or a Taskbook docking station – both available on request.
Key Features
- Industrial 7" display – WSVGA 1024 × 600, 420 nits, anti-glare projected-capacitive multi-touch with glove support and 1.6 mm Gorilla Glass.
- Windows 10 IoT Enterprise – runs your existing Windows warehouse applications, browsers and terminal emulation; SOTI and Ivanti/Wavelink management supported.
- Optional scanning handgrip – the handgrip adds a 2D imager (standard range up to 1.1 m) and a hot-swappable battery for single-handed scanning and 24/7 operation.
- Ready for forklifts – docking station with AC or DC (12–48 V) power for vehicle or desk use, VESA 75 mounting; Ethernet, USB and RS-232 on the dock.
- Rugged – IP65, repeated 1.2 m drops to concrete, shock and vibration tested to forklift severity, −20 °C to 50 °C.
- Connectivity – Wi-Fi 5 (802.11a/b/g/n/ac) with diversity antennas, Bluetooth 4.0 and USB-C on the device.
Ideal Applications
- Warehouse management: inventory, picking, put-away, shipping and receiving, cross docking
- Forklift and in-vehicle use with the Taskbook docking station
- Manufacturing shop floor, quality control and removable HMI panel
- Assisted sales and public safety
All Taskbook Versions
The highlighted row is the version you are currently viewing.
| Part Number | Camera | |
|---|---|---|
| 943400001 | 5 MP rear camera | View product |
| 943400002 (this version) | No camera | Viewing |
Technical Specifications
| Part Number | 943400002 |
|---|---|
| Model | Datalogic Taskbook 7" – without camera |
| Operating System | Windows 10 IoT Enterprise, 64-bit |
| Processor | Intel Atom dual-core, 1.46 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 32 GB CFast storage |
| Display | 7" WSVGA 1024 × 600, 420 cd/m², anti-glare |
| Touch Panel | Projected capacitive multi-touch with glove support; Corning Gorilla Glass, 1.6 mm |
| Buttons | Pop-up software keyboard, on-screen set-up menu, customisable function button |
| Scan Engine | None built in – optional handgrip with 2D imager (standard range up to 1.1 m; extra-long-range version up to 15 m) |
| Rear Camera | Not available |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/r, 2.4 + 5 GHz, diversity antennas |
| Bluetooth | Bluetooth 4.0 |
| Ports | 1 × USB-C 2.0 on the device; docking station: Ethernet 10/100, 2 × USB 2.0, RS-232, audio (optional), CAN bus (optional) |
| Voice & Audio | Built-in speaker; Bluetooth voice support |
| Battery | Internal 2500 mAh / 7.2 V (18 Wh); optional hot-swappable 2600 mAh handgrip battery |
| Charging | USB-C or docking station (12–48 VDC or 110/230 VAC) – power supply not included |
| Form Factor | Rugged tablet |
| Dimensions | 150 × 187 × 38 mm |
| Weight | 733 g with battery |
| Drop Spec | Repeated 1.2 m drops to concrete |
| Tumble Spec | Hundreds of tumbles (IEC 60068-2-32, method 2) |
| Sealing | IP65 |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −40 °C to 60 °C |
| Humidity | 10–90% at 40 °C, non-condensing |
| Software & Management | SOTI and Ivanti/Wavelink device management, Ivanti/Wavelink and StayLinked terminal emulation (not pre-licensed) |
| Colour | Black |
| Warranty | 12 months (Datalogic 1-year factory warranty) |
| In the Box | Datalogic Taskbook 7" tablet (943400002, no camera), internal 2500 mAh battery, Windows 10 IoT Enterprise |
Related Datalogic models: Taskbook 943400001 (5 mp rear camera). Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
| Part Number | Series | Price | ||
|---|---|---|---|---|
 |
943400001 | With 5 MP rear camera | 2.088,73 €+VATIn Stock | |
 |
943400002Viewing | Standard – no camera | 2.011,02 €+VATIn Stock |
