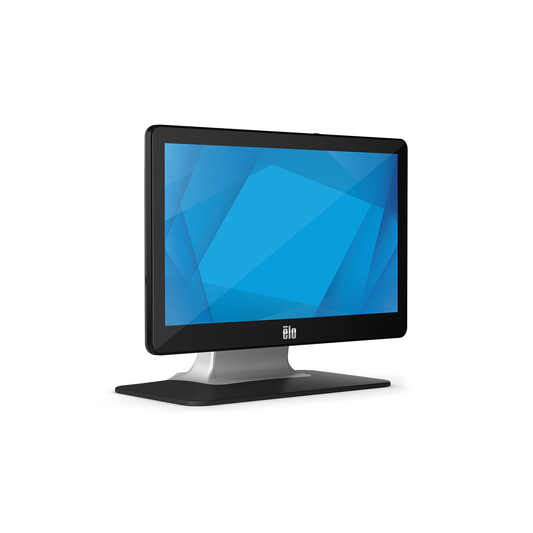

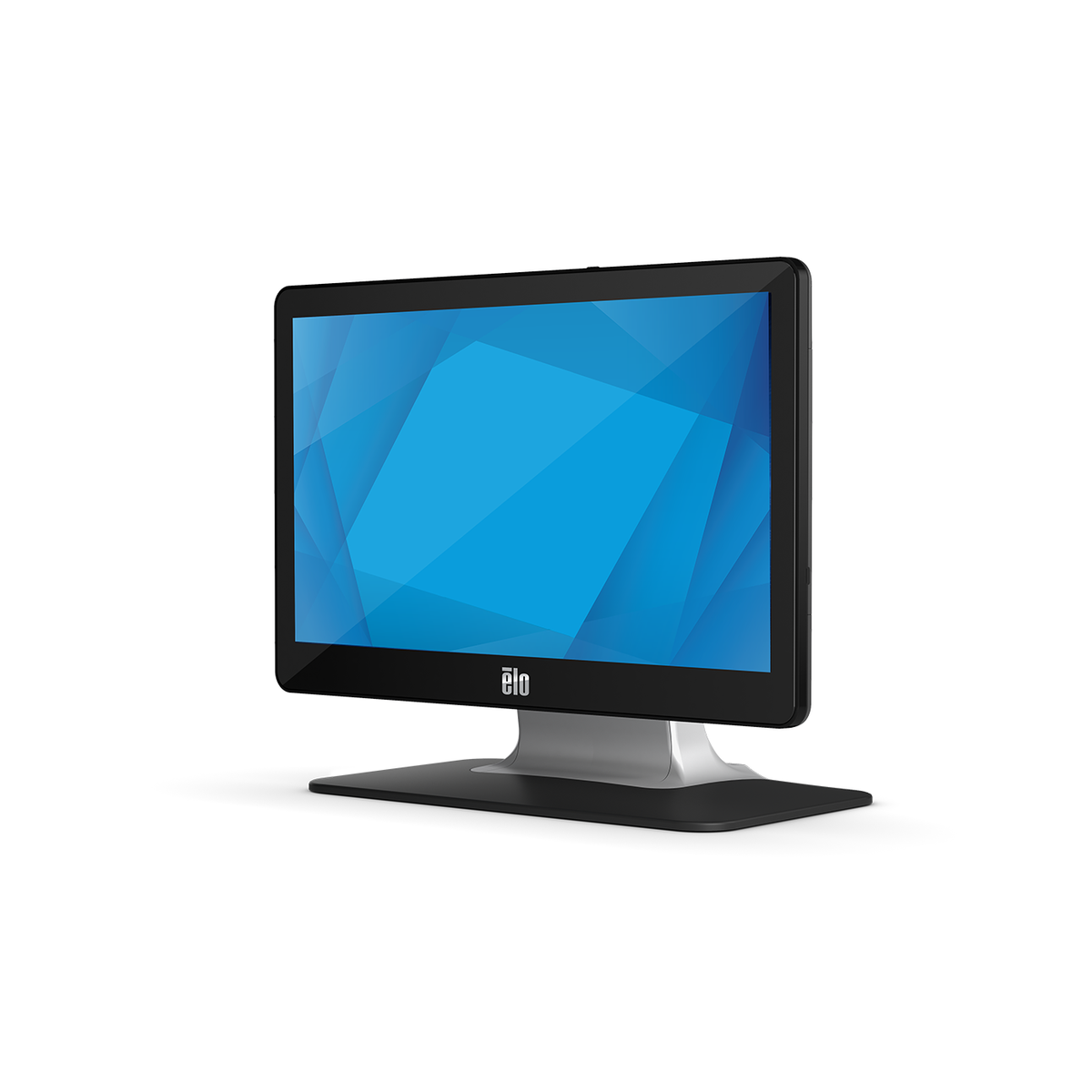

Elo 1302L 13.3" Touch Monitor, PCAP 10-touch, FHD, with Stand, Black (E683204)

The Elo 1302L is a 13.3" Full HD (1920 × 1080) commercial touchscreen monitor with 10-touch TouchPro PCAP and edge-to-edge anti-glare glass. A full-function USB-C port carries video, touch and power in a single cable, while HDMI and VGA inputs, an audio line-in, two speakers and four micro-USB Elo Edge Connect ports for MSR, scanner, webcam, RFID or status-light modules make it equally at home as a compact POS screen, customer-facing display or kitchen display. IPX1 front sealing, IK07 impact protection and Elo's 50,000-hour demonstrated MTBF are built for daily retail and hospitality use. This version, E683204, is the black model with Elo's adjustable desktop stand pre-fitted; HDMI and USB-C cables and a 36 W power brick with EU and US cords are in the box, so it is ready to use straight away.

Key Features

• TouchPro PCAP, 10 touch points – fast, drift-free projected-capacitive touch with gesture support and plug-and-play USB HID on Windows, Android, Linux and macOS
• Flexible connectivity – USB-C with DisplayPort Alt Mode (video, touch and power in one cable) plus HDMI and VGA inputs
• Elo Edge Connect – micro-USB side ports accept Elo's clip-on MSR, 2D barcode scanners, fingerprint reader, webcam, RFID/NFC reader and status light without extra cabling
• Zero-bezel anti-glare glass – flush, edge-to-edge front that is easy to clean and sealed against spills (IPX1 front)
• Built-in speakers – two internal speakers with audio line-in for prompts, alerts and media
• VESA 75 mm mounting – fits Elo pole, wall, shelf and floor mounts as well as third-party arms and kiosk enclosures
• Commercial-grade durability – sealed touchscreen, 50,000-hour demonstrated MTBF and a 3-year Elo warranty, extendable to 4 or 5 years

Ideal Applications

• Customer-facing displays next to POS terminals and payment devices
• Compact POS and order-entry stations in retail and hospitality
• Kitchen display systems, order-status and queue screens
• Check-in, loyalty and small self-service terminals
• Industrial HMI, access control and warehouse workstations

Technical Specifications

Choose the 02-Series model by screen size (7" to 27"), then decide between a version with the included desktop stand or a stand-less version for VESA mounting; the 15.6" 1502L is available as Full HD with USB-C or as the lower-cost HD version, and the 21.5" 2202L with clear or anti-glare glass. The versions table above lists every configuration of this family that we offer. Browse the whole Monitors category in our store, and contact us for volume pricing, project quotes or help choosing the right stands, mounts and peripherals.
