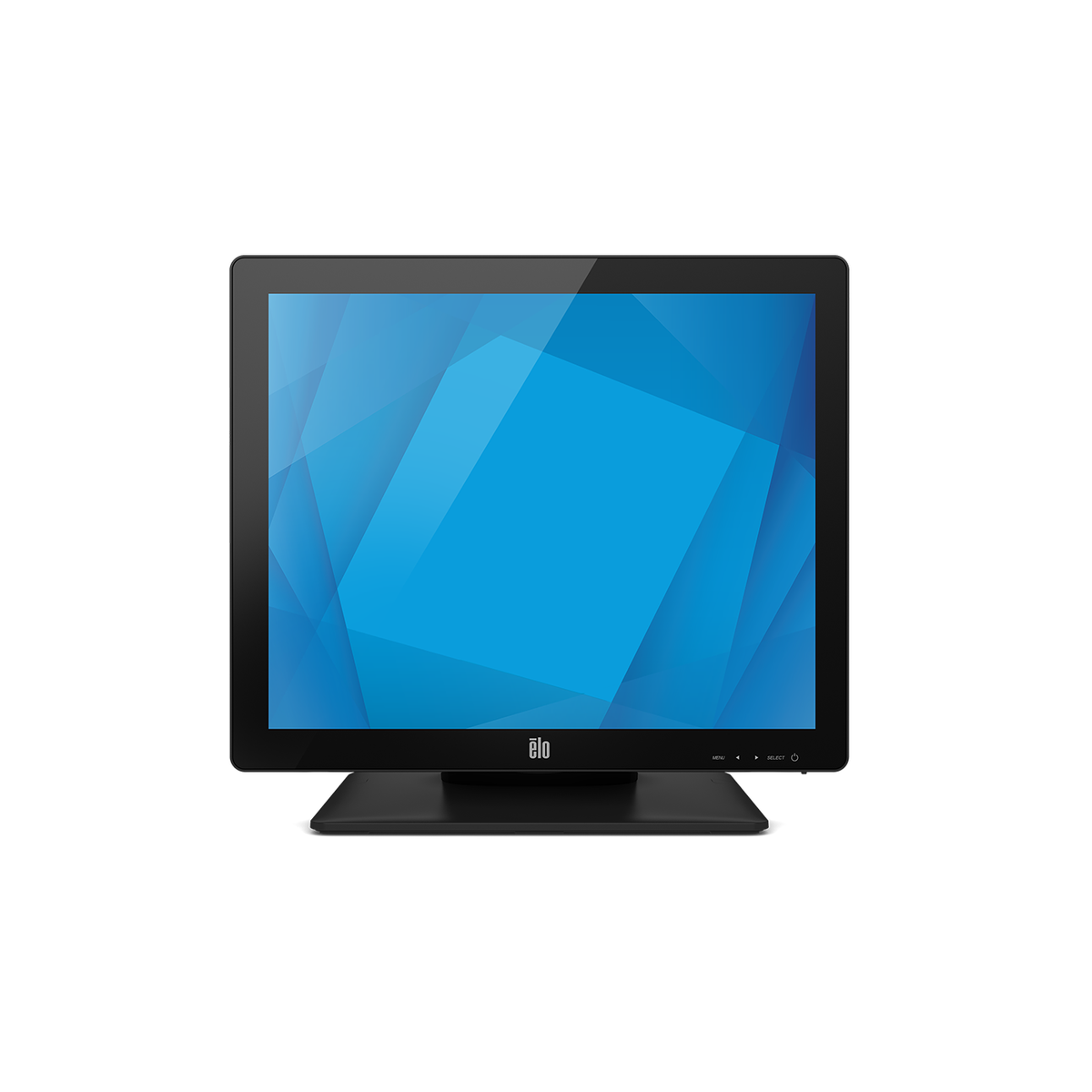

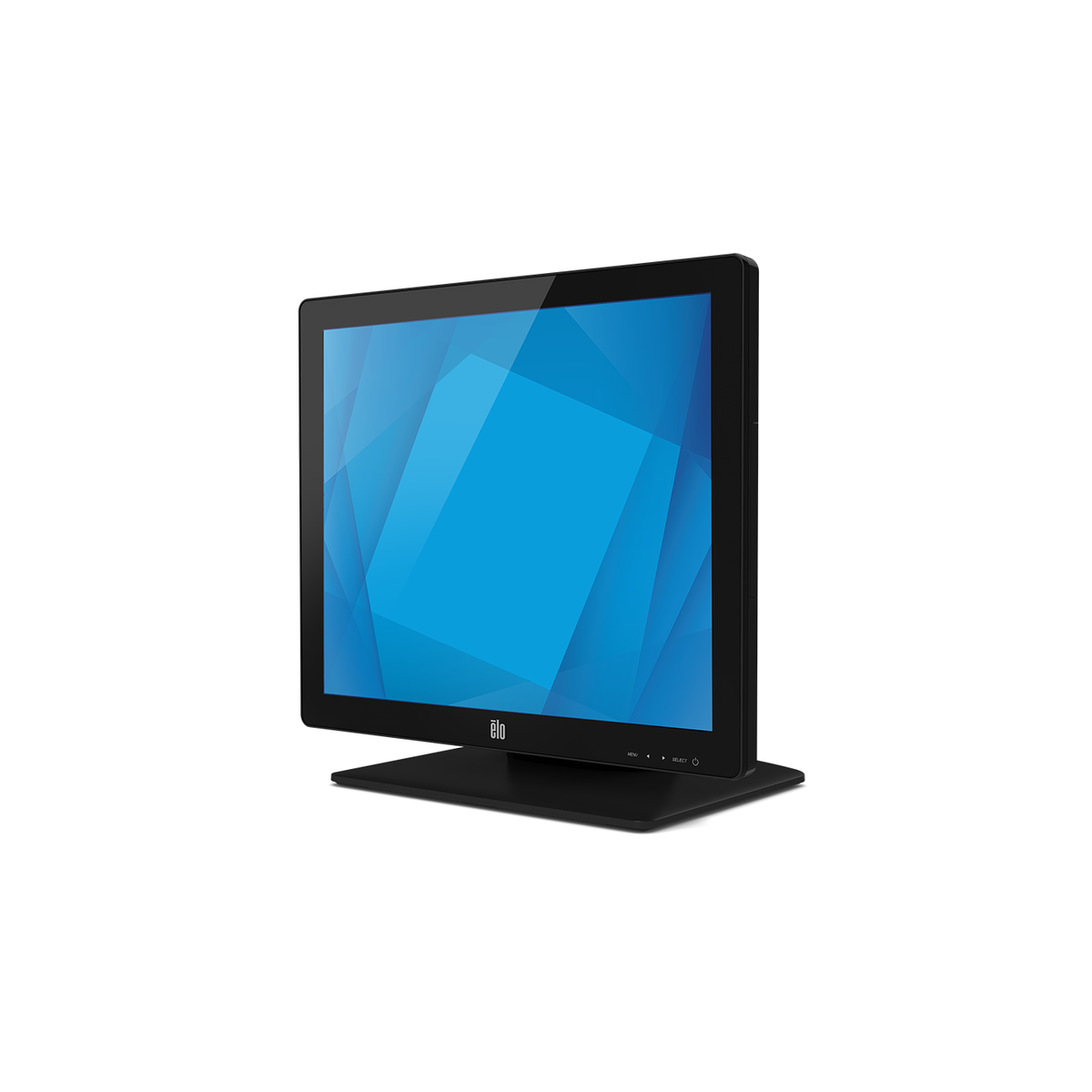

Elo 1717L 17" Touch Monitor, AccuTouch Resistive, SXGA, Standard Bezel, Black (E877820)

The Elo 1717L is a 17" SXGA desktop touchscreen monitor from Elo's 17L line, built to withstand continuous public use with a rugged, built-for-touch design and a slim, modern look. Its AccuTouch five-wire resistive touchscreen responds to a finger, glove, card or stylus and is sealed against dirt, dust and liquids, while VGA and HDMI inputs, dual serial (RS-232) and USB touch interfaces, an internal power supply and a stable stand with capped through-mount holes make installation simple and secure. The monitor is MSR-ready for Elo's integrated 3-track magnetic stripe reader and suits point-of-sale, point-of-service, information and loyalty applications. This version, E877820, is the black AccuTouch model with the classic raised bezel; the stand, VGA, HDMI and touch-USB cables and an NA/EU power cord are included.

Key Features

• AccuTouch 5-wire resistive – works with finger, glove, card or stylus and captures signatures; sealed against dirt, dust and liquids
• VGA and HDMI inputs – connect to older and current POS PCs alike; internal power supply with alternative 12 V DC input
• Serial and USB touch – dual RS-232 and USB touch controller for easy integration with legacy and modern POS software
• MSR-ready – Elo's integrated 3-track magnetic stripe reader mounts directly on the monitor
• Secure desktop stand – stable base with capped through-mount holes, removable for 75 mm VESA wall or pole mounting
• 3-year Elo warranty – 50,000-hour demonstrated MTBF; extendable to 4 or 5 years

Ideal Applications

• Retail and hospitality POS with signature capture
• Kitchens, workshops and cold rooms where gloves are worn
• Industrial HMI and production terminals
• Like-for-like replacement of existing Elo resistive monitors

Technical Specifications

Choose the 15" 4:3 1517L or the 17" 5:4 1717L, then pick the classic bezel or the flush zero-bezel (ZB) front – all versions are black AccuTouch with stand, VGA/HDMI and serial/USB touch. The versions table above lists every configuration of this family that we offer. Browse the whole Monitors category in our store, and contact us for volume pricing, project quotes or help choosing the right stands, mounts and peripherals.
