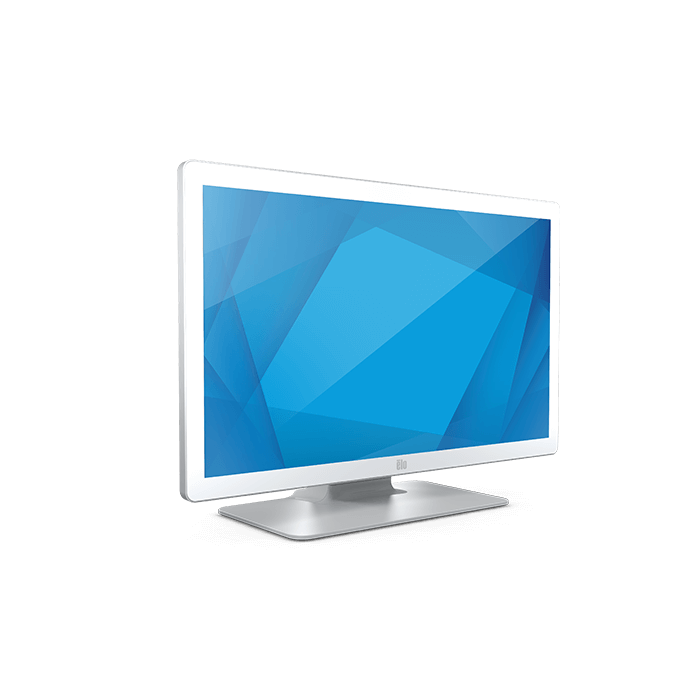

Elo 2703LM 27" Medical Touch Monitor, FHD, DICOM, White, with Stand (E659793)

The Elo 2703LM is a 27" medical-grade touch monitor certified to IEC 60601-1 for nurse stations, operating rooms, laboratories, pharmacies and patient-facing areas. Its FHD (1920 × 1080) anti-glare display with 10-point TouchPro PCAP touch sits behind a seamless zero-bezel front with DICOM Part 14 support for reviewing medical images, and the IP54-rated enclosure is easy to wipe down with hospital disinfectants. VGA and HDMI inputs, USB or serial touch, built-in speakers and four micro-USB side ports for peripherals provide flexible connectivity. This version, E659793, comes in white with the Elo desktop stand included; a power supply with EU and US power cords and the video and touch cables are included.

Key Features

• Medical-grade certified – IEC 60601-1 and IEC 60601-1-2 safety and EMC, ISO 14971 risk management
• Easy to disinfect – zero-bezel sealed glass front and an IP54-rated enclosure that withstands hospital cleaning agents
• DICOM Part 14 – greyscale calibration for secondary review of medical images, calibration sheet included
• TouchPro PCAP, 10 touch points – responsive multi-touch with an anti-glare surface, also usable with the optional Elo stylus
• Flexible connectivity – VGA and HDMI inputs, USB or serial touch, USB-A port and four micro-USB side ports for peripherals
• Built-in speakers – two 2 W speakers for alerts and audio feedback
• Ready to use – supplied with the Elo desktop stand; VESA 100 × 100 mm for arms, walls and poles
• 3-year Elo warranty – 50,000-hour MTBF, extendable to 4 or 5 years

Ideal Applications

• Nurse stations and patient registration
• Operating rooms and clinical workstations
• Laboratories and pharmacies
• Patient check-in and hospital self-service
• Medical carts and bedside terminals

Technical Specifications

Choosing the right version: Elo medical-grade monitors are available in 15.6" (1502LM), 19" (1903LM), 21.5" (2203LM), 23.8" (2403LM) and 27" (2703LM), in white or black and with or without stand. Choose a version without stand for VESA arms and wall mounts, and an 03LM model when you need DICOM Part 14. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.
