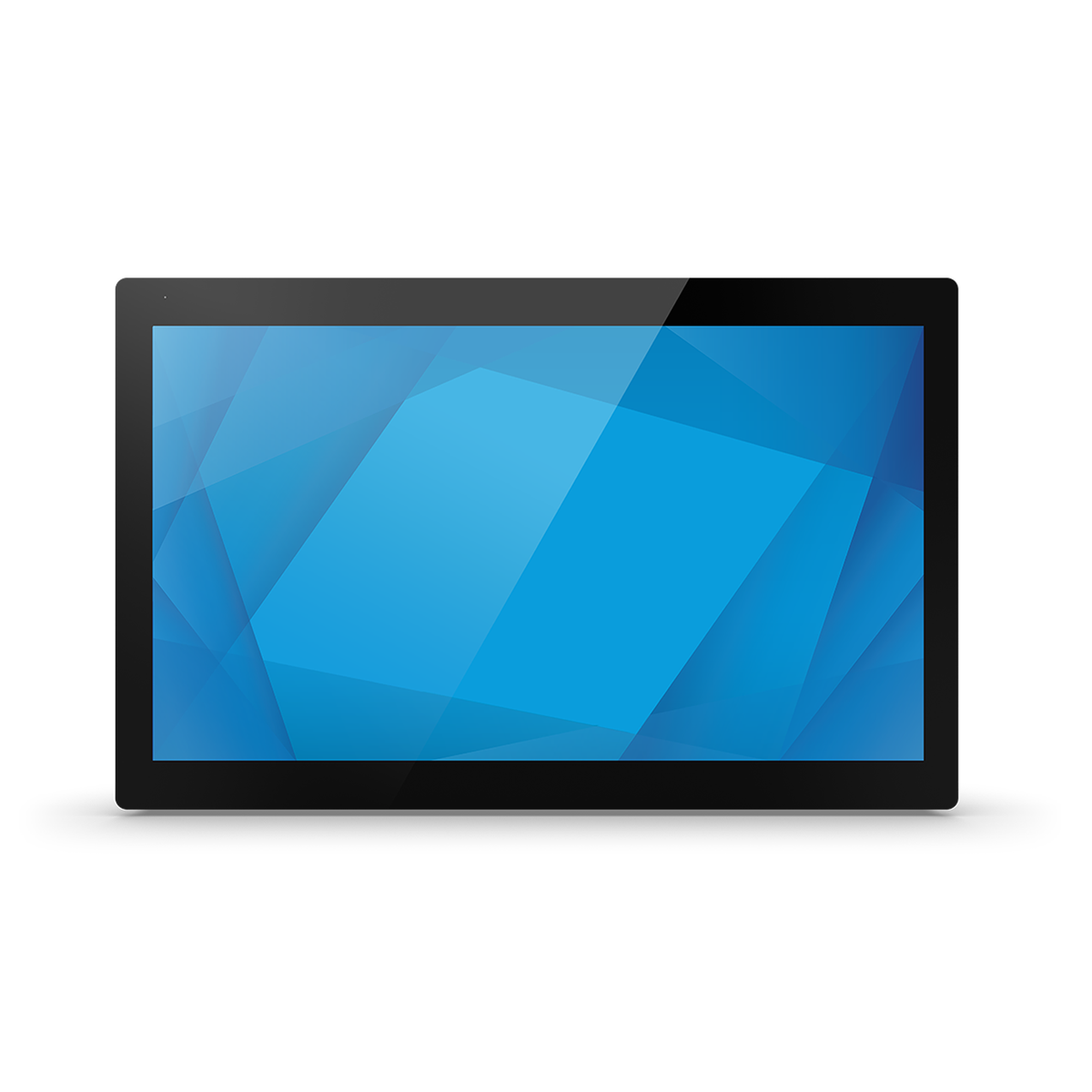

Elo 2799L 27" Outdoor Open-Frame Touch Monitor, PCAP, FHD, 1500 cd/m² (E399052)
Regular price
1.480,74 € +VAT
The Elo 2799L is a 27" outdoor open-frame touch monitor for sunlight-readable kiosks, EV chargers, drive-thrus and outdoor self-service terminals. Its anti-glare FHD (1920 × 1080) panel delivers 1500 cd/m² (1320 cd/m² with touch) and stays readable in direct sunlight and with polarised sunglasses, while ambient-light and thermal sensors with automatic fan control keep it running from −20 to +60 °C. Integrated into an enclosure, it can be sealed to IP66 / NEMA 4X, and the TouchPro PCAP touchscreen (10 touch points) is rated IK10 for impact. This version, E399052, is supplied with locking HDMI and touch USB cables, a VGA cable, a remote OSD keypad and flush-mount brackets; the 80 W outdoor power supply is ordered separately.
📦 What's in the box – E399052
- Elo 2799L 27" outdoor open-frame touch monitor – 1500 cd/m², TouchPro PCAP, FHD 1920 × 1080
- Cables – locking HDMI and touch USB cables, VGA cable
- Remote OSD keypad – tethered on-screen-display control (RJ45)
- Flush-mount brackets – with screws
- Quick Install Guide
💡 To get started, you might also consider Elo's 80 W outdoor power supply, available on request – plus a sealed enclosure for full IP66 protection.
Key Features
- Sunlight-readable – 1500 cd/m² LCD panel (1320 cd/m² with touch), anti-glare surface, readable with polarised sunglasses
- Built for outdoor use – operates from −20 to +60 °C, with ambient-light and thermal sensors and automatic fan control
- Sealable to IP66 / NEMA 4X – when integrated into an enclosure; IK10 impact resistance
- TouchPro PCAP – 10 touch points, touch-through up to 6 mm glass or 3 mm plastic
- Locking connectors – screw-locked HDMI and USB, plus VGA and DisplayPort inputs
- Ready for 24/7 – continuous operation in kiosks and outdoor terminals, 50,000-hour MTBF
- Easy integration – VESA 200 × 100 mm, mounting points on all four sides and included flush-mount brackets
Ideal Applications
- Outdoor self-service kiosks and ticket machines
- EV charging stations and parking terminals
- Drive-thru ordering in quick-service restaurants
- Fuel dispensers and car-wash pay stations
- Transport hubs, information and wayfinding points
Technical Specifications
| Part Number | E399052 |
|---|---|
| Model | Elo 2799L |
| Screen Size | 27" (68.6 cm) |
| Panel Type | Active-matrix TFT LCD, LED backlight |
| Resolution | 1920 × 1080 (FHD) @ 60 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 1500 cd/m² (LCD panel); 1320 cd/m² (with touch) |
| Contrast | 1000:1 |
| Response Time | 14 ms |
| Viewing Angle (H / V) | 178° / 178° (±89°) |
| Touch Technology / Touch Points | Elo TouchPro projected capacitive (PCAP), 10 touch points; touch-through up to 6 mm glass; interface: USB 2.0 |
| Glass / Surface | Anti-glare, sunlight-readable (also with polarised sunglasses) |
| Inputs (video) | HDMI 1.3, VGA (DB-15), DisplayPort 1.1a (locking connectors) |
| USB / other ports | USB Type-B (touch), RJ45 (remote OSD keypad), 12–24 V DC input, GPIO terminal |
| 24/7 operation | Yes, when integrated into an enclosure |
| Mounting (VESA) | VESA 200 × 100 mm; flush mount with included brackets; mounting points on all four sides |
| Power | 12–24 V DC (external 80 W power supply, sold separately); typical 70 W |
| Dimensions (W × H × D) | 658 × 415 × 66 mm |
| Weight | 13.6 kg |
| Colour | Black |
| Sealing (IP) | IP66 / NEMA 4X when integrated into an enclosure; IK10 |
| Operating Temperature | −20…+60 °C |
| Certifications | UL, cUL, FCC, IC, CE, TÜV, UKCA, CCC, VCCI, KCC, NOM, BSMI, RCM, CB, RoHS, WEEE |
| Warranty | 24 months |
| In the Box | Elo 2799L 27" monitor, locking HDMI cable, VGA cable, locking touch USB cable, remote OSD keypad, flush-mount brackets with screws, Quick Install Guide |
Choosing the right version: The outdoor 90 Series is available as the compact 10.1" 1099L (1000 cd/m², 5-touch) and the 27" Full HD 2799L (1500 cd/m², 10-touch). For indoor installations, the standard Elo 90 Series offers the same open-frame concept at a lower price. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.
Available Versions
| Part Number | Screen Size | Price | ||
|---|---|---|---|---|
 |
E354792 | 10.1" | 832,84 €+VATIn Stock | |
 |
E399052Viewing | 27" | 1.480,74 €+VATIn Stock |
