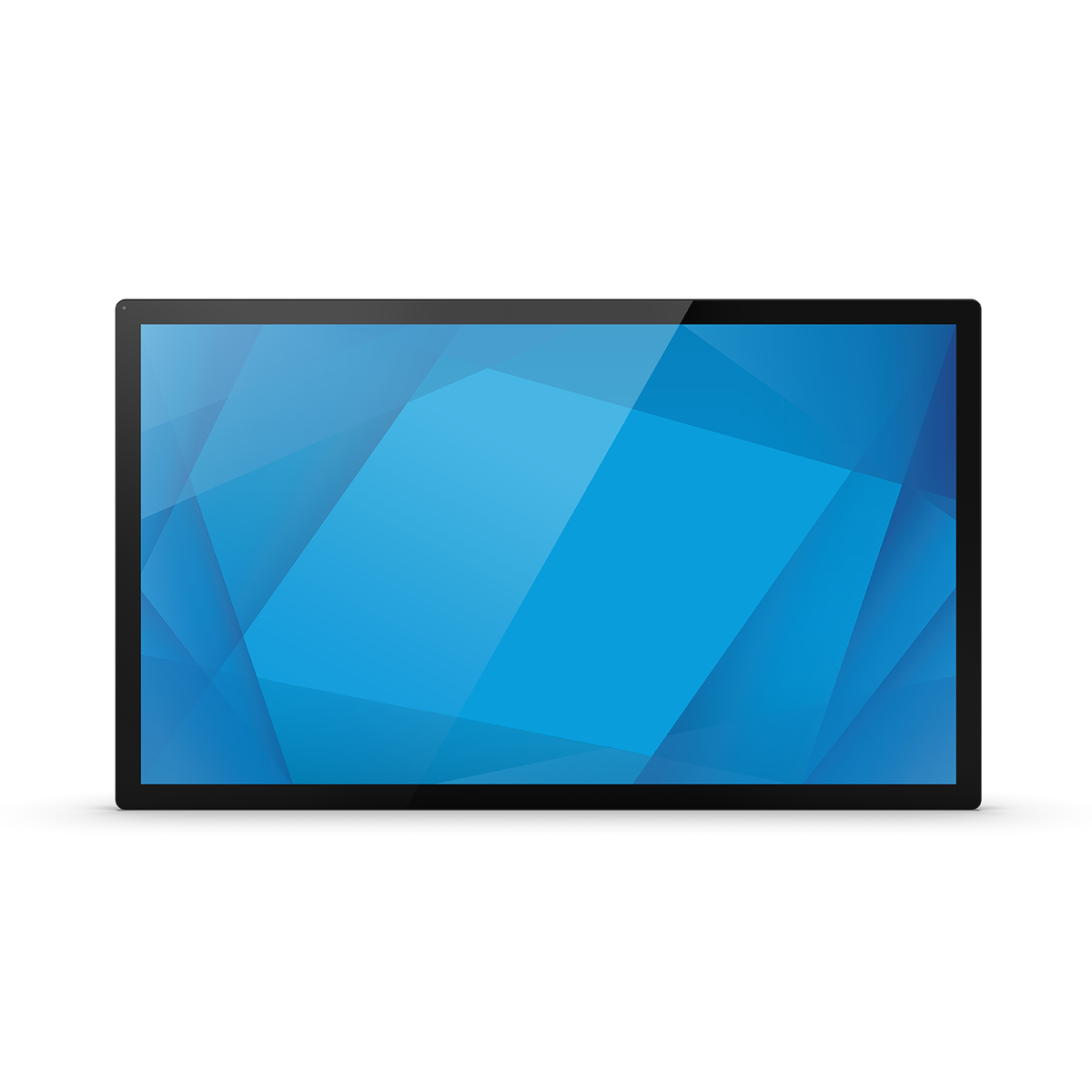

Elo 4363L 42.5" open-frame touch monitor, PCAP – front view
Elo 4363L 42.5" open-frame touch monitor, PCAP – front view
Elo 4363L 42.5" open-frame touch monitor, PCAP – front view
Elo 4363L 42.5" open-frame touch monitor, PCAP – front view

Elo 4363L 42.5" Open-Frame Touch Monitor, PCAP 40-touch, FHD (E344056)

1.250,52 € +VAT
Screen Size
31.5"42.5"
Glass
Anti-glareClear glass

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: In Stock
  • Vendor: ELO
  • Type: Monitors (touch)
  • Barcode: E344056
  • Collections: Monitors , Touch Monitors
Elo 4363L 42.5" open-frame touch monitor, PCAP – front view
ELO
Elo 4363L 42.5" Open-Frame Touch Monitor, PCAP 40-touch, FHD (E344056)
1.250,52 € +VAT

The Elo 4363L is a 42.5" large-format open-frame touch monitor for interactive digital signage, wayfinding kiosks, collaborative touch tables and large self-service displays. Its Full HD panel (450 cd/m², 4000:1 contrast, 8 ms) is paired with 40-point TouchPro PCAP touch with palm rejection and glove support, and the monitor is rated for 24/7 operation in landscape, portrait or table-top orientation. Two HDMI inputs, VGA, an internal power supply and VESA 400 × 400 mm mounting make integration simple. This version, E344056, has clear glass with an anti-friction coating and is supplied with HDMI, VGA and USB cables, EU/UK/US power cords, a wired remote OSD keypad and flush-mount brackets.

📦 What's in the box – E344056

  • Elo 4363L 42.5" open-frame touch monitor – PCAP 40-touch, FHD 1920 × 1080
  • Cables – HDMI, VGA and USB (A to B) cables, EU/UK/US power cords
  • Remote OSD keypad – tethered on-screen-display control (RJ45)
  • Flush-mount brackets – 8 sets with 48 screws and a foam gasket
  • Quick Install Guide

💡 To get started, you might also consider your own PC or an Elo Backpack media player (Value or Standard) mounted directly on the back of the display.

View accessories →

Key Features

  • 40-point TouchPro PCAP – multi-user touch with palm rejection, works with gloves up to 1.4 mm
  • Large Full HD display – 42.5" 1920 × 1080, 450 cd/m², 4000:1 contrast, 8 ms response time
  • Clear anti-friction glass – smooth surface for fluid swipes and maximum image clarity
  • 24/7 operation – landscape, portrait or table-top, with ambient light sensor, auto wake and on/off scheduling
  • Simple integration – 2× HDMI and VGA inputs, USB touch, internal power supply, VESA 400 × 400 mm
  • Touch-through capability – works behind up to 6 mm of protective glass
  • 3-year Elo warranty – 50,000-hour MTBF

Ideal Applications

  • Interactive digital signage
  • Wayfinding and directory kiosks
  • Collaborative and multi-user touch tables
  • Retail endless-aisle and product configurators
  • Museums, showrooms and education

Technical Specifications

Part Number E344056
Model Elo 4363L
Screen Size 42.5" (108 cm)
Panel Type Active-matrix TFT LCD, LED backlight
Resolution 1920 × 1080 (FHD) @ 60 Hz
Aspect Ratio 16:9
Brightness 450 cd/m² (LCD panel); 387 cd/m² (with touch)
Contrast 4000:1
Response Time 8 ms
Viewing Angle (H / V) 178° / 178° (±89°)
Touch Technology / Touch Points Elo TouchPro PCAP, 40 touch points, palm rejection, gloves up to 1.4 mm; touch-through up to 6 mm glass; interface: USB 2.0
Glass / Surface Clear glass with anti-friction coating
Inputs (video) 2× HDMI 1.4, VGA (DB-15)
USB / other ports USB 2.0 Type-B (touch), RJ45 (remote OSD keypad)
24/7 operation Yes, rated for 24/7 use
Mounting (VESA) VESA 400 × 400 mm; flush mount (8 bracket sets included); landscape, portrait or table-top
Power Internal power supply, 100–240 V AC, 50/60 Hz (IEC C14)
Dimensions (W × H × D) 999.3 × 587.5 × 66.4 mm
Weight 17.17 kg
Colour Black
Sealing (IP) IP65 when integrated into an enclosure
Operating Temperature 0–40 °C (table-top: 0–35 °C)
Certifications UL, cUL, FCC, IC, CE, CB, CCC, VCCI, KCC, RCM, BSMI, EAC, RoHS, WEEE, ENERGY STAR 8.0
Warranty 36 months
In the Box Elo 4363L 42.5" monitor, HDMI cable, VGA cable, USB-A to USB-B cable, remote OSD keypad, EU, UK and US power cords, 8 sets of flush-mount brackets with 48 screws, foam gasket, Quick Install Guide

Choosing the right version: The large-format series is available as the 31.5" 3263L (clear anti-friction or anti-glare glass) and the 42.5" 4363L; both offer 40-point PCAP touch and 24/7 operation. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.

Available Versions

Part NumberScreen SizeGlassPrice
Elo 3263L 31.5" Open-Frame Touch Monitor, PCAP 40-touch, Clear Glass (E343671) E34367131.5"Clear glass854,23 €+VATIn Stock
Elo 3263L 31.5" Open-Frame Touch Monitor, PCAP 40-touch, Anti-Glare (E343872) E34387231.5"Anti-glare885,68 €+VATOut of Stock View
Elo 4363L 42.5" Open-Frame Touch Monitor, PCAP 40-touch, FHD (E344056) E344056Viewing42.5"Clear glass1.250,52 €+VATIn Stock
