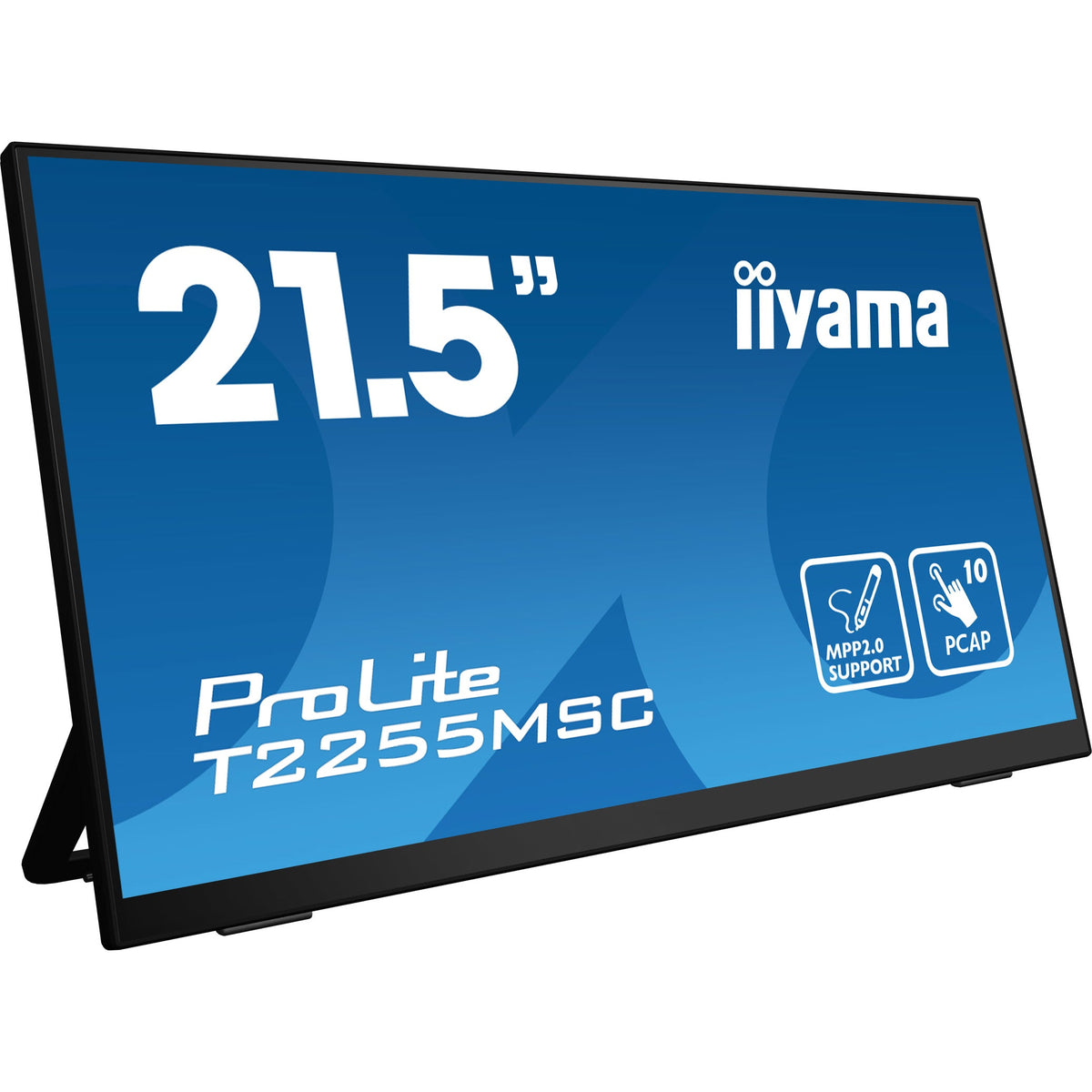

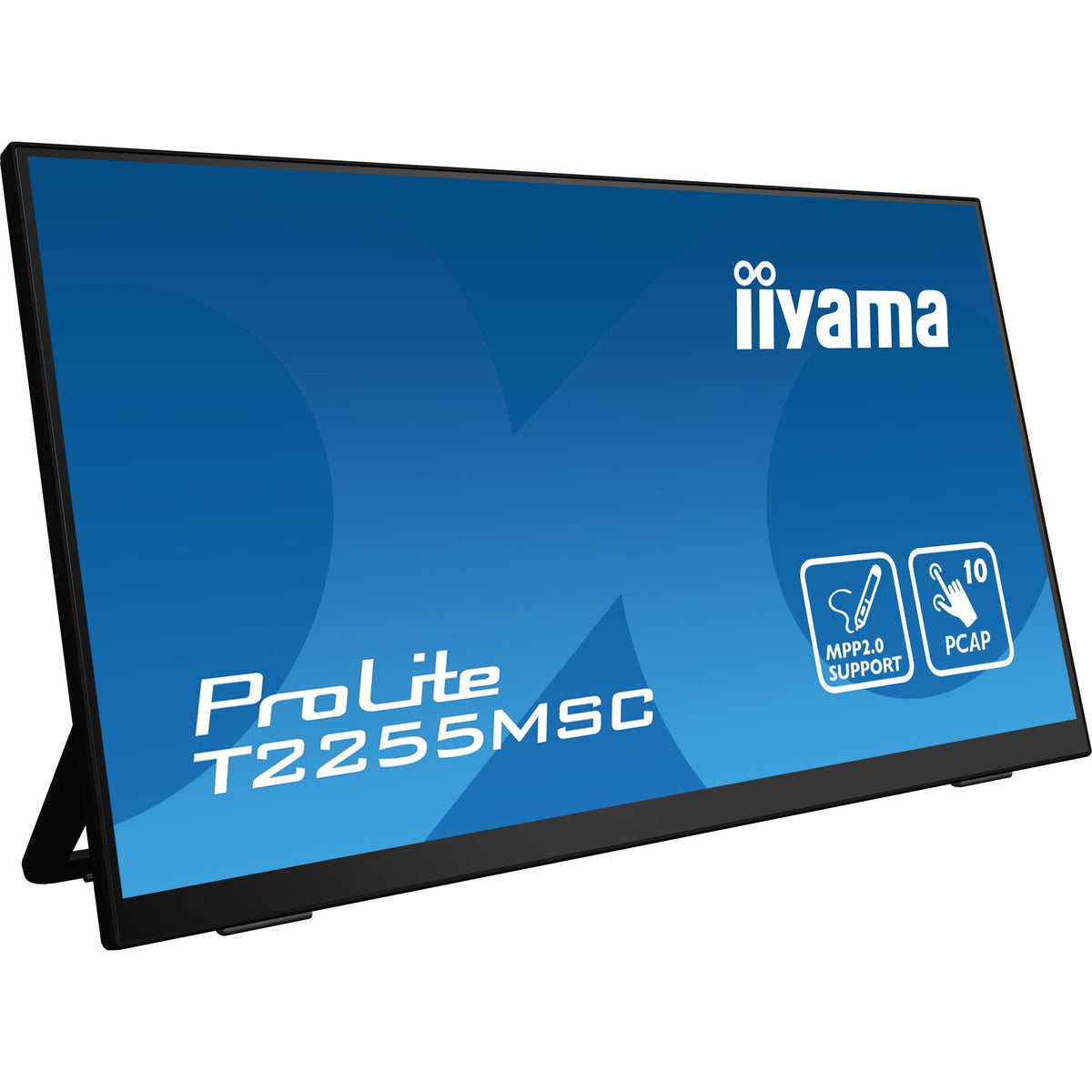

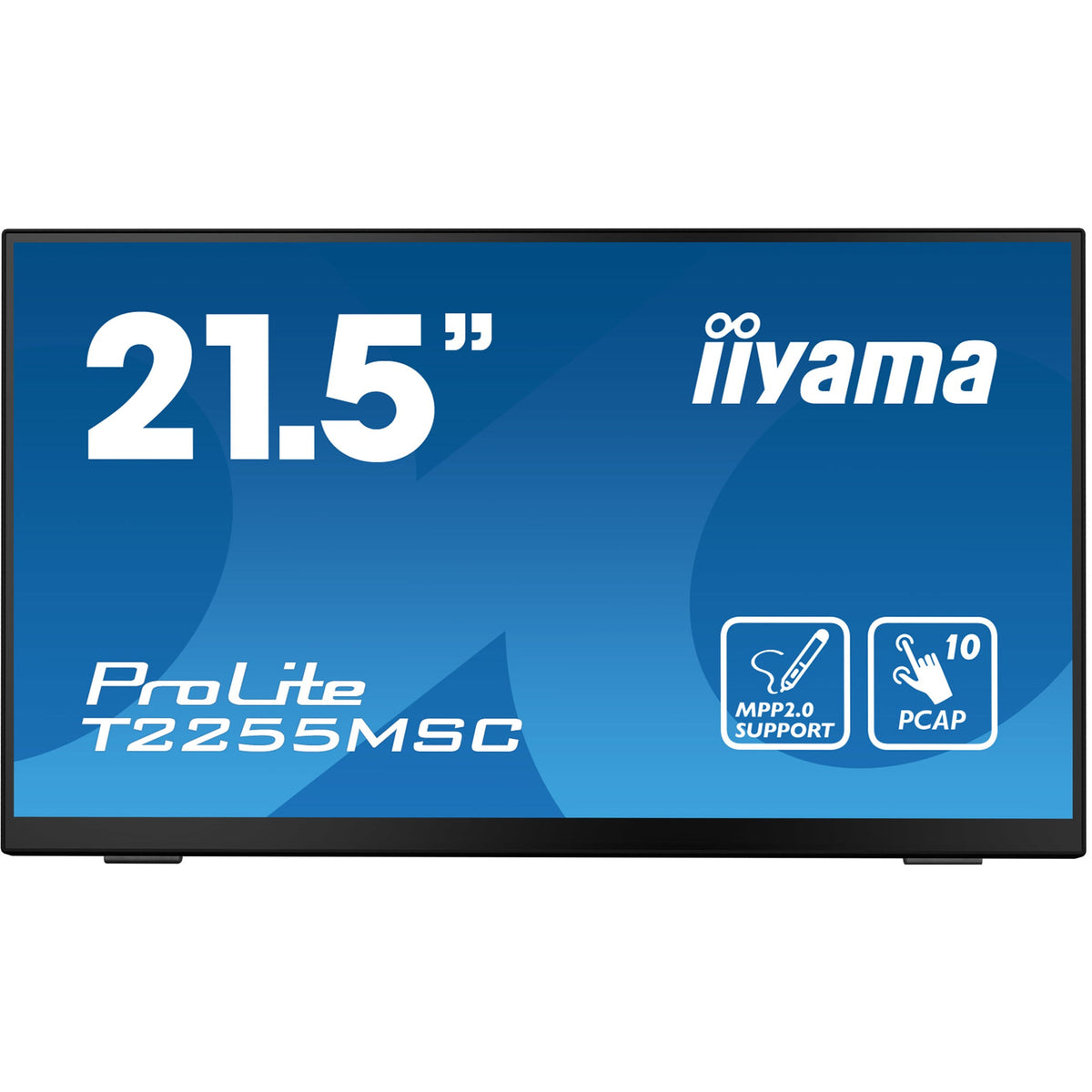

iiyama ProLite T2255MSC-B1 22" Touch Monitor, PCAP 10-touch, FHD, Pen Support (T2255MSC-B1)

The iiyama ProLite T2255MSC-B1 is a 22" professional touch monitor with 10-point projected capacitive (PCAP) touch and Full HD (1920 × 1080) resolution, built for self-service kiosks, reception desks and interactive workstations. Key specs at a glance – brightness 400 cd/m², contrast 1000:1, response time 5 ms (GTG), video inputs HDMI, DisplayPort. This version, T2255MSC-B1, comes in the following configuration: black housing, low-profile tilt stand (15° up / 70° down, almost flat) and built-in power supply. In the box: stand, power cable, USB cable and HDMI cable. A computer is not included – connect any PC, POS system or thin client via a video cable plus USB for touch.

Key Features

• 10-point PCAP touch – Projected capacitive touch reacts precisely to fingers, a capacitive stylus or latex gloves and supports Windows multi-touch gestures (HID, no driver needed on supported operating systems).
• Optical bonding – Glass and panel are bonded without an air gap, which reduces internal reflections, improves contrast and gives more direct, parallax-free touch.
• MPP 2.0 active pen support – Supports Microsoft Pen Protocol 2.0 active pens with tilt detection plus palm rejection – ideal for signatures, annotations and form filling directly on screen.
• Low-profile tilt stand – With a depth of only 48.5 mm, the monitor tilts down to a near-flat, desk-like angle (15° up / 70° down) – ideal for signing, sketching and consultations across the desk.
• Full HD IPS panel – A sharp image with wide 178° viewing angles keeps content legible for staff and customers from any side.
• Edge-to-edge glass – A flush, frameless glass front (hardness 7H) with no edges where dirt can collect – easy to clean and resistant to scratches.
• USB hub – Two built-in USB ports let you connect a barcode scanner, keyboard or card reader directly at the monitor and keep the cabling to the PC tidy.

Ideal Applications

• Self-service & information kiosks – wayfinding, ordering, ticketing and product information
• Reception & front desk – check-in, visitor management and customer-facing signature capture
• Retail & hospitality – large POS screens, menu ordering and endless-aisle product browsing
• Healthcare – patient check-in, consultation and documentation workstations
• Education & meeting rooms – interactive teaching, collaboration and presentations

Technical Specifications

How to choose: the ProLite T-series spans 15" to 27". Pick a 4:3 or 5:4 model for existing POS software and Full HD or WQHD for modern applications; choose an IP54/IP65 front for daily wet cleaning, anti-glare (AG) glass for bright locations, and a height-adjustable or low-profile stand for signing and consultation. Browse the full range: Monitors – or contact us for volume pricing and project quotes.
