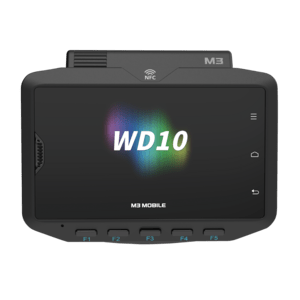

M3 Mobile WD10 Wearable Terminal (WD1X4C-T0CWSS-HF)

The M3 Mobile WD10 is a lightweight industrial wearable computer worn on the wrist – it keeps both hands free for picking, packing and loading while workers read orders, confirm tasks and take photos on a 4" Gorilla Glass touchscreen. Android 13 (upgradeable up to Android 15), a 2.0 GHz Qualcomm quad-core processor, 4 GB RAM / 64 GB Flash, 13 MP camera, NFC, Wi-Fi 5 and Bluetooth 5.0 make it the ideal companion for a Bluetooth ring scanner. This version, WD1X4C-T0CWSS-HF, is the 4G LTE model with a SIM slot for mobile data outside Wi-Fi coverage.

Key Features

• Wrist-worn for hands-free work – only 220 g on a comfortable wrist mount with adjustable band (short band included, medium and long bands available).
• 4" Gorilla Glass touchscreen – WVGA (800 × 480), 500 nits, capacitive multi-touch that works with gloves.
• 5 programmable function keys – F1–F5 plus Home, Back and Menu keys for one-touch shortcuts; an optional 12-key keypad (WD10-KEYP) screws on for numeric entry.
• Android 13, ready for Android 15 – Qualcomm QCM2290 quad-core 2.0 GHz, 4 GB RAM / 64 GB Flash, microSD up to 1 TB, 13 MP camera and NFC (13.56 MHz).
• 4G LTE plus Wi-Fi – LTE FDD/TDD, WCDMA and GSM with 1 SIM, dual-band Wi-Fi 5 (802.11a/b/g/n/ac) and Bluetooth 5.0 BLE for ring scanners and headsets.
• Hot-swappable 3350 mAh smart battery – change batteries during the shift; spare batteries charge in 3-, 6-, 12- or 18-slot battery chargers.
• Built for the warehouse floor – IP65, 1.5 m drop spec, 1,000 tumbles at 0.5 m and −20 °C to 55 °C operating temperature.

Ideal Applications

• Hands-free order picking and packing with a Bluetooth ring scanner
• Goods receiving, put-away and cross-docking
• E-commerce fulfilment and parcel sorting
• Retail back-store, replenishment and click & collect
• Loading and unloading of trucks and containers

All WD10 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Working only within Wi-Fi coverage? The M3 Mobile WD10 (WD1W0C-T0CWSS-HF) is the Wi-Fi model. For hands-free barcode scanning, pair the WD10 with the M3 WR10 (WR10-WERS-U12) ring scanner. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
