Newland FM3080 Hind Stationary Scanner (NLS-FM3080V2-28)

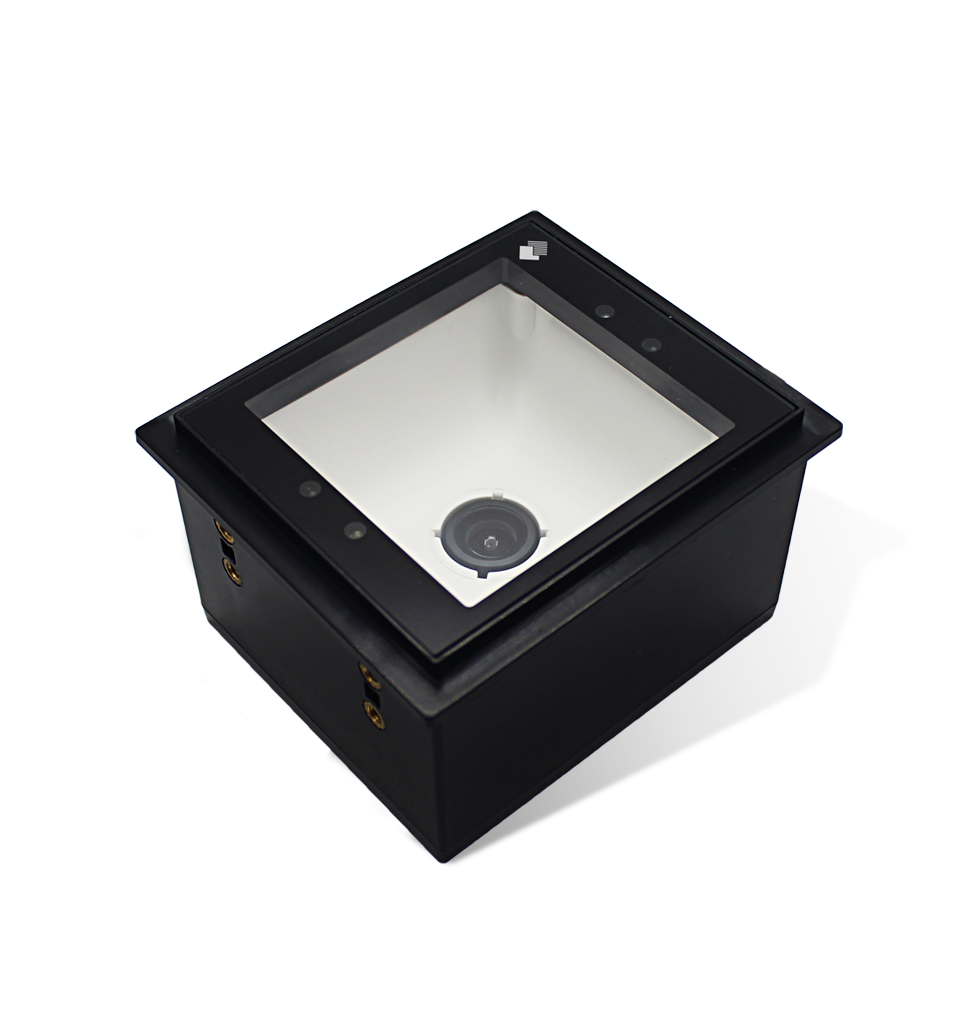

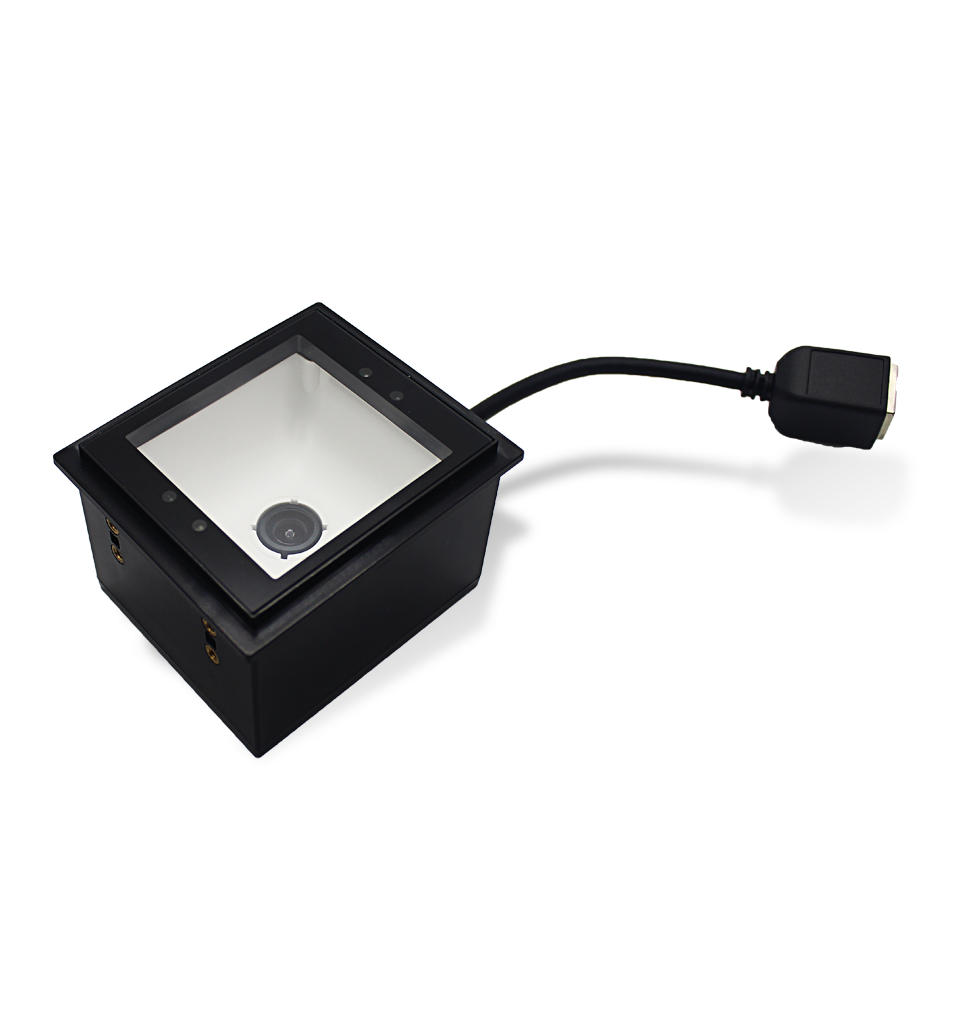

The Newland FM3080 Hind is a compact fixed-mount 2D scanner for building into self-service terminals, kiosks, access gates and checkout counters. Powered by Newland's sixth-generation UIMG® technology and a CPU-based decoder, it reads all major 1D and 2D barcodes in an instant – from paper and labels as well as from smartphone screens, including codes that contain a large amount of data. The 50 × 50 mm scan window can light up in up to 4 colours with every scan, IR and light sensors start scanning automatically as soon as a code is presented, and IP65 sealing makes it resistant to water and dust – even in outdoor kiosks. Newland covers it with a 5-year (60-month) warranty. This version, NLS-FM3080V2-28, is the RS-232 kit: it is supplied with an RS-232 cable with power jack and a 5 V power adapter with interchangeable EU/UK/US plugs – everything needed for a serial connection.

Key Features

• Snappy on-screen barcode capture – Newland's sixth-generation UIMG® technology and a CPU-based decoder read data-rich codes from smartphone displays in an instant: mobile tickets, e-vouchers, boarding passes and payment QR codes; an anti-reflection coating on the underside of the glass reduces reflection and glare.
• Instant visual feedback – the white scan window can light up in up to 4 colours with every scan; the colours can be programmed for different barcodes, for a successful read or to match your brand.
• Small form factor – at 78.7 × 67.7 × 47.5 mm it is the smallest scanner of the FM30 series and takes up minimal space in a kiosk or at the POS, while the 50 × 50 mm scan window and 74° field of view make codes easy to present.
• IR and light sensors – the combination of an infrared sensor and a light sensor activates the scanner reliably as soon as a code is presented (sense mode); continuous mode is also available.
• IP65 sealing – dust-tight and protected against water jets, so it is also suitable for outdoor kiosks, parking terminals and access gates.
• Dual interface, easy integration – USB (HID keyboard, USB CDC virtual COM, HID-POS, IBM SurePOS) or RS-232 via the detachable cable on the RJ50 data port; EasySet configuration tool and a 5-year Newland warranty.

Ideal Applications

• Self-service kiosks and ticket machines – mobile tickets, e-vouchers and booking codes
• Access control and turnstiles – event, transport and gym tickets or QR access codes, indoors and outdoors
• Parking terminals and pay stations – parking tickets and payment QR codes
• Retail POS and self-checkouts – built into the counter for loyalty cards, coupons and scan-to-pay codes
• Parcel lockers and pick-up points – pick-up codes and shipping labels
• Hospitality and entertainment – hotel check-in, cinemas and venue entry

All FM3080 Hind Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? Both versions are the same FM3080 Hind scanner – they differ only in the included cable and power supply: NLS-FM3080V2-20 with a USB cable for PCs, kiosk computers and POS systems (USB-powered), and NLS-FM3080V2-28 with an RS-232 cable and a 5 V power adapter – a complete set for serial connections. Compare other built-in scanners in our In-Counter Barcode Scanners collection or contact our team for volume pricing and integration advice.
