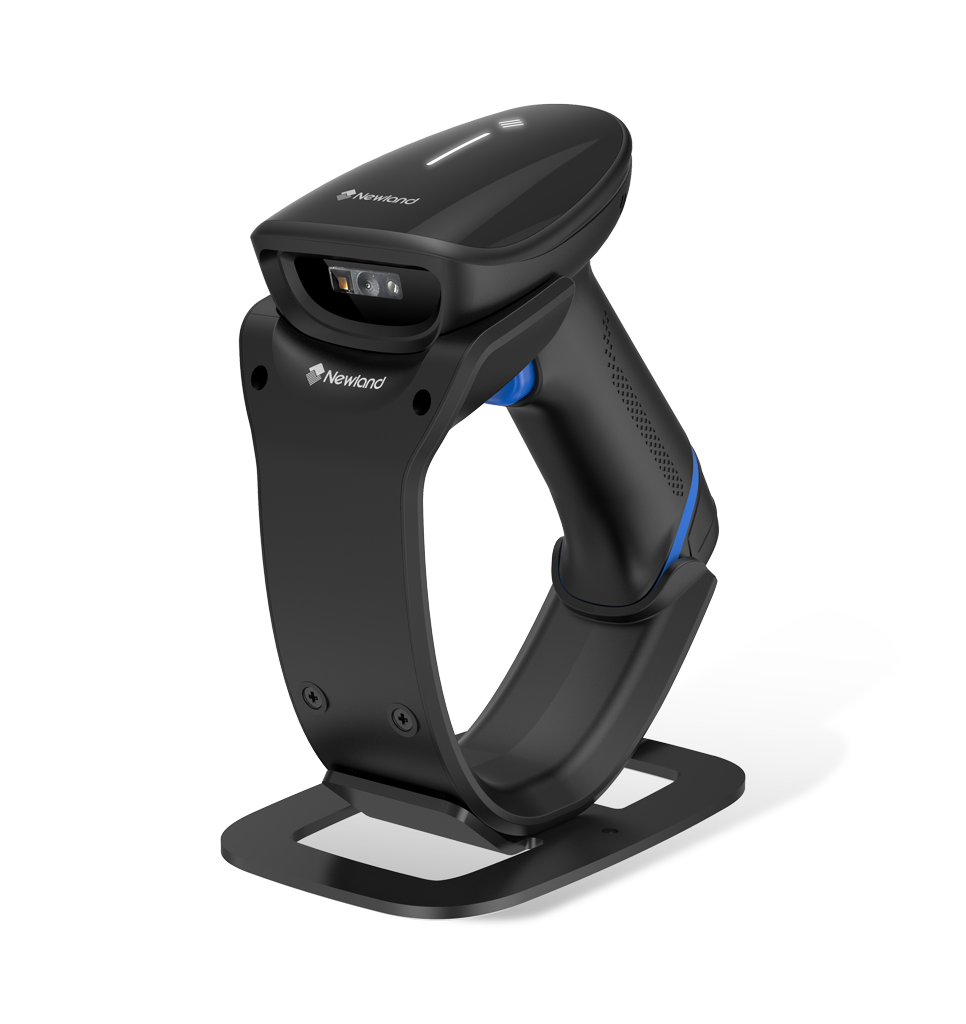

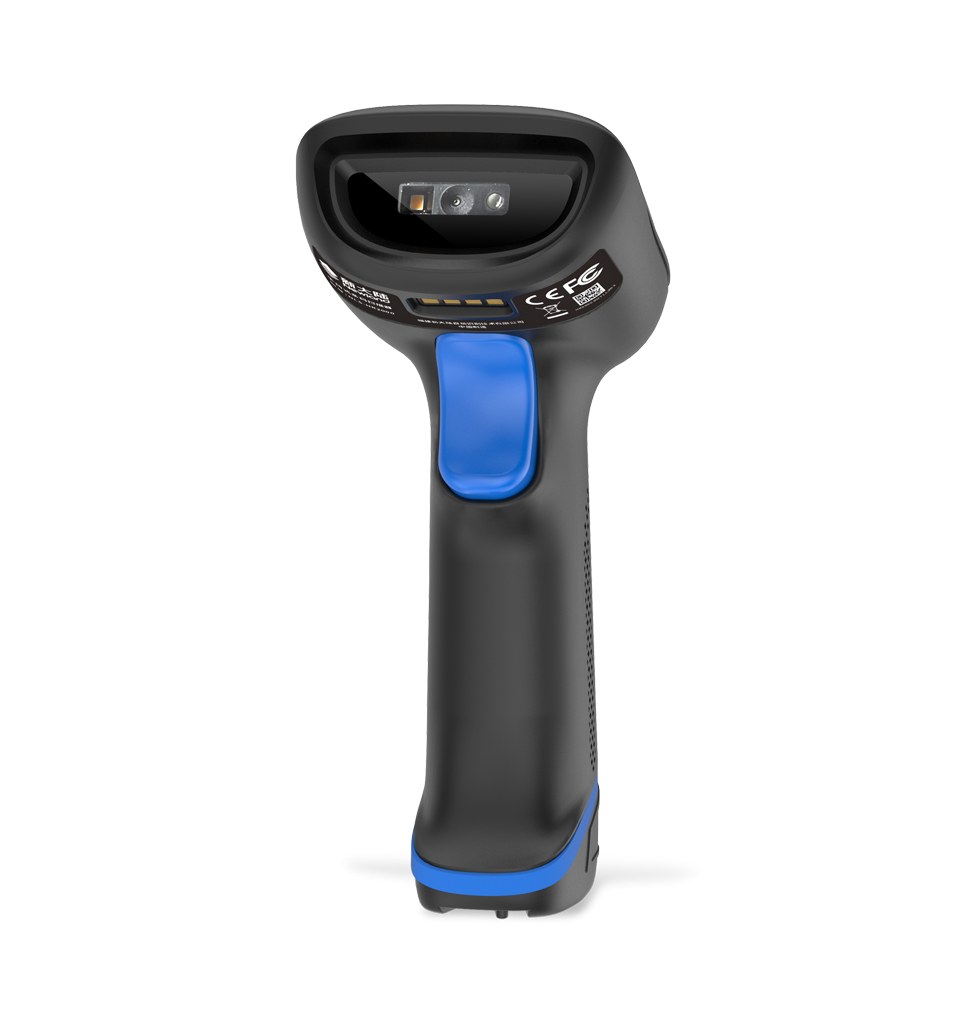

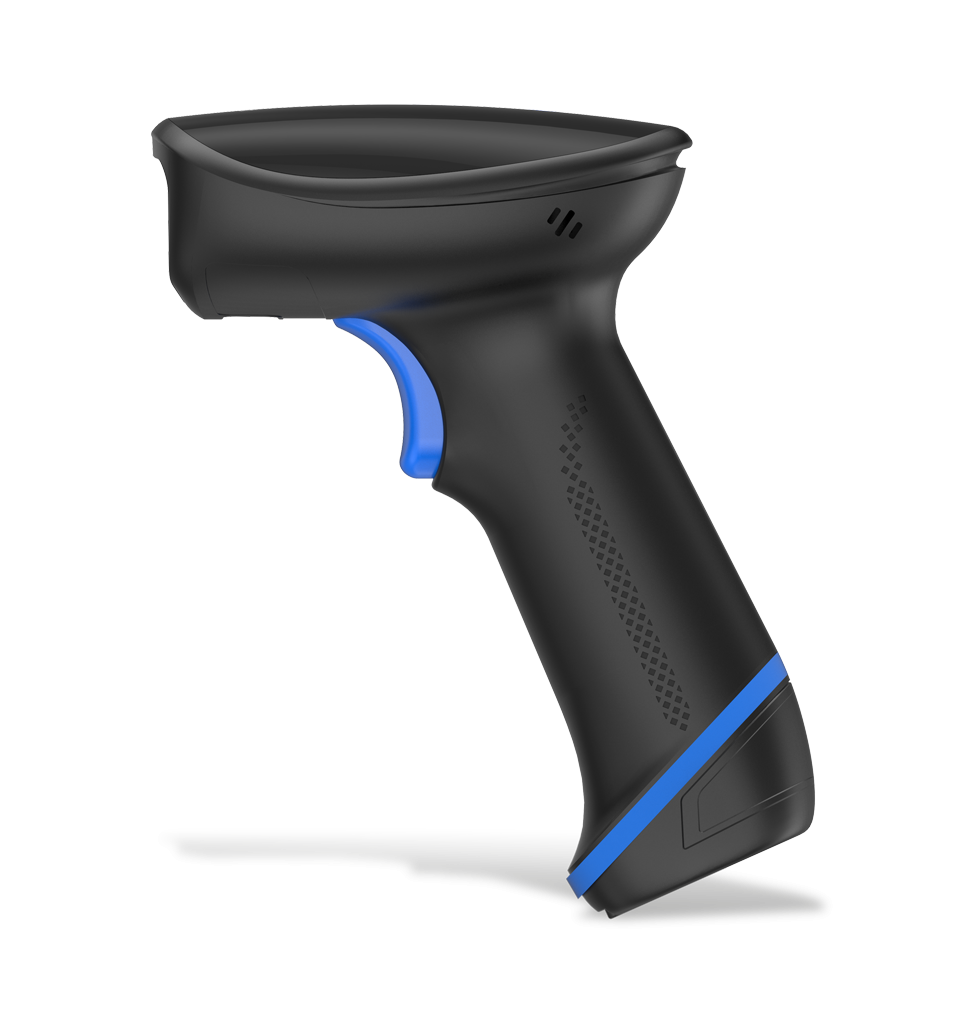

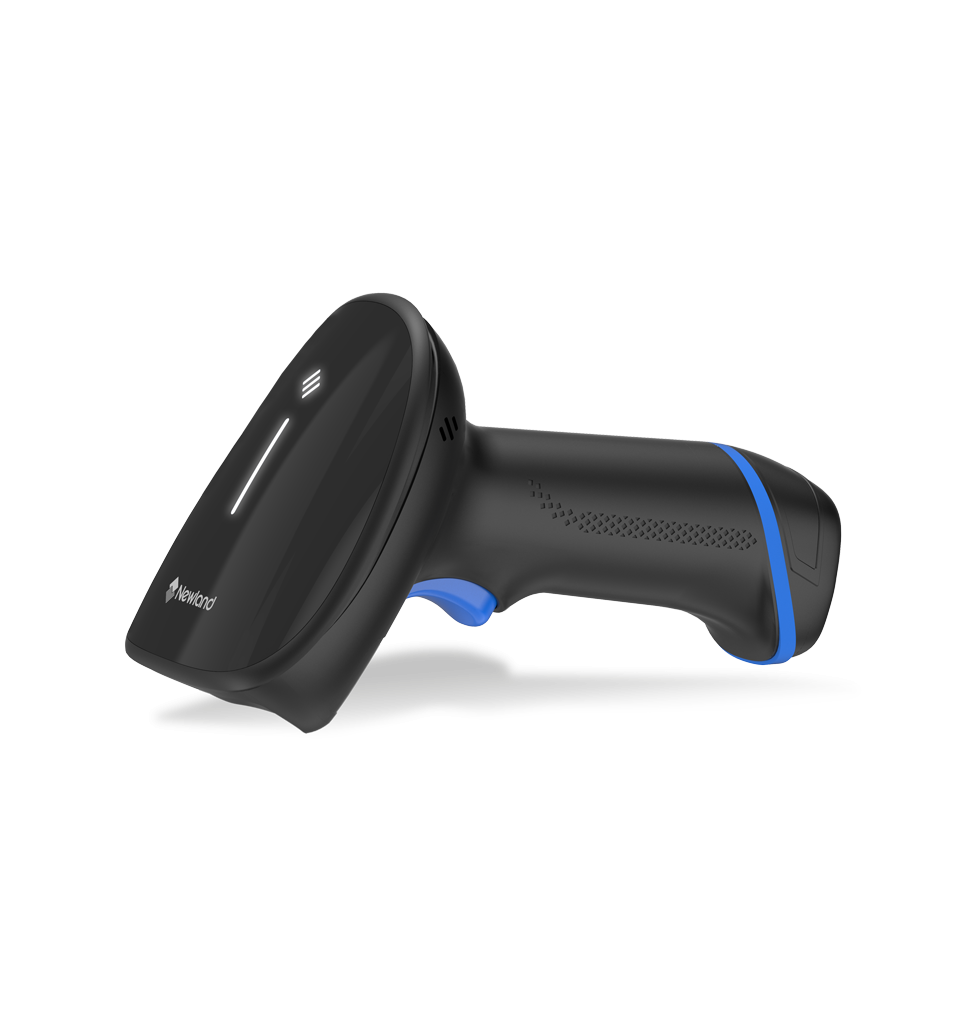

Newland HR23 Dorada Series Barcode Scanner (NLS-HR2300-BT)

The Newland HR23 Dorada is an affordable, ergonomic 2D handheld scanner that brings 2D performance at an entry-level price. Its 640 × 480 CMOS imager and Newland's latest decoding technology quickly read all common 1D and 2D barcodes – including QR codes, Data Matrix and PDF417 as well as damaged, distorted or high-density codes. With IP52 sealing, a 1.5 m drop rating and beep, LED and vibration feedback, the HR23 is built for busy counters. It is available as a corded USB scanner and as a cordless Bluetooth® version. This version, NLS-HR2300-BT, is the cordless Bluetooth kit: it is supplied with a removable 2600 mAh battery and a charging and communication cradle with USB cable – ready to use, no power supply needed.

Key Features

• 2D imager at an entry-level price – a 640 × 480 CMOS sensor with Newland's latest decoding technology reads all common 1D and 2D barcodes, including QR Code, Data Matrix, PDF417 and Aztec, with resolution down to 3 mil.
• Reads difficult codes – reliably captures damaged, distorted and high-density barcodes; the field of view (45° horizontal, 34° vertical) and 360° roll tolerance make aiming effortless.
• Triple read confirmation – beep, LED and vibration feedback, so every good read is noticed even in noisy environments.
• Rugged for daily use – IP52 protection against dust and dripping water, and it survives 1.5 m drops onto concrete.
• Easy setup with EasySet – Newland's EasySet software configures the scanner, clones settings to other devices, updates firmware and prints configuration barcodes.
• Bluetooth 5.0 with up to 100 m range – move freely around the shop or stockroom; synchronous, asynchronous and batch modes (≥ 16,384 codes in memory) make sure no scan is lost.
• Removable 2600 mAh battery – ≥ 16 hours of continuous operation per charge; swap in a spare battery for uninterrupted multi-shift use. New charging contacts improve the battery life cycle.

Ideal Applications

• Retail checkouts and POS – product barcodes, loyalty cards and coupons
• Hospitality – restaurants, bars, hotels and event ticketing
• Healthcare – patient wristbands, medication and sample labels
• Postal services, parcel shops and logistics counters
• Stockrooms and small warehouses – goods receiving and inventory

All HR23 Dorada Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the corded NLS-HR2300-S5 for a simple USB setup, the NLS-HR2300-SA if you also want hands-free scanning with the auto-sense stand, or the cordless NLS-HR2300-BT to move freely up to 100 m from its cradle. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
