RAM Mounts 100 × 100 mm VESA Plate with Ball, D-Size (RAM-D-246U)
42,04 € +VAT

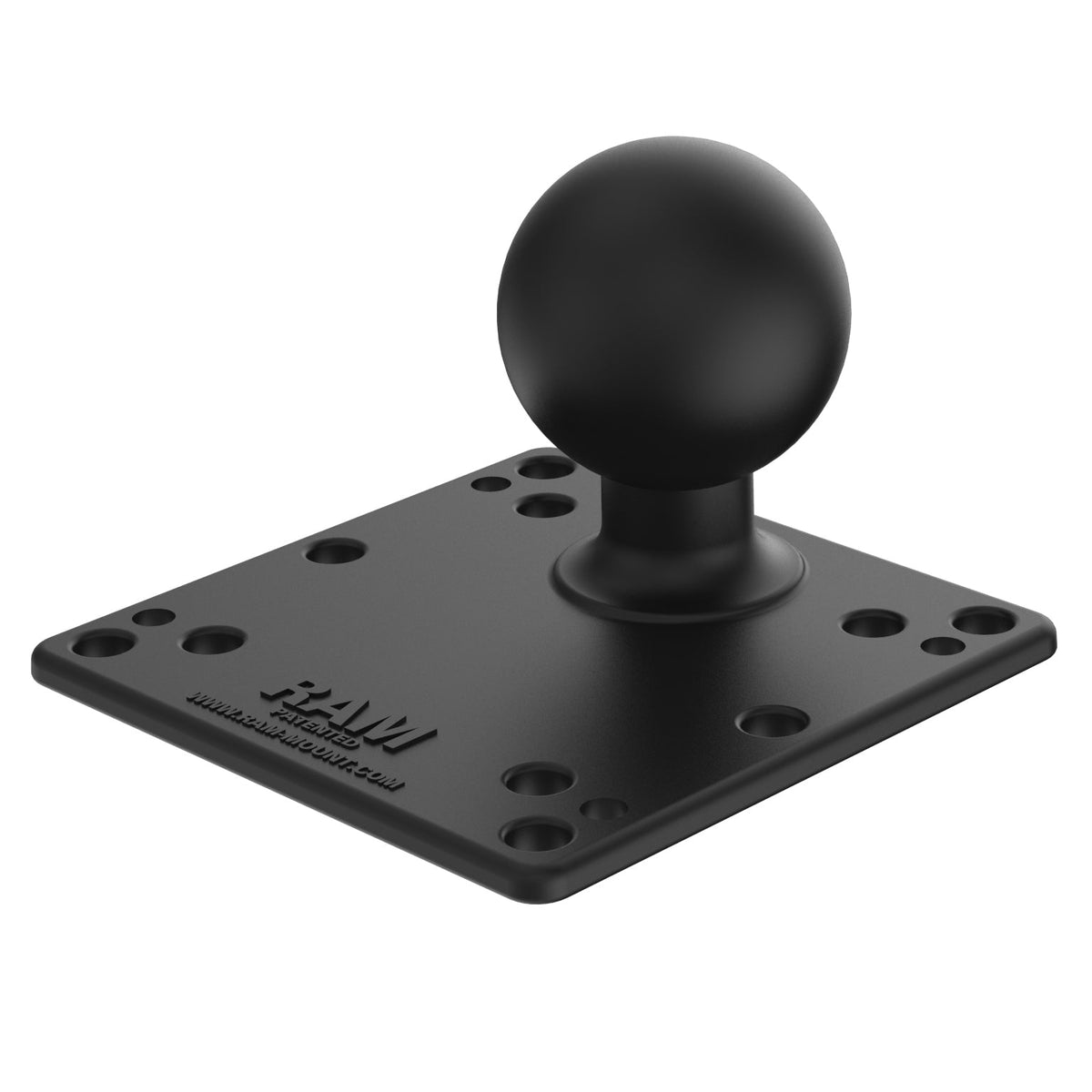

RAM Mounts 100 × 100 mm VESA Plate with Ball (RAM-D-246U) is a 120.7 × 120.7 mm (4.75") square aluminium plate with a D-size 2.25" (57 mm) rubber ball that fits any RAM D-size double socket arm. Holes for both VESA 100 × 100 mm and VESA 75 × 75 mm in each corner connect it to displays, vehicle-mount computers and other VESA-compatible devices. Powder-coated marine-grade aluminium keeps it durable in vehicles, on equipment and outdoors.

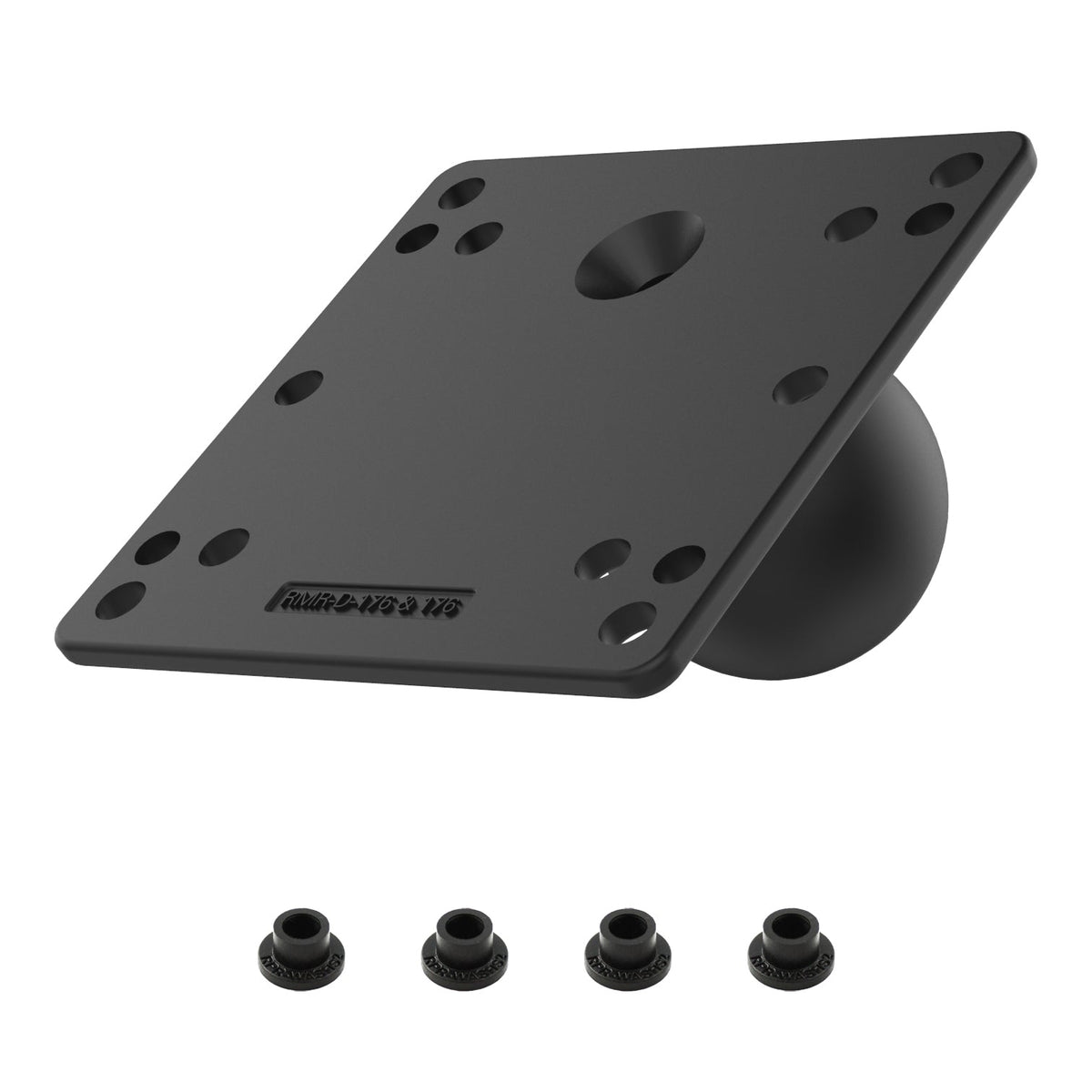

📦 What's in the box – RAM-D-246U

  • 100 × 100 mm VESA Plate with Ball – with D-size 2.25" rubber ball
  • Mounting hardware – 4× shoulder washer 0.312" x 0.187"

💡 To get started, you might also consider a short D-size double socket arm and a base for the vehicle or workstation side, such as the D-size square post clamp base or the D-size large round plate.

View accessories →

Key Features

  • VESA 100 × 100 and 75 × 75 mm – 120.7 × 120.7 mm (4.75") square plate with both hole patterns in each corner
  • D-size ball – 2.25" (57 mm) rubber ball fits any RAM D-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
  • Load rating – 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
  • Rugged build – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

  • Devices with VESA 100 × 100 mm or VESA 75 × 75 mm mounting pattern
  • All RAM D-size (2.25") double socket arms and D-size ball components

Technical Specifications

Part Number RAM-D-246U
Product Type VESA ball plate
Connection RAM D-size ball, 2.25" (57 mm)
Hole Pattern VESA 100 × 100 mm and VESA 75 × 75 mm
Plate Size 120.7 × 120.7 mm (4.75")
Load Rating 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
Material Powder-coated marine-grade aluminium
Weight 0.40 kg (0.89 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box 100 × 100 mm VESA Plate with Ball, 4× shoulder washer 0.312" x 0.187"

Looking for a device to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMaterialPrice
RAM Mounts 100 × 100 mm VESA Plate with Ball, D-Size (RAM-D-246U) RAM-D-246UViewingAluminum42,04 €+VATIn Stock
RAM Mounts Steel-Reinforced 100 × 100 mm VESA Plate with Ball, D-Size (RAM-D-246U-IN1) RAM-D-246U-IN1Aluminum (steel-reinforced)48,48 €+VATIn Stock
