RAM Mounts Ball Base with 1" × 2" 4-Hole Pattern, B-Size (RAM-B-202U-1525)

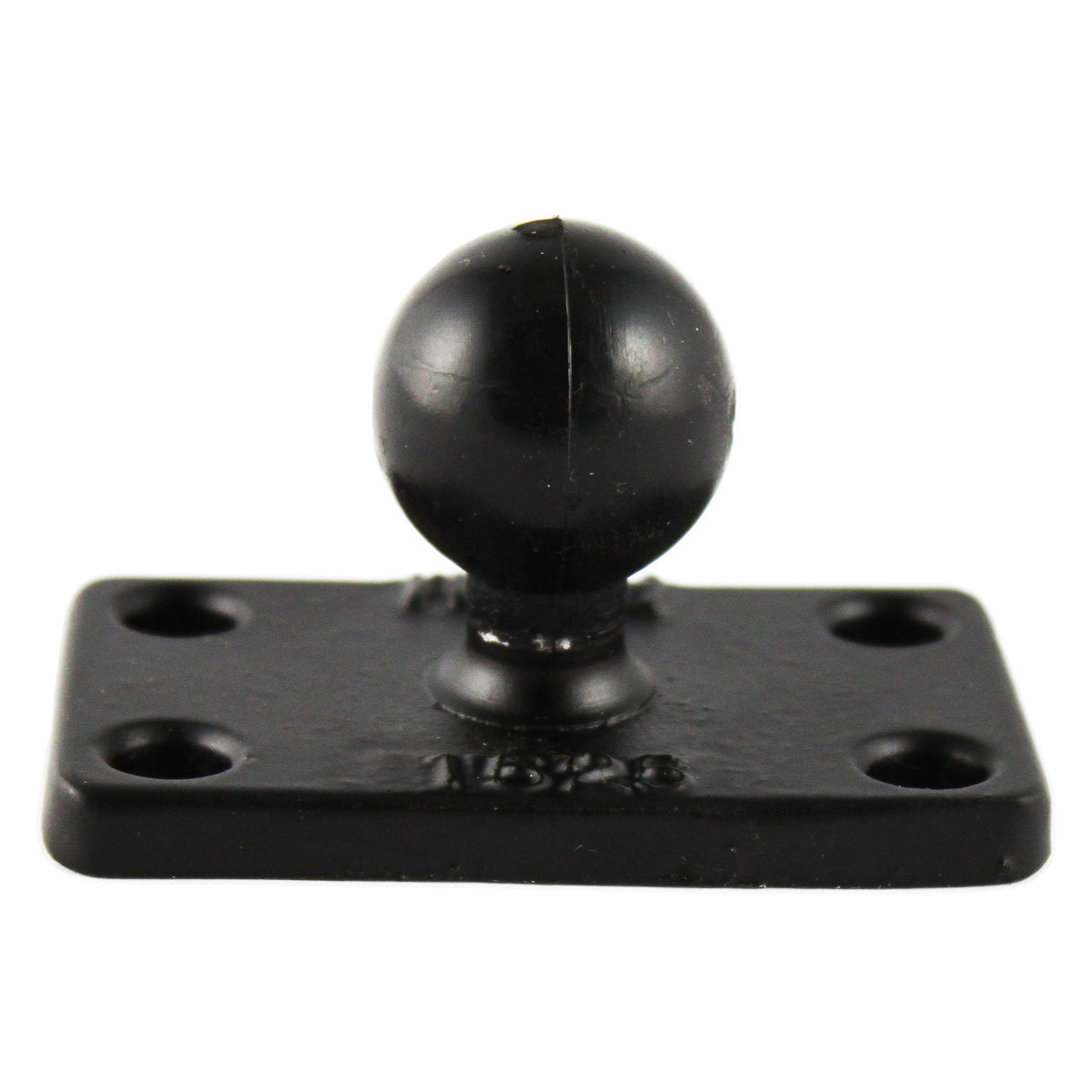

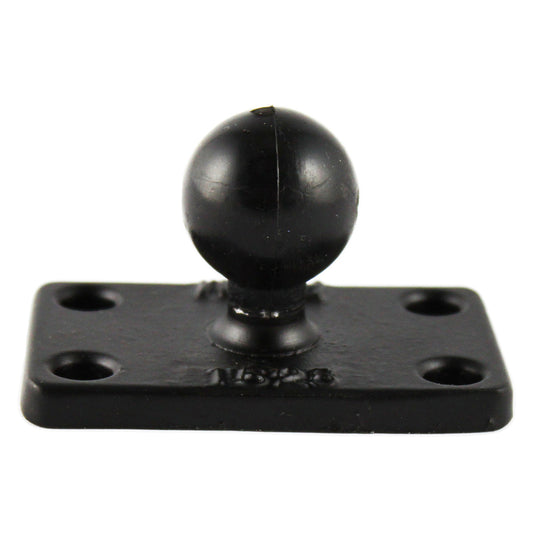

RAM Mounts Ball Base with 1" × 2" 4-Hole Pattern, B-Size (RAM-B-202U-1525) combines a 1" rubber ball with a rectangular 38 × 64 mm (1.5" × 2.5") plate. Its four holes are spaced 25.4 × 50.8 mm (1" × 2") centre to centre, so it can be screwed to a flat surface or to devices and accessories that use this pattern. Add a B-size double socket arm and a holder to complete the mount.

Key Features

• B-size 1" ball – connects to any RAM B-size double socket arm for near-infinite adjustment
• 1" × 2" hole pattern – four holes at 25.4 × 50.8 mm centres on a 38 × 64 mm (1.5" × 2.5") plate
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Shock and vibration damping – the patented rubber ball-and-socket system cushions the mounted device
• Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• All RAM B-size (1") double socket arms and ball components
• Devices and accessories with a 4-hole 1" × 2" (25.4 × 50.8 mm) pattern
• Flat surfaces such as dashboards, consoles, panels and walls (drill-down)

Technical Specifications
