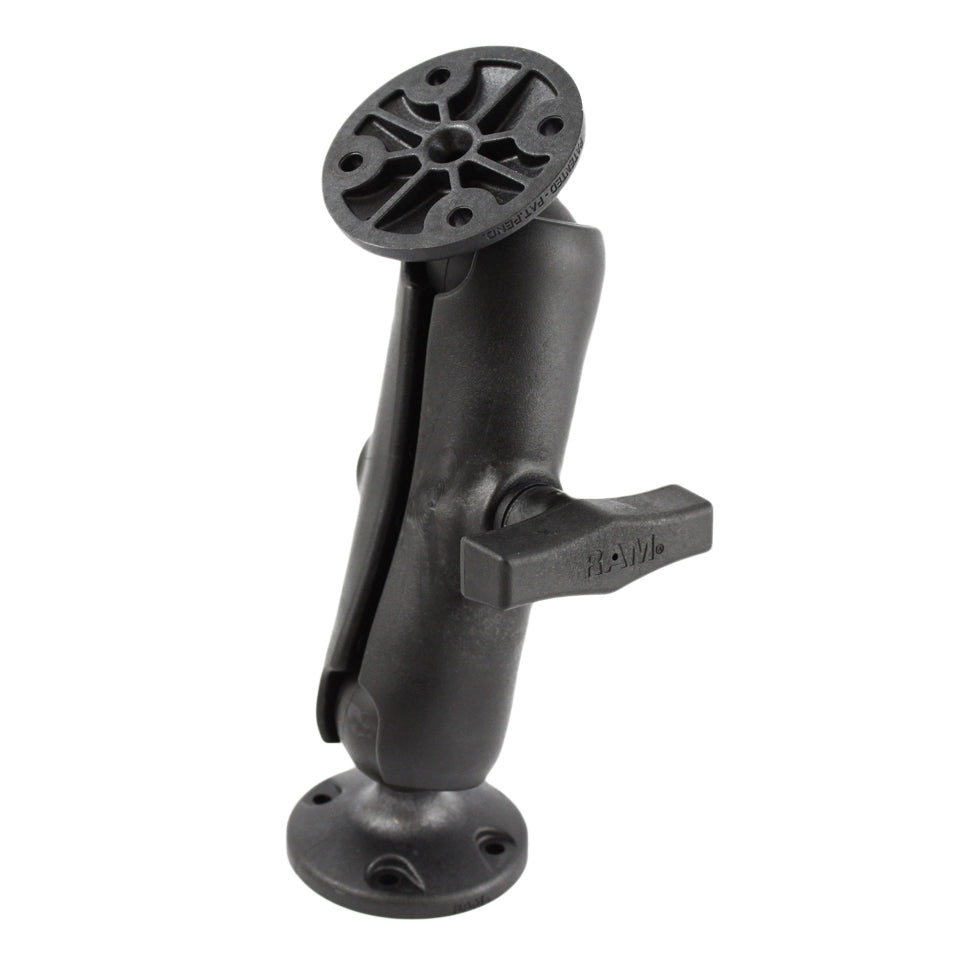

RAM Mounts Composite Double Ball Mount with Two Round Plates, C-Size, Medium (RAP-101U)

RAM Mounts Composite Double Ball Mount with Two Round Plates, C-Size, Medium (RAP-101U) is the lightweight high-strength composite version of RAM's C-size (1.5") flat-surface kit. Two 63.5 mm round bases with the AMPS 4-hole pattern – one for the mounting surface, one for the device cradle – are joined by a 145 mm double socket arm with adjustment at both ends. The rubber ball-and-socket joints damp shock and vibration, which helps protect the mounted tablet, terminal or other device.

Key Features

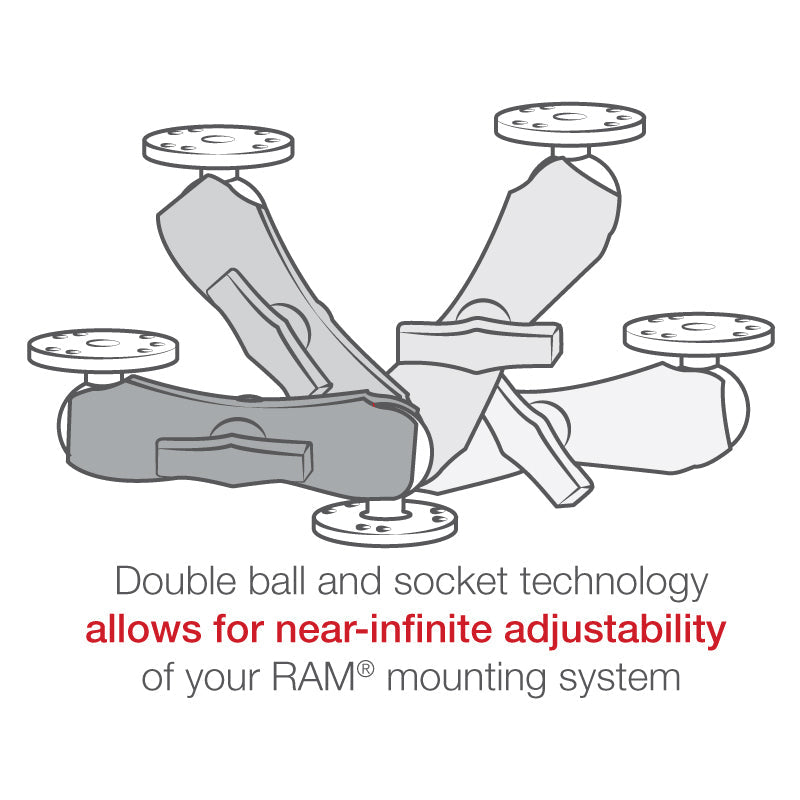

• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Universal AMPS pattern – the Ø 63.5 mm round plates have the 4-hole AMPS pattern (30 × 38 mm) used by most RAM and third-party cradles
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – high-strength composite

Compatibility

• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications

More RAM cradles, ball bases and socket arms are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
