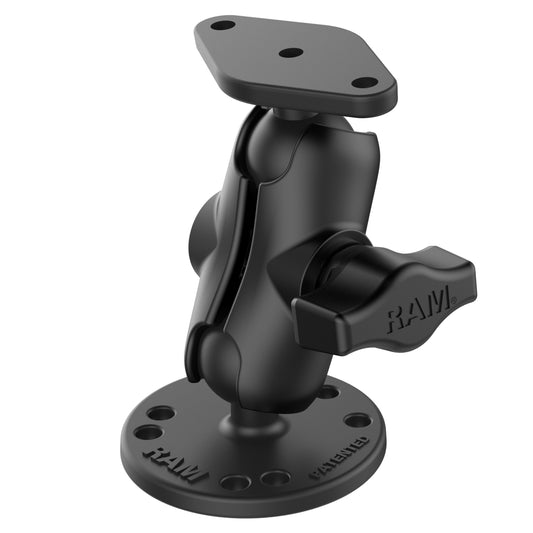

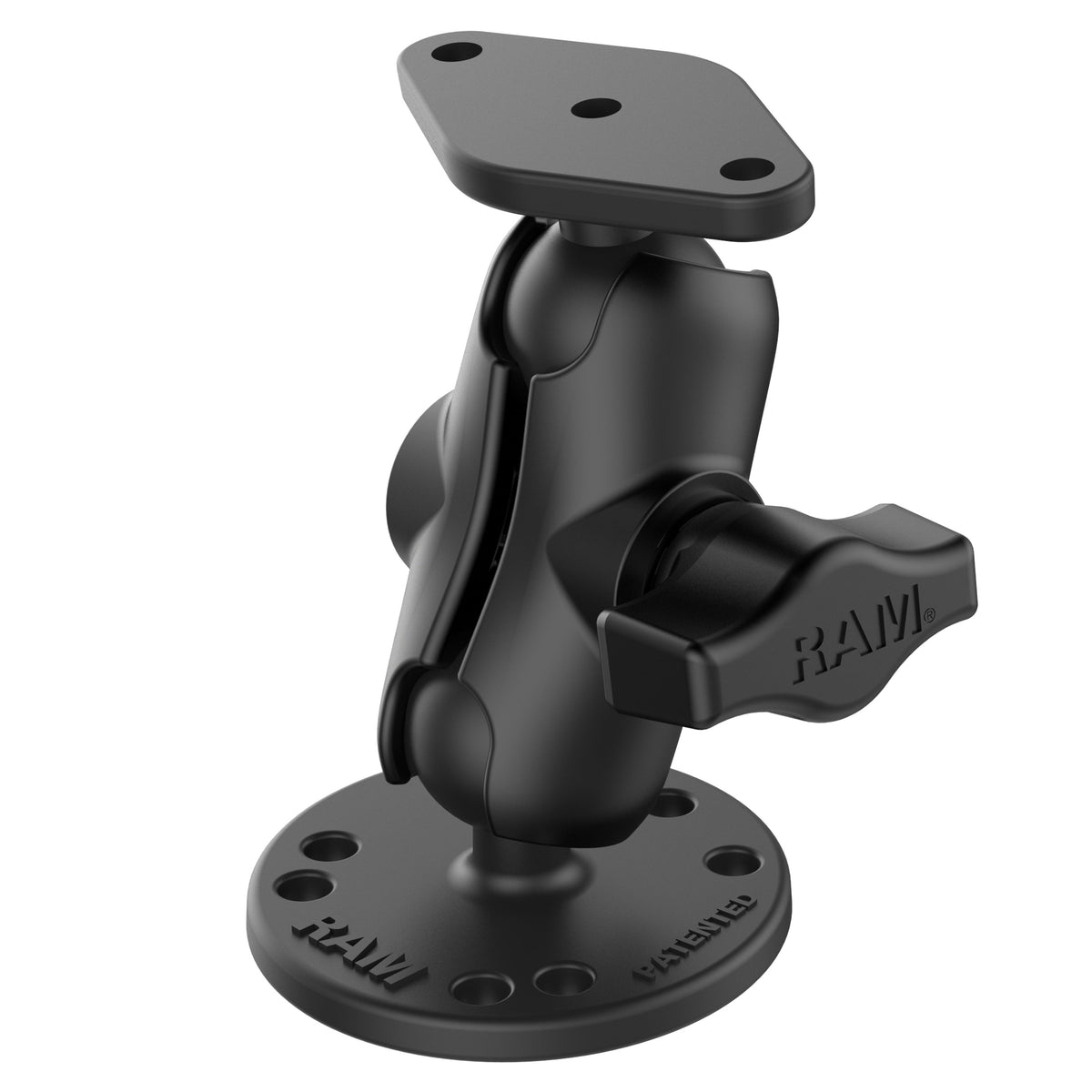

RAM Mounts Double Ball Drill-Down Mount with Diamond Plate, B-Size, Short Arm (RAM-B-138U-A)

RAM Mounts Double Ball Drill-Down Mount with Diamond Plate (RAM-B-138U-A) is a complete kit for lightweight devices: a 63.5 mm round ball base with AMPS pattern to screw to a dashboard, console, desk or wall, a short B-size double socket arm (61 mm overall) and a diamond ball base with 2-hole AMPS pattern for the device holder. The patented rubber ball-and-socket system allows near-infinite adjustment and dampens shock and vibration to protect the device.

Key Features

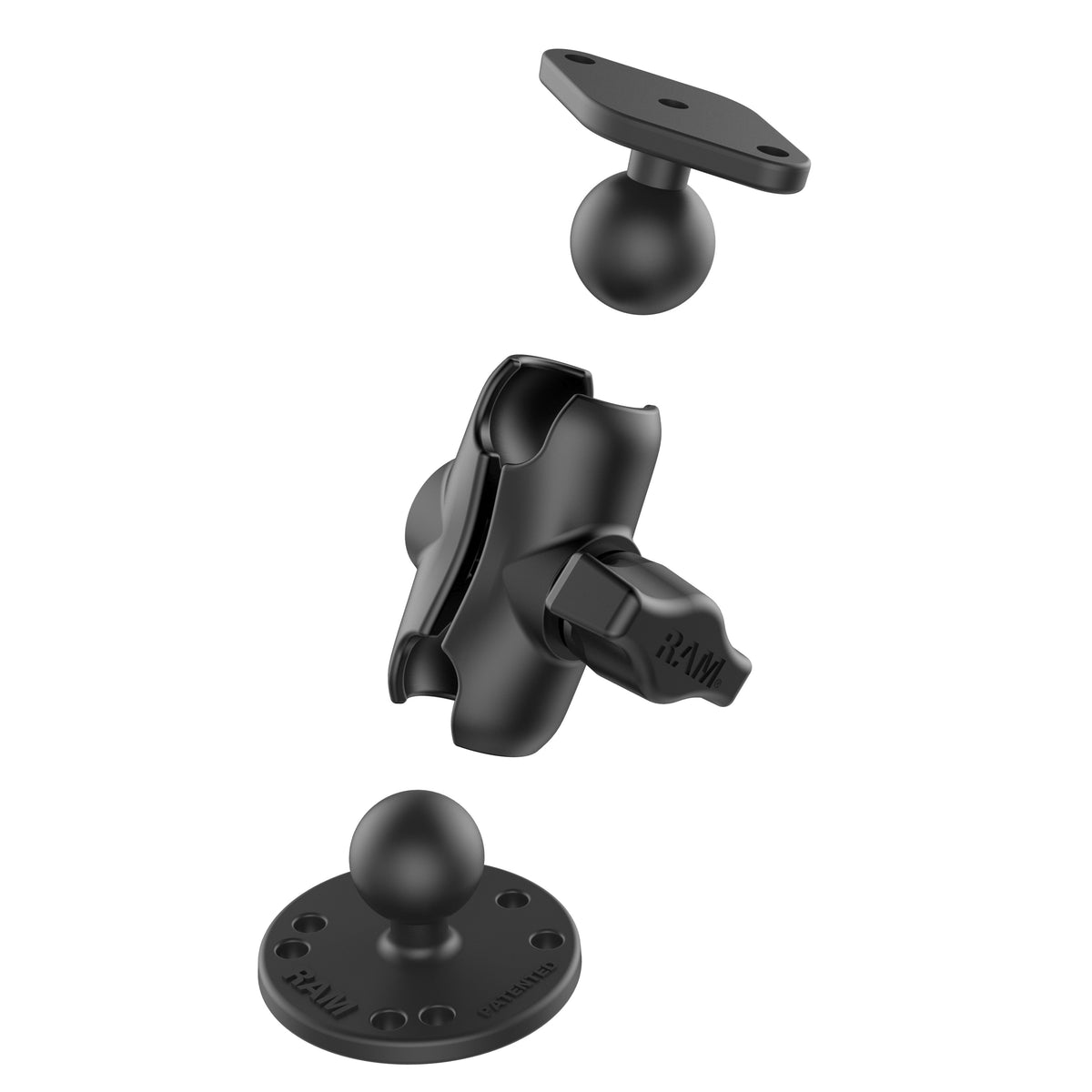

• Complete kit – base, B-size double socket arm and device-side plate in one package
• Adjustable at both ends – short arm, 61 mm overall; one knob locks both ball joints
• Two plate types – round 63.5 mm AMPS base for the surface, 62 × 33 mm diamond plate (2-hole AMPS) for the holder
• Shock and vibration damping – the patented rubber ball-and-socket system cushions the mounted device
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Device holders with the 2-hole AMPS pattern (48.6 mm hole spacing)
• Flat surfaces such as dashboards, consoles, panels and walls (drill-down)
• All RAM B-size (1") ball bases and device holders with a B-size ball

Technical Specifications

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
