RAM Mounts GDS Dock for Zebra TC2x/TC5x in IntelliSkin (RAM-GDS-DOCK-V12-ZE2434CPU)
Regular price
93,65 € +VAT

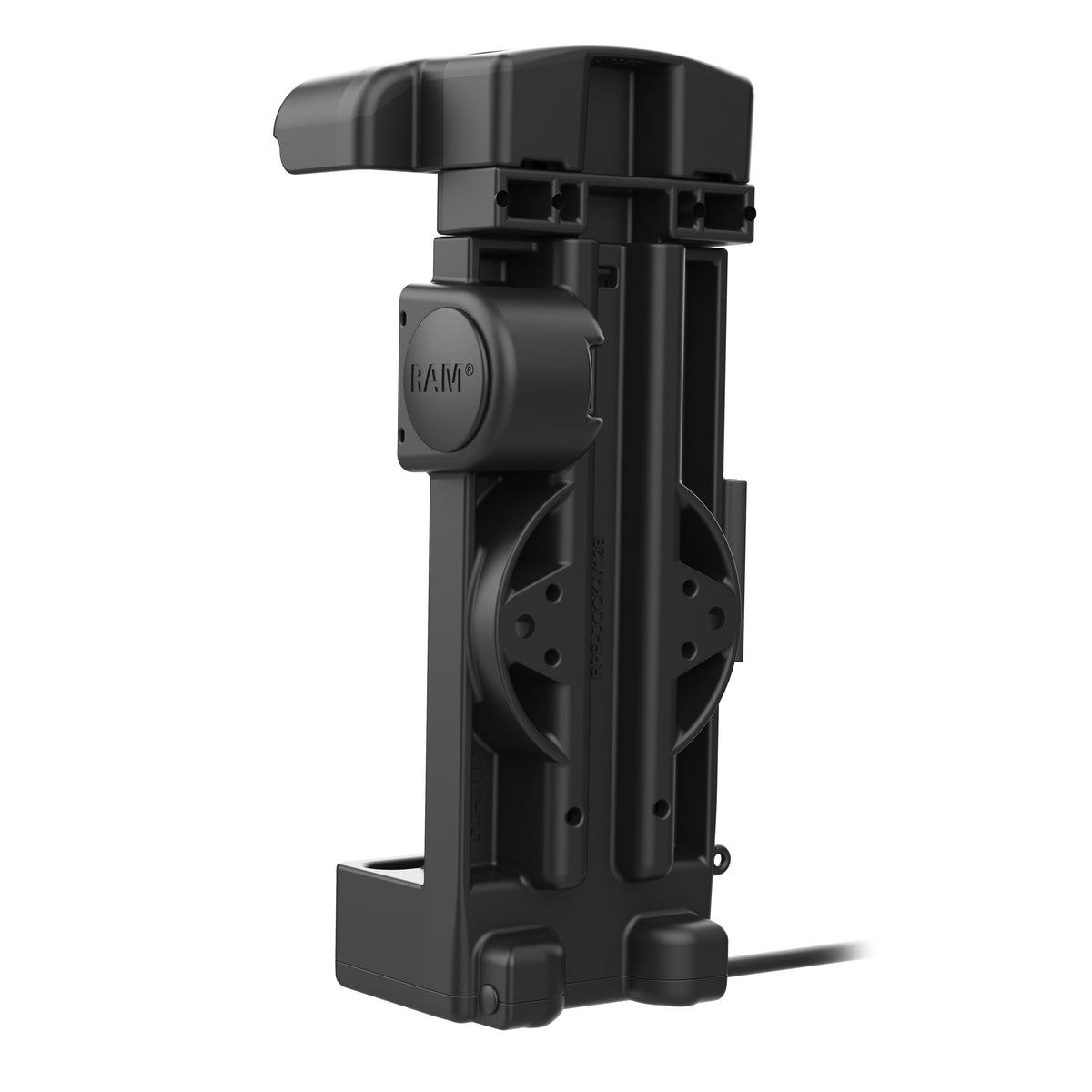

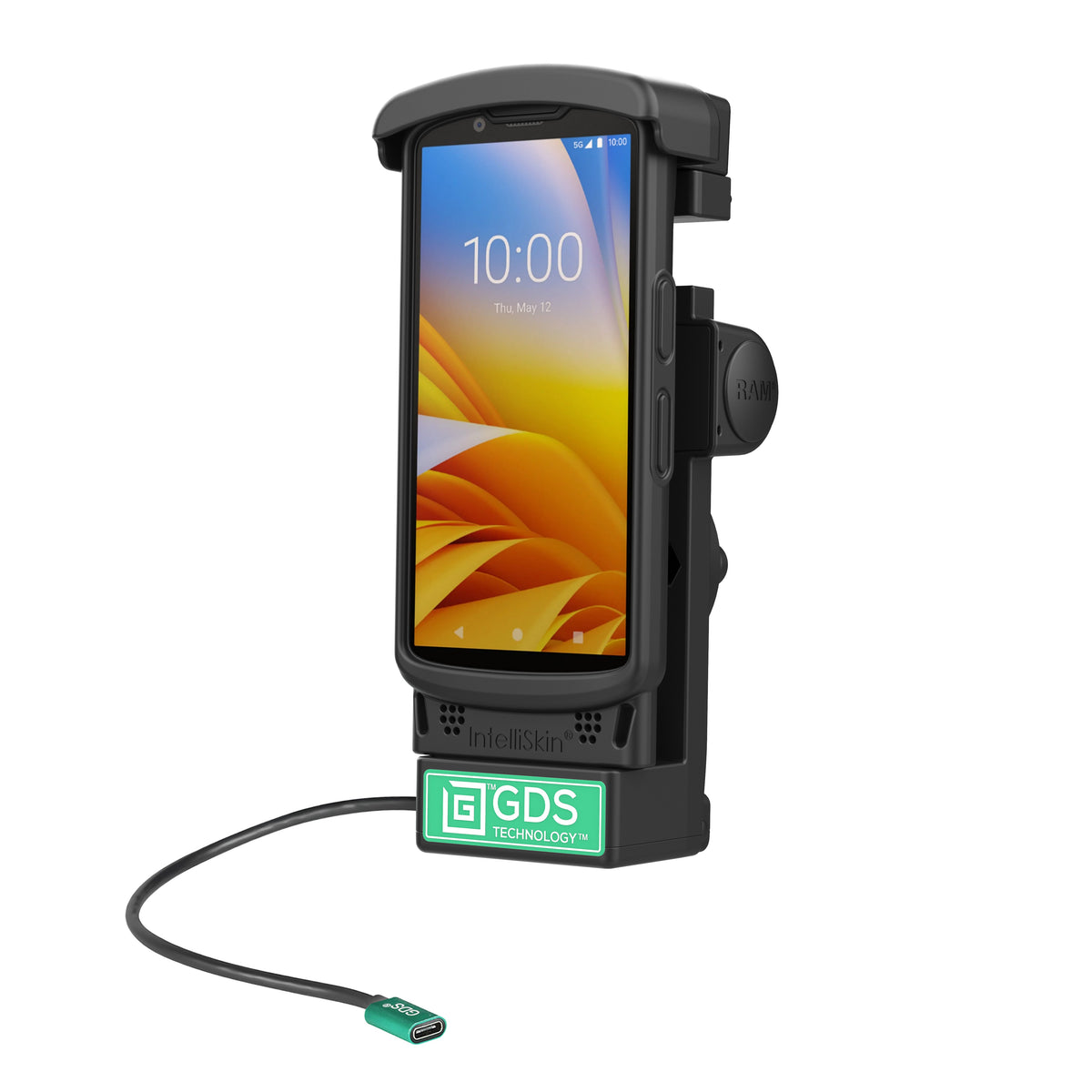

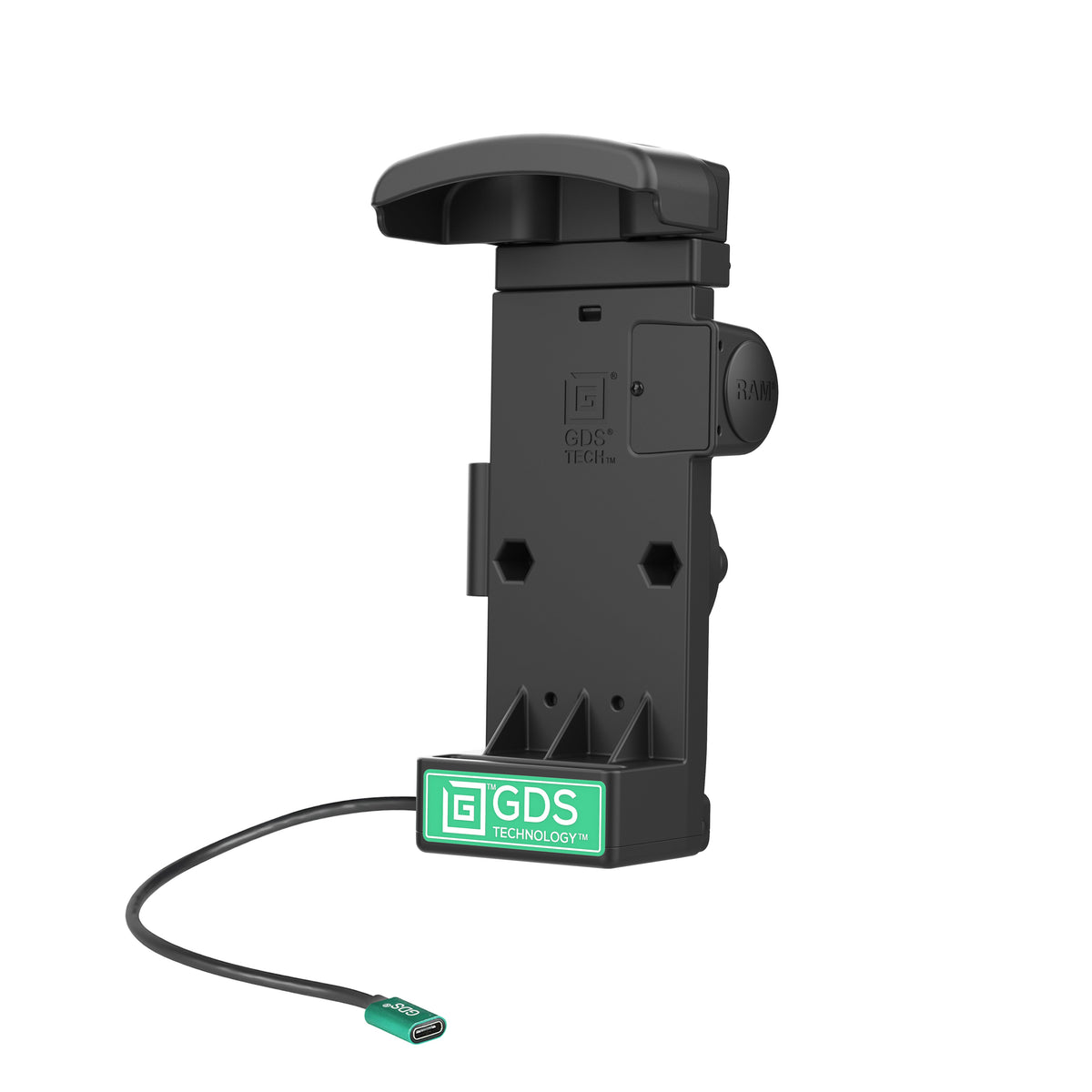

RAM Mounts GDS Powered Dock (RAM-GDS-DOCK-V12-ZE2434CPU) is made for the Zebra TC22, TC27, TC53 and TC58 mobile computers in a RAM IntelliSkin sleeve and suits vehicles, forklifts and other mobile workstations. Power comes in through a 1 m USB-C cable and reaches the device via built-in pogo-pin contacts. One-handed operation makes docking quick, and the top cutout leaves the buttons, ports and scanner accessible without removing the device.
📦 What's in the box – RAM-GDS-DOCK-V12-ZE2434CPU
- GDS Powered Dock – for Zebra TC22, TC27, TC53 & TC58 in IntelliSkin, 1 m USB-C input cable
- Mounting hardware – machine screws (2× #8-32 x 1/2", 2× #8-32 x 5/8", 2× #8-32 x 3/4") and nyloc nuts (2× #8-32)
💡 To get started, you might also consider the IntelliSkin for TC22/TC27 or IntelliSkin for TC53/TC58 (required for docking), a B-size diamond ball base, plus a USB-C GDS hardwire charger (10–30 V) or the 30–60 V version for forklifts.
Key Features

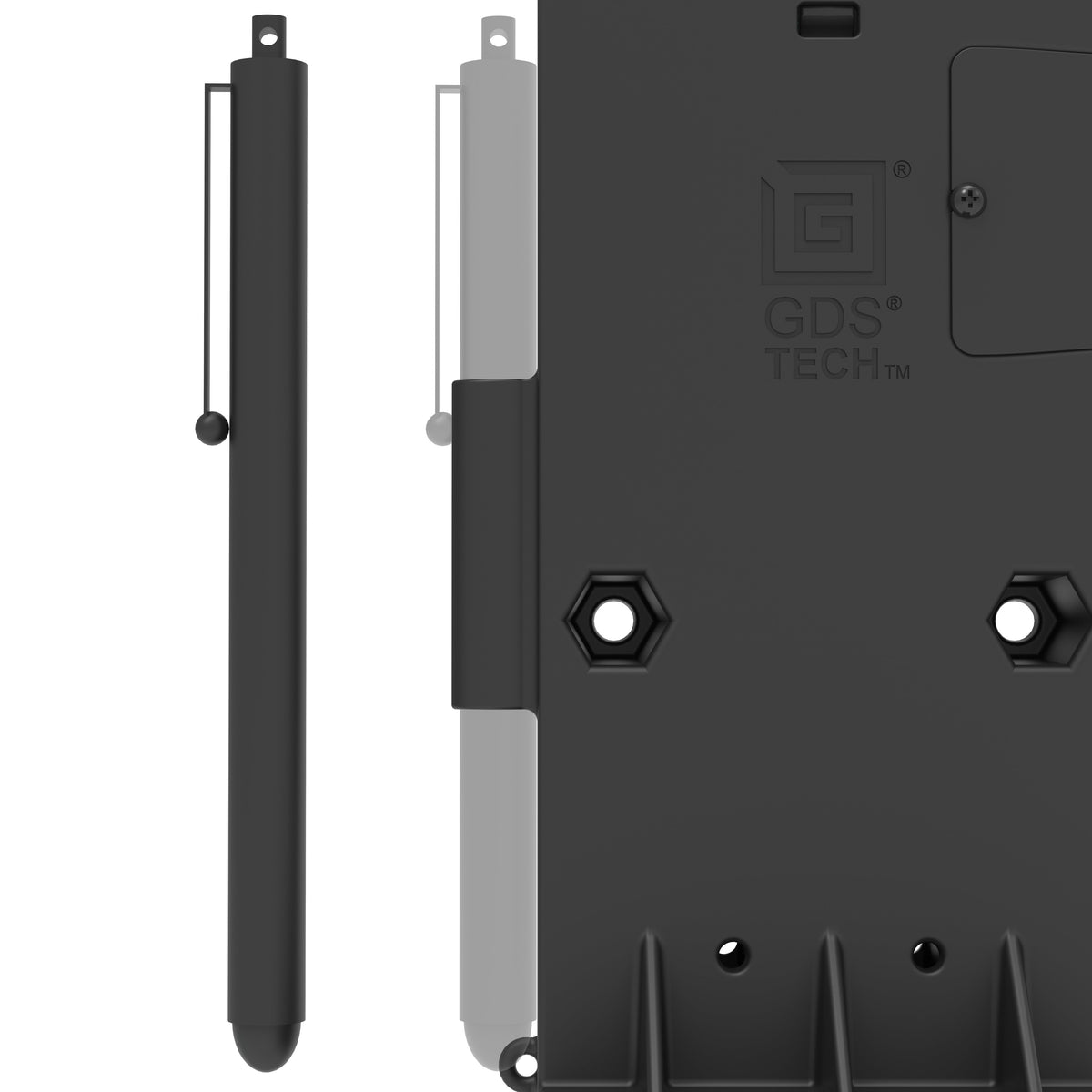

- GDS docking for IntelliSkin – designed for the TC22/TC27/TC53/TC58 in IntelliSkin; spring-loaded, one-handed insertion and removal; integrated stylus holder

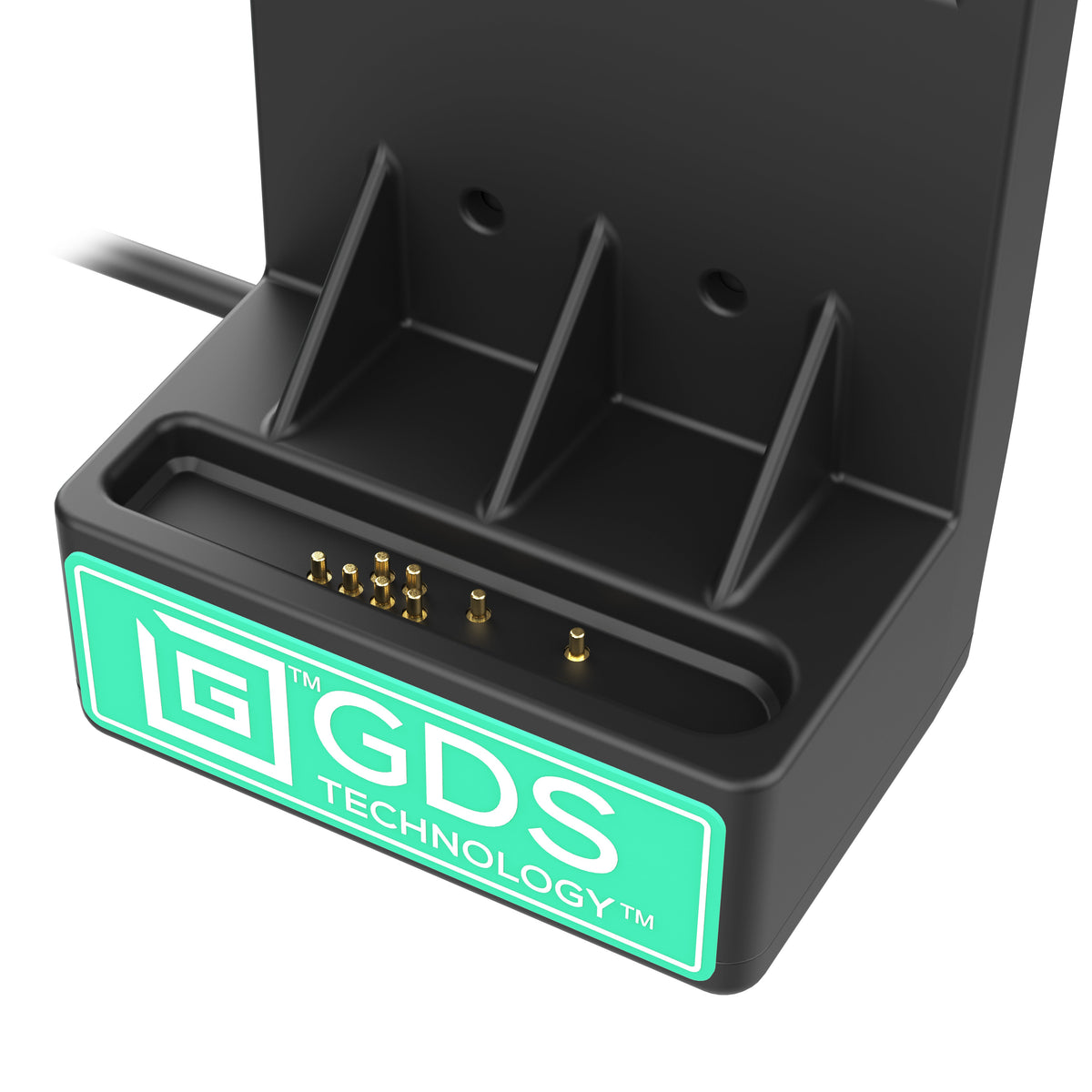

- USB-C power – 1 m USB-C input cable; charging through pogo-pin docking contacts
- Room for accessories – space in the back for extended battery packs and the Zebra hand strap
- Mounting & build – 2-hole AMPS (48.6 mm) pattern for RAM diamond ball bases; high-strength composite, 3-year RAM warranty
Compatibility
- Zebra TC22 in IntelliSkin (RAM-GDS-SKIN-ZE24)
- Zebra TC27 in IntelliSkin (RAM-GDS-SKIN-ZE24)
- Zebra TC53 in IntelliSkin (RAM-GDS-SKIN-ZE34)
- Zebra TC58 in IntelliSkin (RAM-GDS-SKIN-ZE34)
- RAM diamond ball bases (2-hole AMPS, 48.6 mm)
Technical Specifications
| Part Number | RAM-GDS-DOCK-V12-ZE2434CPU |
|---|---|
| Product Type | GDS powered vehicle dock (USB-C) |
| Compatible Devices | Zebra TC22, TC27, TC53, TC58 in IntelliSkin |
| Connection | RAM diamond ball bases (2-hole AMPS, 48.6 mm) |
| Locking | Non-locking |
| Power / Charging | 1 m USB-C input cable; charging via pogo-pin contacts; charger sold separately |
| Material | High-strength composite |
| Weight | 0.30 kg (0.66 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | GDS Powered Dock, mounting hardware |
Looking for the device itself? Browse our Handheld Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Locking | Ports / connector | Price | ||
|---|---|---|---|---|---|
 |
RAM-GDS-DOCK-V12-ZE2434CPDU | Non-locking | Power + 1× USB-A | 147,02 €+VATOut of Stock | View |
 |
RAM-GDS-DOCK-V12-ZE2434CPUViewing | Non-locking | Power only | 93,65 €+VATIn Stock | |
 |
RAM-GDS-DOCKL-V12-ZE2434CPDHU | Key-locking | Power + 1× USB-A, heated pins | 205,88 €+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-V12-ZE2434CPDU | Key-locking | Power + 1× USB-A | 179,60 €+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-V12-ZE2434CPU | Key-locking | Power only | 126,32 €+VATIn Stock |
