RAM Mounts GDS Key-Locking Tilt & Swivel Dock with PoE for Uni-Conn Adapter (RAM-GDS-DOCKLR-D14-U1E)

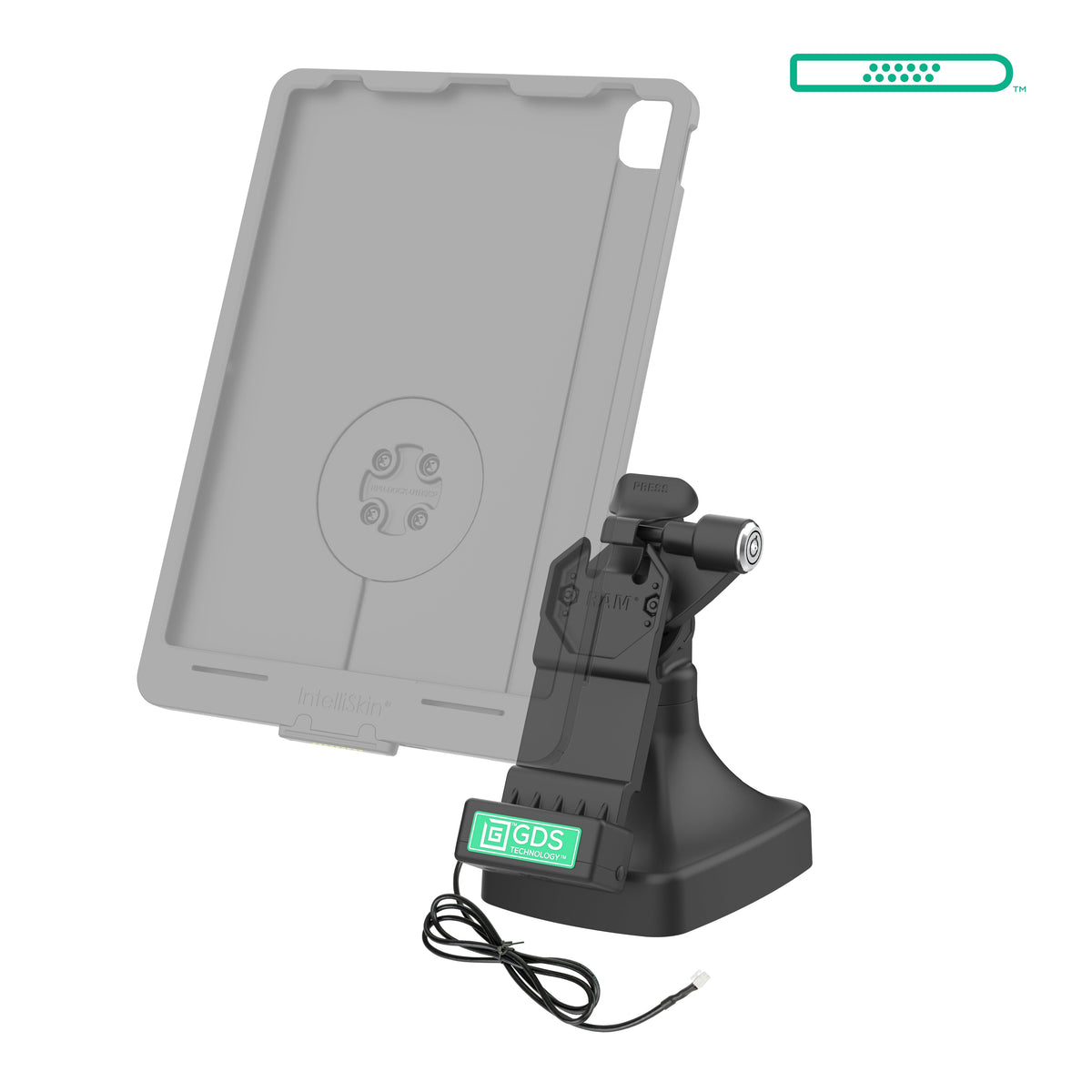

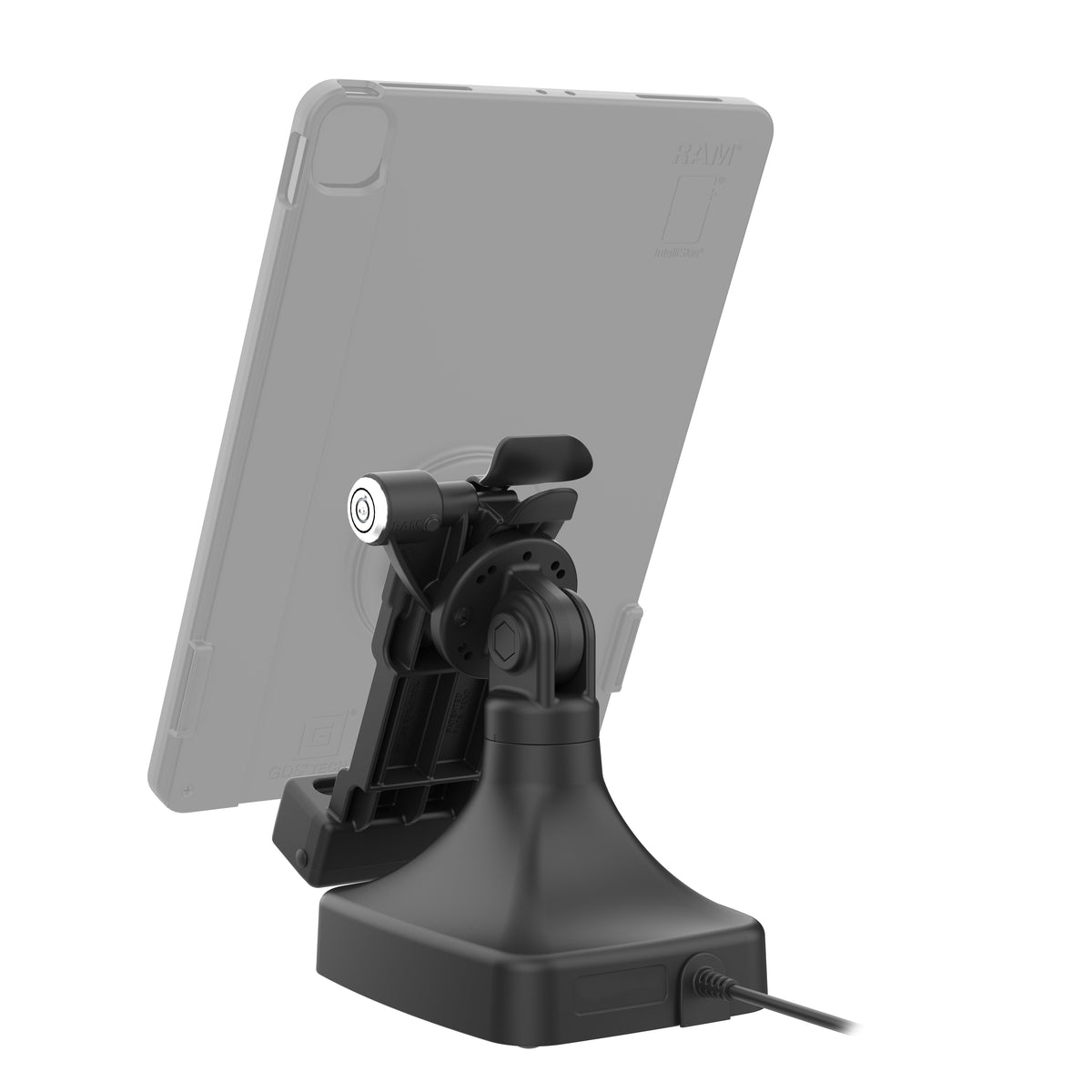

RAM Mounts GDS Key-Locking Tilt & Swivel Dock with PoE for Uni-Conn Adapter (RAM-GDS-DOCKLR-D14-U1E) is a free-standing countertop dock for tablets in IntelliSkin Next Gen, IntelliSkin Hard Case or standard IntelliSkin Thin-Case sleeves fitted with the GDS Uni-Conn adapter. It is built for customer-facing counters in retail, hospitality and food service: the dock swivels 180° and the tablet tilts 180°, so the screen can be turned towards the customer in a moment. The tablet snaps into the dock and is released with a lever, while the pogo pins in the dock charge it via Power over Ethernet (PoE). An integrated key lock adds theft deterrence in high-traffic areas. A weighted base with rubber pads keeps the dock from sliding on counters and desks.

Key Features

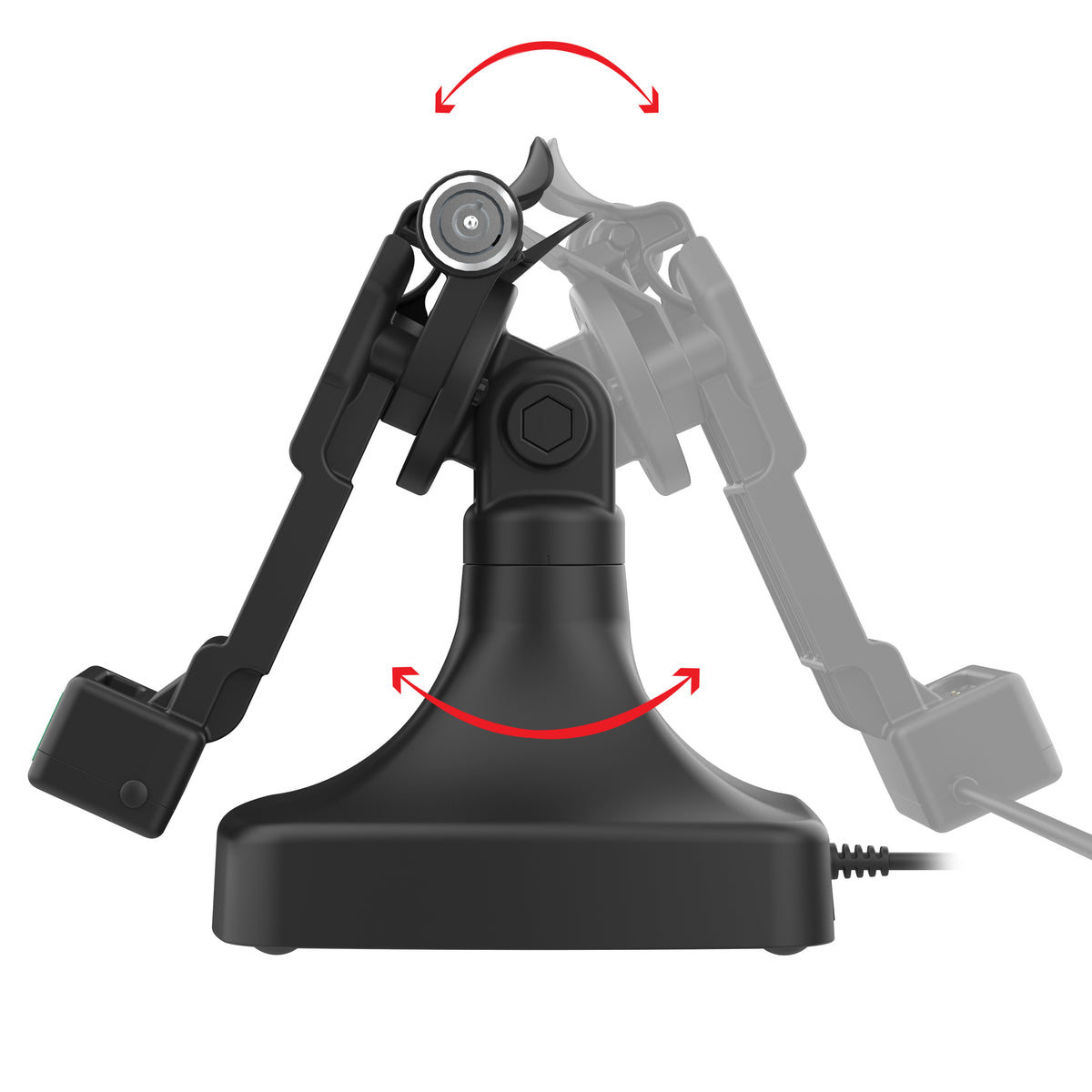

• 180° swivel and 180° tilt – turn the screen towards the customer or back to staff in a moment
• Snap-in docking – push the tablet in until it clicks and release it with the lever; the included lever stop must be fitted

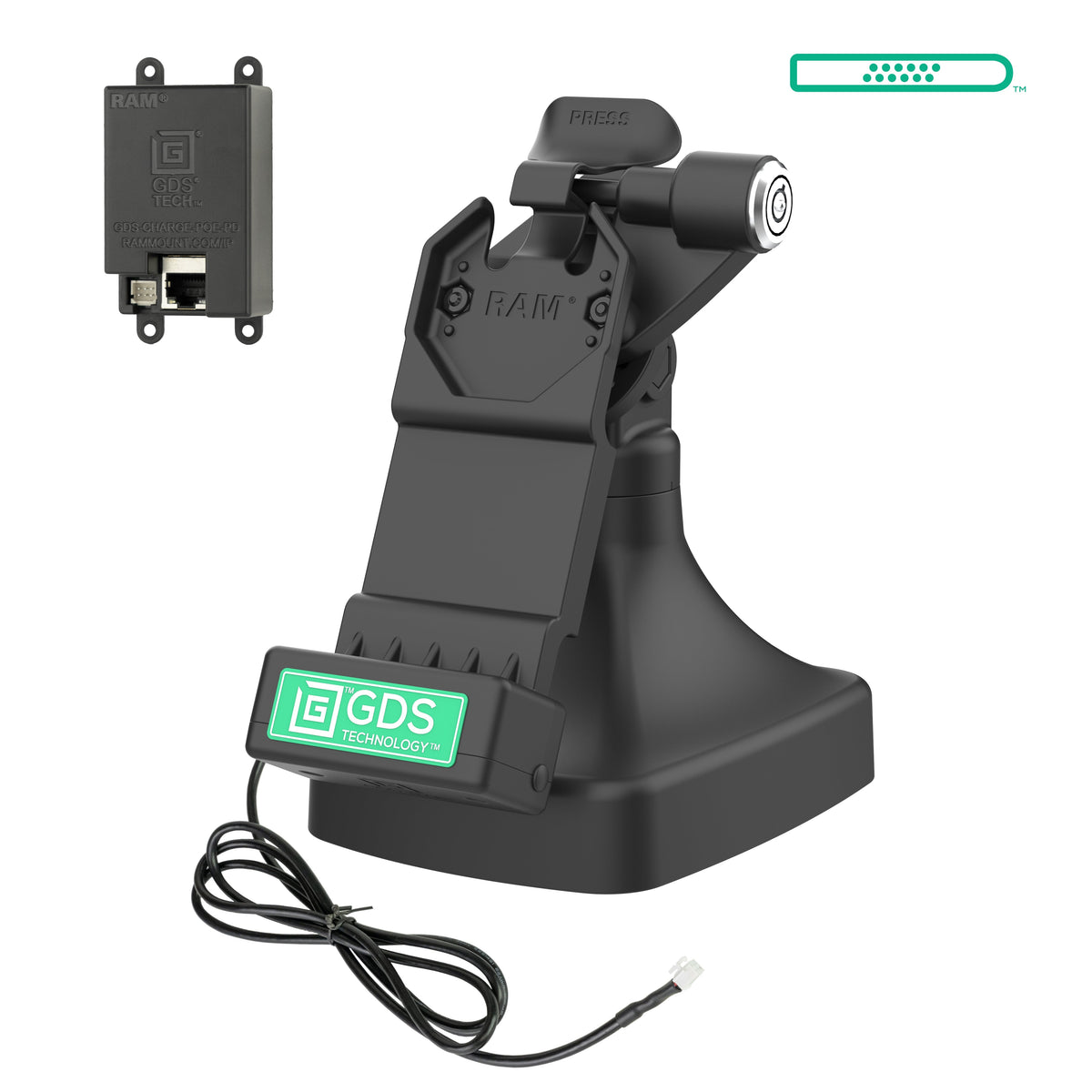

• Power over Ethernet – via the included RAM PoE to PD module; USB PD 3.0 output 5 V @ 3 A / 9 V @ 2.2 A / 12 V @ 1.67 A, max. 24 W; 10/100 Mbps

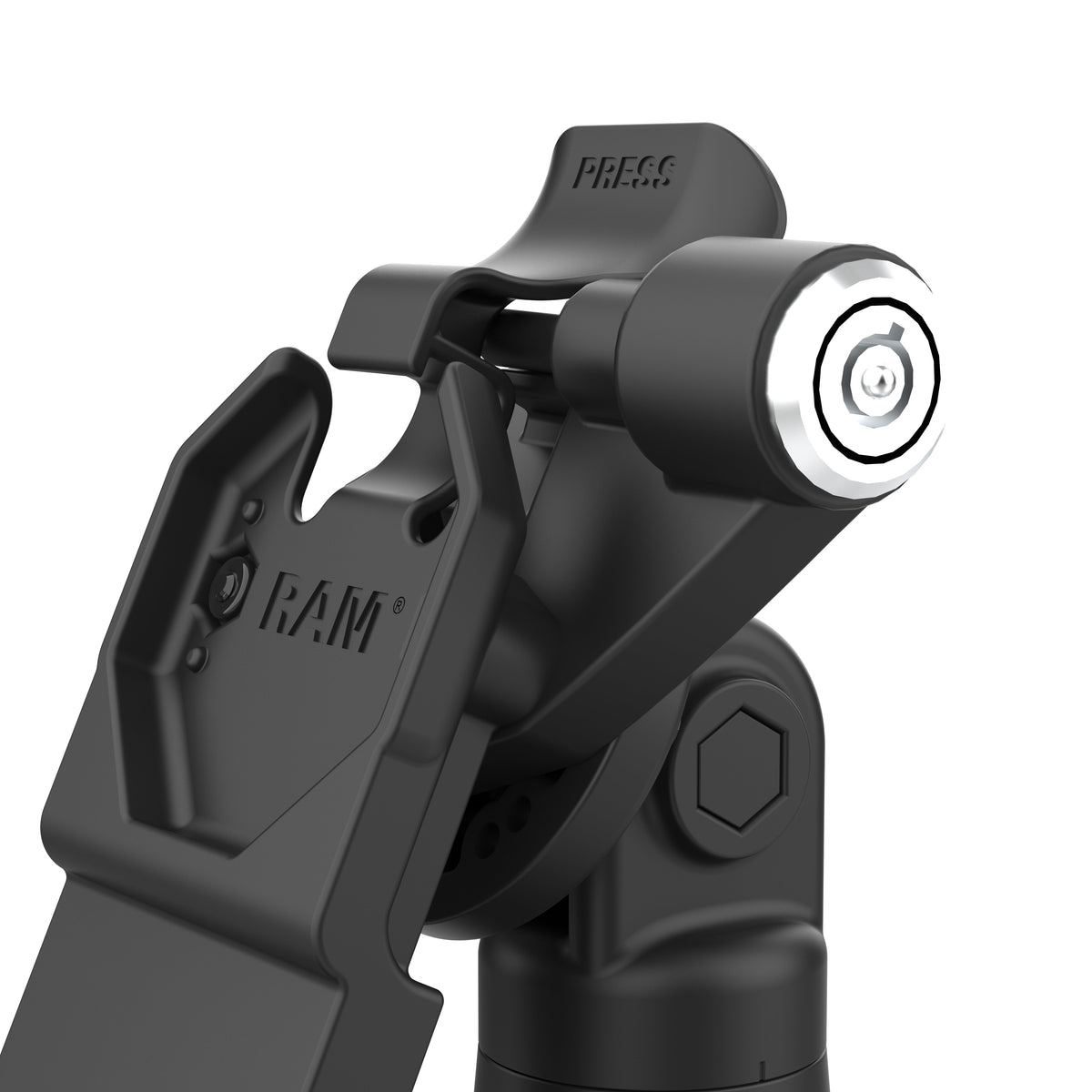

• Key lock – deters theft at busy counters and check-in points
• Weighted base with rubber pads – keeps the dock firmly in place on counters and desks
• 3-year warranty – backed by RAM Mounts

Compatibility

• Tablets in IntelliSkin Next Gen sleeves with GDS Uni-Conn adapter
• Tablets in IntelliSkin Hard Case sleeves with GDS Uni-Conn adapter
• Tablets in standard IntelliSkin Thin-Case sleeves with GDS Uni-Conn adapter
• The GDS Uni-Conn adapter (RAM-GDS-U1U) must be fitted to the sleeve
• Power source: PoE network switch or injector via RJ45 (the PoE to PD module is included)

Technical Specifications
