RAM Mounts GDS Uni-Conn Wall Dock with Magnetic Receiver & PoE (RAM-GDS-DOCK-W3-POE)

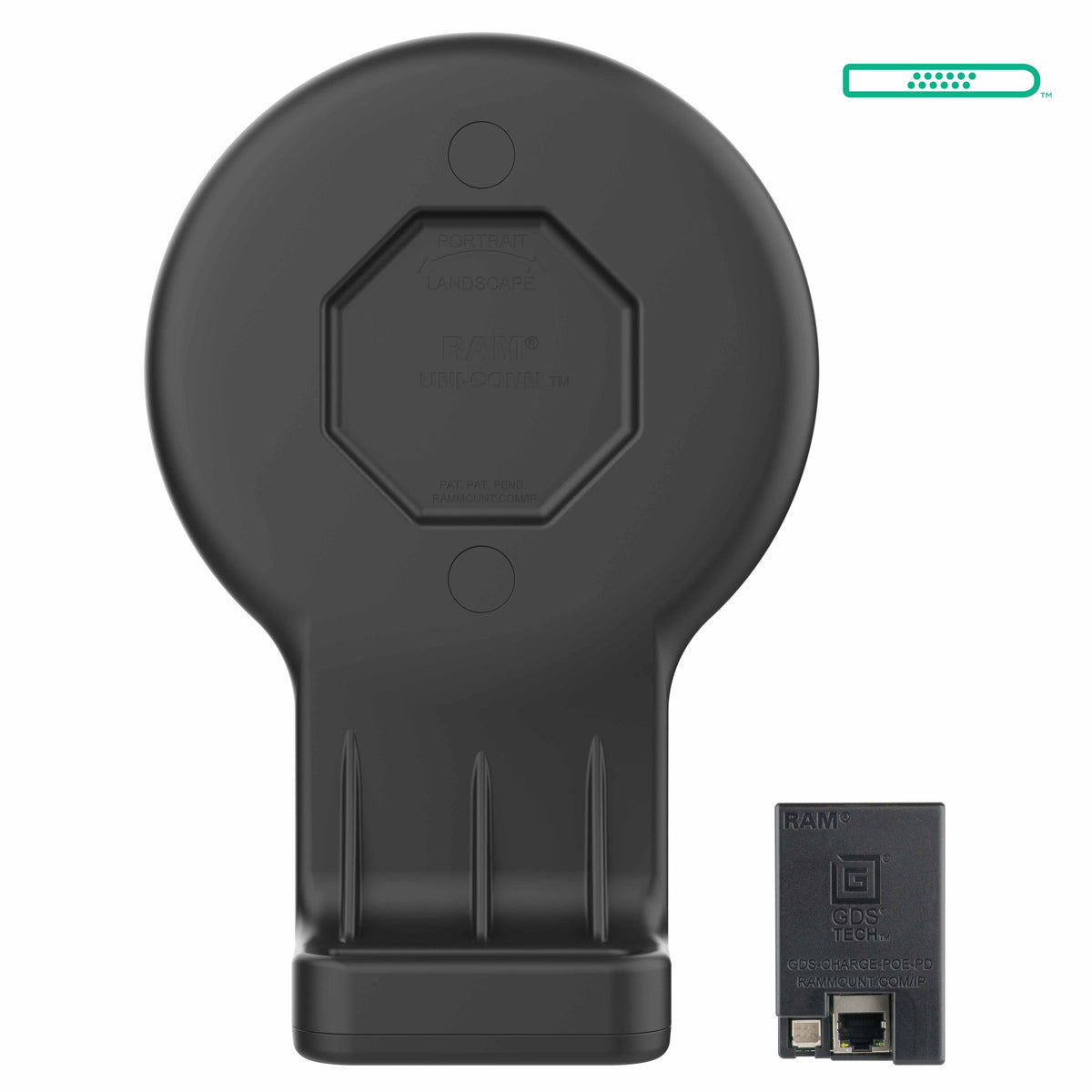

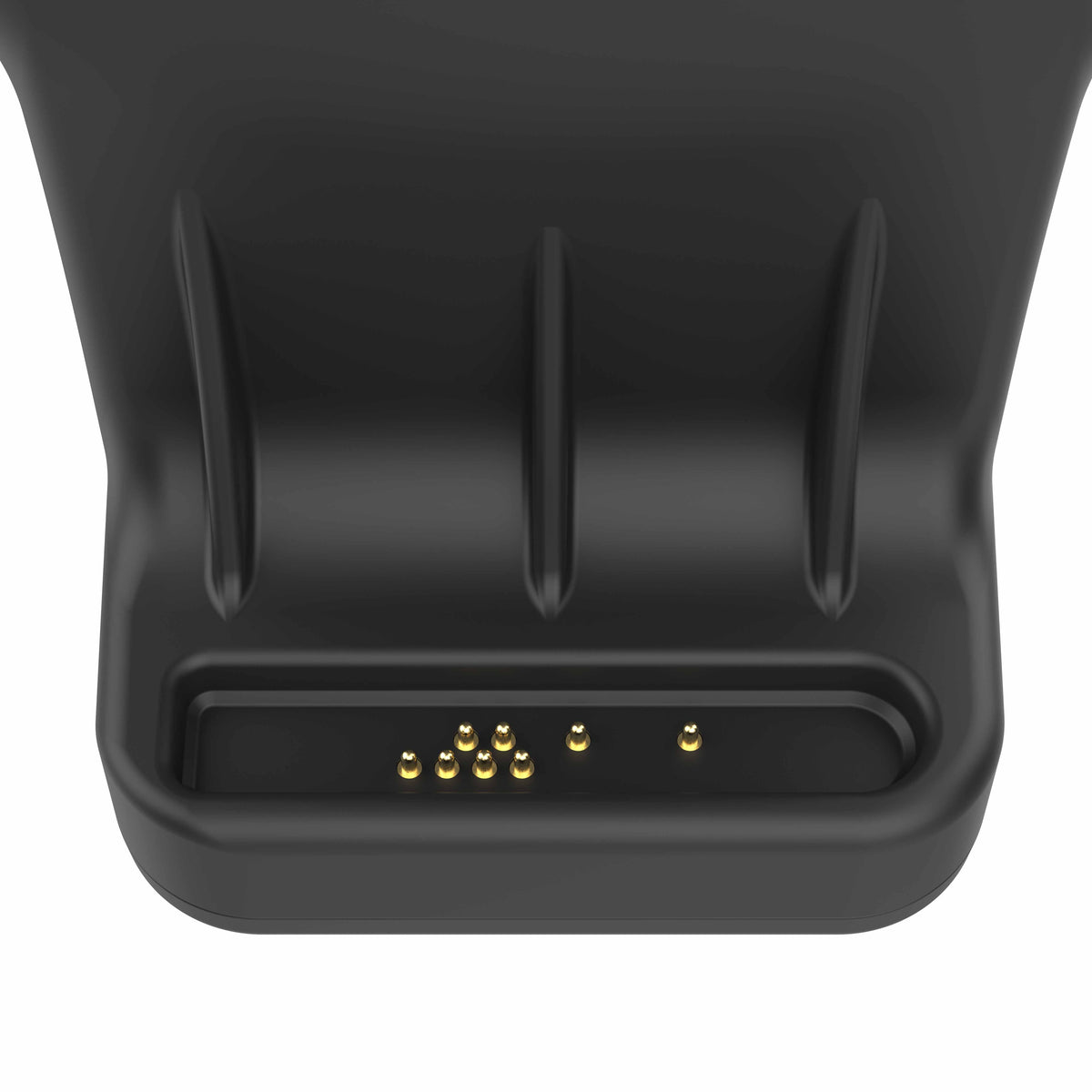

RAM Mounts GDS Uni-Conn Wall Dock with Magnetic Receiver & PoE (RAM-GDS-DOCK-W3-POE) is a magnetic wall dock for tablets in an IntelliSkin Thin-Case fitted with the standard GDS Uni-Conn adapter (RAM-GDS-U1U) – RAM states that the dock works only with this adapter. The receiver swivels through 180°, so the tablet can be docked in landscape or portrait orientation, and the magnets make docking and undocking quick. Power over Ethernet reaches the pogo pins of the Uni-Conn adapter via the included PoE to Power Delivery charging module, which also allows secure software updates while the tablet is docked. The dock is installed over a standard rectangular (US-type) electrical box, which is not part of the delivery – a tidy solution for meeting rooms, nurse stations, shop floors and check-in points.

Key Features

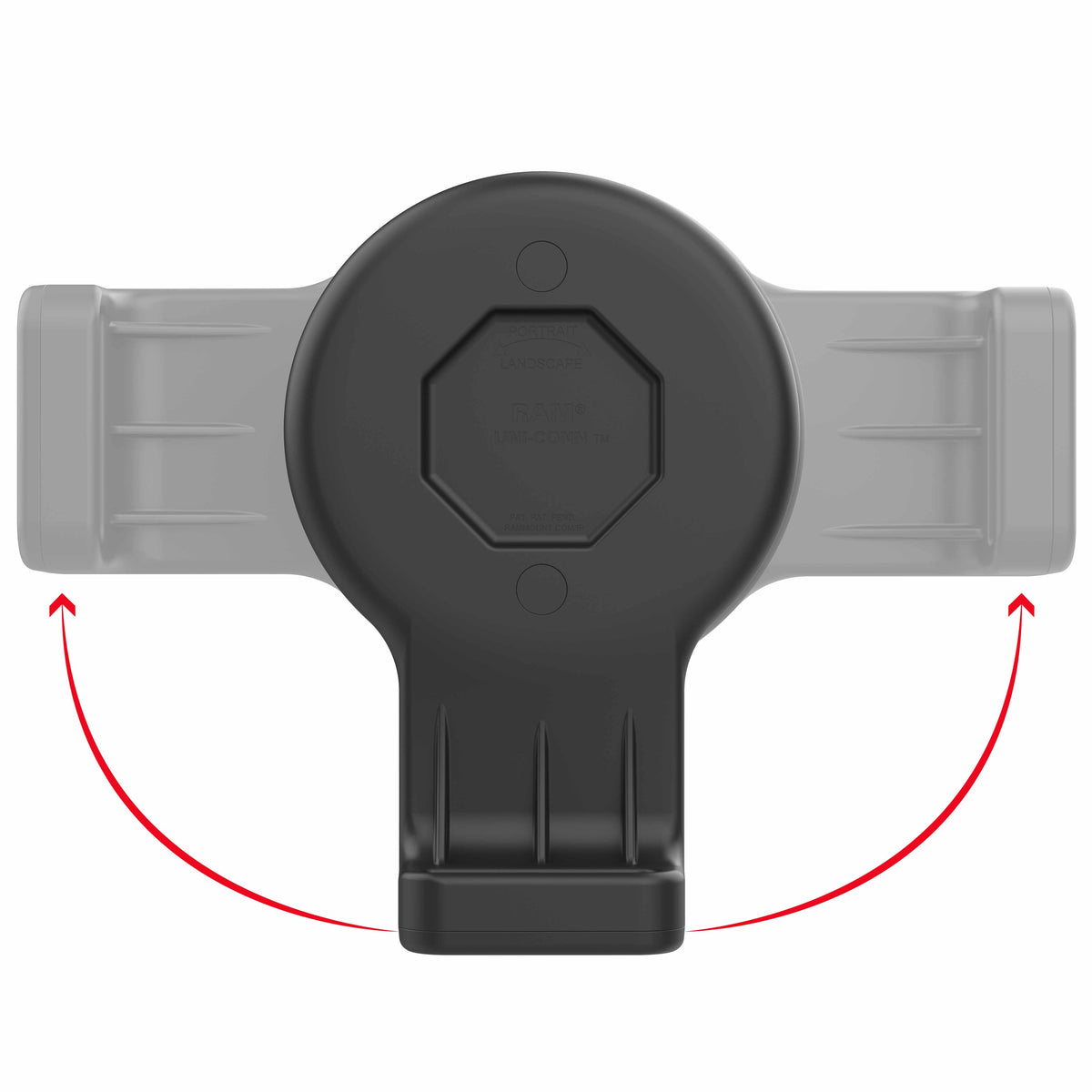

• Magnetic swivel receiver – docks in seconds and rotates 180° for landscape or portrait use

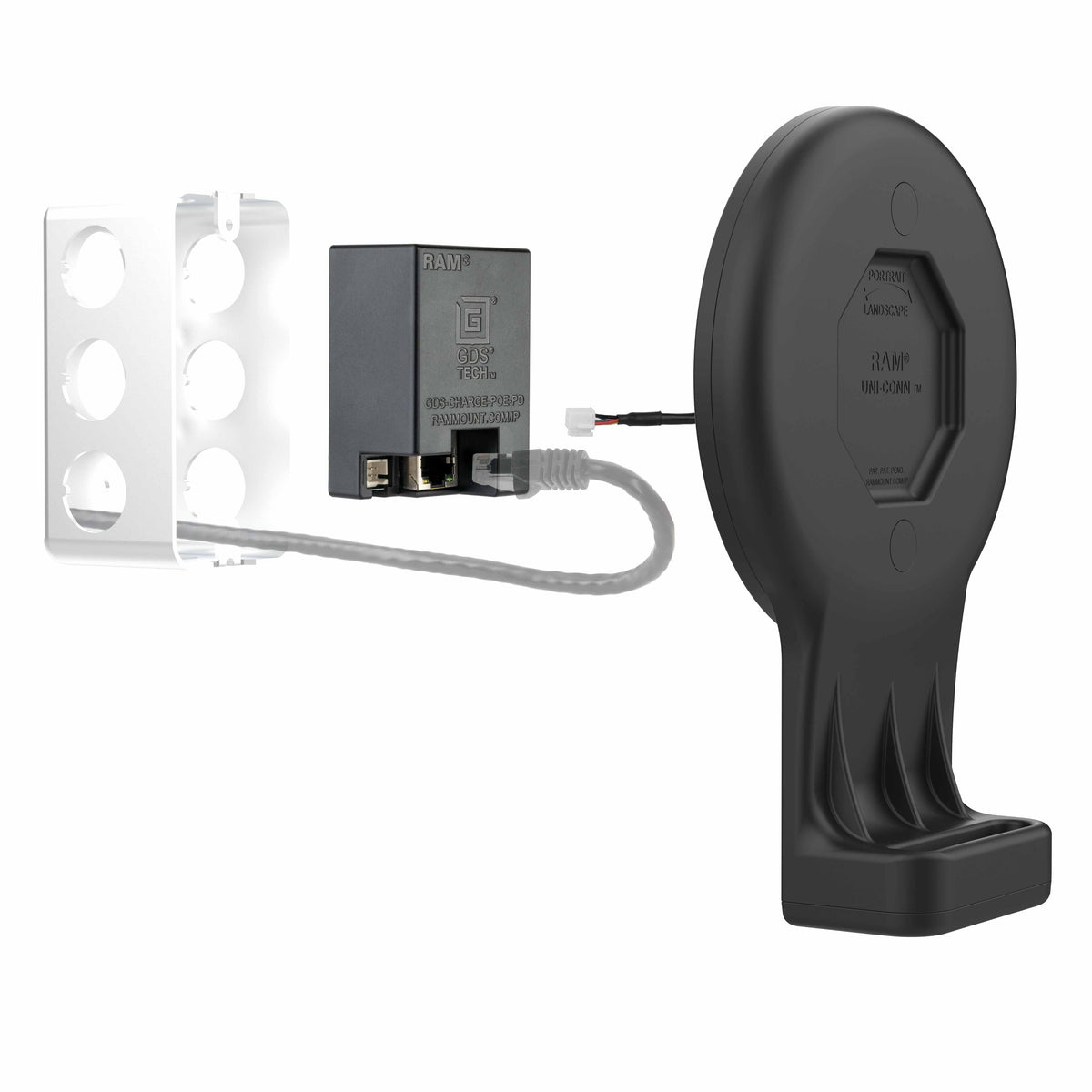

• Power over Ethernet – RJ45 via the included PoE to PD module; PoE+ (IEEE 802.3at) or higher; PD 3.0 output 5 V @ 3 A / 9 V @ 2.22 A / 12 V @ 1.67 A, max. 20 W; 10/100 Mbps
• Uni-Conn adapter required – works only with the standard GDS Uni-Conn adapter for IntelliSkin (RAM-GDS-U1U)
• Outlet box installation – over a standard rectangular (US-type) electrical box; 2-hole pattern 83.3 mm (3.281")
• 3-year warranty – backed by RAM Mounts; high-strength composite housing

Compatibility

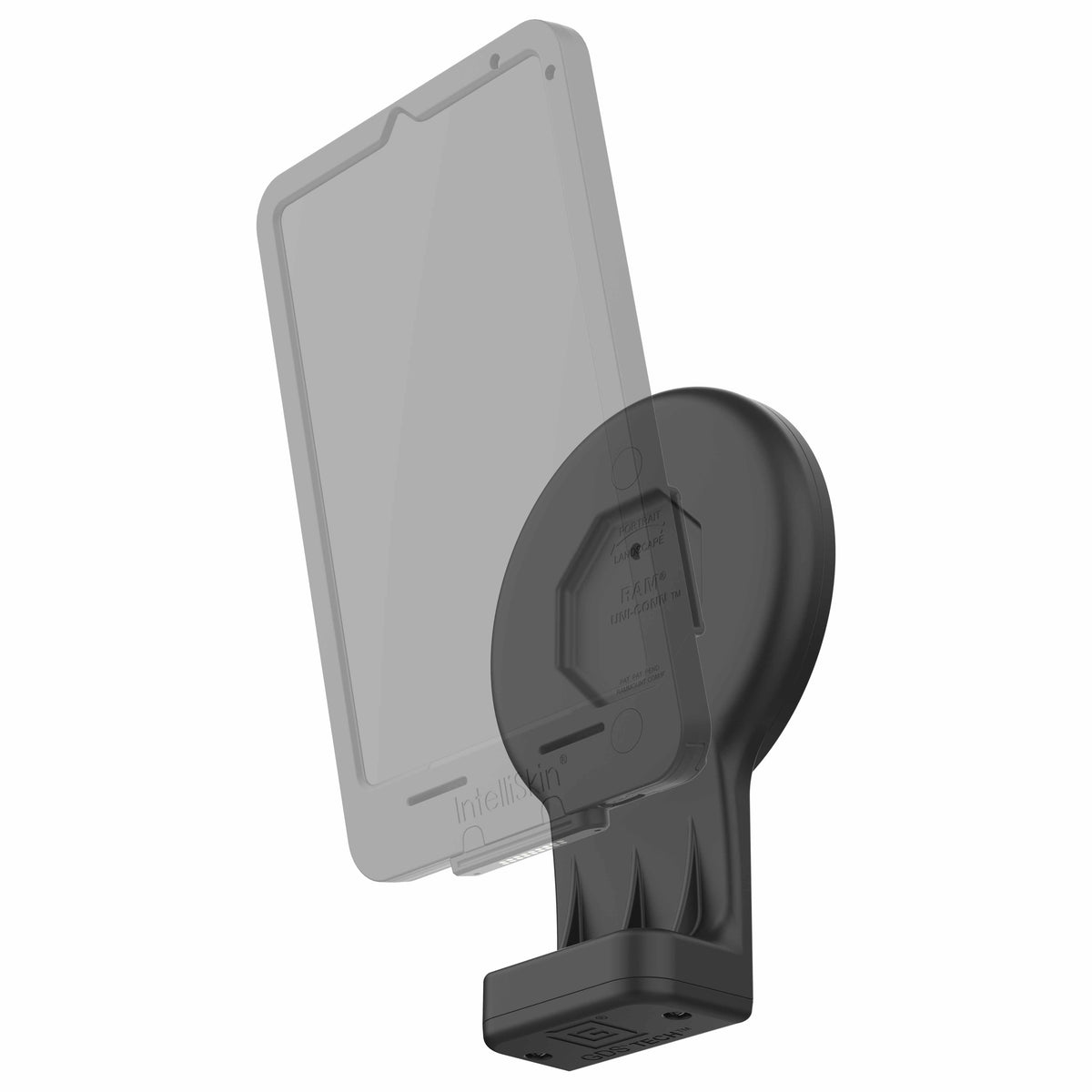

• Tablets in IntelliSkin Thin-Case sleeves with the standard GDS Uni-Conn adapter (RAM-GDS-U1U, required)
• Apple iPad (10th & 11th Gen)
• Apple iPad Air 4, Air 5, Air 11 & Air 13 (M2, M3, M4)
• Apple iPad mini 6 & iPad mini (A17 Pro)
• Apple iPad Pro 11 (1st–4th Gen, M4 & M5), iPad Pro 12.9 (3rd–6th Gen), iPad Pro 13 (M4 & M5)
• Samsung Galaxy Tab Active Pro, Active2, Active3, Active4 Pro, Active5 & Active5 Pro
• Samsung Galaxy Tab A 8.0 (2018/2019), A 8.4, A 10.1 (2019), A 10.5, A7 10.4, A7 Lite 8.7, A8 10.5, A9, A9+, A11 & A11+
• Samsung Galaxy Tab S7 11", S7 FE, S7+ 12.4", S8+, S9, S9 FE, S9 FE+, S10 FE, S10 Lite & S10+
• Power source: PoE+ network switch or injector (IEEE 802.3at or higher)

Technical Specifications
