RAM Mounts Locking GDS Tough-Dock for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCKL-SAM76CPU)
Regular price
179,73 € +VAT

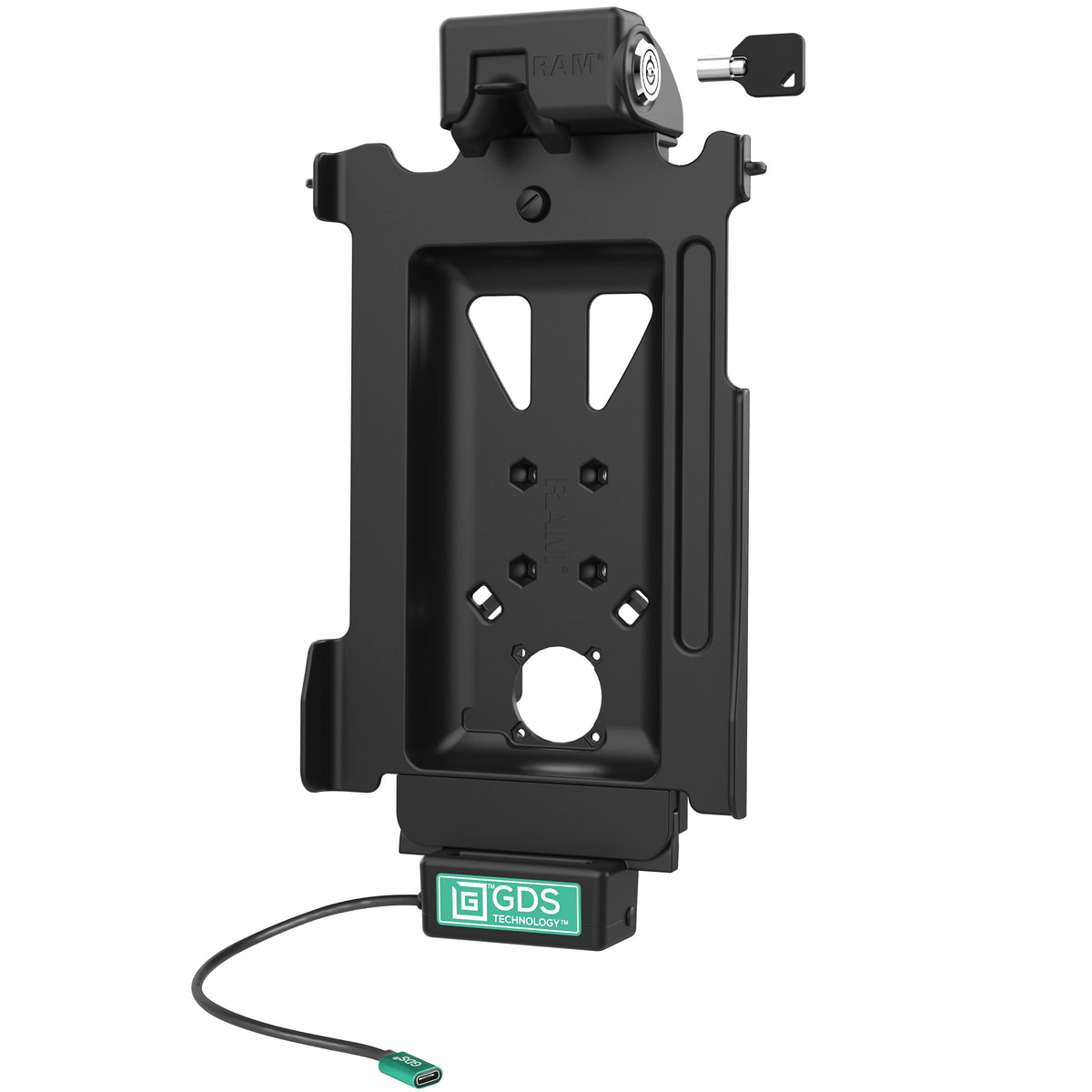

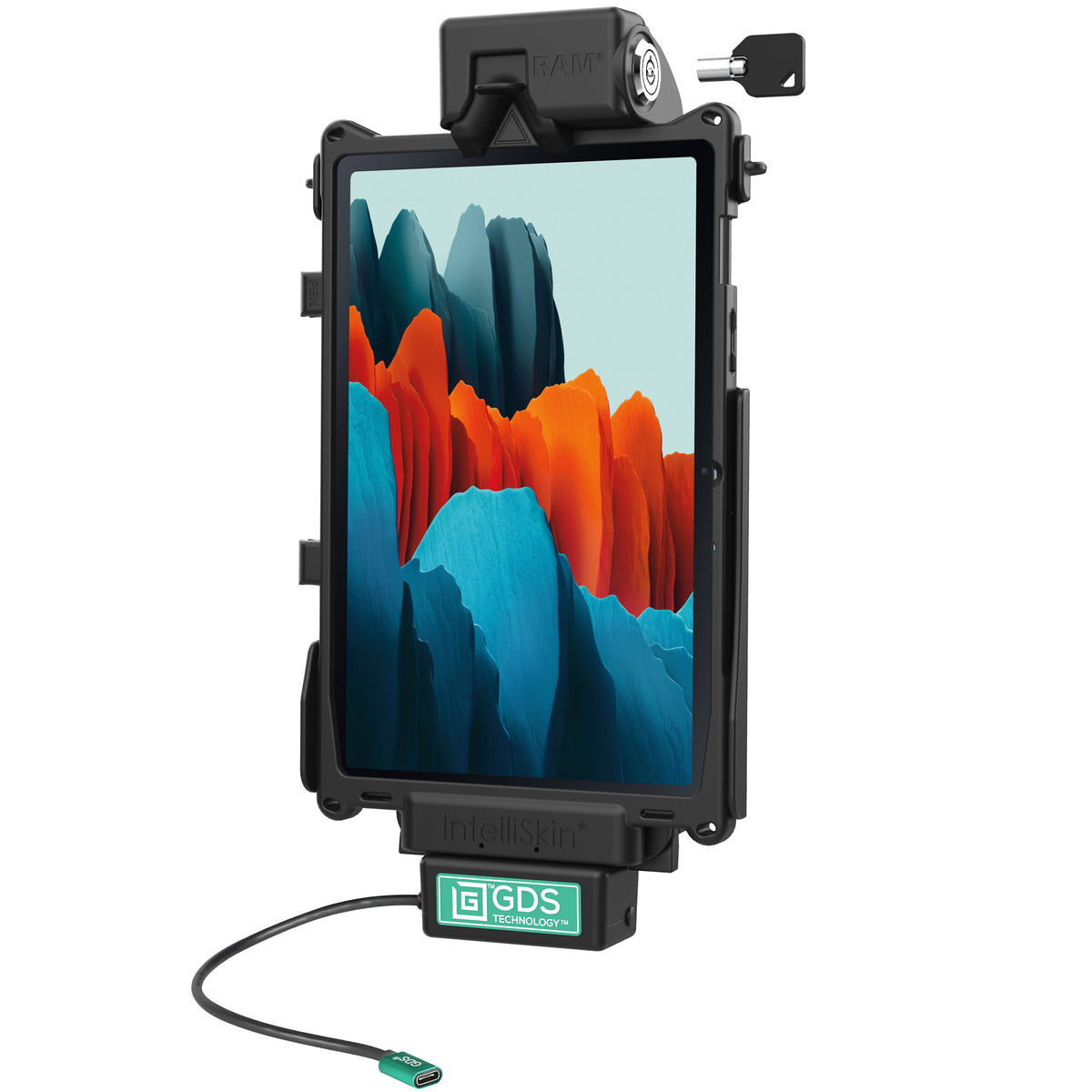

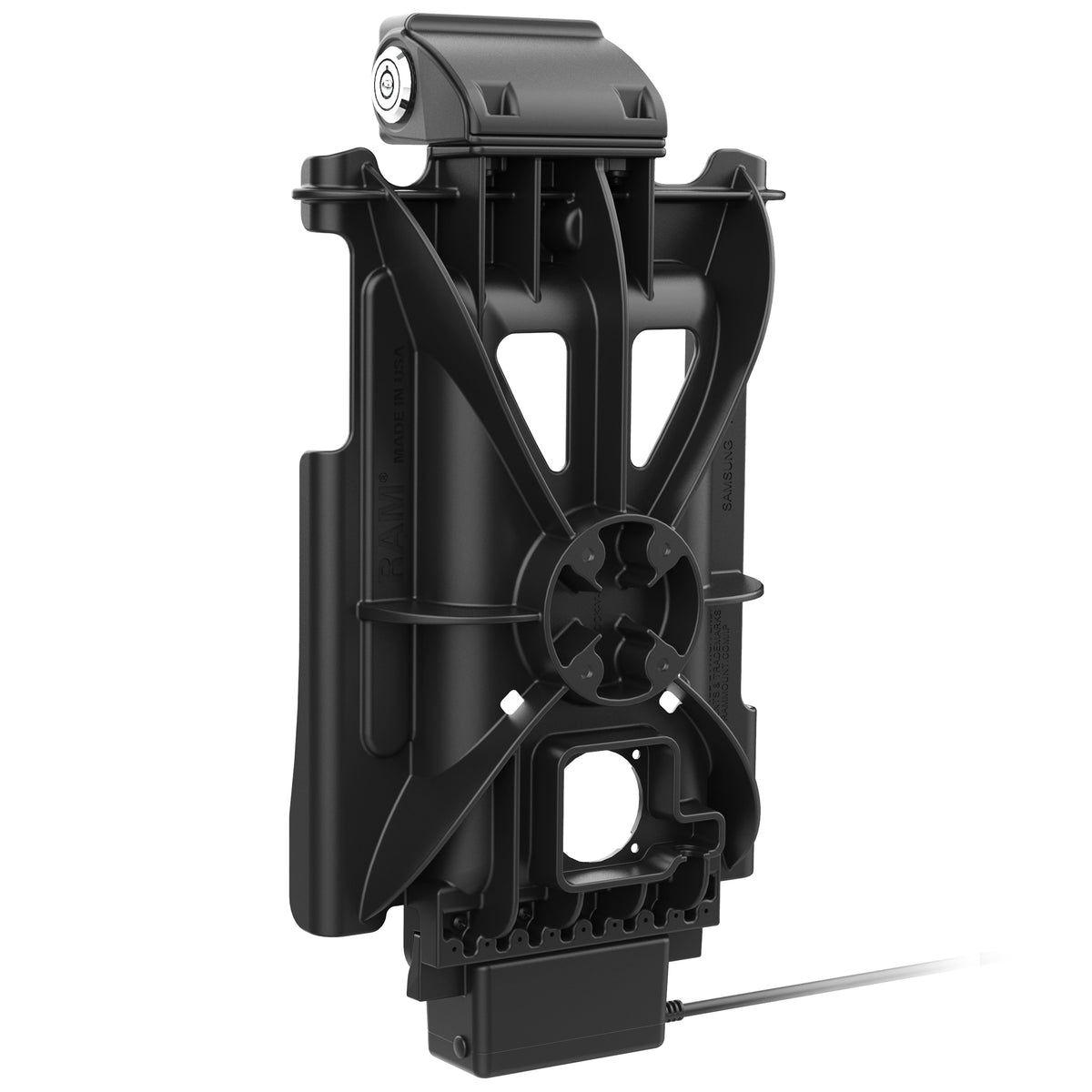

RAM Mounts Locking GDS Tough-Dock for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCKL-SAM76CPU) is a spring-loaded key-locking vehicle dock from the GDS range for the Samsung Galaxy Tab S7 11", Tab S9, Tab S9 FE, Tab S10 FE and Tab S10 Lite in an IntelliSkin Next Gen protective sleeve – ideal for fleet vehicles, service vans and forklifts. Integrated pogo-pin contacts provide high-speed charging as soon as the tablet is docked; power comes in through a USB-C connector in the bottom docking cup.
📦 What's in the box – RAM-GDS-DOCKL-SAM76CPU
- Locking GDS Tough-Dock – for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite in IntelliSkin Next Gen
- 2 keys – for the key lock
- Mounting hardware – machine screws (4× #8-32 x 5/8") and nyloc nuts (4× #8-32)
💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for Tab S9 & S9 FE, a B-size AMPS ball base with a double socket arm, and a USB-C PD hardwire charger for 10–30 V or 30–64 V vehicle systems.
Key Features
- Spring-loaded GDS dock – holds the Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite in an IntelliSkin Next Gen sleeve; works with the GDS Hand-Stand hand strap and kickstand

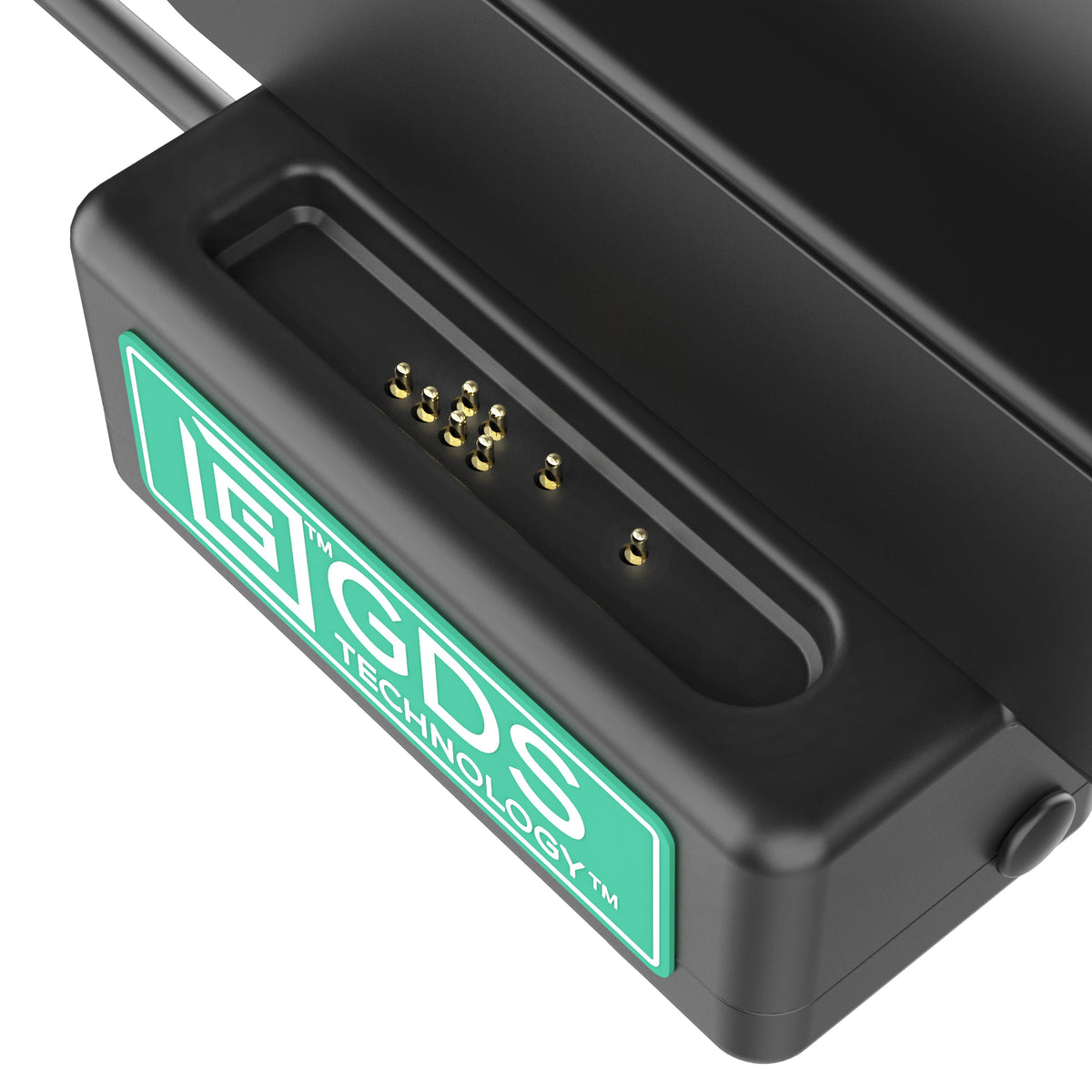

- High-speed charging – pogo-pin contacts, USB-C input in the docking cup; output 5–20 V DC / 3 A / 60 W

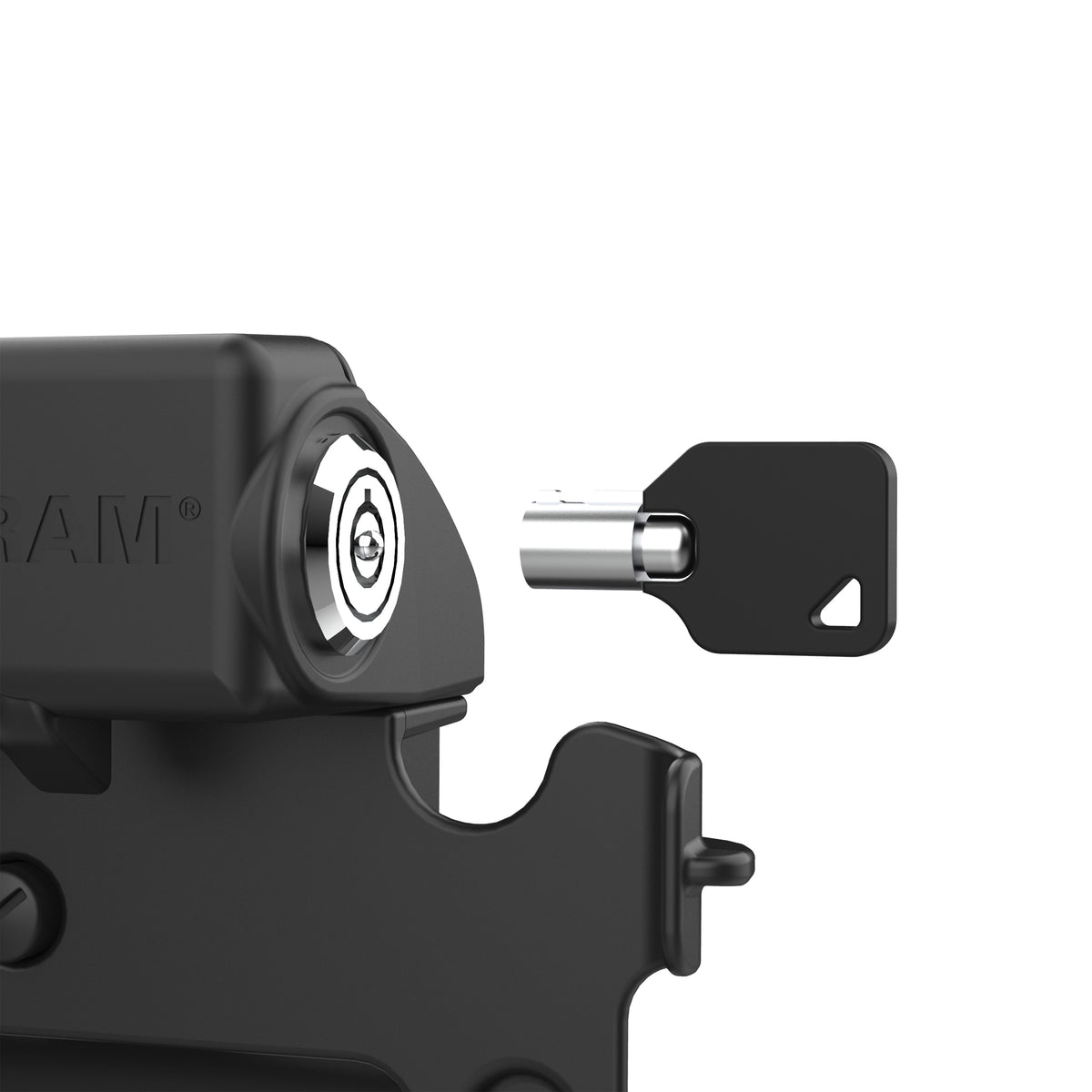

- Key lock – secures the tablet in the dock and deters theft; 2 keys included
- 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
- Built to last – high-strength composite, 3-year RAM warranty
Compatibility
- Samsung Galaxy Tab S7 11" – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S9 – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S9 FE – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S10 FE – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S10 Lite – in IntelliSkin Next Gen sleeve
- RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)
Technical Specifications
| Part Number | RAM-GDS-DOCKL-SAM76CPU |
|---|---|
| Product Type | Spring-loaded GDS Tough-Dock vehicle dock |
| Compatible Devices | Samsung Galaxy Tab S7 11", Samsung Galaxy Tab S9, Samsung Galaxy Tab S9 FE, Samsung Galaxy Tab S10 FE, Samsung Galaxy Tab S10 Lite |
| Connection | 4-hole AMPS, 30 × 38 mm (1.181" × 1.496"); requires a 4-hole AMPS ball adapter |
| Locking | Key lock (2 keys included) |
| Power / Charging | USB-C input; output 5–20 V DC / 3 A / 60 W; IntelliSkin Next Gen sleeve required |
| Material | High-strength composite |
| Weight | 0.78 kg (1.72 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Locking GDS Tough-Dock, 2 keys, mounting hardware |
More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Locking | Ports / connector | Price | ||
|---|---|---|---|---|---|
 |
RAM-GDS-DOCK-SAM76CPU | Latch | Power only | 162,50 €+VATOut of Stock | View |
 |
RAM-GDS-DOCK-SAM76CU | Latch | USB-C 3.1 data | 192,58 €+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-SAM76CPUViewing | Key-locking | Power only | 179,73 €+VATOut of Stock | |
 |
RAM-GDS-DOCKL-SAM76CU | Key-locking | USB-C 3.1 data | 209,24 €+VATOut of Stock | View |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
RAM Mounts IntelliSkin Next Gen Protective Sleeve for Samsung Galaxy Tab S9, S9 FE, S10 FE & S10 LiteRAM-GDS-SKIN-SAM86-NG | 104,45 €+VATOut of Stock | View |
 |
RAM Mounts Ball Adapter with AMPS Plate, B-SizeRAM-B-347U | 10,37 €+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, B-Size, Medium 95 mmRAM-B-201U | 20,01 €+VATIn Stock | |
 |
RAM Mounts Double Ball Mount with Two Round AMPS Plates, B-Size, Long ArmRAM-B-101U-C | 46,06 €+VATIn Stock | |
 |
RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U | 16,47 €+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U | 29,32 €+VATIn Stock | |
 |
RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 10–30 V InputRAM-GDS-CHARGE-V3C-3U | 135,42 €+VATIn Stock | |
 |
RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 30–64 V InputRAM-GDS-CHARGE-V3CH-2U | 127,14 €+VATIn Stock |
