RAM Mounts Locking Tough-Dock for Zebra ET4x/ET401 8" with Rugged Frame (RAM-HOL-ZE20PKLU)

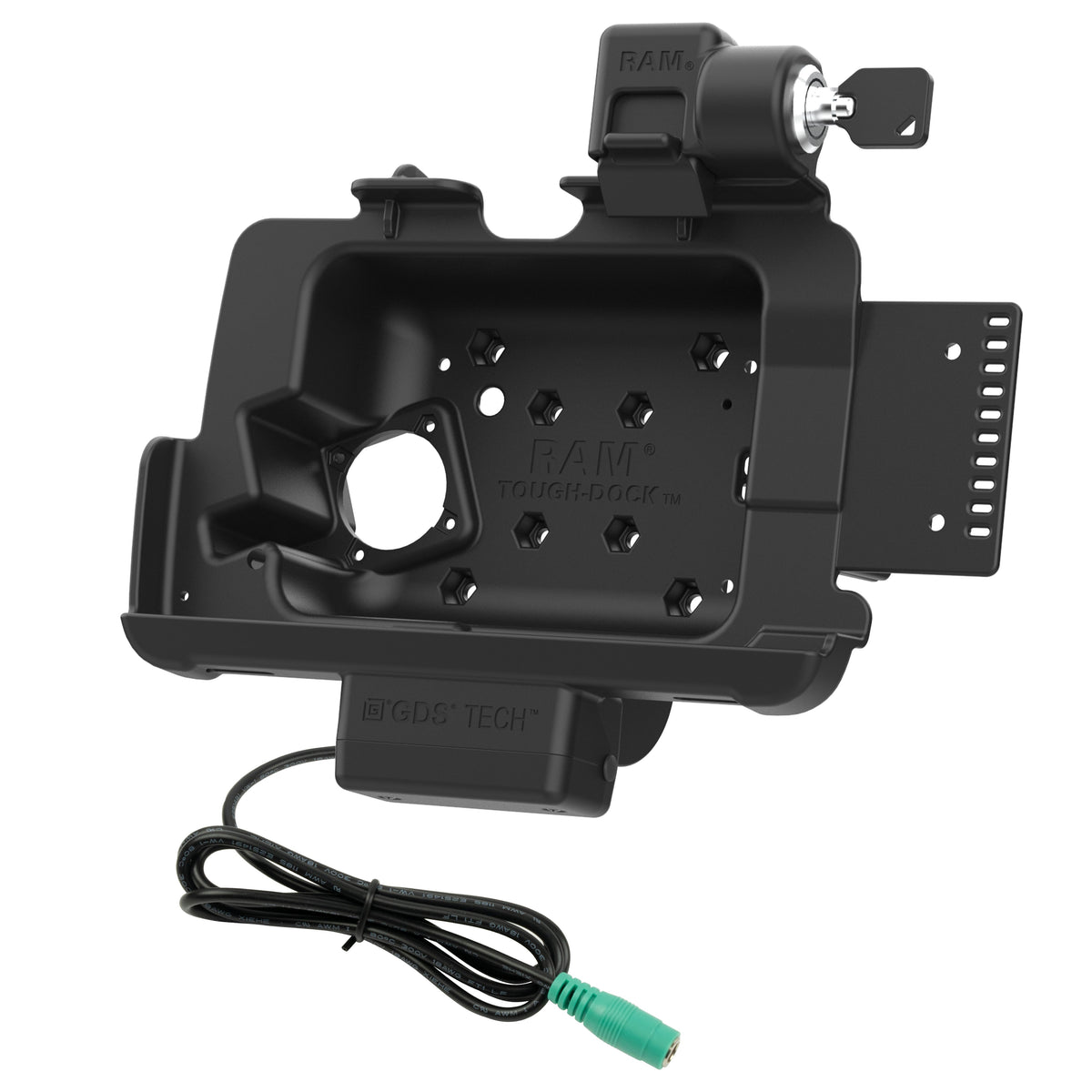

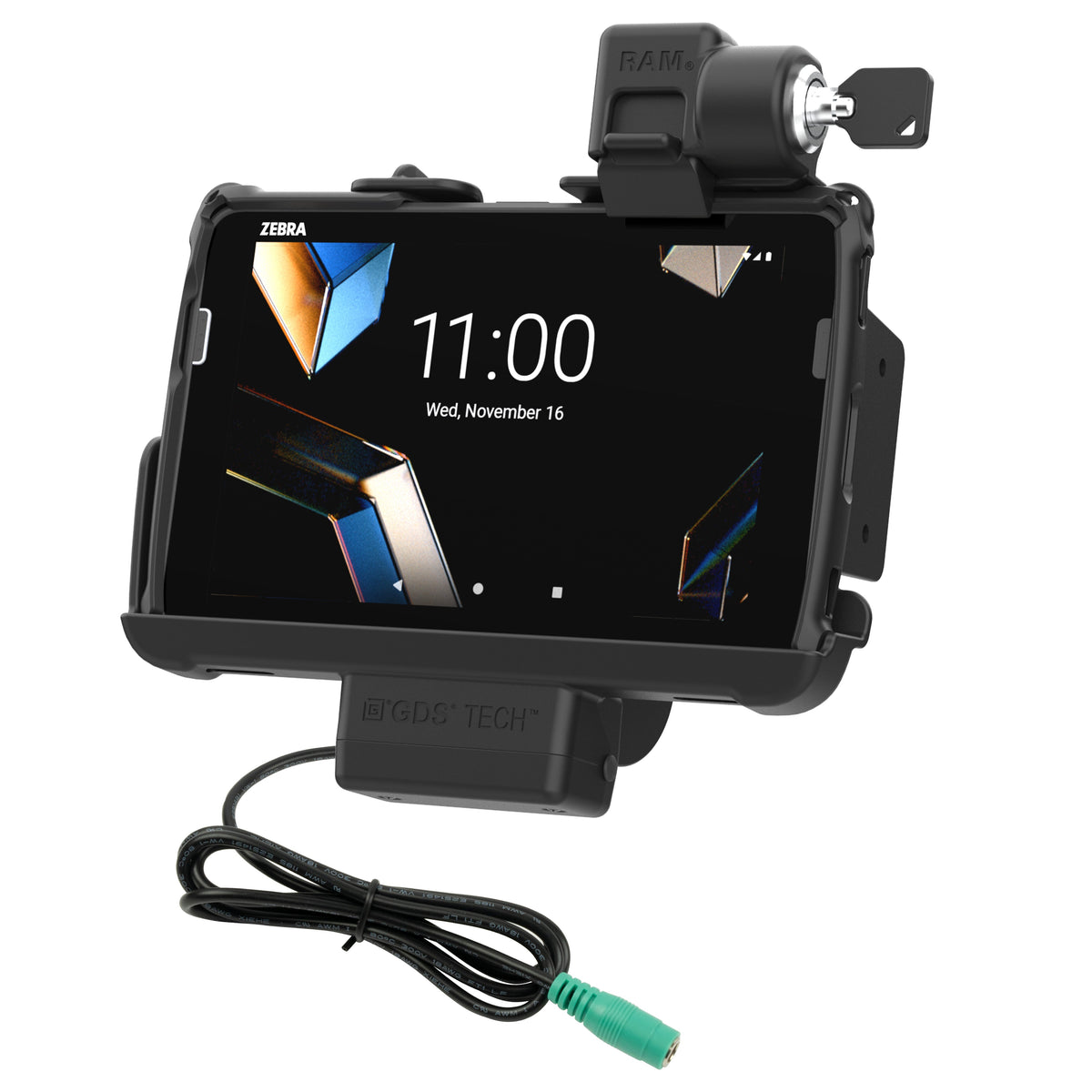

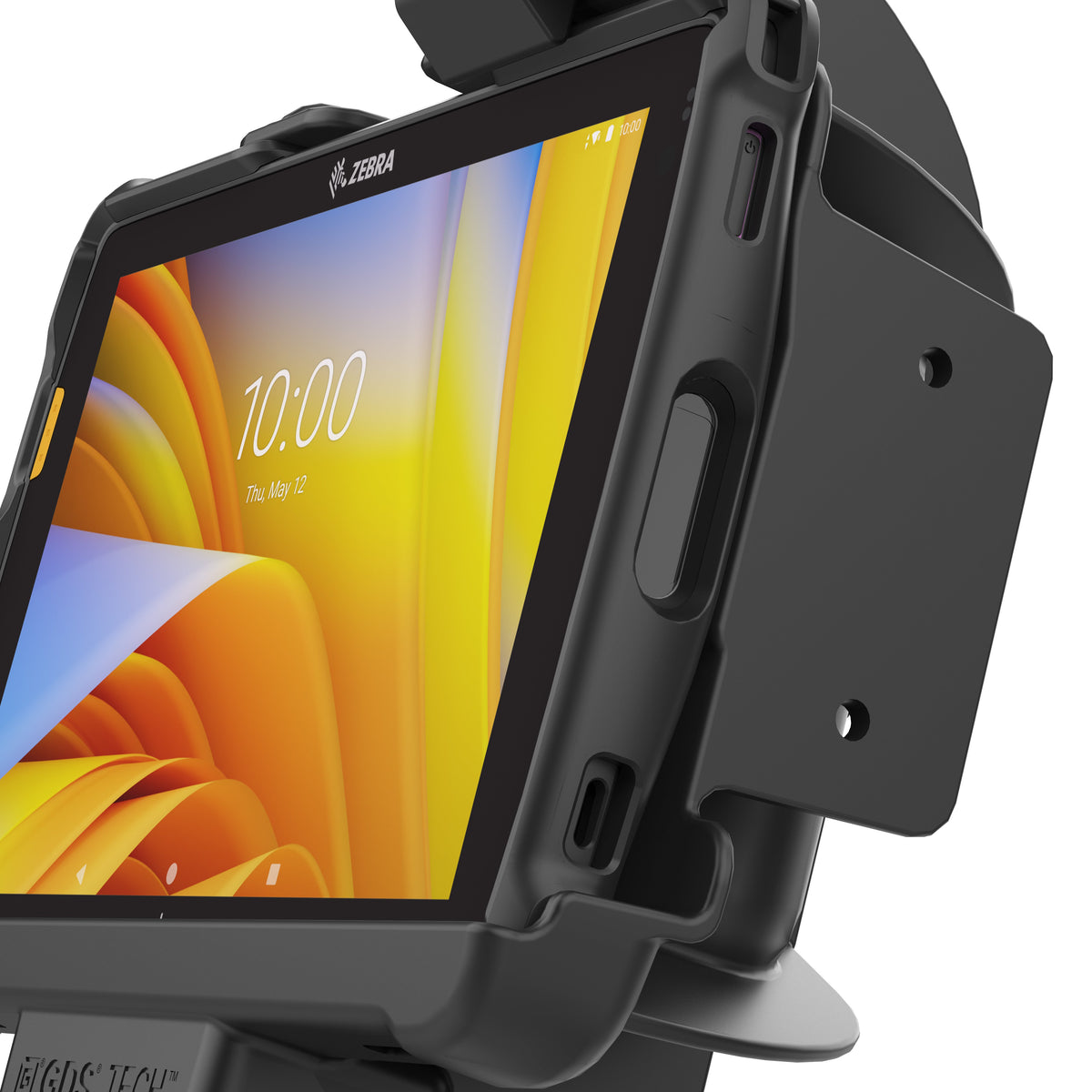

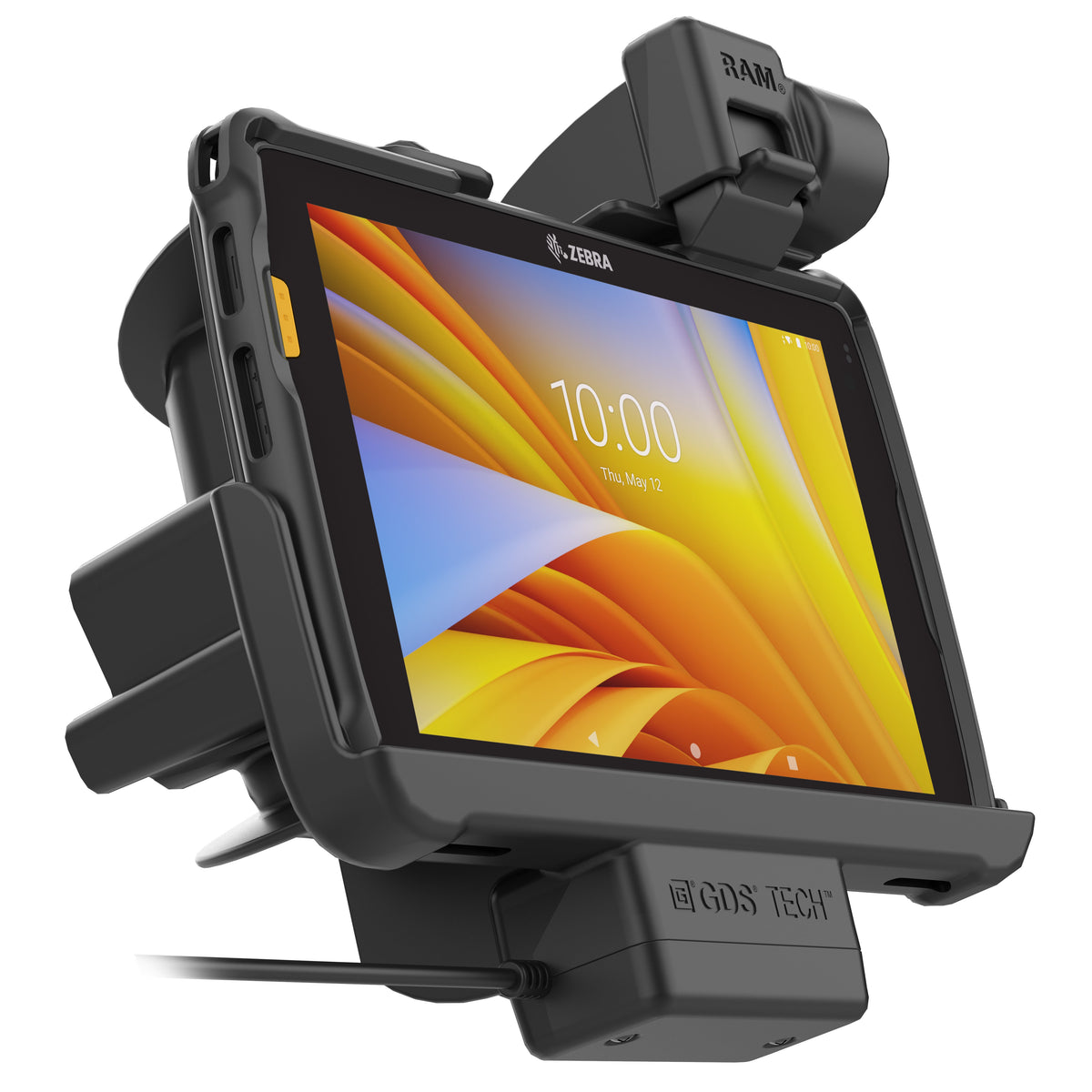

RAM Mounts Locking Tough-Dock (RAM-HOL-ZE20PKLU) is designed for Zebra ET40 and ET45 8" tablets in the Zebra Rugged Frame and for the ET401 8" with a RAM Skin – a solid choice for vans, forklifts and other mobile workstations. A 1 m input cable with a 5.5 mm DC connector supplies power, and integrated pogo pins charge the tablet whenever it is docked. A key lock (2 keys included) keeps the tablet secure. The scanner stays usable while docked, there is room for the Zebra Expansion Back and PowerPack battery, and the dock mounts to C- and D-size RAM bases with a 4-hole AMPS or 75 × 75 mm VESA pattern. For tablets in an IntelliSkin sleeve, choose the matching GDS dock instead.

Key Features

• Tough-Dock for Rugged Frame – form-fit for the ET40/ET45 8" in the Zebra Rugged Frame and the ET401 8" with RAM Skin; not designed for IntelliSkin
• 5.5 mm DC power – 1 m input cable with 5.5 mm DC connector; charging through integrated pogo pins
• Key lock – deters theft; 2 keys included
• Room for accessories – fits the Zebra Expansion Back and PowerPack battery; scanning works while docked

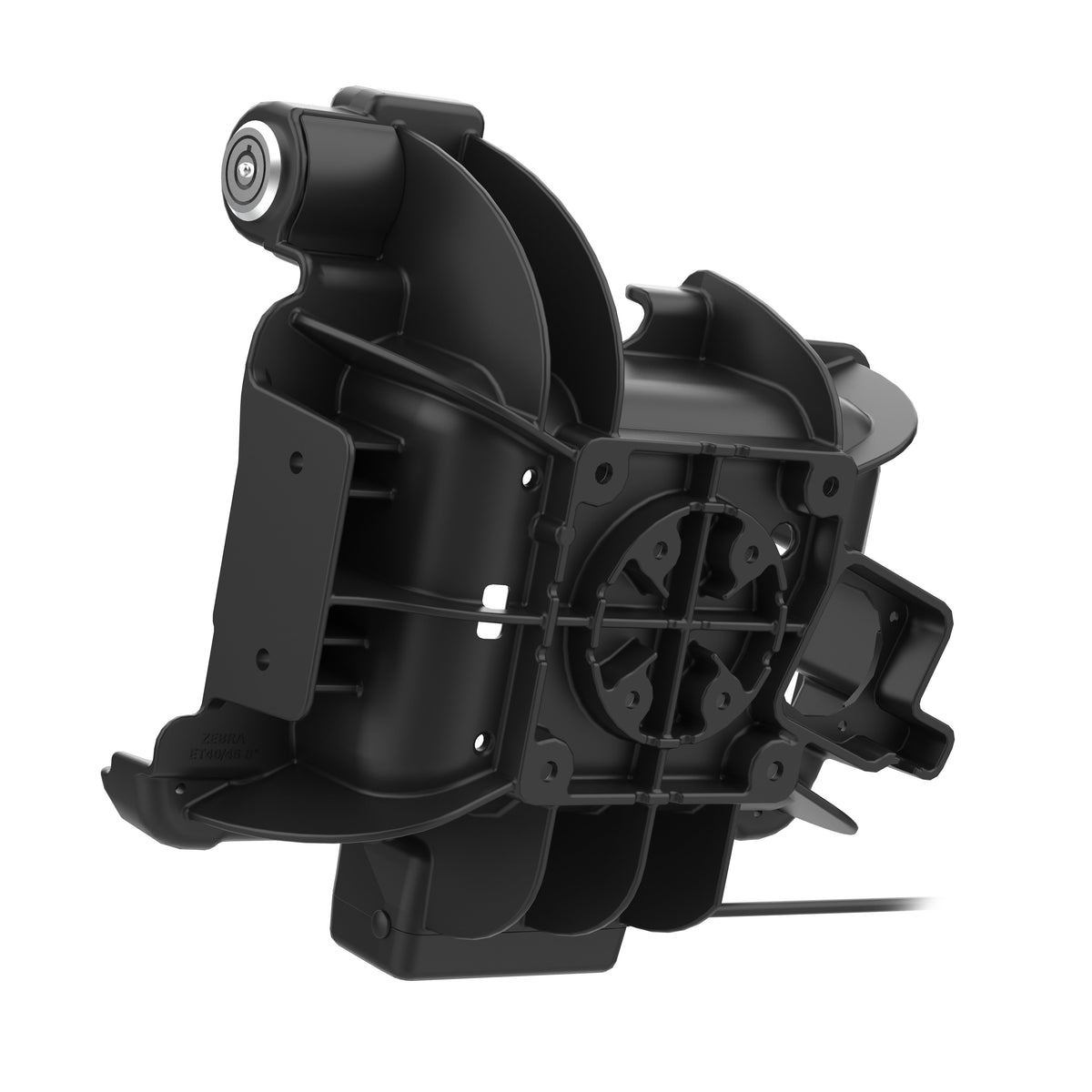

• Mounting & build – C/D-size RAM bases via 4-hole AMPS (30 × 38 mm) or VESA 75 × 75 mm; built-in 2-hole plate for a phone or handheld; high-strength composite, MIL-STD 810G shock and vibration tested; 3-year RAM warranty

Compatibility

• Zebra ET40 8" with Zebra Rugged Frame
• Zebra ET45 8" with Zebra Rugged Frame
• Zebra ET401 8" with RAM Skin
• C- and D-size RAM bases with 4-hole AMPS pattern (30 × 38 mm)
• VESA 75 × 75 mm
• RAM 2-hole diamond bases (built-in plate)

Technical Specifications

You will find the Zebra ET401 and more matching accessories in our Zebra ET401 collection, and other rugged tablets under Tablet Terminals. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
