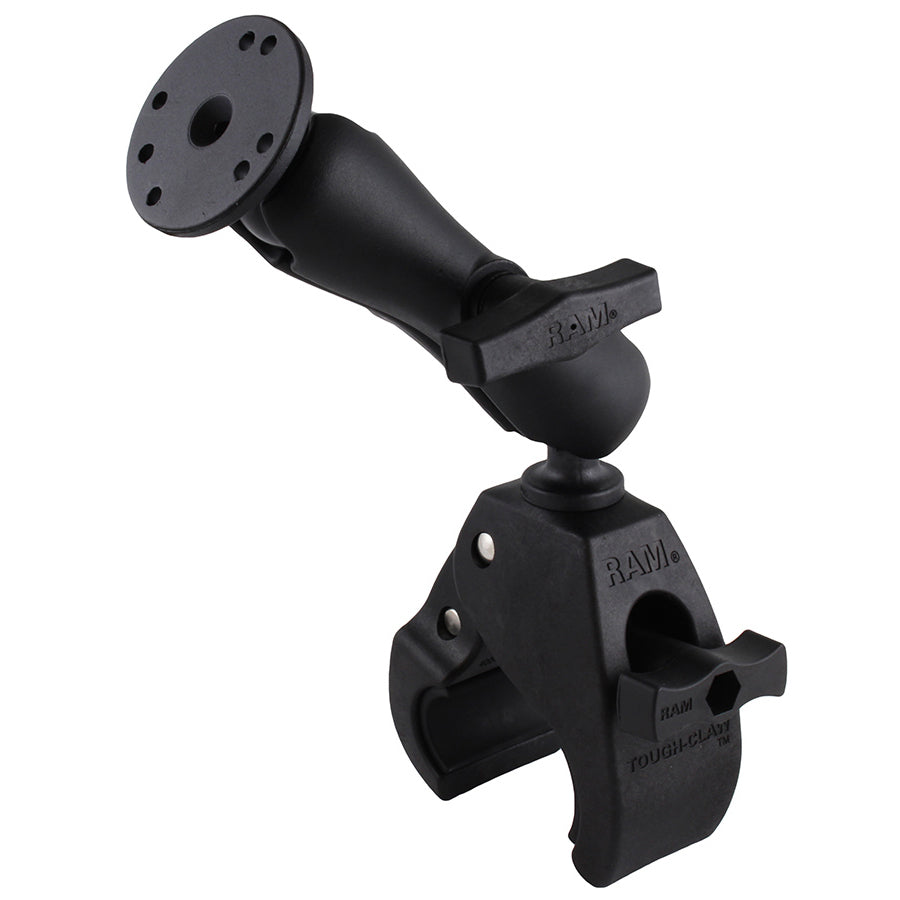

RAM Mounts Tough-Claw Large Clamp Double Ball Mount with Round Plate, C-Size (RAP-401-202U)

RAM Mounts Tough-Claw Large Clamp Double Ball Mount with Round Plate (RAP-401-202U) clamps a tablet, handheld or other device holder onto round, square or odd-shaped rails and bars with a diameter of 25–56 mm – without tools. The large Tough-Claw with rubber pads grips firmly and protects the surface, the medium 145 mm C-size (1.5") arm adjusts at both ends, and the 63.5 mm round plate with the universal AMPS pattern fits many RAM and third-party cradles. Popular on boat rails, roll bars, carts and machinery.

Key Features

• Tough-Claw clamp – clamps tool-free to round, square and odd-shaped rails and bars Ø 25–56 mm; rubber pads grip and protect the surface
• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated marine-grade aluminium and high-strength composite, backed by RAM's lifetime warranty

Compatibility

• Round, square and odd-shaped rails and bars Ø 25–56 mm
• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• Holders with the 3-hole 120° pattern (Ø 46 mm)
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications

More RAM cradles, ball bases and socket arms are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
