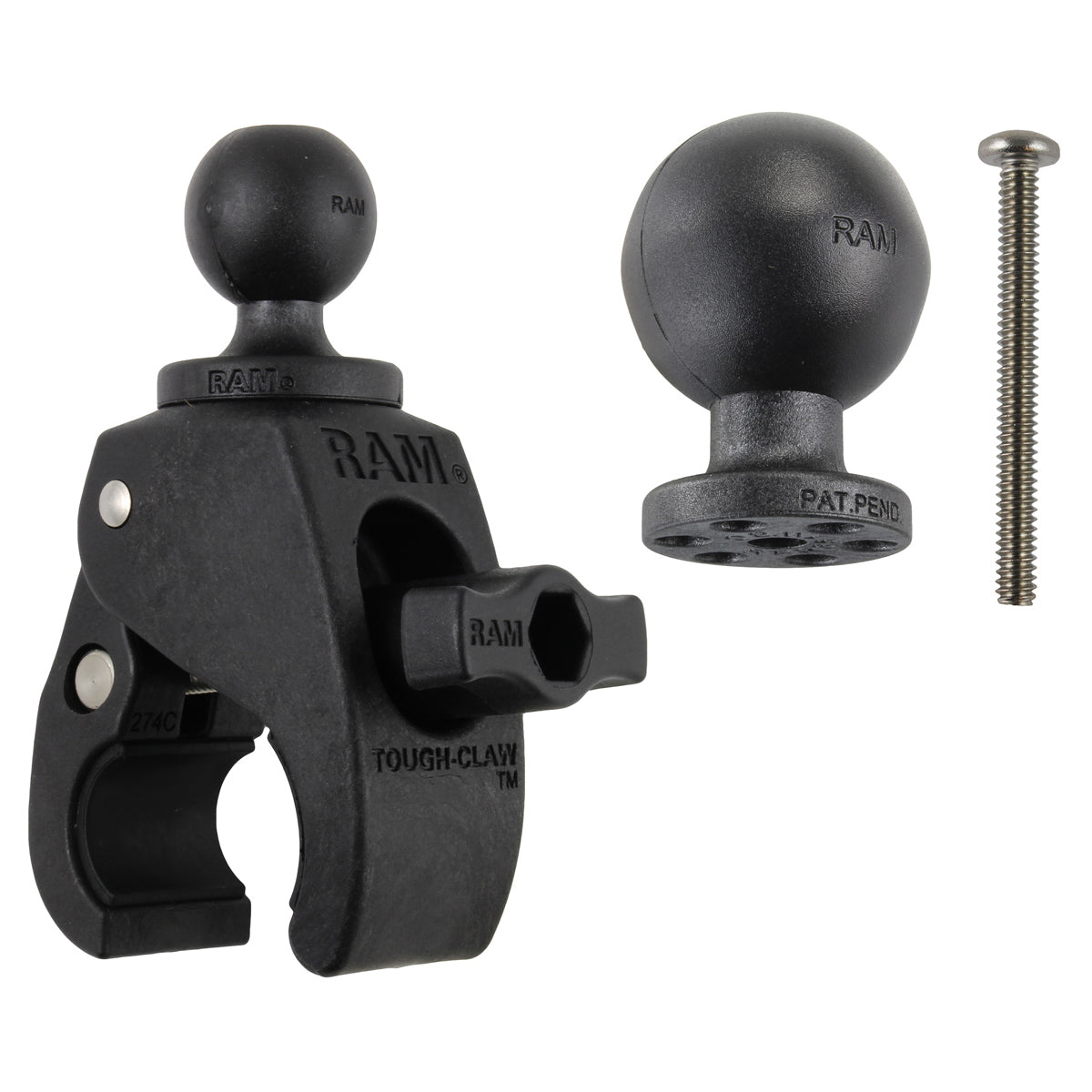

RAM Mounts Tough-Claw Small Clamp Ball Base with B- and C-Size Balls (RAP-BC-400U)

RAM Mounts Tough-Claw Small Clamp Ball Base for B- and C-Size (RAP-BC-400U) clamps tool-free onto round, square and odd-shaped rails and bars 0.625–1.14" (15.9–29 mm) in outer diameter. Rubber pads grip firmly and protect the mounting surface, and both a C-size 1.5" (38 mm) ball and a B-size 1" (25 mm) Pin-Lock ball adapter are included, so it works with RAM B- and C-size double socket arms. Because it installs and releases in seconds, it moves easily between vehicles and equipment – from handlebars and seat posts to roll bars, kayak rails or an aircraft yoke – and suits tablets, smartphones, action cameras and rod holders. It is made of high-strength composite.

Key Features

• Tool-free Tough-Claw clamp – fits round, square and odd-shaped rails 0.625–1.14" (15.9–29 mm) in outer diameter; rubber pads grip and protect the surface
• Quick to move – installs and releases in seconds, ideal for switching between vehicles, carts and equipment
• B- and C-size balls – C-size 1.5" (38 mm) ball plus B-size 1" (25 mm) Pin-Lock ball adapter for RAM B- or C-size double socket arms
• Load rating – 2 lb (0.9 kg) standard use, 1 lb (0.45 kg) heavy-duty use
• Lightweight and durable – high-strength composite, backed by RAM's lifetime warranty

Compatibility

• Round, square and odd-shaped rails and bars 0.625–1.14" (15.9–29 mm) outer diameter
• All RAM B-size (1") double socket arms and B-size ball components
• All RAM C-size (1.5") double socket arms and C-size ball components

Technical Specifications

Looking for a device to mount? Browse our Handheld Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
