RAM Mounts Weighted Composite Square Platform Base with AMPS Hole Pattern (RAP-251-1U)
Regular price
182,70 € +VAT

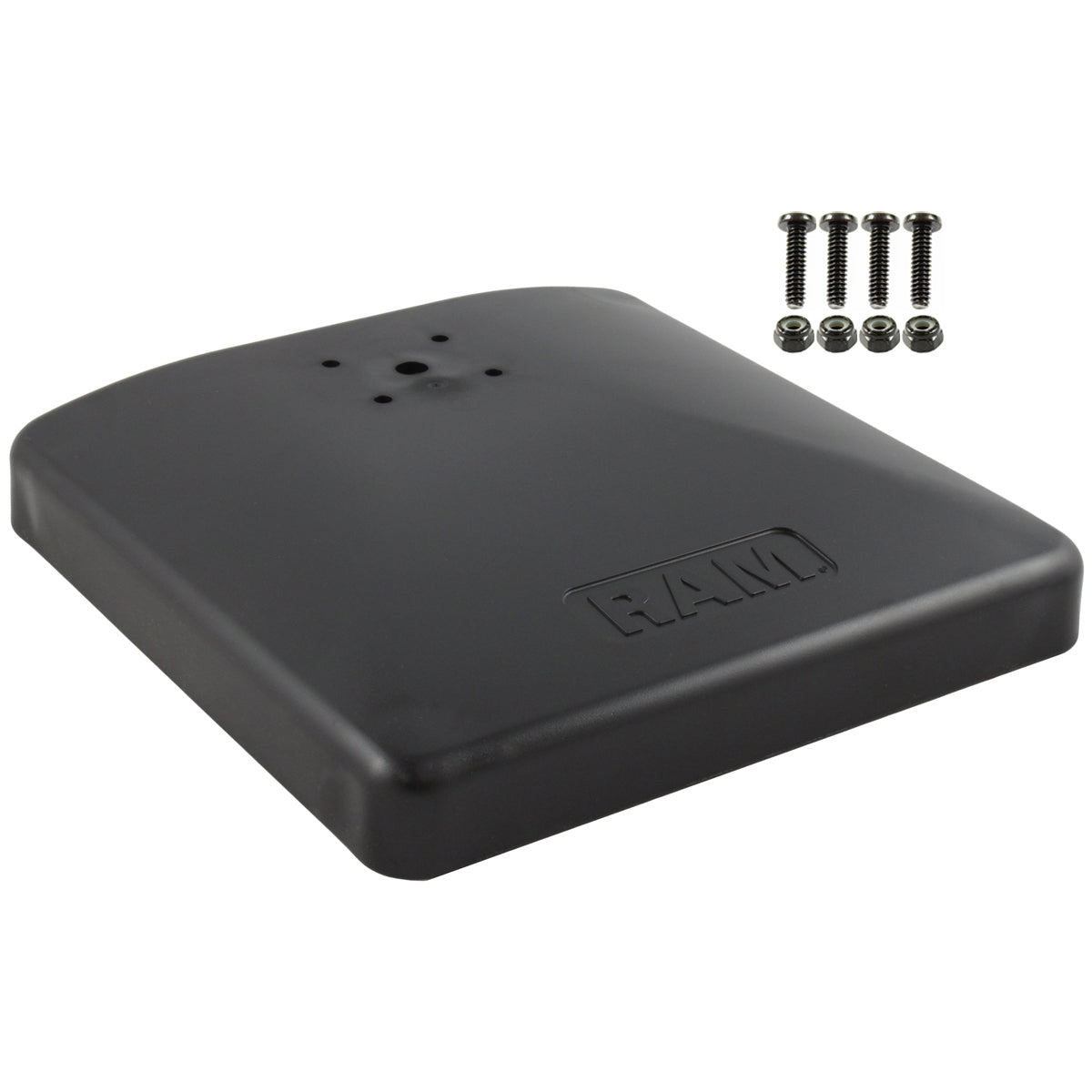

RAM Mounts Weighted Composite Square Platform Base (RAP-251-1U) is a 229 × 229 mm (9 × 9") weighted platform designed to display and use RAM products with the universal 4-hole AMPS pattern. A cast-iron weight inside the high-strength composite body (3.55 kg in total) keeps tablets, terminals and holders stable on counters, desks and showroom tables without any drilling.
📦 What's in the box – RAP-251-1U
- Weighted Composite Square Platform Base – 229 × 229 mm (9 × 9"), composite with cast-iron weight, 4-hole AMPS pattern
- Mounting hardware – 4× #10-24 x 3/4" machine screws and 4× #10-24 nyloc nuts
- Rubber pads – 4 pieces
💡 To get started, you might also consider a RAM C-size round base with ball or a B-size round base with ball for the AMPS pattern, plus a matching socket arm and device holder.
Key Features
- Free-standing mount – a non-permanent mounting point without drilling, ideal for static workplaces
- Universal AMPS pattern – 4-hole AMPS (30 × 38 mm) accepts RAM drill-down ball bases in B, C or D size
- Cast-iron weight – 3.55 kg total weight in a high-strength composite body keeps the setup stable
- Complete hardware – #10-24 machine screws, nyloc nuts and rubber pads included
Compatibility
- RAM drill-down ball bases with 4-hole AMPS pattern (30 × 38 mm), e.g. RAM-B-202U (B-size), RAM-202U (C-size) and RAM-D-254U (D-size)
- RAM device holders and cradles with the 4-hole AMPS pattern
Technical Specifications
| Part Number | RAP-251-1U |
|---|---|
| Product Type | Weighted platform base (free-standing) |
| Connection | 4-hole AMPS, 30 × 38 mm (1.181" × 1.496") |
| Material | Cast iron and high-strength composite |
| Dimensions | 229 × 229 mm (9 × 9") |
| Weight | 3.55 kg (7.82 lb) |
| In the Box | Weighted Composite Square Platform Base, mounting hardware, rubber pads |
More RAM mounting parts and accessories are waiting in our Mobile Terminal Accessories range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
