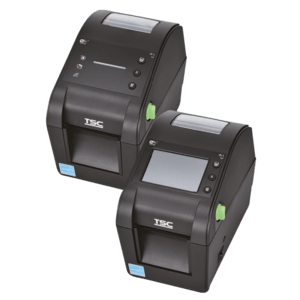

The TSC DH220LN (DH220LN-A001-0002) is a 2-inch direct thermal desktop label printer from TSC's DH-L generation, printing at 203 dpi and up to 203 mm/s (8 ips) with a max. print width of 54 mm. A 3.5" colour touch display makes setup and status checks quick. A built-in HF RFID encoder (13.56 MHz) writes ISO 15693, ISO 14443A and NFC tags while it prints. It takes label rolls up to 165 mm (6.5") OD and media 10–60 mm wide, speaks TSPL-EZD with automatic EPL, ZPL and DPL emulation and connects via USB 2.0, RS-232, 10/100 Ethernet and a USB host port. Supplied with power supply, EU power cord and USB cable – ready to print, no ribbon needed.
📦 What's in the box – DH220LN-A001-0002
- TSC DH220LN label printer – 203 dpi, 2" (54 mm), USB 2.0 + RS-232 + Ethernet + USB host
- HF RFID encoder with tear bar (factory-fitted) – 13.56 MHz – encodes ISO 15693, ISO 14443A and NFC (ISO 18092) tags during printing
- Power supply – external universal switching power supply, 100–240 V AC → 24 V DC
- Power cord – EU plug (Schuko)
- USB cable – USB 2.0 A-to-B – connect and print straight away
- Drivers & software – Windows driver, TSC Console and labeling software – free download from TSC
- Setup guide
Ready to print: power supply, power cord and USB cable are in the box – you only need labels, with HF/NFC inlays for RFID encoding (no ribbon required).
💡 To get started, you might also consider HF/NFC RFID labels for encoding, plus a standard Ethernet cable if you want to connect the printer to your network.
Key Features
- Direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 54 mm, labels up to 25.4 m long
- 3.5" colour touch display (480 × 320) with feed, pause and reprint buttons
- Large 165 mm (6.5") label roll capacity on 25.4–38.1 mm cores – fewer roll changes than with 127 mm printers
- Media 10–60 mm wide: continuous, die-cut, black-mark, fanfold and notched labels plus wristbands; linerless media with the linerless kit
- Built-in HF RFID encoder (13.56 MHz; ISO 15693, ISO 14443A, NFC/ISO 18092) with encode-during-print and auto calibration
- TSPL-EZD firmware with automatic EPL, ZPL/ZPL II and DPL language switching – existing label templates print unchanged
- USB 2.0, RS-232, 10/100 Ethernet and USB host as standard; Wi-Fi + Bluetooth 5.0 or Bluetooth 5.3 modules can be added later
- 256 MB SDRAM, 512 MB Flash, microSD slot (up to 512 GB) and real-time clock
- Remote management via embedded web page, TSC Console and SOTI Connect; HTTPS, SNMPv3 and 802.1X security
- Tool-free printhead and platen roller replacement, clamshell design and built-in buzzer
Ideal Applications
- Healthcare – HF RFID specimen tube, blood bag and patient labels
- Libraries and archives – NFC/HF item and document tags
- Retail – NFC smart labels, product authentication and loyalty tags
- Asset tracking – HF RFID tags for tools, IT equipment and returnable containers
- Pharmacy and laboratory – traceable sample and medication labels
All DH220LN Versions
The highlighted row is the version you are currently viewing.
| Part Number | Wireless | Media Option | |
|---|---|---|---|
| DH220LN-A001-0002 (this version) | — | HF RFID, tear-off | Viewing |
| DH220LN-A001-0012 | — | HF RFID, cutter | View product |
| DH220LN-A001-0102 | Wi-Fi + Bluetooth | HF RFID, tear-off | View product |
| DH220LN-A001-0112 | Wi-Fi + Bluetooth | HF RFID, cutter | View product |
| DH220LN-A001-0202 | Bluetooth (MFi) | HF RFID, tear-off | View product |
| DH220LN-A001-0212 | Bluetooth (MFi) | HF RFID, cutter | View product |
Technical Specifications
| Part Number | DH220LN-A001-0002 |
|---|---|
| Model | TSC DH220LN (DH-L Series, 2-inch, HF RFID) |
| Printer Type | 2-inch direct thermal desktop label printer with HF RFID encoder |
| Print Method | Direct thermal (no ribbon) |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 203 mm/s (8 ips) |
| Max Print Width | 54 mm (2.13") |
| Max Print Length | 25,400 mm (1,000") |
| Media Width | 10–60 mm (0.39"–2.36"); below 15 mm with the narrow media adaptor |
| Roll Diameter | 165 mm (6.5") OD |
| Core Size | 25.4–38.1 mm (1"–1.5") |
| Media Types | Continuous, die-cut, black mark, fanfold, notched (outside wound), wristbands; HF RFID labels (ISO 15693 / ISO 14443A / NFC inlays); label length 5 mm – 25,400 mm |
| Sensors | Transmissive gap sensor, reflective black-mark sensor (position adjustable), head-open sensor |
| RFID Encoder | HF 13.56 MHz encoder, factory-installed: ISO/IEC 15693, ISO/IEC 14443 Type A, ISO/IEC 18092 (NFC); encode during print, auto calibration; RFID functions in TSC Console |
| Interfaces | USB 2.0, RS-232 serial, internal Ethernet 10/100 Mbps, USB host; microSD card slot |
| Wireless | None as standard – optional Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 combo module or Bluetooth 5.3 module |
| Memory | 256 MB SDRAM, 512 MB Flash; microSD expansion up to 512 GB |
| Real-Time Clock | Standard |
| Printer Languages | TSPL-EZD with automatic EPL, ZPL, ZPL II and DPL language switching |
| Fonts / Character Sets | 8 alphanumeric bitmap fonts; Monotype true-type engine; ARIALUNI.TTF Unicode font (UTF-8); 0/90/180/270° rotation |
| Barcodes | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, MSI, Plessey, Postnet, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, LOGMARS; 2D: TLC39, Codablock F, PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec, GS1 DataBar |
| Display | 3.5" colour touch display (480 × 320 px); power, feed, pause and reprint buttons |
| Media Options | HF RFID tear-off (factory-fitted) |
| Options | Wi-Fi + Bluetooth 5.0 combo module, Bluetooth 5.3 module, 10 mm narrow media adaptor, external label roll mount, KP-200 Plus keyboard |
| Management & Security | Internal embedded web page, TSC Console, SOTI Connect (licence); HTTPS, SNMPv3, 802.1X, TCP/IP port 9100 filter |
| Power Supply | External universal switching power supply: 100–240 V AC, 50–60 Hz input; 24 V DC output |
| Color | Black |
| Operating Temperature | 0–40 °C, 25–85% RH non-condensing |
| Warranty | Printer: 3 years (TSC EMEA); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| In the Box | TSC DH220LN printer (203 dpi, direct thermal, 3.5" colour touch LCD, USB 2.0 + RS-232 + Ethernet + USB host, factory-fitted HF RFID encoder, tear-off), external power supply (24 V DC), power cord (EU Schuko plug), USB cable, quick start guide |
Need a different resolution, display, wireless option or media handling? All DH220LN versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
